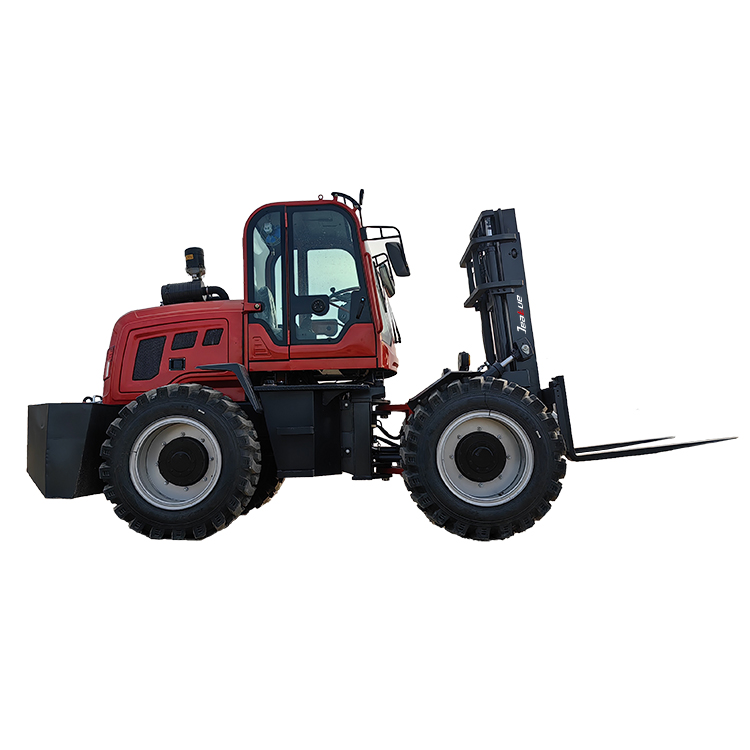

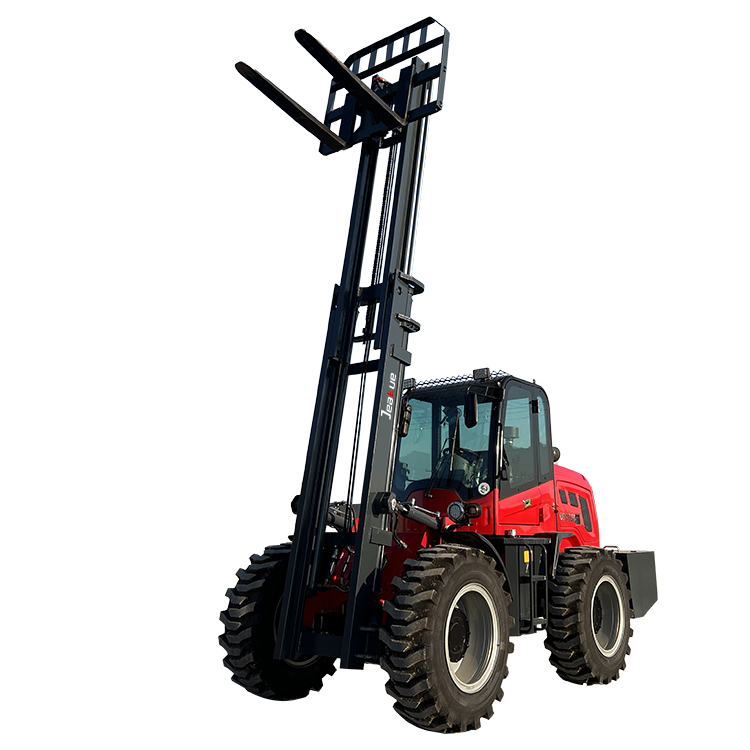

5 Ton(11023.11lb) Front Steering Off-road Forklift-CPCD50

Load capacity:5000kg(11023.11lb)

Lift height:3000mm(9.84ft)

Product Color: Ivory/Red/Customization

Description

Model	Parameter
model	CPCD50
Rated load	5000kg
Load center distance	500mm
Lifting height	3000mm
Full height of gantry	2350mm
Full height at（roof protection frame)	2650mm
Full length(without fork)	4435mm
Full width	2100mm
Wheelbase	2350mm
Towing pin height	820mm
Minimum ground clearance(at gantry)	260mm
Fork pitch outside(max/min)	1350/300mm
Track width(front/rear)	1540/1540mm
Outside of minimum turning radius	4800mm
Inside of minimum turning radius	2632mm
Gantry inclination(front/rear)	Front10°Rear12°
Fork size	122050150mm
Maximum driving speed(fullload/noload)	35/40km/h
Total weight	5700kg
Width of door lever	180mm
Tire type	PneumaticTire
Front tire	16/70-24
Rear tire	16/70-24
Service brake	Hydraulicbrake
Parking brake	Mechanicalbrake
Engine model	Weifang4102
Torque converter model	300
Engine power	78kw
Number of transmission shifts	2Front2Rear
