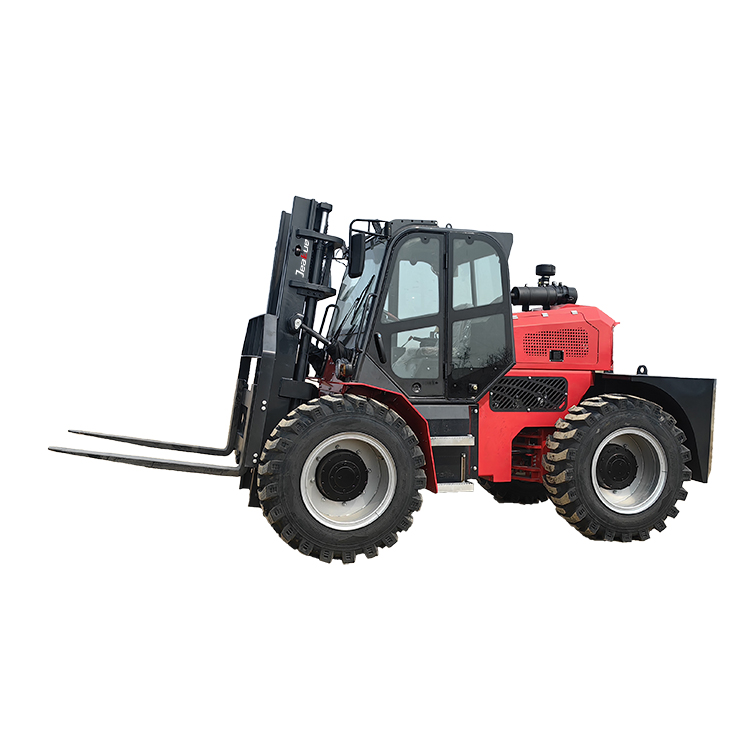

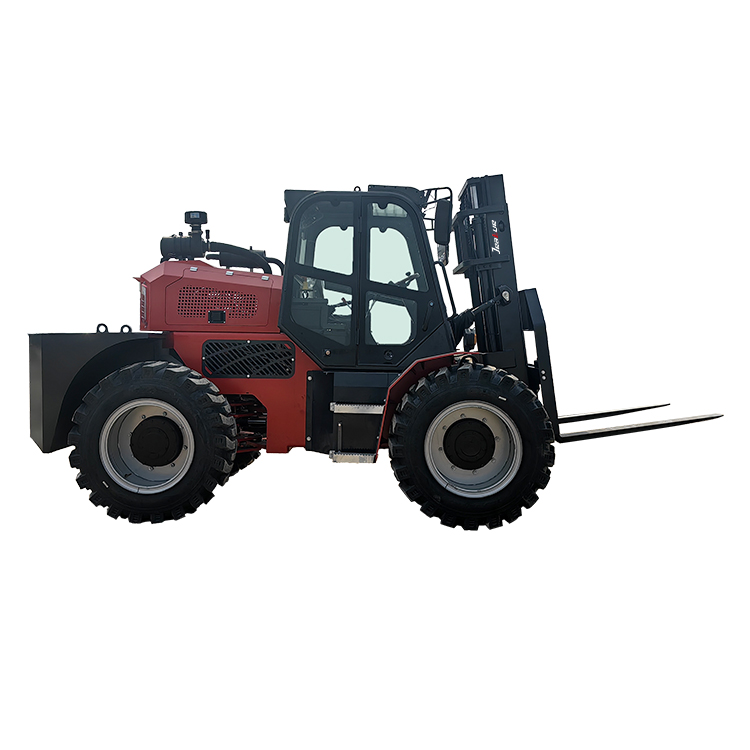

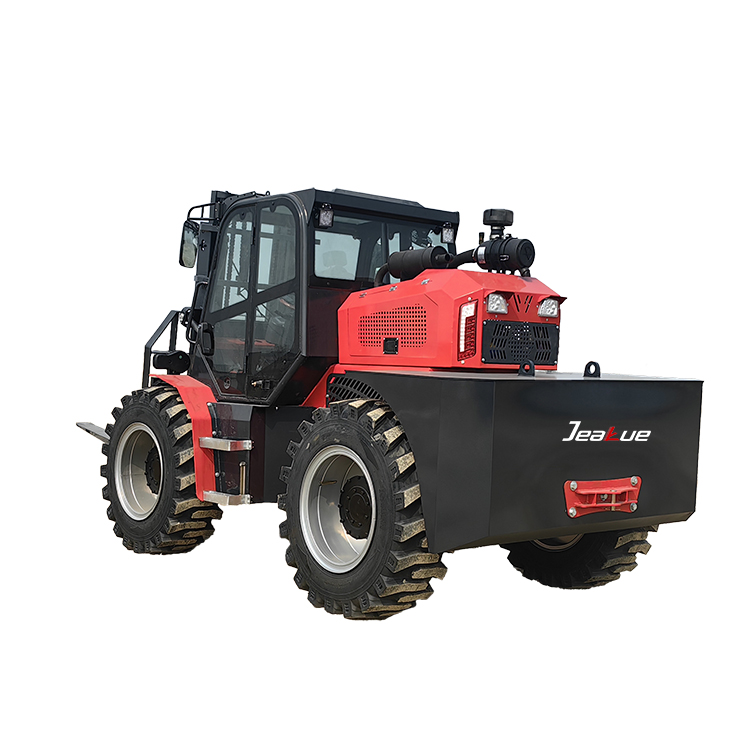

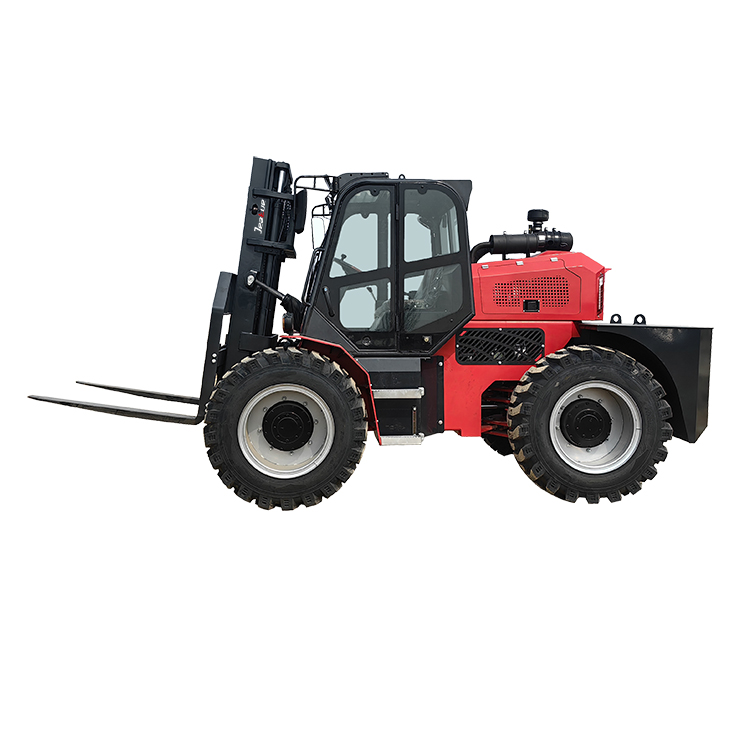

5 Ton(11023.11lb) Rear Steering Off-road Forklift-CPCD50
Load capacity:5000kg(11023.11lb)
Lift height:3000mm(9.84ft)
Product Color: Ivory/Red/Customization
Description
Specification
| Model | Parameter |
| model | CPCD50 |
| Rated load | 5000kg |
| Load center distance | 500mm |
| Lifting height | 3000mm |
| Full height of gantry | 2350mm |
| Full height at（roof protection frame) | 2480mm |
| Full length(without fork) | 3800mm |
| Full width | 2100mm |
| Wheelbase | 2280mm |
| Towing pin height | 820mm |
| Minimum ground clearance(at gantry) | 260mm |
| Fork pitch outside(max/min) | 1350/300mm |
| Track width(front/rear) | 1700mm |
| Outside of minimum turning radius | 4600mm |
| Inside of minimum turning radius | 2500mm |
| Gantry inclination (front/rear) | Front10° Rear12° |
| Fork size | 1220*50*150mm |
| Maximum driving speed (full load/no load) | 35/40km/h |
| Total weight | 7000kg |
| Width of door lever | 180mm |
| Tire type | Pneumatic Tire |
| Front tire | 16/70-24 |
| Rear tire | 16/70-24 |
| Service brake | Hydraulic brake |
| Parking brake | Disc Brake |
| Engine model | Weifang4102 |
| Torque converter model | Jinlite300 |
| Engine power | 78kw |
| Number of transmission shifts | 2*Front2*Rear |
