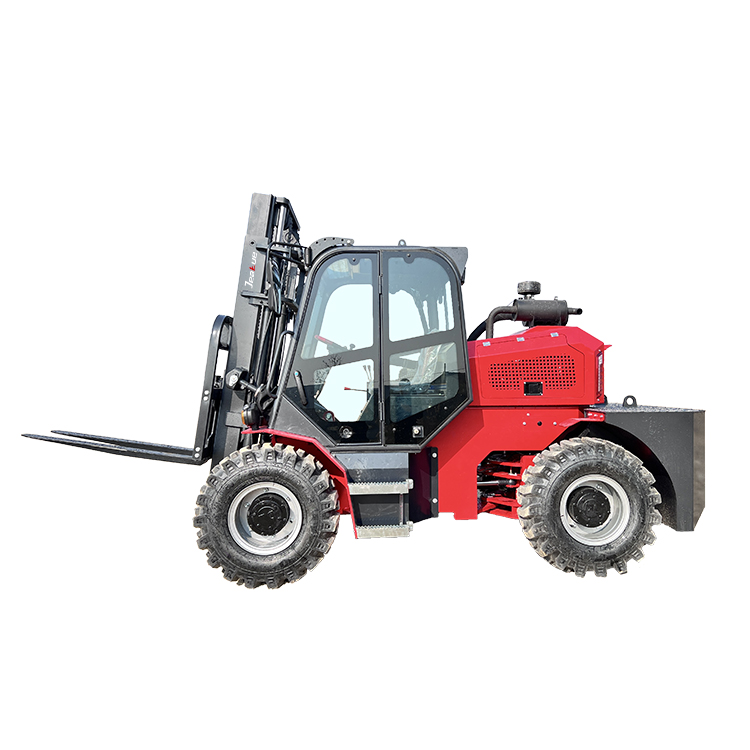

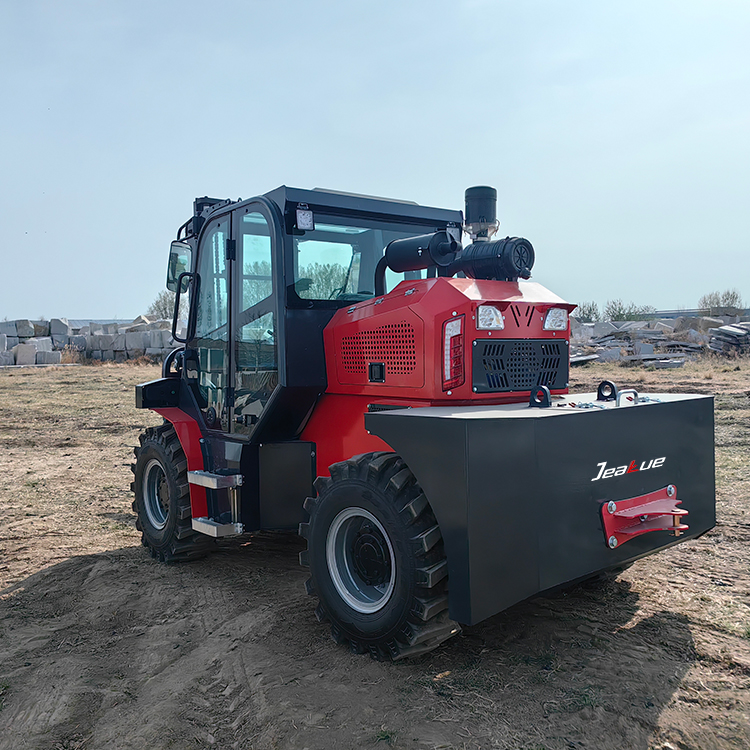

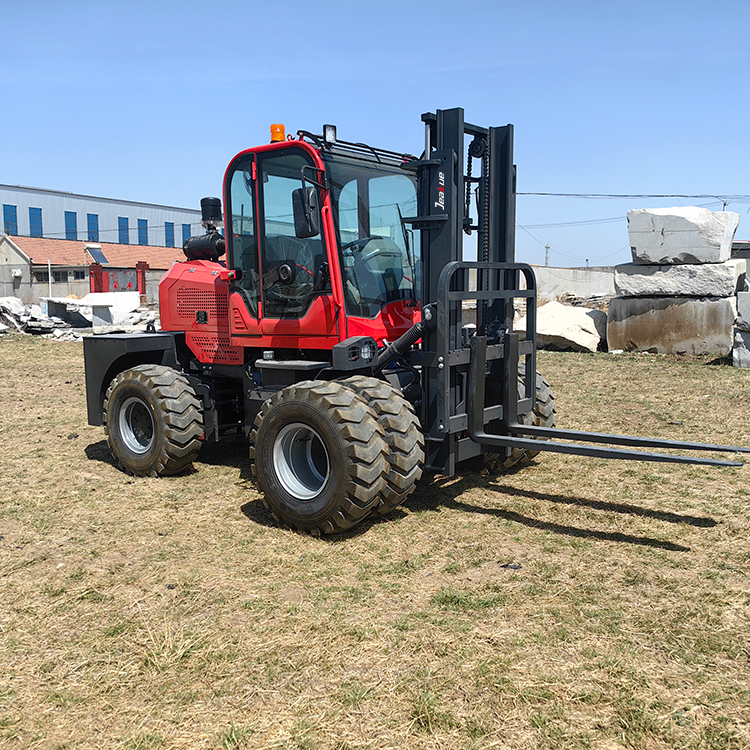

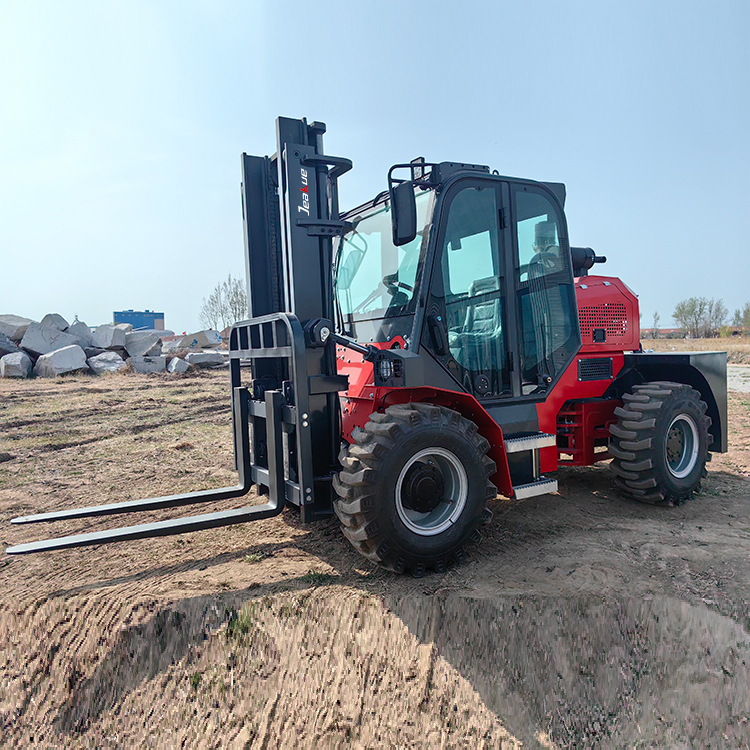

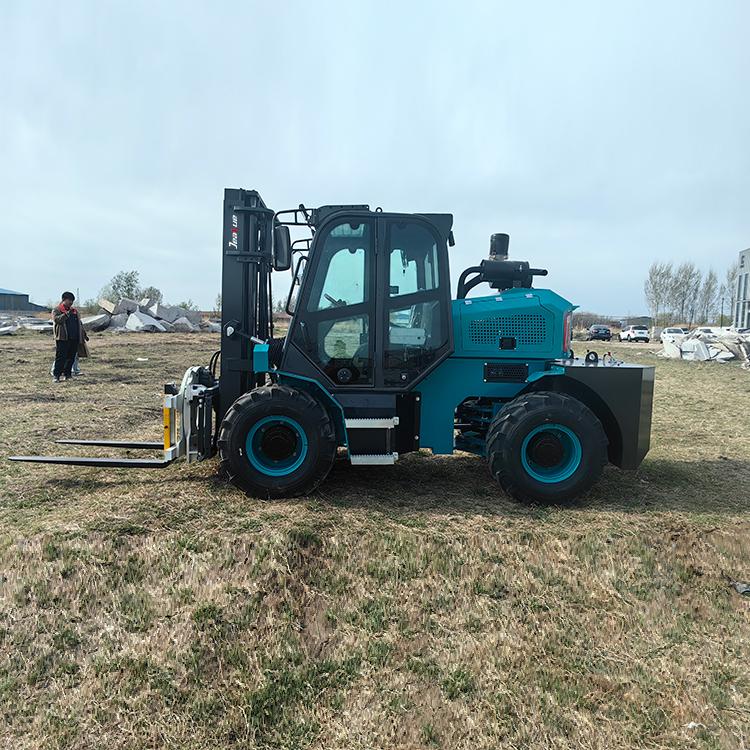

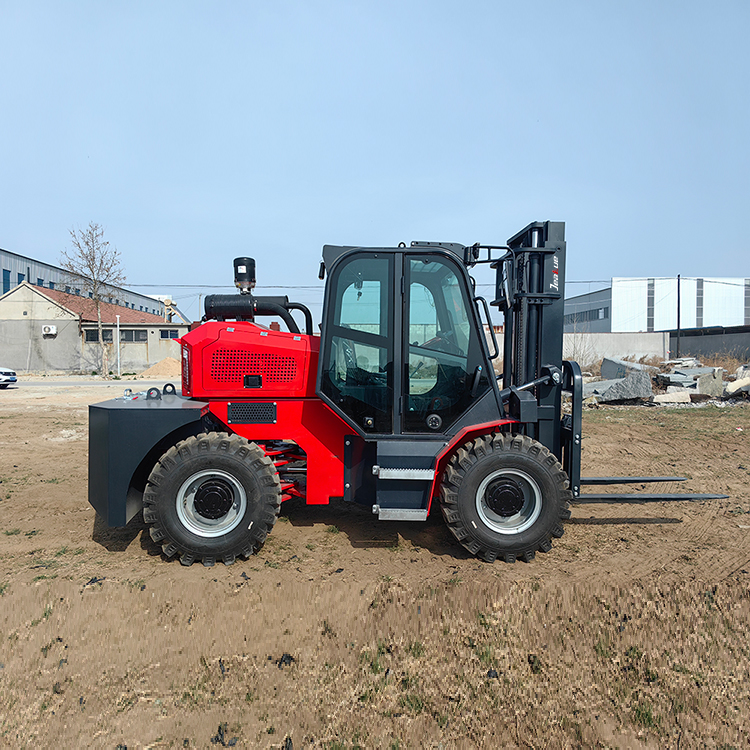

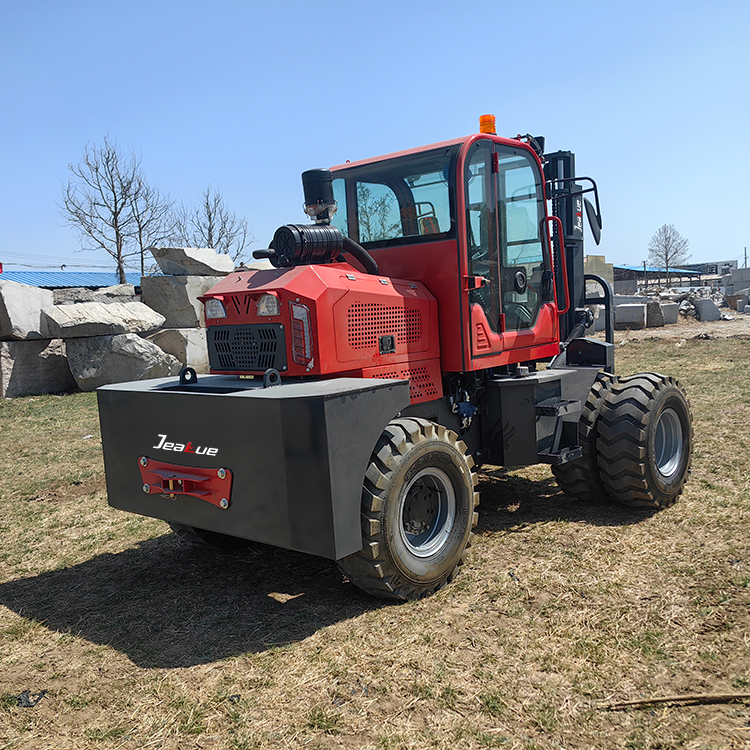

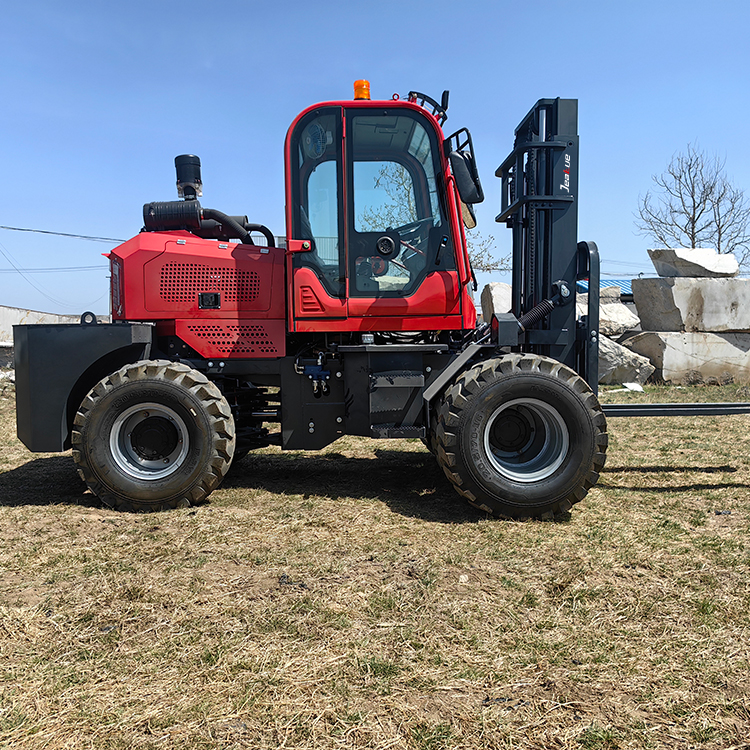

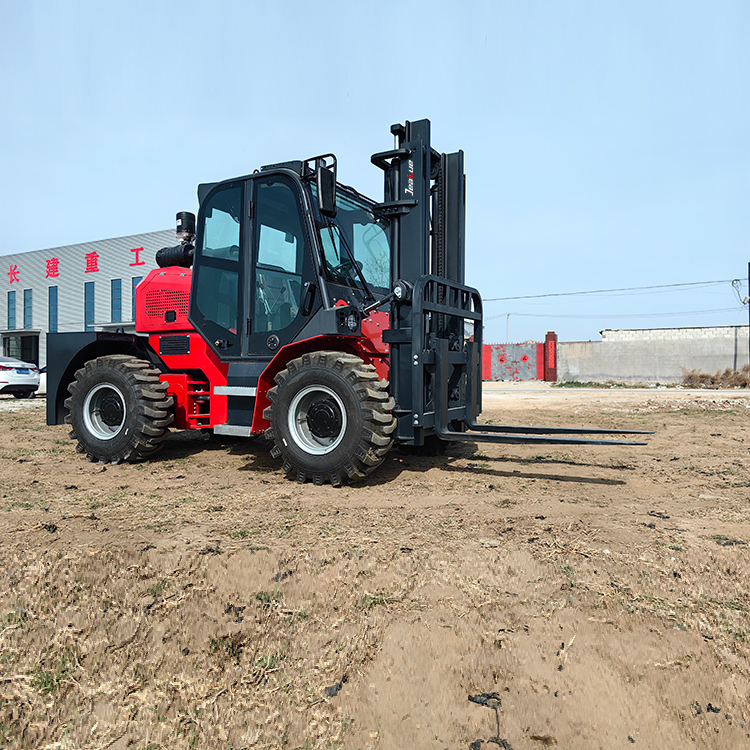

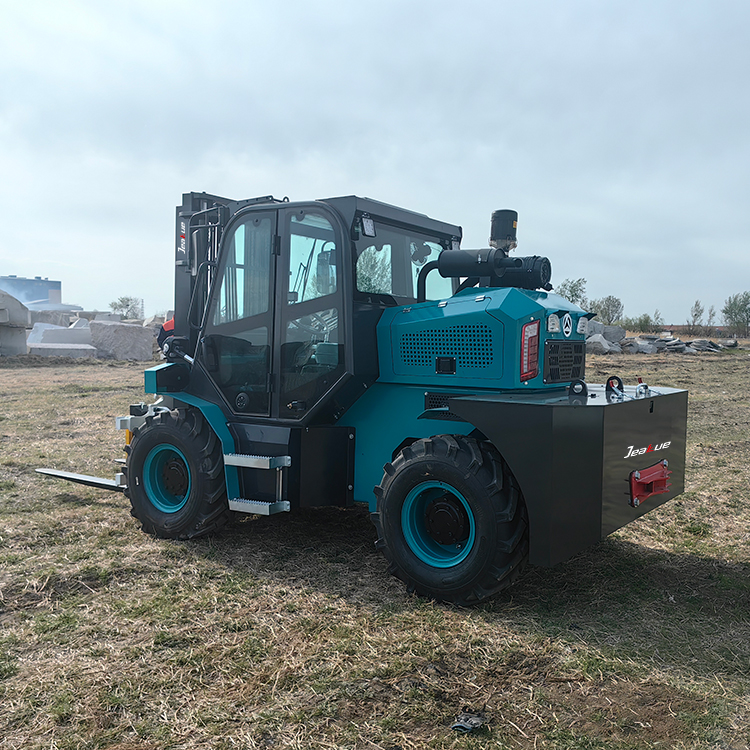

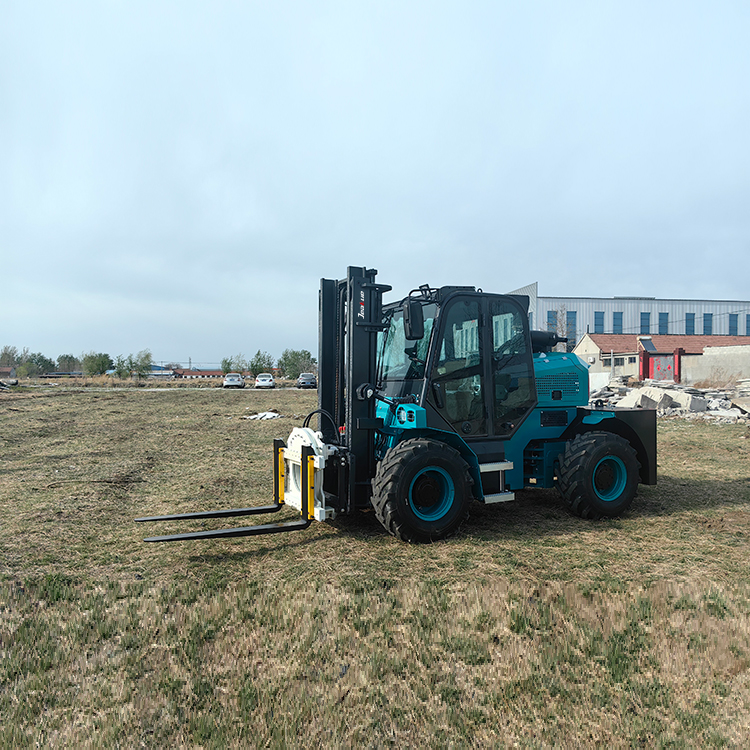

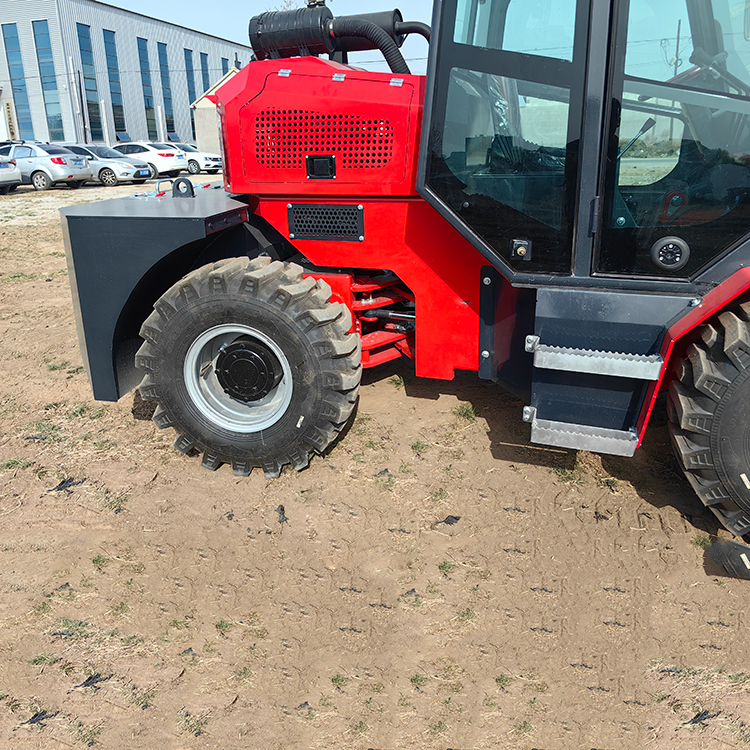

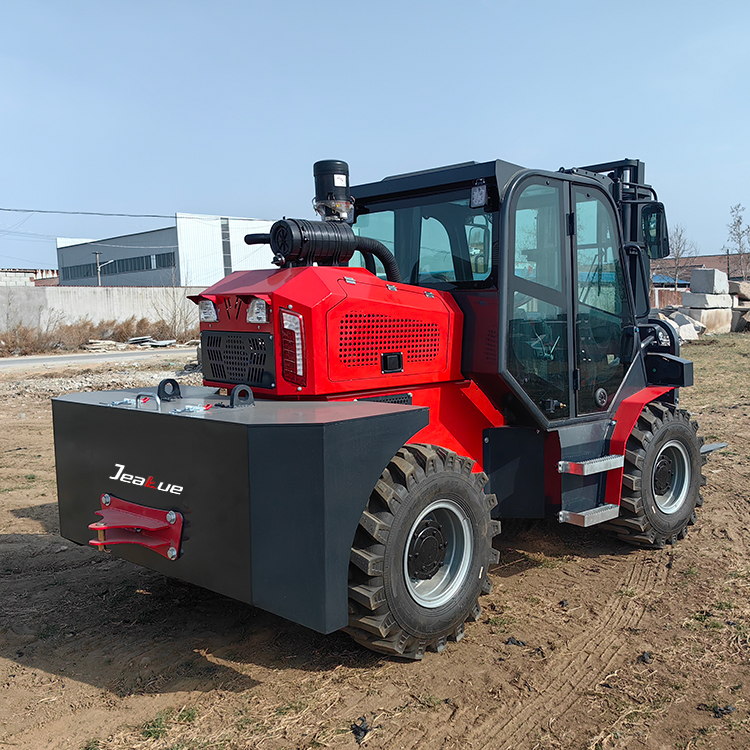

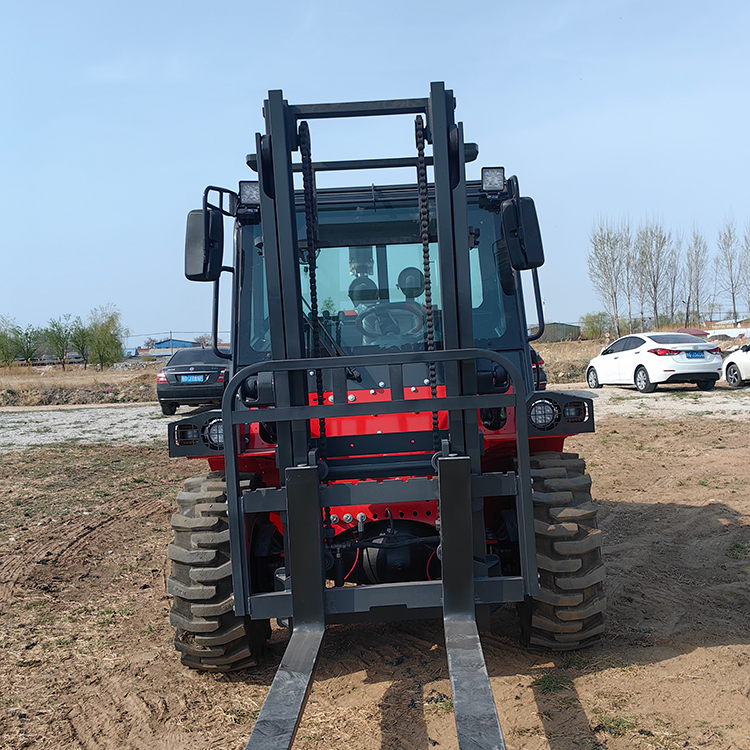

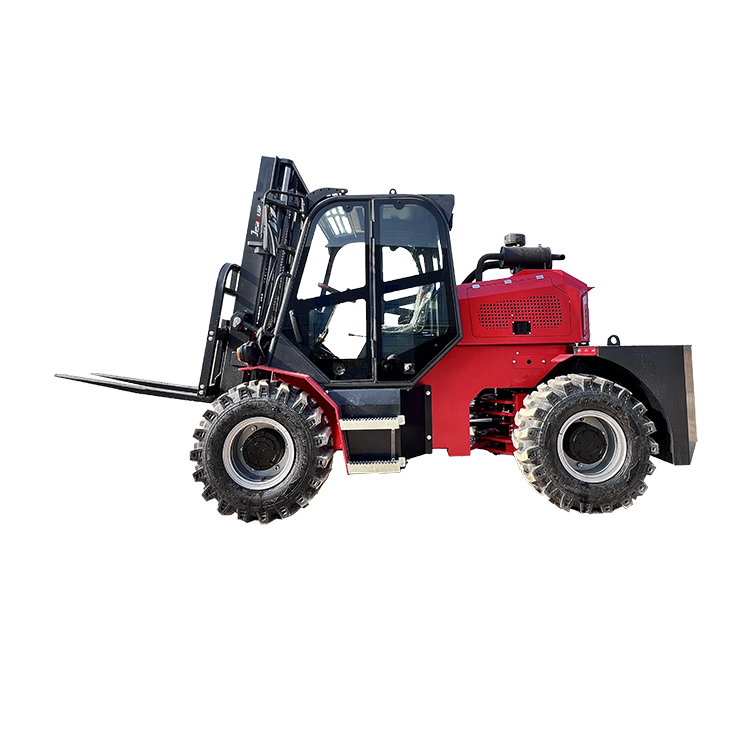

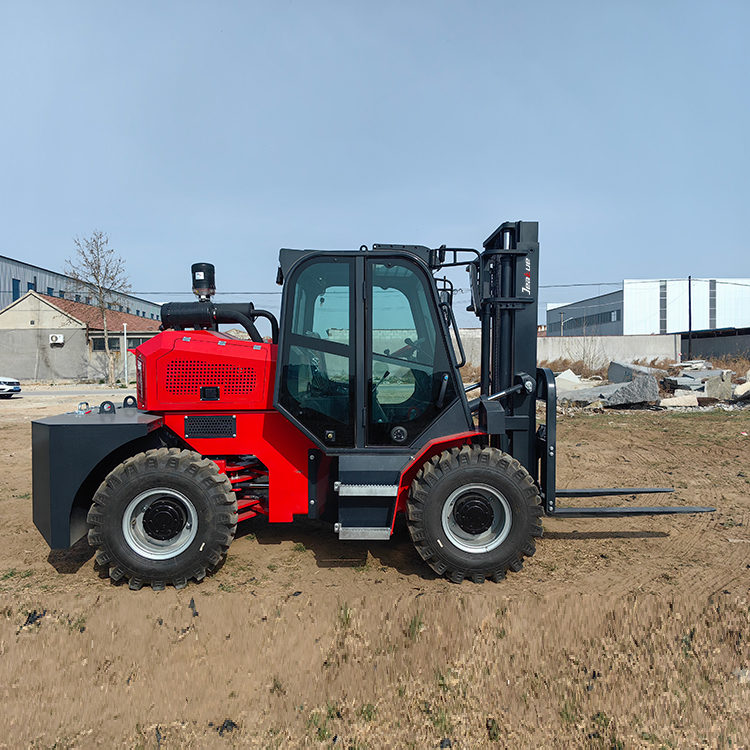

3.5 Ton(7716.18lb) Rear Steering Off-road Forklift-CPCD35
Load capacity:3500kg(7716.18lb)
Lift height:3000mm(9.84ft)
Product Color: Ivory/Red/Customization
Description
Specification
| Model | Parameter |
| model | CPCD35 |
| Rated load | 3500kg |
| Load center distance | 500mm |
| Lifting height | 3000mm |
| Full height of gantry | 2250mm |
| Full height at（roof protection frame) | 2250mm |
| Full length(without fork) | 3400mm |
| Full width | 1800mm |
| Wheelbase | 2050mm |
| Towing pin height | 620mm |
| Minimum ground clearance(at gantry) | 260mm |
| Fork pitch outside(max/min) | 1110/240mm |
| Track width(front/rear) | 1500mm |
| Outside of minimum turning radius | 3600mm |
| Inside of minimum turning radius | 1800mm |
| Gantry inclination (front/rear) | Front10° Rear12° |
| Fork size | 1220*45*120mm |
| Maximum driving speed (full load/no load) | 30/35km/h |
| Total weight | 5100kg |
| Width of door lever | 160mm |
| Tire type | Pneumatic Tire |
| Front tire | 20.5/70-16 |
| Rear tire | 20.5/70-16 |
| Service brake | Hydraulic brake |
| Parking brake | Mechanical brake |
| Engine model | Weifang490 |
| Torque converter model | 265 |
| Engine power | 42kw |
| Number of transmission shifts | 2*Front2*Rear |
