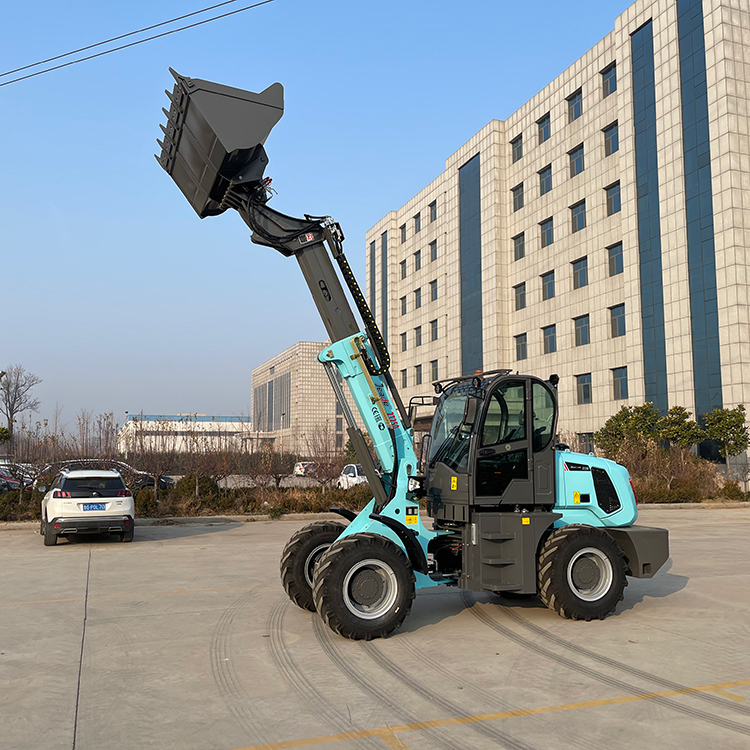

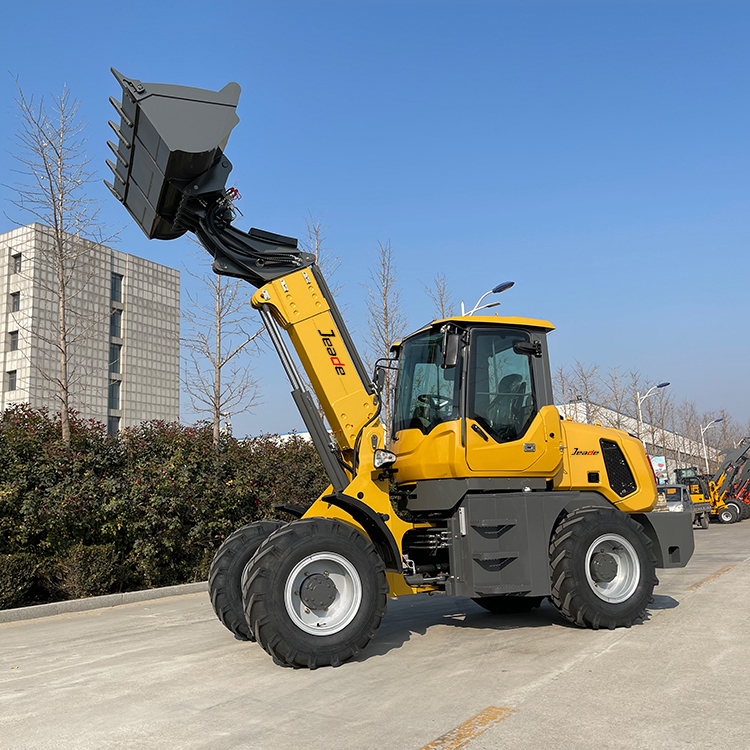

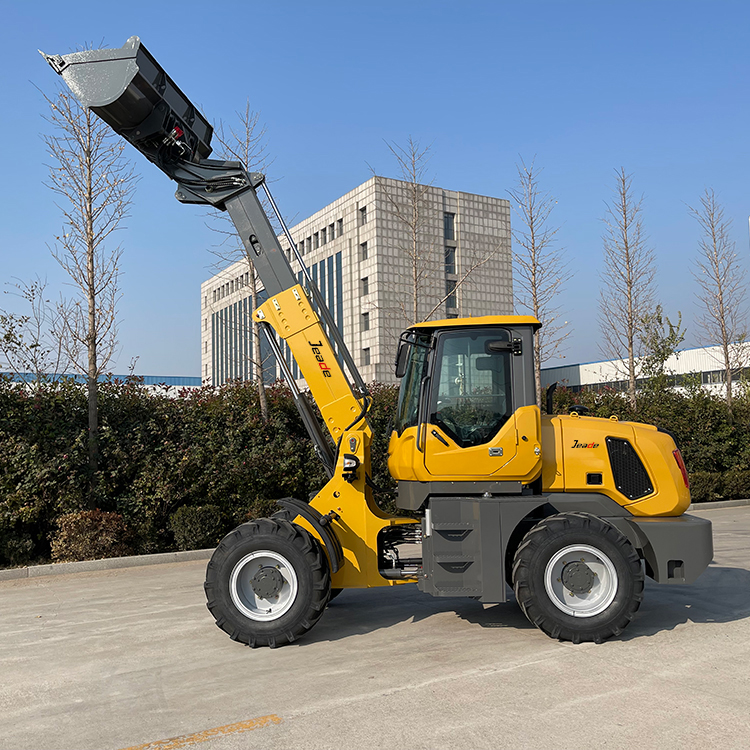

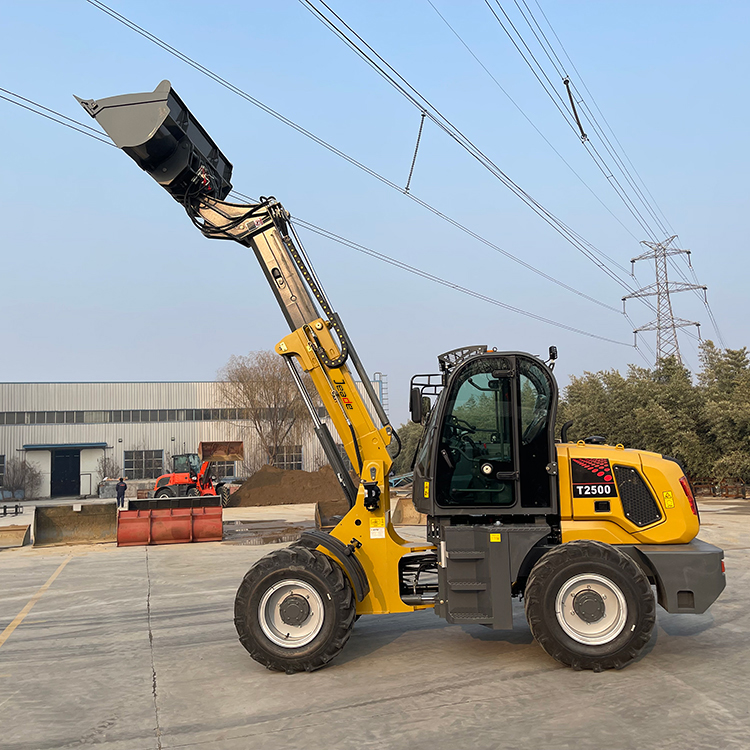

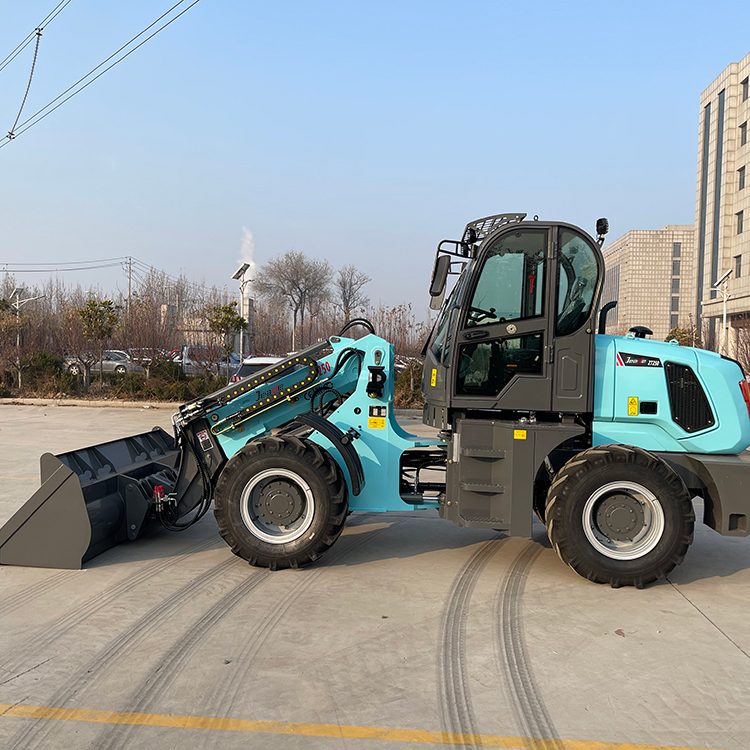

2.5 Ton(5511.56lb) Diesel Wheel Loader-T2500
Rated Load:2500kg(5511.56lb)
Lifting Height:2830mm(111.42in)
Bucket rated capacity:0.8 m³(28.25ft³)
Description
Specifications
| Performance | Rated loading (kg) | 2500 |
| Overall weight (kg) | 5100 | |
| Rated bucket capacity (CBM) | 0.8 | |
| Maximum tractive force (kn） | 35 | |
| Maximum breakout force (kn） | 25 | |
| Maximum grade ability（°） | 25 | |
| Maximum dump height（mm） | 2830 | |
| Maximum dump height（mm） | 3848 | |
| Maximum dump reach（mm） | 1124 | |
| Overall dimension (L×W×H) （mm） | 5631*1870*2736 | |
| Minimum turning radius（outside of wheels）（mm） | 5640 | |
| Maximum steering angle | 31° | |
| Oscillation angle | 5° | |
| Engine | Model | YN38GBZ |
| Type | inline 、 water cooling 、dry cylinder、 injection | |
| No. of cylinder-bore/stroke （mm） | 4-102×115 | |
| Displacement （L） | 3.8 | |
| Rated power（kW） | 76 | |
| Idel speed (r/min) | 800-850 | |
| Rated speed (r/min) | 2400 | |
| Maximum torque N.m @speed r/min | 250-270 @ 1600-1800 | |
| Min fuel-consume ratio | ≤225g/kw.h | |
| Transmission system | Torque converter | 265 |
| Gearbox mode | Power shift normally engaged straight gear | |
| Gear shift | Mechanical， 2forward shift 2 reverse shift | |
| Maximum speed (km/h) | 21 | |
| Drive axles | Main reducing mode | Bevel gear grade l reduction |
| Wheel base (mm) | 2568 | |
| Wheel tread(mm) | 1470 | |
| Ground clearance(mm) | 358 | |
| Hydraulic system | System working pressure (Mpa) | 20 |
| Boom lifting time (s) | 7.2 | |
| Total time (s) | 12.9 | |
| Fuel tank capacity (L) | 94 | |
| Brake system | Service brake | Air-assist hydraulic brake, disc brake |
| Parking brake | Manual disc brake | |
| Tyre | Type specification | 16/70-20 |
| Front tyre pressure （kPa） | 350 | |
| Rear tyre pressure （kPa） | 350 |
