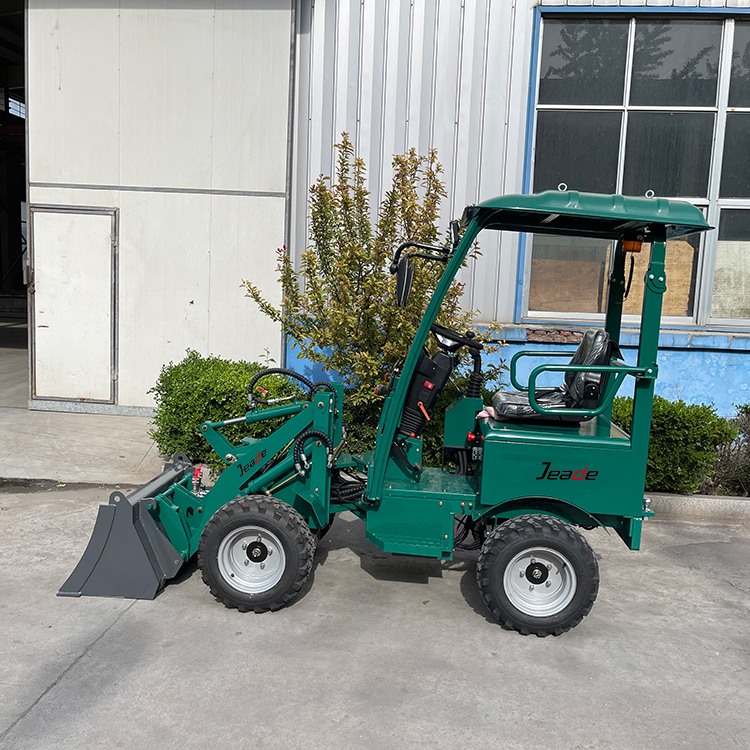

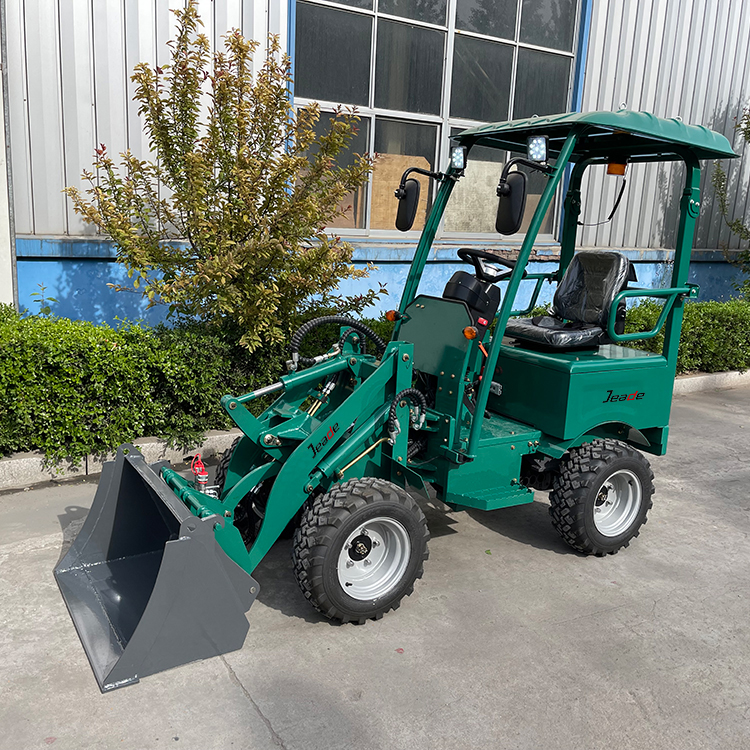

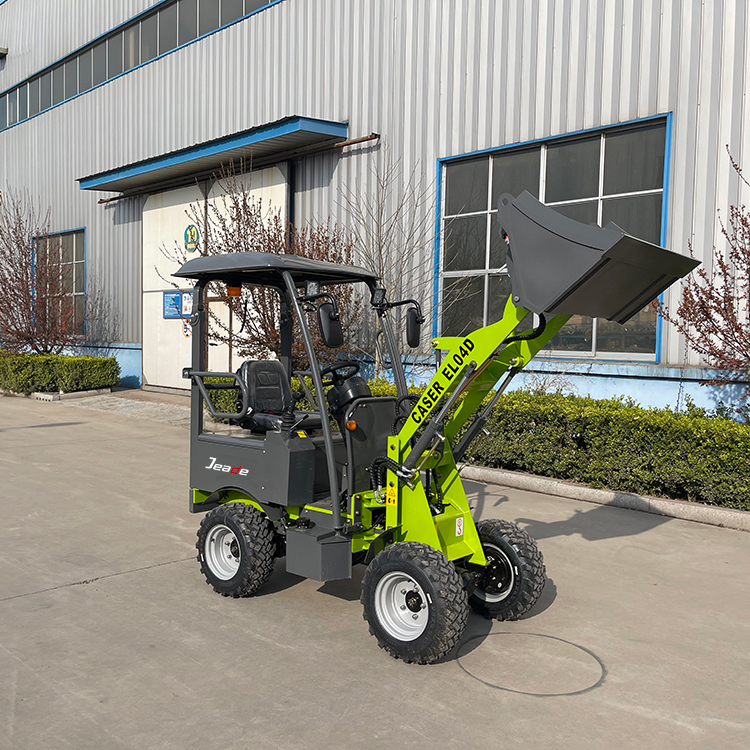

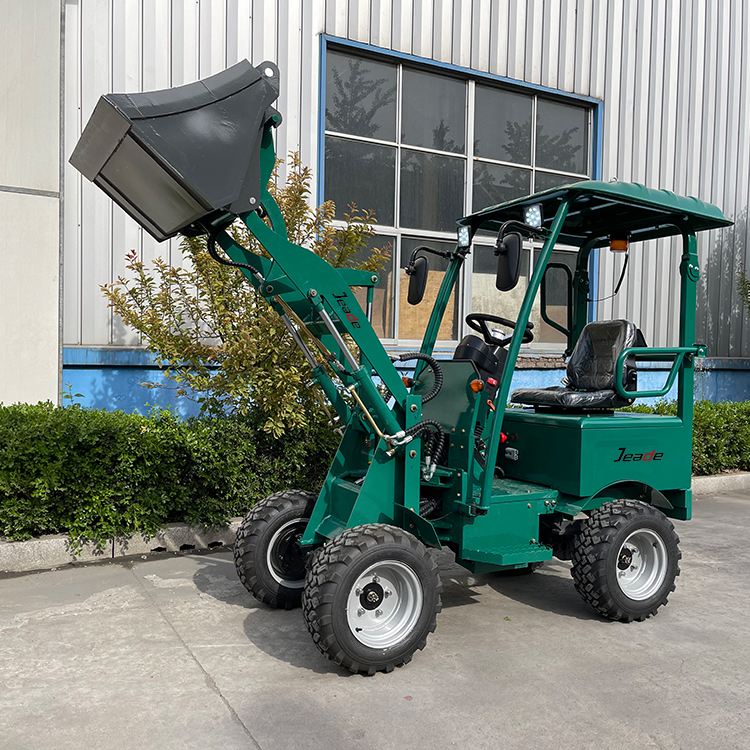

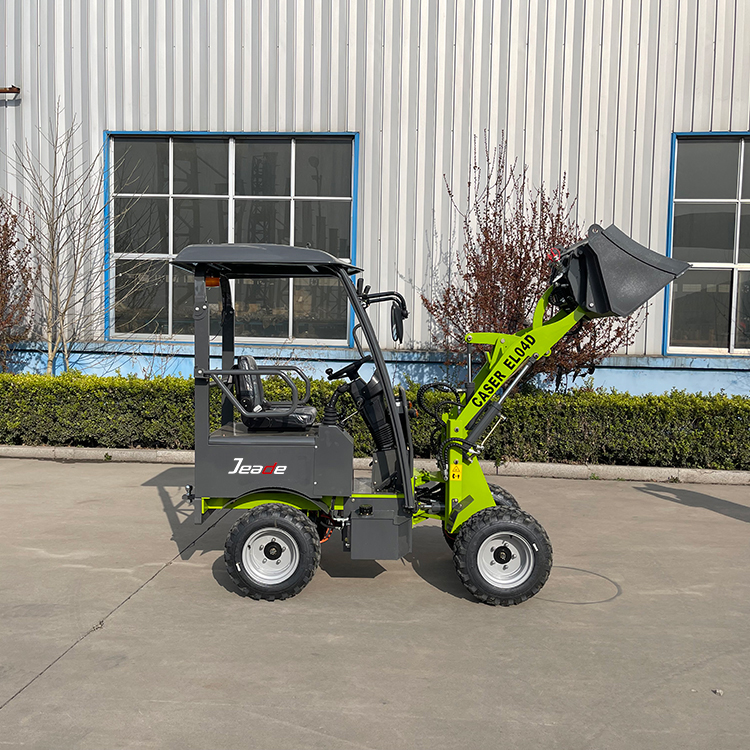

0.4 Ton(881.85lb) Electric Wheel Loader-DA04

Rated Load:400kg(881.85lb)

Lifting Height:2100mm(82.68in)

Bucket rated capacity:0.2 m³(7.06ft³)

Battery:60V100Ah

Description

Performance	Rated Load（t)		0.4
	Bucket rated capacity（m)³		0.2
	Dumping height（mm)（at 45°）		1350
	Lifting Height（mm)		2100
	Dumping Reach（mm)		450
	Max. Lifting weight（kg）		400
	Max. Excavation Force（kn)		8
	Max. Grade ability		25
	Max. Turning Angel		28°±1
	Swing degree of the rear axle		3
Dimensions. &.Weight	Overall length（Bucket on Ground position）mm		2900
	Bucket width（overall width）		900
	Overall Height(mm)		2070
	Wheel base(mm)		1387
	Min Ground Clearance(mm)		300
	Net Weight（kg)		1000kg
Battery	Battery Model No.		6-EVF-100A
	rated capacity（3hr)		100Ah
	No.of battery groups		5
	Rated Voltage		60V
	Working hours（h）		4h
Transmission System	Hydraulic System	Motor No.	HL-60
		Voltage	60V
		Power	1500W
		Displacement（ml/r)	14
	Tyres	Type	6.00-12
		working pressur（mpa)	0.25
		Qty	4
Steering System	Type of Steering Hydraulic System	Full Hydraulic Steering System
	System Pressure（mpa)	16
	Type of Steering Pump	External Gear Pump
	Steering Cylinder Bore（mm)	50
	Qty（pc）	1
Braking System	Service Brake		Drum Brake
	Brake Drum（mm)		200
	Parking Brake		Drum Brake
	Distribution Valve	Model	DL10
		Type	Triple valve stem
	Dumping Cylinder-Bore		ø50
	Lifting Cylinder-Bore		ø50
Oil Capacity	Hydraulic Oil Tank（L)		11
	Brake Fluid（L)		0.8
