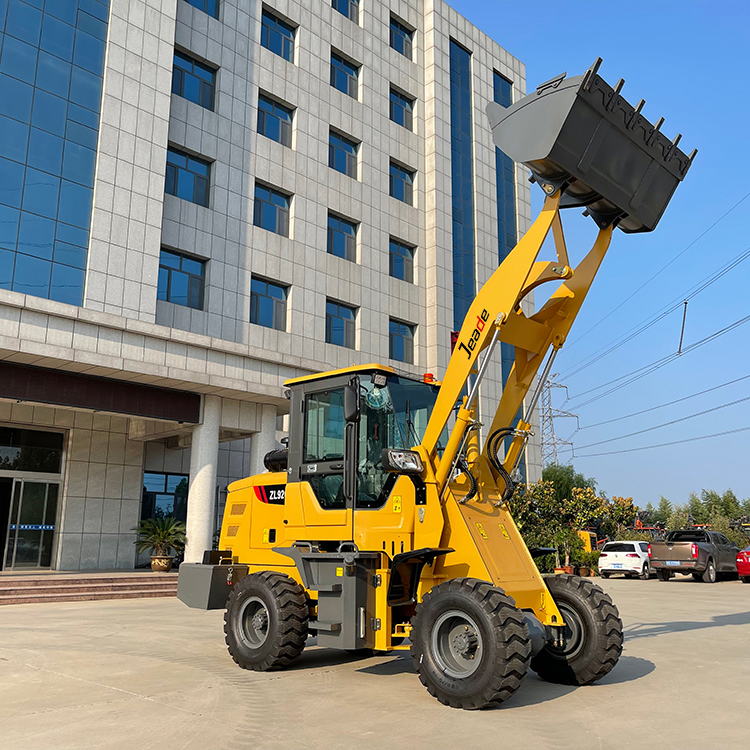

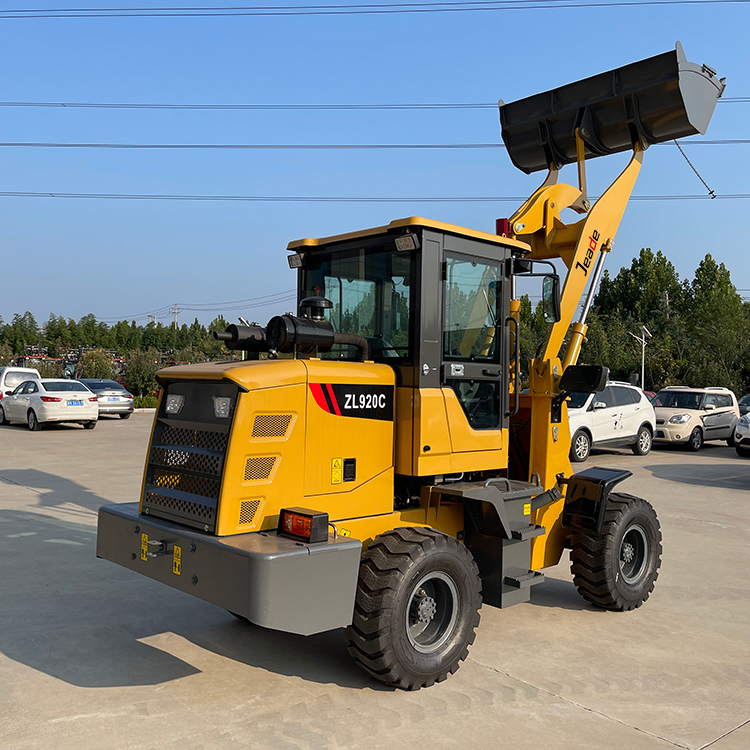

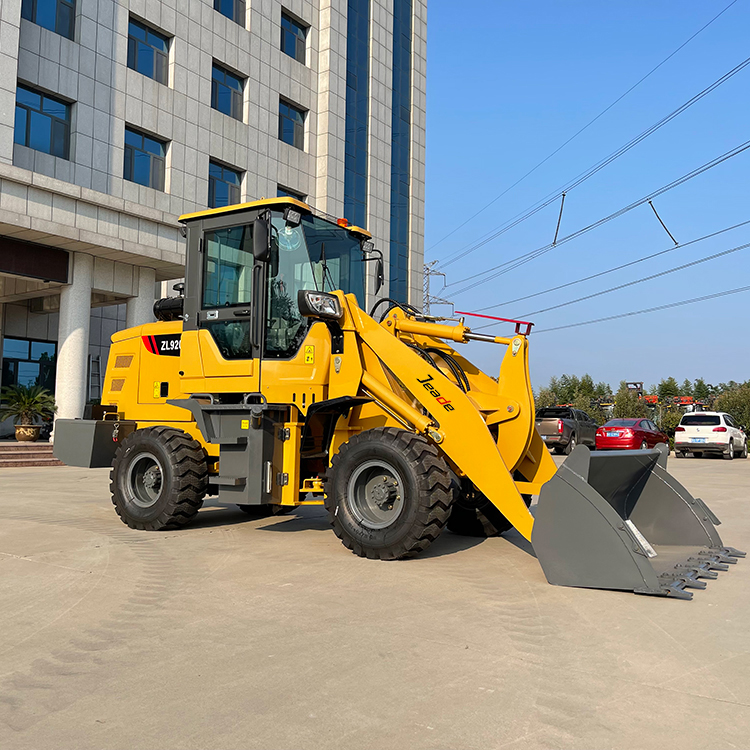

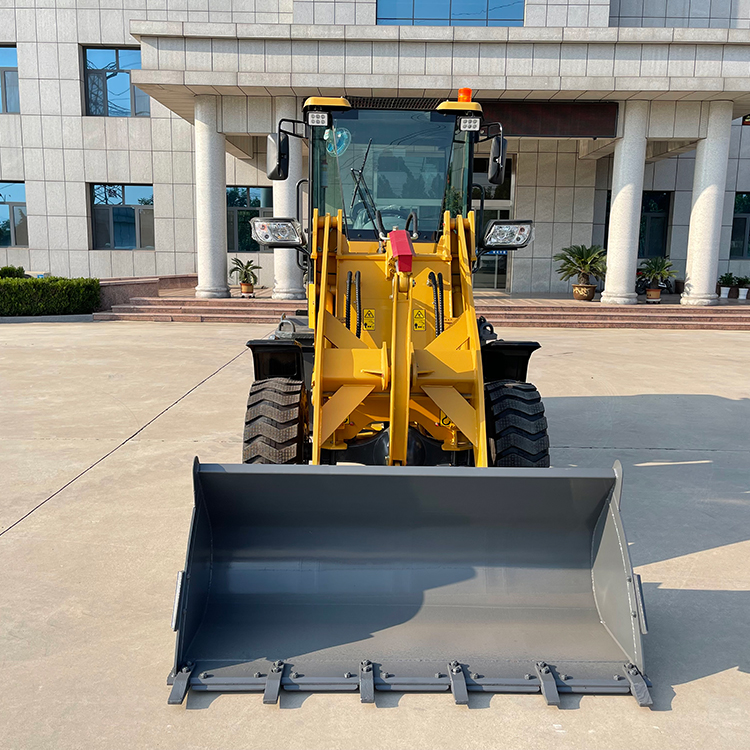

1 Ton(2204.62lb) Diesel Wheel Loader-ZL920C

Rated Load:.1000kg(2204.62lb)

Lifting Height:.3100mm(83.46in)

Bucket rated capacity:0.7 m³(24.72ft³)

Description

Performance	Rated load	1000kg
	Overall weight	3600kg
	Rated bucket capacity	0.7m³
	Maximum tractive force	36KN
	Maximum breakout force	≥37KN
	Maximum grade ability	30°
	Maximum dump height	3100mm
	Maximum dump reach	900m
	Overall dimension (L×W×H)	5400×1830×2780mm
	Minimum turning radius	5200mm
Engine	Model	YN 490 engine
	Type	lnline、 water cooling、 dry cylinder、 injection
	No. of cylinder-bore/stroke	4-90×105mm
	Rated power	42kw–2400r/min
	Maximum torque	170N.m
	Min fuel-consume ratio	≤238g/kw.h
Transmission system	Torque converter	YJ265
	Gearbox mode	Power shift normally engaged straight gear
	Gear shift	2 forward shift 2 reverse shift
	Maximum speed	25km/h
Drive axles	model	Isuzu axle
	Wheel base (mm)	2150mm
	Wheel tread	1400mm
	Minimum ground clearance	300mm
hydraulic system	System working pressure	16MPa
	bucket lifting time	5.06s
	bucket falling time	3.6s
	total time for a signle working cycle	10.29S
	Function of leveling automatically	yes
Brake system	Service brake	oil brake
Brake system	Parking brake	manual parking brake
Tyre	Type specification	20.5/70-16
	Front tyre pressure	0.4Mpa
	Rear tyre pressure	0.35Mpa
