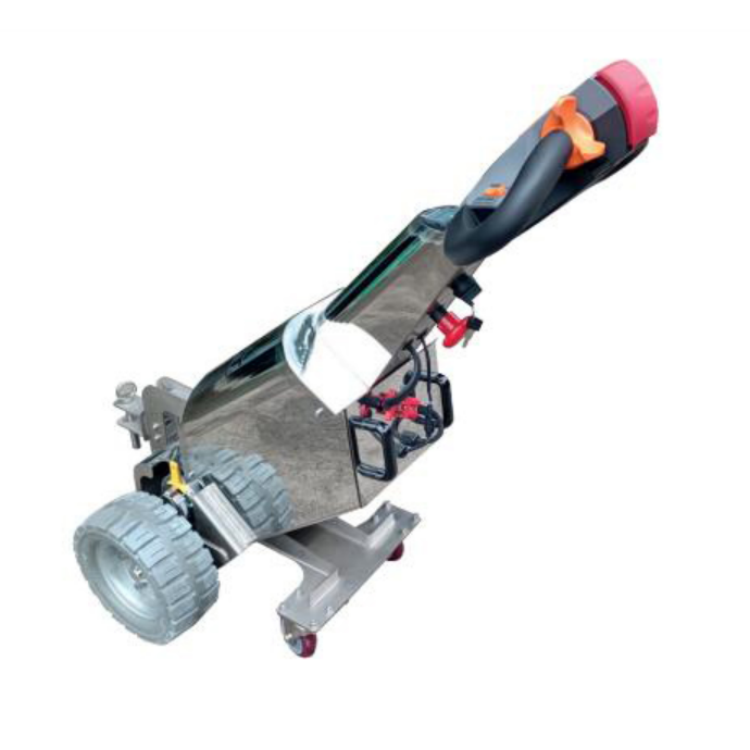

1.5 Ton Pedestrian Electric Tow Tractor-ET-150SS

Rated Capacity: 1500kg(3306.93lb)
Rated/Maximum traction:500N
25.6V36 Ah Lithium Battery

Description

Brand		JEAKUE
Model		ET-150SS
Power supply		Electric
Operating type		Pedestrian
Max traction weight	kg	1500
Rated pulling force	N	500
Wheelbase	mm	320
Truck weight（with battery）	kg	130
Battery weight	kg	15
Tire type,Drive wheel/Bearing wheel		Rubber
Sizes of drive wheel（diameter×width）	mm	2×Φ280×127
Sizes of bearing wheel（diameter×width）	mm	2×Φ100×32
Sizes of Supporting wheel(diameter×width)	mm	Φ100×50
Drive wheel/bearing wheel number(X=Drive wheel)	mm	2×/2
Front gauge	mm	370

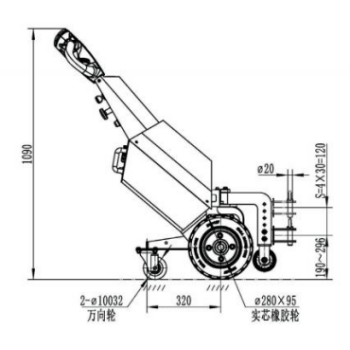

Overall height	mm	1090
Height of tiller in drive position	mm	1010
Hook height	mm	187/217/247/277/307
Overall length	mm	1025
Overall width	mm	610
Ground clearance	mm	100
Turning radius	mm	800
Drive speed load/unload	Km/h	3～5
Rated pulling force	N	500
Max pulling force	N	650
Max gradeability load/unload	％	5
Brake type		Electromagnetic
Drive motor rating S2 60min	kw	1
Charger(external)	V/A	29.2/10
K20 Battery voltage/nominal capacity	V/Ah	25.6/36lithium battery
Battery weight	kg	15
Type of drive control	kg	DC
Steering type		Mechanics
Noise level		<70
Type of trailer coupling	dB(A)	Latch
