Description

PRODUCT PARAMETERS

Load Capacity:	1200kg(2645.55lb)
Fork Dimensions:	1070/100/40mm(42.13/3.94/1.57in)(lxexs)
Distance between fork-arms:	200-760mm(7.87/29.92in)
Battery Voltage/Nominal Capacity:	24V/210Ah Lead-acid battery/150Ah Lithium battery
Turning Radius:	1490mm(58.66in)
Lift Height	3000mm(118.11in)
Steering Design:	Machinal
Service Weight:	1150KG(2535.32lb)
Product Color：	Ivory/Red/Customization

















































































































































































































































































































1
High Performance, High Reliability JEAKUE 1.2Ton Electric Stacker with Wide Outriggers
AC drive system provides strong power,enabling more precise control and smoother operation;
High-strength vertical gearbox for an ultra-long service life;
Low-noise and low-failure hydraulic station.JEAKUE 1.2Ton Electric Stacker with Wide Outriggers
The cylinders and pipelines, which have undergone multi-layer inspection and testing, ensure high reliability of the hydraulic system;
Reliable American AMP waterproof connectors and electrical components. All wires and cables are reliably protected and fixed, greatly reducing electrical failures;JEAKUE 1.2Ton Electric Stacker with Wide Outriggers
H-type mast channel steel with high bending resistance improves the overall mast strength;
Wide-leg frame ensures stable and reliable ultra-high stacking.

2

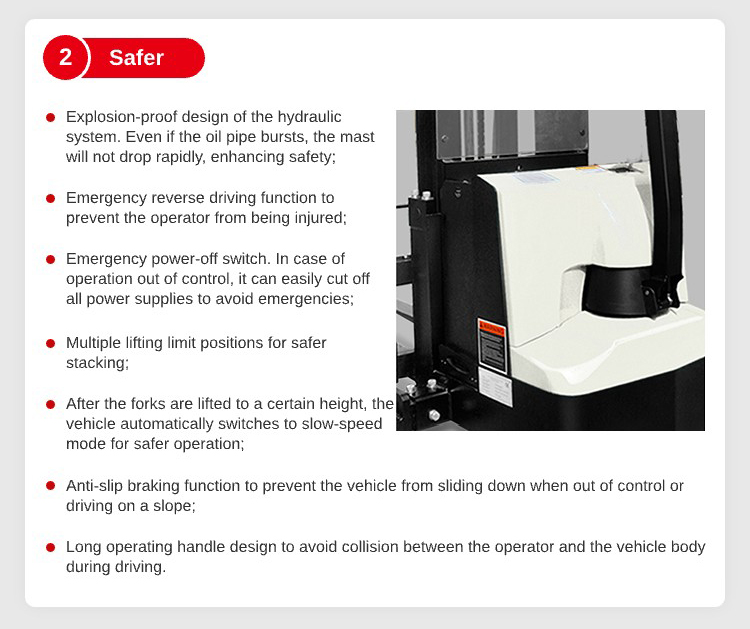

Safer JEAKUE 1.2Ton Electric Stacker with Wide Outriggers
Explosion-proof design of the hydraulic system. Even if the oil pipe bursts, the mast will not drop rapidly, enhancing safety;
Emergency reverse driving function to prevent the operator from being injured;
Emergency power-off switch. In case of operation out of control, it can easily cut off all power supplies to avoid emergencies;
Multiple lifting limit positions for safer stacking;JEAKUE 1.2Ton Electric Stacker with Wide Outriggers
After the forks are lifted to a certain height, the vehicle automatically switches to slow-speed mode for safer operation;
Anti-slip braking function to prevent the vehicle from sliding down when out of control or driving on a slope;
Long operating handle design to avoid collision between the operator and the vehicle body
during driving.JEAKUE 1.2Ton Electric Stacker with Wide Outriggers

3

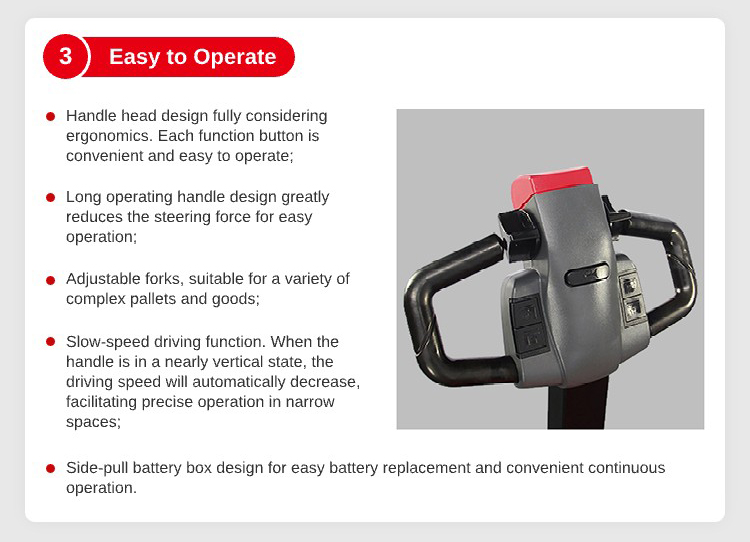

Easy to Operate Jeakue 1.2Ton Electric Stacker with Wide Outriggers
Handle head design fully considering ergonomics. Each function button is convenient and easy to operate;
Long operating handle design greatly reduces the steering force for easy operation;

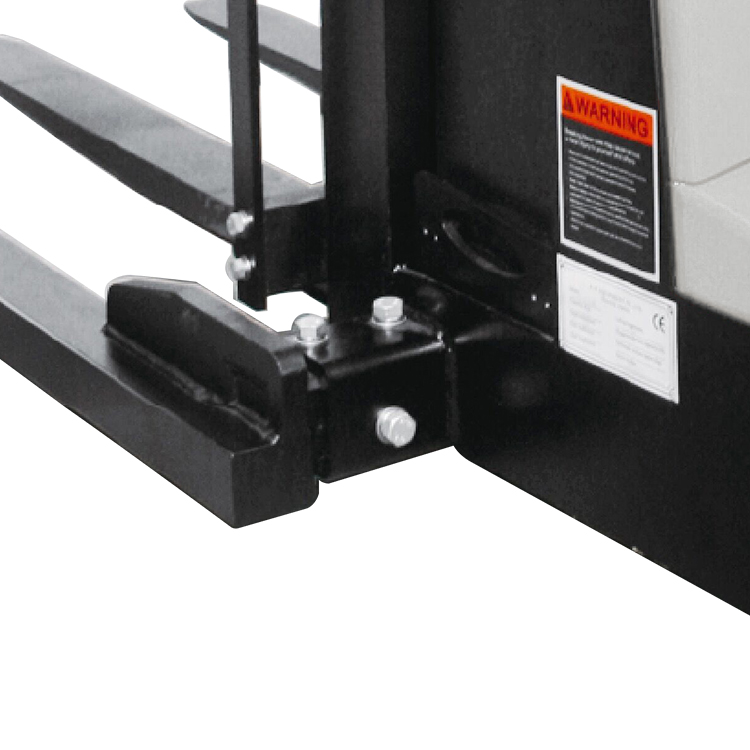

Adjustable forks, suitable for a variety of complex pallets and goods;
Slow-speed driving function. When the handle is in a nearly vertical state, the driving speed will automatically decrease, facilitating precise operation in narrow spaces;
Side-pull battery box design for easy battery replacement and convenient continuous operation.

4

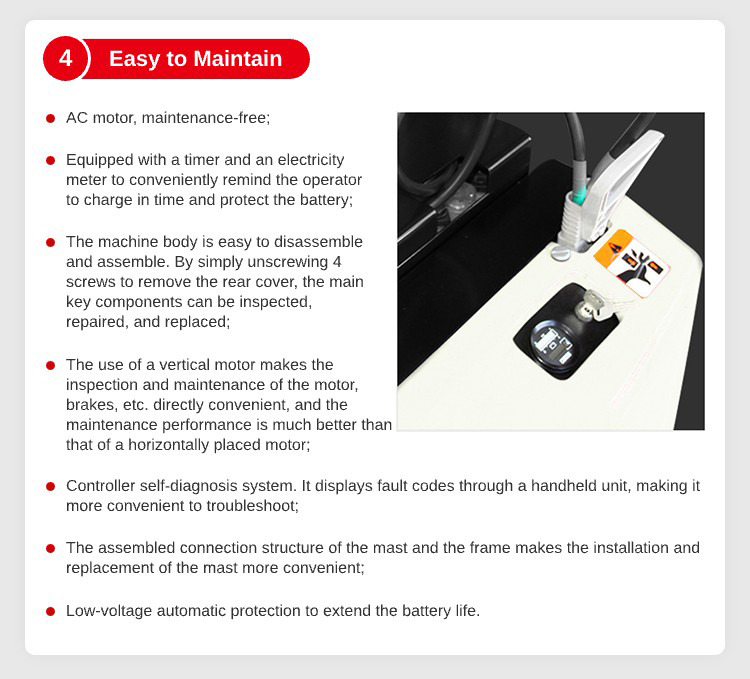

Easy to Maintain JEAKUE 1.2Ton Electric Stacker with Wide Outriggers
AC motor, maintenance-free;

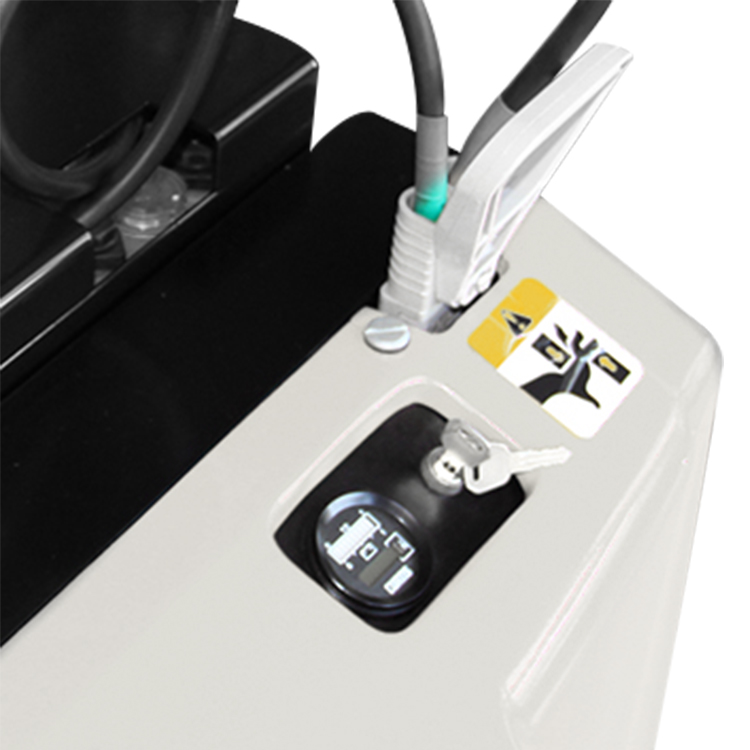

Equipped with a timer and an electricity meter to conveniently remind the operator to charge in time and protect the battery;
The machine body is easy to disassemble and assemble. By simply unscrewing 4 screws to remove the rear cover, the main key components can be inspected,repaired, and replaced;
The use of a vertical motor makes the inspection and maintenance of the motor,brakes, etc. directly convenient, and the maintenance performance is much better than that of a horizontally placed motor;
Controller self-diagnosis system. It displays fault codes through a handheld unit, making it
more convenient to troubleshoot;JEAKUE 1.2Ton Electric Stacker with Wide Outriggers
The assembled connection structure of the mast and the frame makes the installation and replacement of the mast more convenient;
Low-voltage automatic protection to extend the battery life.JEAKUE 1.2Ton Electric Stacker with Wide Outriggers
