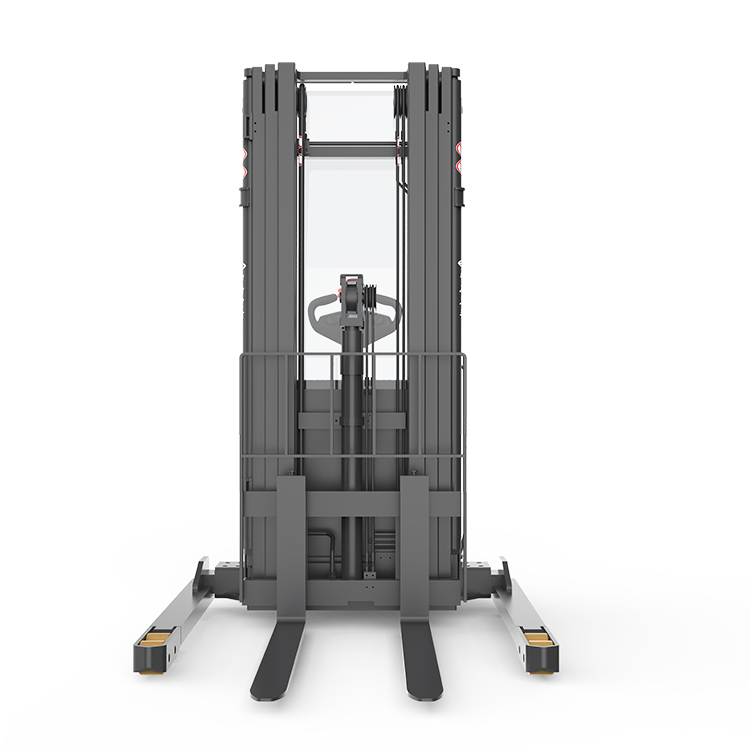

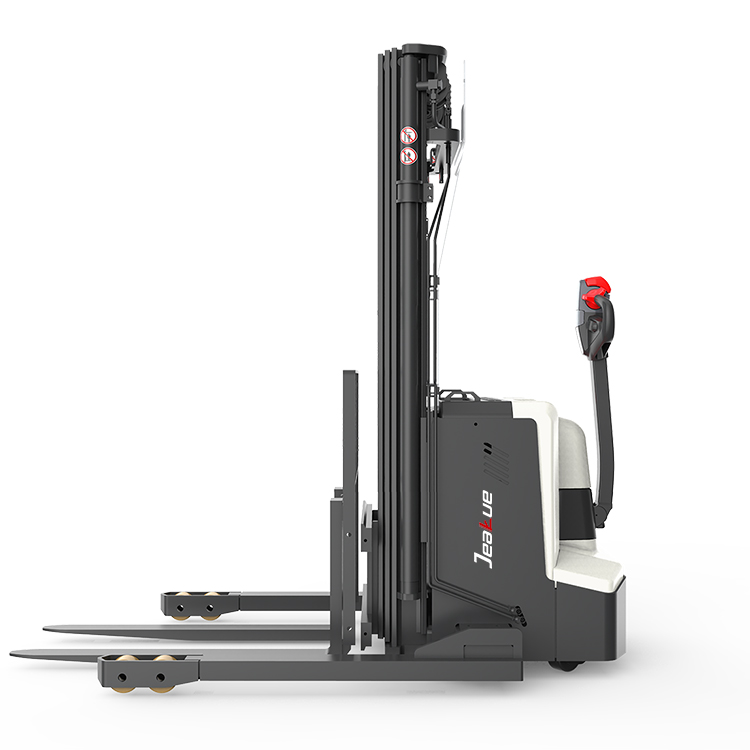

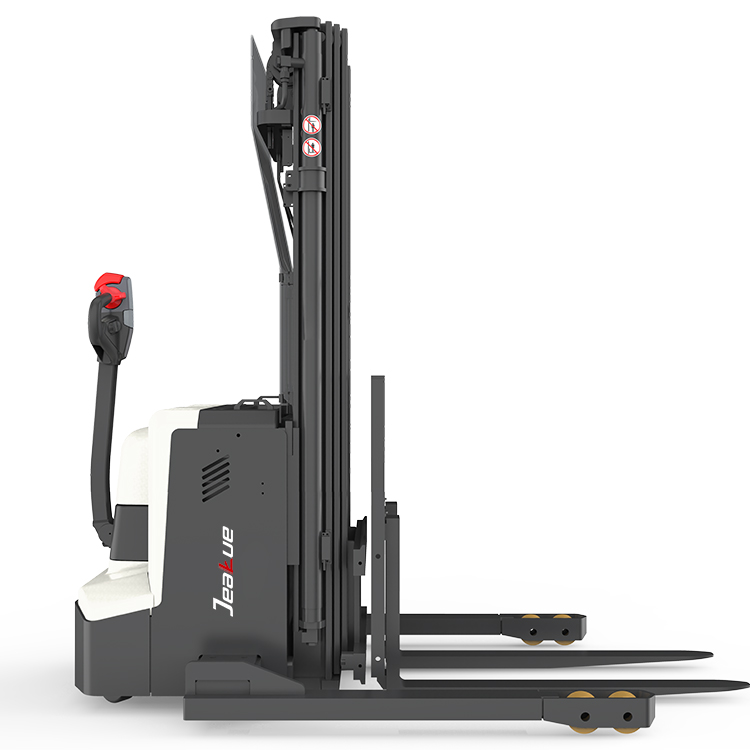

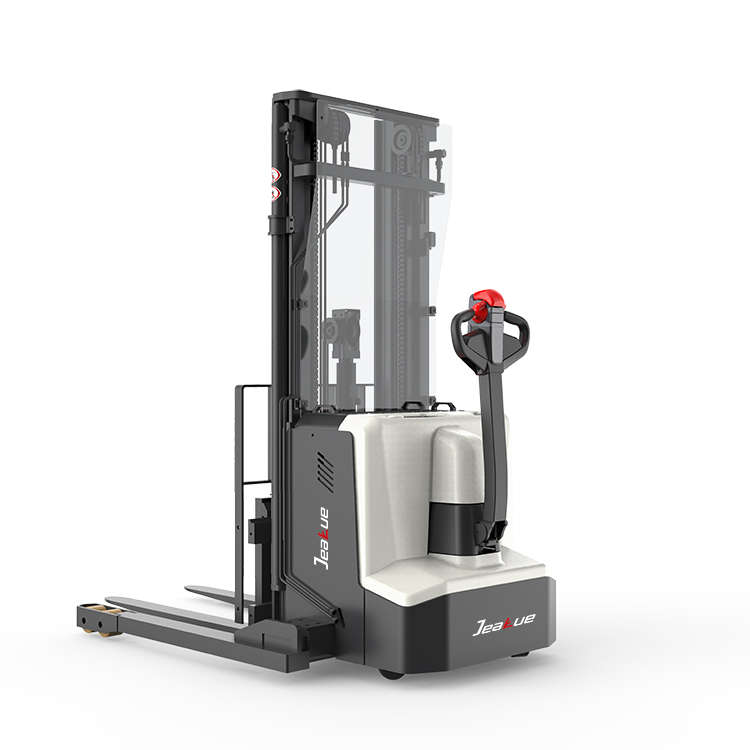

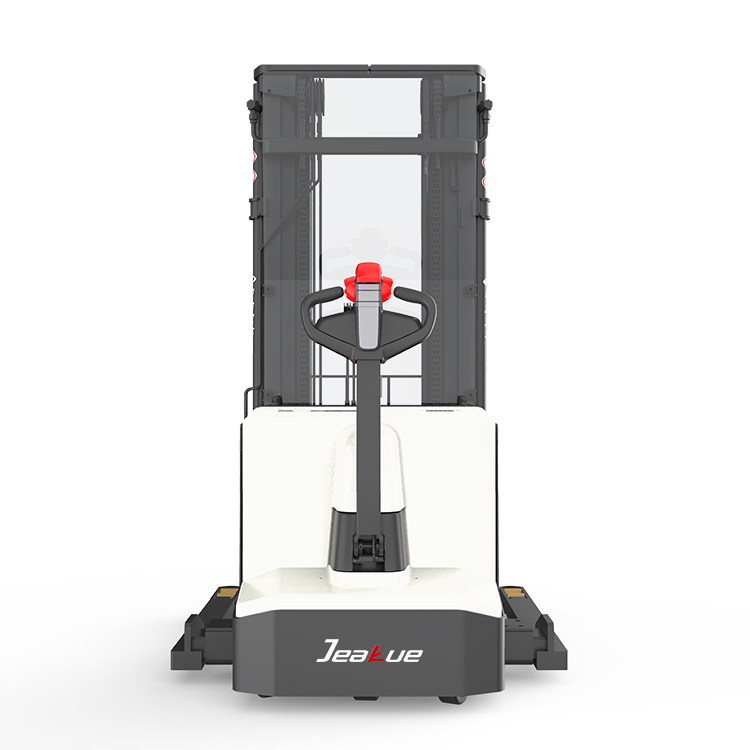

1.2-1.6-1.8 Ton Lead-acid Battery Straddle Stacker-WSA121/161/181-D
Rate Capacity:1200kg-1600kg-1800kg(2645.54/3527.39lb/3968.32lb)
Lift Height:3000mm（118.11in）
Battery:24V100/205Ah lithium battery
Description
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
Explore the WSA121/161/181-D
Adjustable Straddle for Versatility and Stability
The WSA121/161/181-D features adjustable straddle legs and forks to accommodate a variety of pallets boxes and cages, offering a versatile solution for mixed-load environments. This wider support base enhances lateral stability during high-lift operations and ensures safer handling of heavy loads at height.
High Performance and Control in a Compact Design
The combination of a 4.5 kW lifting motor, the fully proportional fork control and an optimized hydraulic system delivers fast lifting and lowering speeds, reducing cycle times in daily operations. With a turning radius of just 1535 mm, the WSA-D Series maneuvers smoothly in space-constrained environments. Plus Turtle Speed mode, it helps operators maintain productivity even in tight working conditions.

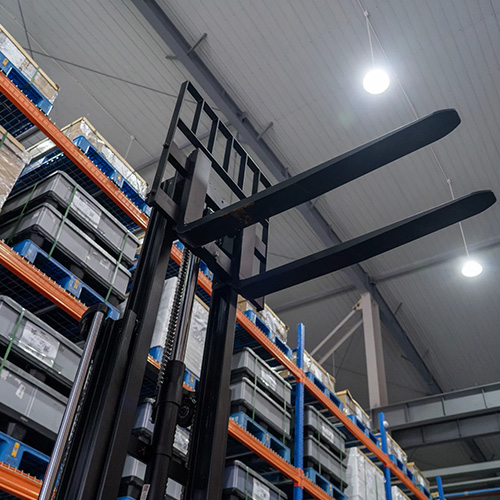

Optimized Mast Structure

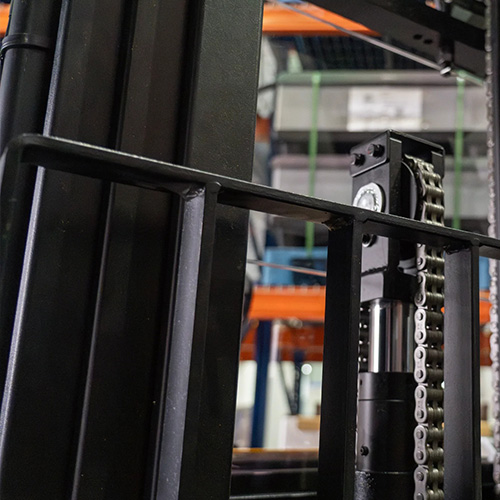

The wide-view mast with side cylinders improves forward visibility, allowing operators to position loads more accurately and safely. For even greater stacking convenience, an external sideshift attachment is available, allowing precise positioning without moving the truck.
Operator-Focused Design for Precision and Safety

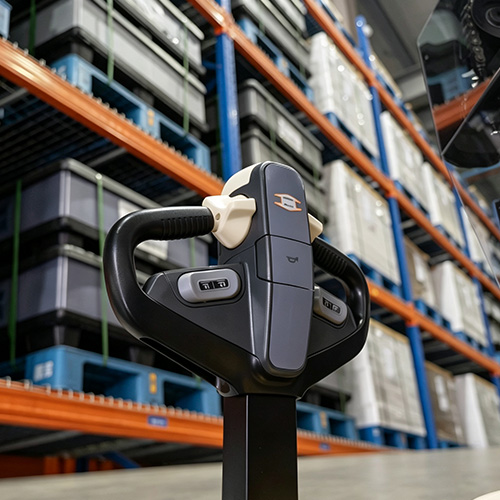

The dual-grip proportional control tiller head provides precise and gentle stacking, especially when handling fragile and valued goods. Safety features, including automatic speed reduction at lift height and lifting electronic limit, further enhance operational safety.
Lithium Power for Maximum Uptime
The standard lithium-ion battery with integrated charger supports opportunity charging, minimizing downtime. Bluetooth connectivity, with optional TELEMATICS, enables real-time monitoring and fleet management. In addition, the maintenance-friendly design and quick-access cover simplify daily inspection and servicing, ensuring long-term reliability and reduced maintenance effort.
Application

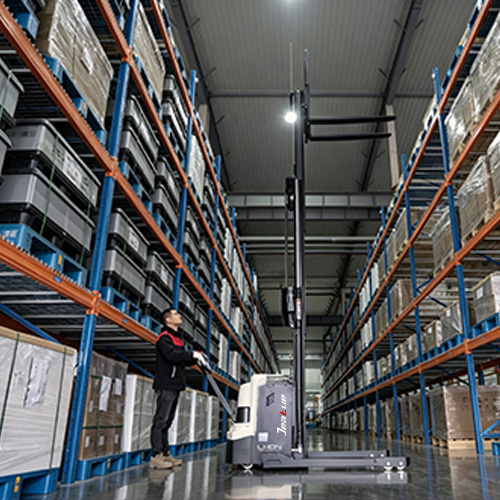

The WSA121/161/181-D is ideal for medium to heavy-duty stacking applications in warehouses, backrooms, logistics centers, and manufacturing facilities. It performs especially well in environments requiring high stacking stability and flexibility in pallet handling, such as operations with mixed pallet types or non-standard pallets. With its compact design and Turtle Speed driving capability, it is also highly effective in space-constrained working areas.
About the WSA121-D
The WSA121/161/181-D is a high-performance electric straddle stacker designed for safe and versatile goods handling of loads up to 1.8 tons. Featuring adjustable straddle legs and forks, the truck delivers enhanced stability during high-lift stacking while accommodating a wide range of pallet types.
With a compact design and small turning radius of 1535 mm, the WSA-D series ensures excellent maneuverability in narrow aisles and confined warehouse environments. Equipped with an optimized mast, a powerful lifting system, and precise control, the lithium-powered WSA-D series provides reliable performance, energy efficiency, and low maintenance for modern intralogistics operations.
PRODUCT FEATURES
| Load Capacity | 1200kg-1600kg-1800kg |
| Fork Dimensions | 1070/100/40mm(42.13/3.94/1.57in)(l x e x s) |
| Distance Between Fork-arms | 200-760mm(7.87/29.92in) |
| Battery Voltage/Nominal Capacity | 24V100Ah lithium battery |
| Turning Radius | 1600mm(60.83in) |
| Lift Height | 3000mm(118.11in) |
| Steering Design | Mechanical |
| Service weight | 1320Kg(2910.10lb) |
| Product Color | Ivory/Red/Customization |

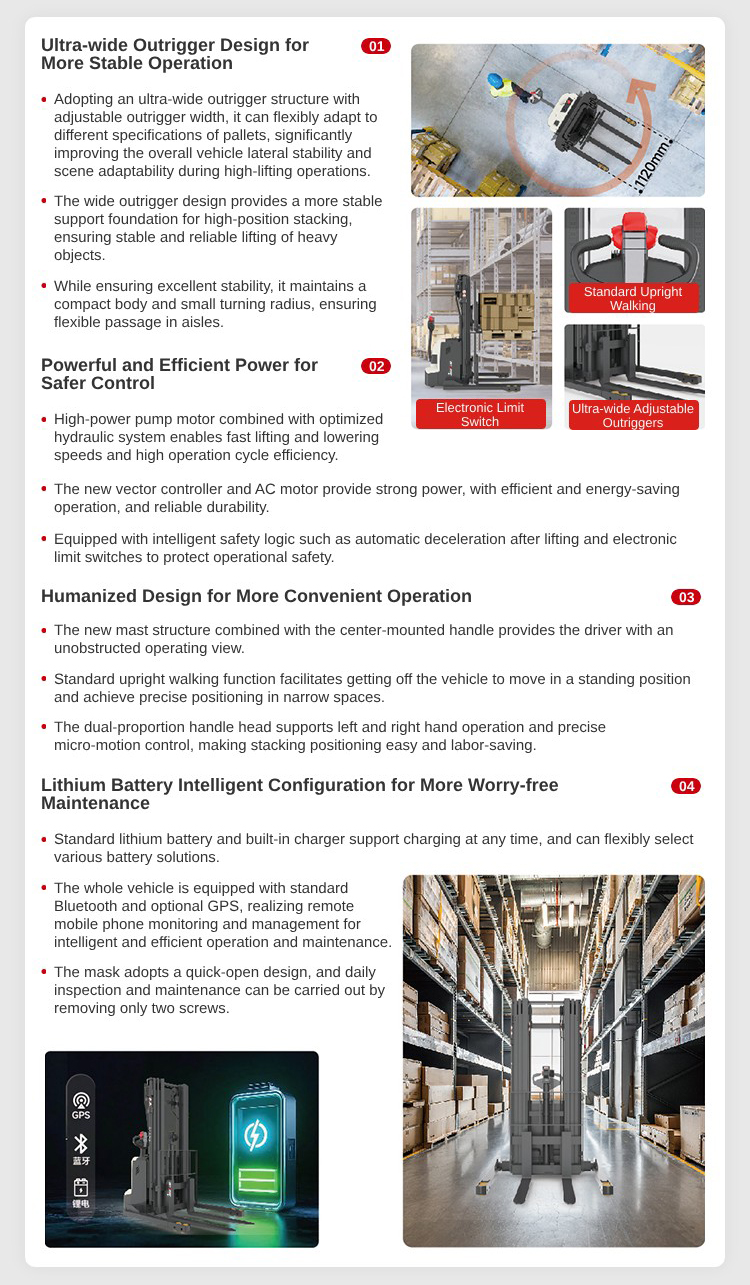

Ultra-wide Outrigger Design for More Stable Operation JEAKUE 1.2-1.6-1.8 Ton Lead-acid Battery Straddle Stacker
Adopting an ultra-wide outrigger structure with adjustable outrigger width, it can flexibly adapt to different specifications of pallets, significantly improving the overall vehicle lateral stability and scene adaptability during high-lifting operations.JEAKUE 1.2-1.6-1.8 Ton Lead-acid Battery Straddle Stacker
The wide outrigger design provides a more stable support foundation for high-position stacking, ensuring stable and reliable lifting of heavy objects.JEAKUE 1.2-1.6-1.8 Ton Lead-acid Battery Straddle Stacker
While ensuring excellent stability, it maintains a compact body and small turning radius, ensuring flexible passage in aisles.JEAKUE 1.2-1.6-1.8 Ton Lead-acid Battery Straddle Stacker
Powerful and Efficient Power for Safer Control JEAKUE 1.2-1.6-1.8 Ton Lead-acid Battery Straddle Stacker
High-power pump motor combined with optimized hydraulic system enables fast lifting and lowering speeds and high operation cycle efficiency.JEAKUE 1.2-1.6-1.8 Ton Lead-acid Battery Straddle Stacker
The new vector controller and AC motor provide strong power, with efficient and energy-saving operation, and reliable durability.JEAKUE 1.2-1.6-1.8 Ton Lead-acid Battery Straddle Stacker
Equipped with intelligent safety logic such as automatic deceleration after lifting and electronic limit switches to protect operational safety.JEAKUE 1.2-1.6-1.8 Ton Lead-acid Battery Straddle Stacker
Humanized Design for More Convenient Operation

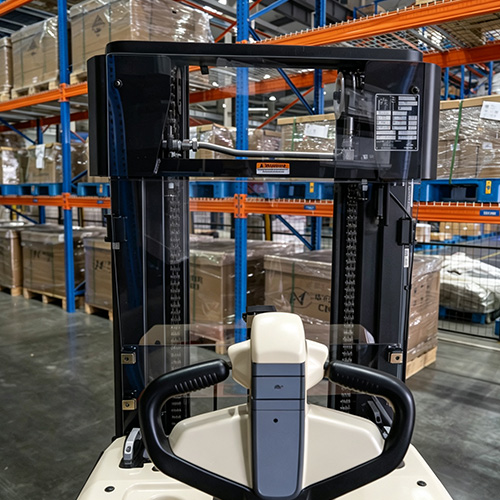

The new mast structure combined with the center-mounted handle provides the driver with an unobstructed operating view.JEAKUE 1.2-1.6-1.8 Ton Lead-acid Battery Straddle Stacker

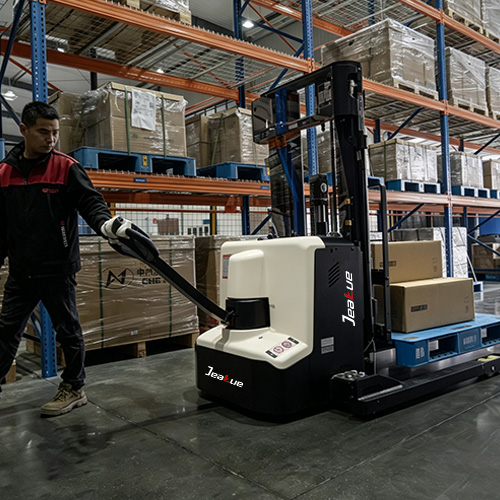

Standard upright walking function facilitates getting off the vehicle to move in a standing position and achieve precise positioning in narrow spaces.JEAKUE 1.2-1.6-1.8 Ton Lead-acid Battery Straddle Stacker

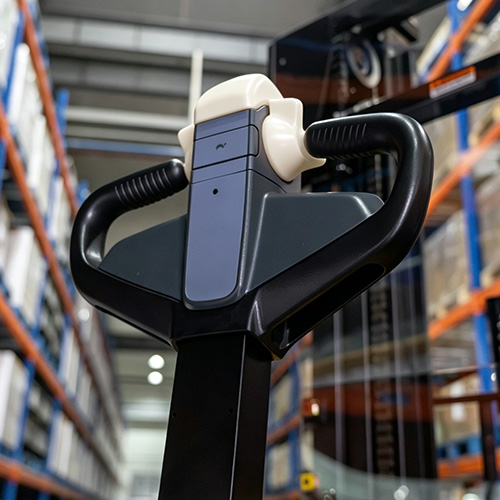

The dual-proportion handle head supports left and right hand operation and precise micro-motion control, making stacking positioning easy and labor-saving.JEAKUE 1.2-1.6-1.8 Ton Lead-acid Battery Straddle Stacker
Standard Upright Walking
Electronic Limit Switch
Ultra-wide Adjustable Outriggers
Lithium Battery Intelligent Configuration for More Worry-free Maintenance

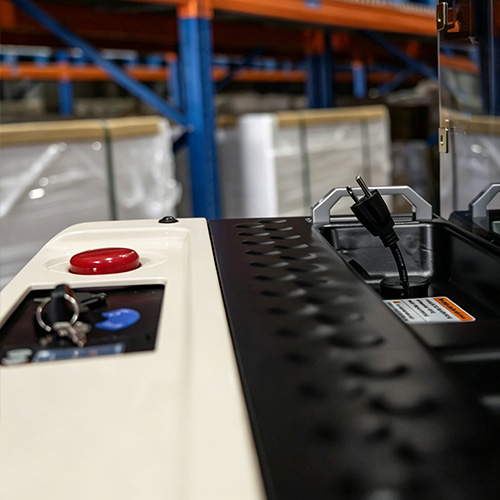

Standard lithium battery and built-in charger support charging at any time, and can flexibly select various battery solutions.JEAKUE 1.2-1.6-1.8 Ton Lead-acid Battery Straddle Stacker
The whole vehicle is equipped with standard Bluetooth and optional GPS, realizing remote mobile phone monitoring and management for intelligent and efficient operation and maintenance.JEAKUE 1.2-1.6-1.8 Ton Lead-acid Battery Straddle Stacker
The mask adopts a quick-open design, and daily inspection and maintenance can be carried out by removing only two screws.JEAKUE 1.2-1.6-1.8 Ton Lead-acid Battery Straddle Stacker
