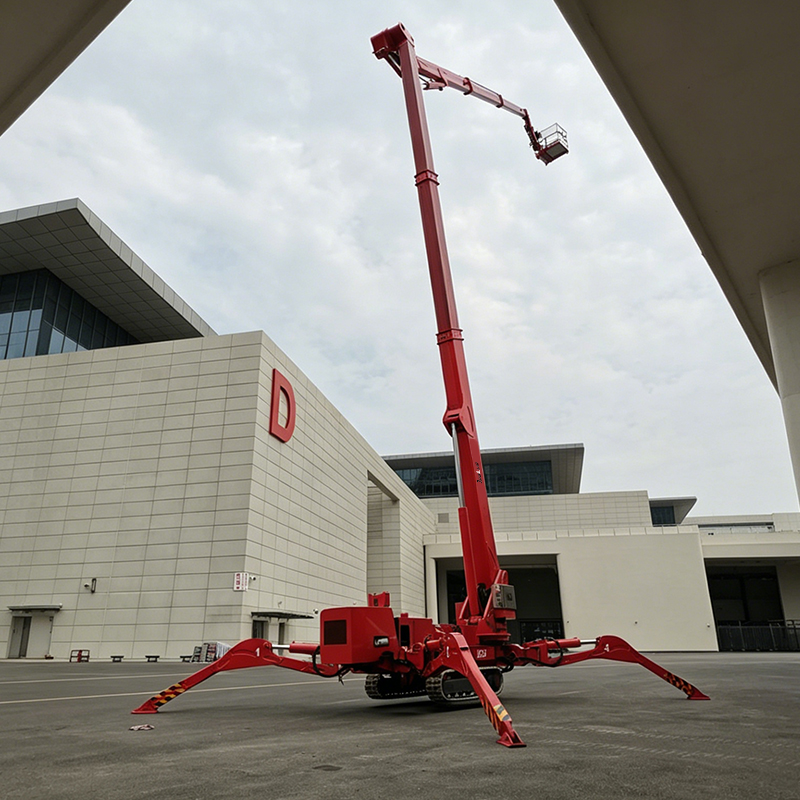

0.3 Ton Articulated Spider Lift – X36
Maximum Working Height: 36m
Maximum Working Radius: 18m
Safe Working Load: 300kg
Overall Weight: 7500kg
Description
| Item | Specification |
|---|---|
| Model | X36 |
| Max Working Height | 36.00m |
| Max Platform Height | 34.00m |
| Load Capacity | 200kg/300kg |
| Max Horizontal Working Radius | 18.00m |
| Basket Rotation | 180° |
| Turntable Rotation | 360° Continuous / Non-continuous |
| Working Platform Dimension | 1.2/1.8/2.0×0.8/0.7×1.1m (Customizable basket size) |
| Stowed Length | 7.81/7.03m |
| Stowed Width | 1.50m |
| Stowed Height | 2.00m |
| Travel Speed | 0-2.0km/h (0-0.55m/s) |
| Max Working Gradient | 20% |
| Max Climbing Gradient | 35% |
| Total Weight | 7500kg |
| Power | 18.5kw |
| Electric Motor | 220V/380V, 4kw |
| Optional Power System | Diesel engine + Storage battery / Lithium battery + 220/380V AC power (2-power or 3-power options) |
