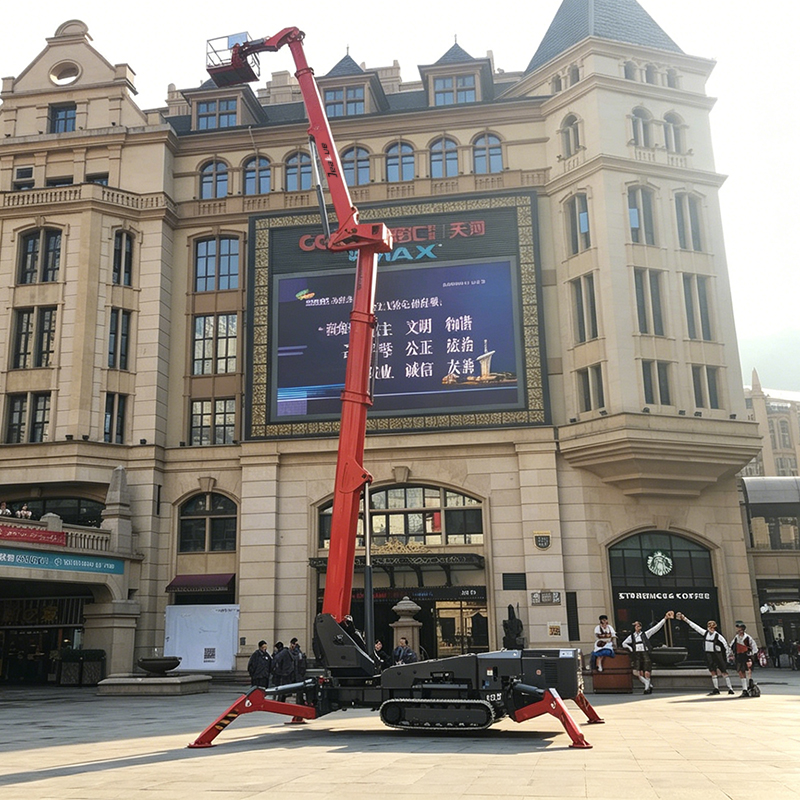

0.2 Ton Articulated Spider Lift – X32
Maximum Working Height: 32.00m
Maximum Working Radius: 15.00m
Safe Working Load: 200kg
Overall Weight: 7060kg
Description
| Parameter | Value |
|---|---|
| Model: | X32 |
| Max. Working Height: | 32.00 m |
| Max. Platform Height: | 30.00 m |
| Load Capacity: | 200 kg / 300 kg |
| Max. Horizontal Working Radius: | 15.00 m |
| Basket Rotation: | 180° |
| Turntable Rotation: | 360° continuous / non-continuous |
| Working Platform Size: | 1.2/1.8/2.0 × 0.8/0.7 × 1.1 m (customizable basket size) |
| Transport Length: | 7.00 / 6.23 m |
| Transport Width: | 1.40 m |
| Transport Height: | 2.00 m |
| Travel Speed: | 0–2.0 km/h (0–0.55 m/s) |
| Max. Working Slope: | 20% |
| Max. Climbing Gradient: | 35% |
| Total Weight: | 7060 kg |
| Power: | 18.5 kW |
| Electric Motor: | 220 V / 380 V, 4 kW |
| Optional Power Source: | Diesel engine + storage battery / lithium battery + 220/380 V AC (2 or 3 power options) |
