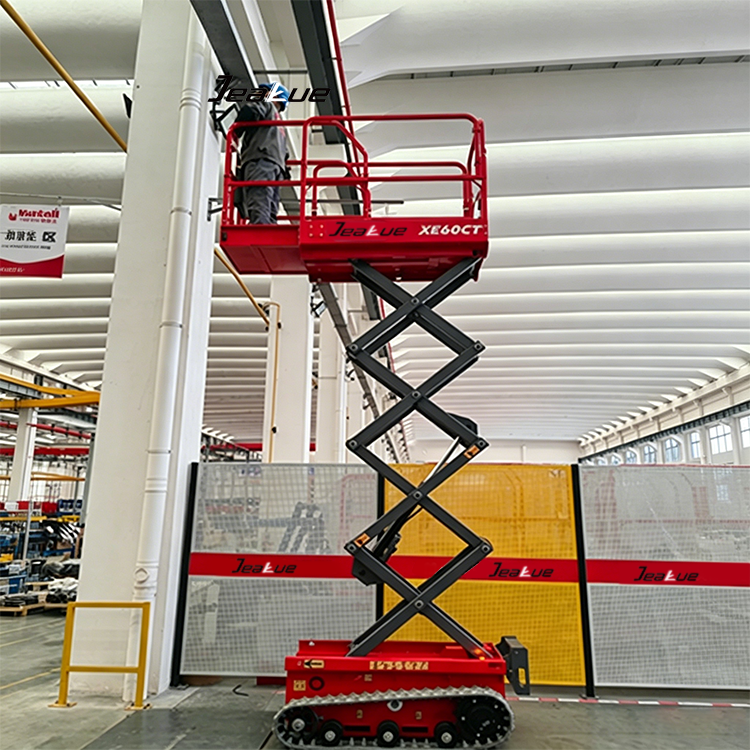

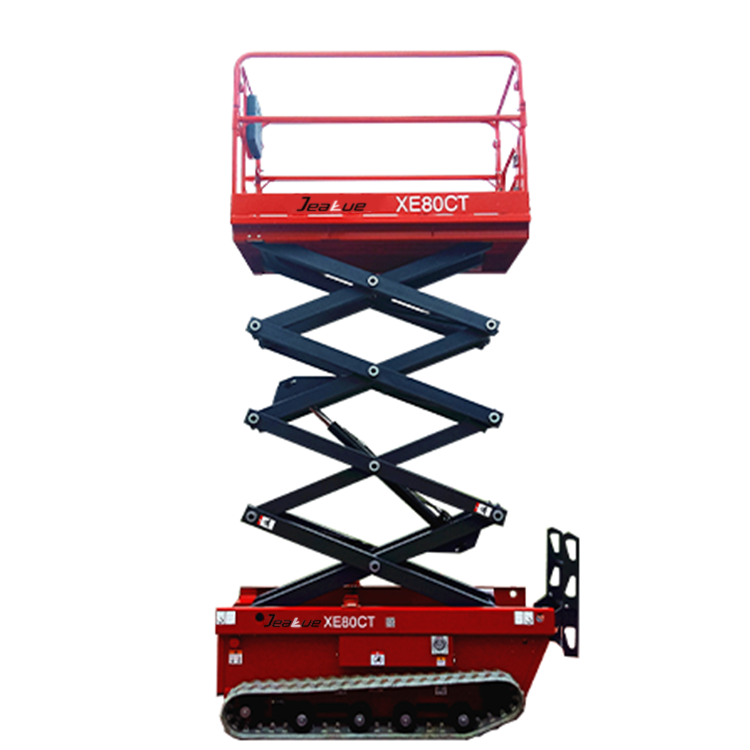

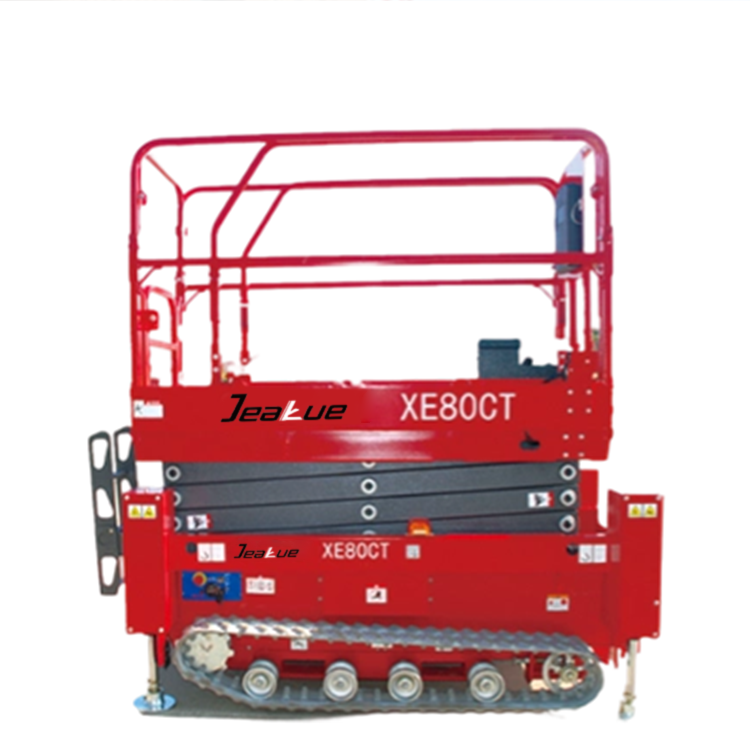

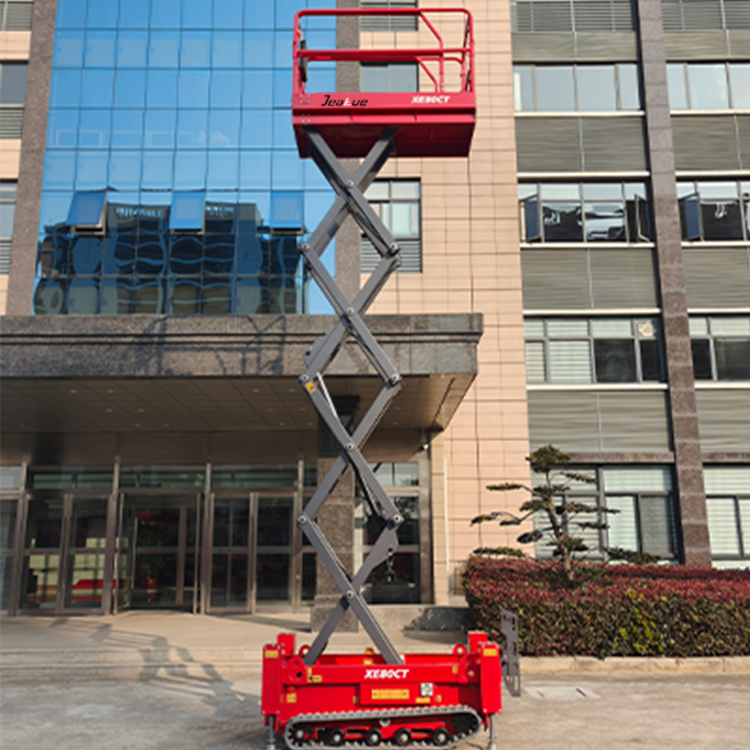

0.23 Ton 6.4-8M Crawler Type Scissor Lift-XE60MINICT/XE60CT/80CT
Load Capacity(kg):230 (507.15(lb))
Working height max (m):6.4-6.8-8 (251.97-267.72-314.96(in))
Weight(kg):890-1140-1235 (1962.11-2513.27-2722.71(lb))
Description
Product Highlights
Efficient and flexible
★Joystick control for turning and walking, easy to operate
★Can turn unilaterally and in place, with flexible maneuverability
★Supports one button automatic leveling, strong adaptability to thevenue, safe
Excellent performance
★Rubber tracked chassis, suitable for various complex road surfaces
★Maintenance-free battery with strong battery life
★Electric drive, zero emissions, high efficiency
Low operating costs
★Drawer type structure, convenient and fast maintenance and repair ofkey components
★Faults diagnosis system, intelligent and efficient
PRODUCT PARAMETERS
| Model | XE60MINI CT | XE60CT | XE80CT |
| Dimension | |||
| Max.Working Height | 6.4m | 6.8m | 8m |

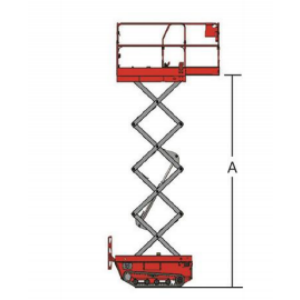

| A Max.Platform Height | 4.4m | 4.8m | 6m |

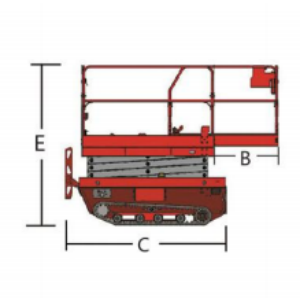

| B Max.Outreach | 0.55m | 0.9m | 0.9m |
| C Length Stowed | 1.5m | 2.15m | 2.15m |

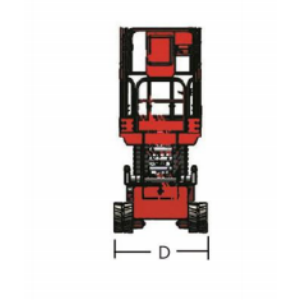

| D Width Stowed(guardrails folded) | 0.78m | 1.0m | 1.0m |
| Height Stowed(guardrails folded) | 1.74m | 1.75m | 1.85m |
| E Height Stowed(guardrails unfolded) | 2.06m | 2.12m | 2.22m |
| Ground Clearance | 0.1m | 0.13m | 0.15m |
| Platform Size(L×W×H) | 1.28m*0.76m*1.1m | 1.84m×0.9m×1.1m | 1.84m×0.9m×1.1m |
| Crawler Size | 150*72B-42Section | Y200×72-49Section | Y200×72-49Section |
| Performance | |||
| Lifting Capacity | 230kg | 230kg | 230kg |
| Lifting Capacity(extended platform) | 100kg | 115KG | 115KG |
| Max.Load number | 2pers | 2pers | 2pers |
| Drive Speed | 1.7km/h | 1.7km/h | 1.7km/h |
| Rising Time | 23s | 30s | 32s |
| Lowering Time | 19s | 28s | 30s |
| Gradeability | 25% | 40% | 40% |
| Tilt Sensor(front to back) | 3° | 3° | 3° |
| Tilt Sensor(side to side) | 1.5° | 1.5° | 1.5° |
| Max.Lateral Force | 400N | 400N | 400N |
| Max.Wind Speed | 0 | 12.5m/s | 12.5m/s |
| Power | |||
| Power Unit Motor (voltage/power) | 24V/0.8kw | 24V/2.2kW | 24V/2.2kW |
| Hydraulic Tank Capacity | 2L | 7L | 7L |
| Battery Specifications | 2×12V;114Ah | 4×6V;235Ah | 4×6V;235Ah |
| System Voltage | 24V | 24V | 24V |
| Control Voltage | 24V | 24V | 24V |
| Charger (Input Voltage/Output Current) | 96-265V/15A | 96-265V/30A | 96-265V/30A |
| Drive motor (voltage/power) | 15VAC/1kW | 15VAC/1kW | 15VAC/1kW |
| Drive mode | Electric drive | ||
| Weight | |||
| Weight | 890kg | 1140kg | 1235kg |
| Standard | GB/CE | ||
Standard Features
| Tilt alarm system | Charging indicator | Buzzer |
| Diagnosis system | AC power to platform | Flash light |
| Explosion-proof of the tubing | Manual box | Fault code display |
| Automatic brake system | Emergency lower | Motion alarm |
| Safety support bar | Manual brake release | Forklift and lifting holes |
| Non-marking rubber crawler | Maintenance free battery | |
| Hour meter,battery display | Proportional Control | |
Options Features
| Top limit protection auto-stop device | GPS | Electrophoretic coating process |
| Overload sensor | Platform work light | |
| Power socket to platform | Foot switch |
 |
 |
 |
