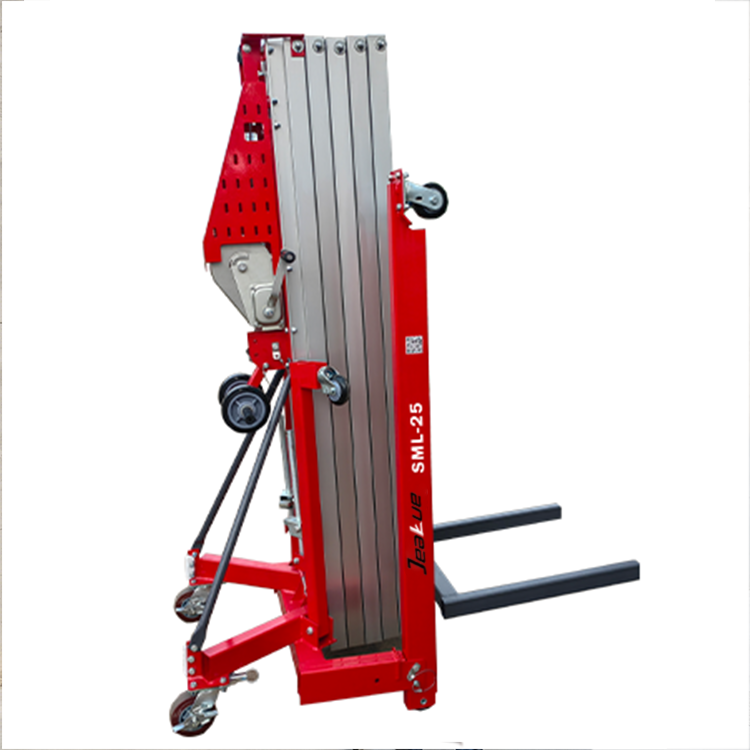

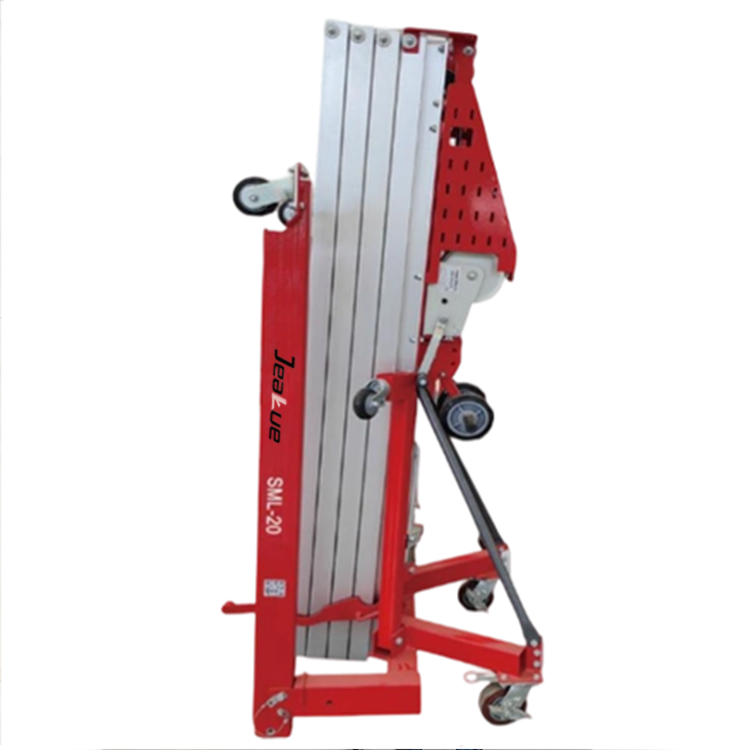

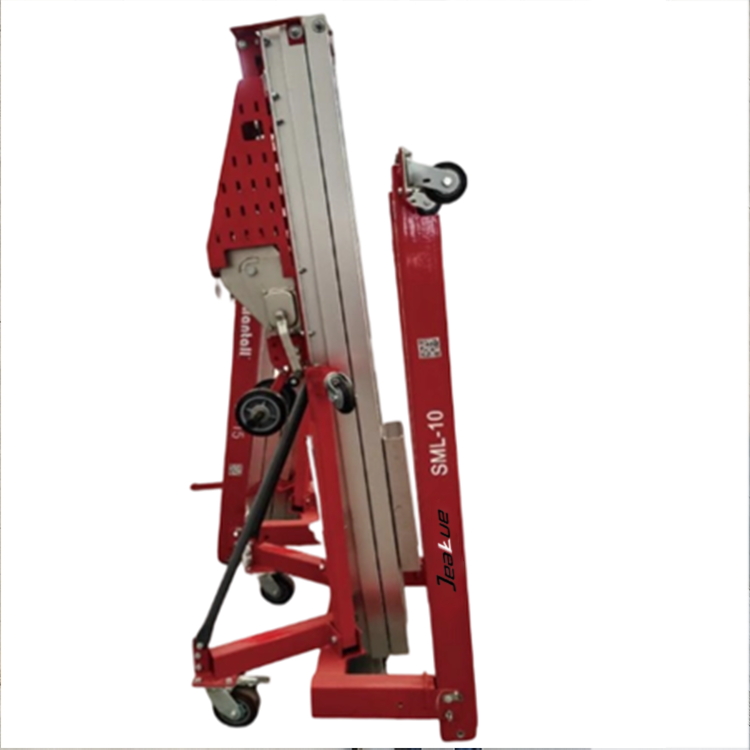

0.23-0.26Ton 3.5-8M Vertical Mast Lifts-SML-10/15/20/25
Load Capacity(kg):230-260 (507.06-573.20lb)
Stabilizers lowered (m):1.9 (74.80in)
Weight standard(kg):163-199-203-263 (359.35-438.72-447.54-579.82lb)
Description
Product Highlights

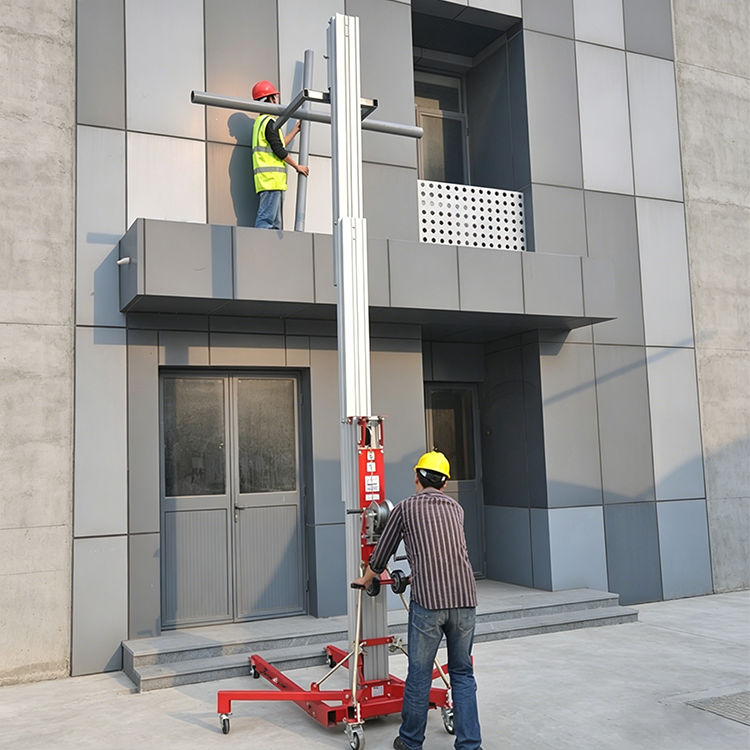

JEAKUE super material lift is a power-free, manually operated material lift. It is compact, lightweight, highly mobile, can easily pass through standard doorways, and can be easily loaded and unloaded. SML series material lift can be widely used in construction, industry, warehousing, exhibitions, stage construction, advertising, central air-conditioning ducts and other high-altitude installations.
PRODUCT PARAMETERS

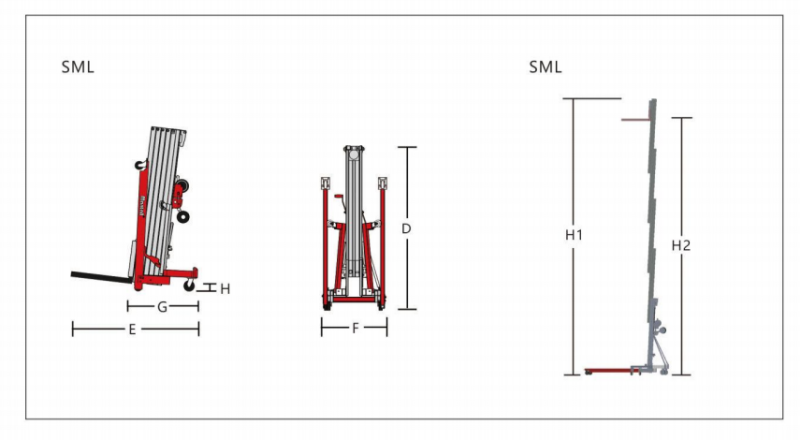

| Model | SML-10 | SML-15 | SML-20 | SML-25 |
| Standard forks – up m (H1) | 3.48 | 5 | 6.45 | 7.95 |
| Standard forks – down m (H2) | 2.96 | 4.48 | 5.93 | 7.43 |
| Adjustable forks – up m | 3.48 | 5 | 6.45 | 7.95 |
| Adjustable forks – down m | 2.96 | 4.48 | 5.93 | 7.43 |
| Flat forks m | 2.96 | 4.48 | － | － |
| Height – stowed m (D) | 2.02 | 2.03 | 2.05 | 2.07 |
| Length – stowed m (G) | 0.75 | 0.75 | 0.77 | 0.83 |
| Length – operating m (E) | 2.2 | 2.2 | 2.2 | 2.2 |
| Width – stowed m (F) | 0.79 | 0.79 | 0.79 | 0.79 |
| Stabilizers lowered m | 1.9 | 1.9 | 1.9 | 1.9 |
| Width – straddle base | ||||
| Ground clearance – center m | 0.05 | 0.05 | 0.05 | 0.05 |
| Load height minimum m | 0.15 | 0.15 | 0.15 | 0.15 |
| Load capacity kg | 260 | 260 | 230 | 230 |
| Power | Single speed winch | |||
| Weight standard kg | 163 | 199 | 203 | 236 |
Standard Features
| Standard forks | Roller wheels with brake |
| Incorporates a silent ratchet system | Telescopic mast design |
| Transportation wheels | Solid steel base |
| Anti-fall function |
Options Features
| Adjustable forks | Boom |
| Flat forks | Load platform |
