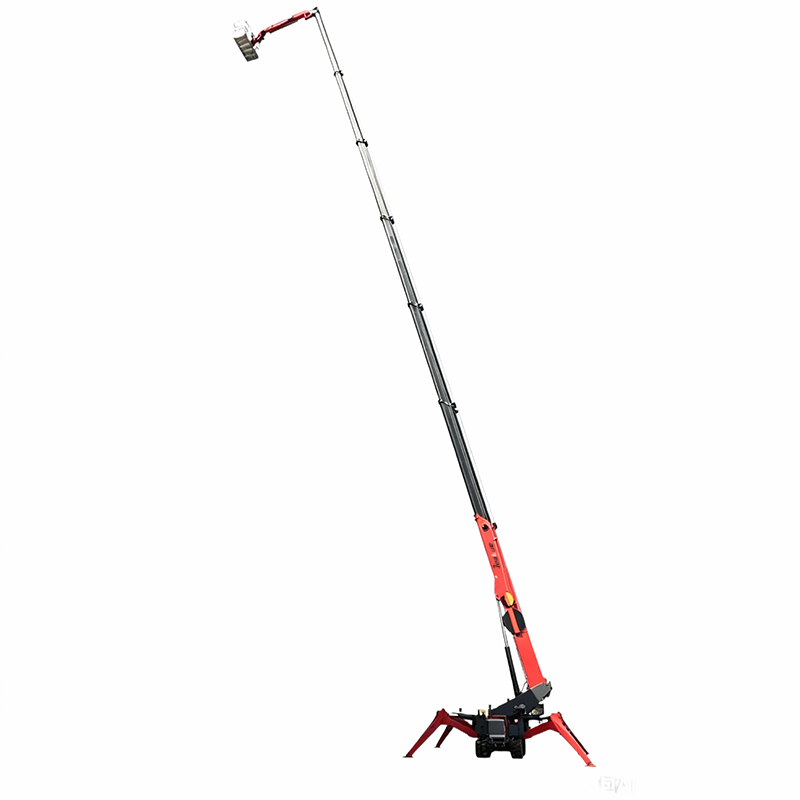

0.2 Ton Telescopic Spider Lift – T52
Maximum Working Height: 53.30m
Maximum Working Radius: 16.50m
Safe Working Load: 200kg
Overall Weight: 14500kg
Description
| Parameter | Value |
|---|---|
| Model: | T52 |
| Max. Working Height: | 53.30 m |
| Max. Platform Height: | 51.30 m |
| Load Capacity: | 200 kg (standard) / 350 kg (optional) |
| Horizontal Working Radius at 200kg: | 16.50 m |
| Basket Rotation Angle: | 180° |
| Jib Rotation Angle: | 180° |
| Turntable Rotation: | 355° non-continuous |
| Working Platform Size: | 1.2 × 0.8 × 1.1 m |
| Transport Length: | 8.70 m |
| Transport Width: | 1.58 m |
| Transport Height: | 2.50 m |
| Travel Speed: | 0–2.0 km/h |
| Working Slope: | 20% |
| Max. Climbing Gradient: | 30% |
| Total Weight: | 14800 kg |
| Electric Motor: | 380 V, 7.5 kW |
| Dual Standard Power (Kubota Diesel): | 36.5 kW Diesel Engine |
| Telescopic Tracks: | Standard |
