Description

Explore the FB75MH

This groundbreaking development adopts world-leading high-voltage Lithium-ion power combined with advanced PMSM (Permanent Magnet Synchronous Motor) technology. These high-capacity forklifts ensure triple guarantees of high performance, long running time and safety while aligning with the current trend of green and sustainable development.

1.High Performance: High speed and high gradeability

High-voltage Li-ion batteries enable more power delivery to motors, improving acceleration and travel speeds for high-capacity trucks. PMSMs complement this with rapid response times, swiftly reaching required speeds and torques. This combination of PMSM and high voltage can provide stable and strong power output, which further gives high-capacity trucks excellent climbing capabilities ensuring that the forklift can cope with various applications with ease. The high-voltage model offers a 1.5-2 times performance improvement over the low-voltage model. Taking the 10-ton model as an example: 100% improvement in travel speed for high voltage models in laden and unladen conditions. The high-voltage model demonstrates a 45% faster lifting speed. 100% improvement in gradeability when unladen, 45% improvement when laden for high voltage models.

2.Energy Efficiency: extended runtime and fast charging

High-voltage Li-ion batteries have high energy density and can store more electrical energy within a compact volume. High-voltage systems consume less energy and provide longer battery running time comparing low-voltage systems. Notably, these high-voltage Li-ion batteries boast an impressive cycle life of up to 4000 cycles, ensuring long-term durability and minimizing the need for battery replacements. The PMSMs incorporate advanced control technology to optimize motor efficiency. Unlike traditional AC motors, PMSMs have higher energy conversion efficiency and reduce energy waste. This means that high-capacity trucks can work continuously for prolonged hours at lower costs. Equipped with fast charging capabilities, high-capacity trucks offer a remarkable charging experience. The high-voltage models are compatible with vehicle-grade charging stations and support 1C charging rating, allowing them to be fully charged in as fast as 1-1.2 hours. This minimizes downtime and maximizes productivity, making it ideal for multi-shift operations Lithium batteries present considerably lower charging costs than fuel expenses. The integration of high-voltage and PMSM technology achieves up to 15% greater electricity savings versus traditional lithium and AC technology configurations. This significantly reduces long-term energy consumption costs.

3.Safety Assured: Battery, motor protection, monitoring and mast buffering

Both high-voltage lithium batteries and PMSM employ multiple protective measures to ensure safe operations including overcharge protection, over-temperature monitoring, short-circuit protection, etc. minimizing the risk of potential hazards and maximizing operational safety. The central controlling module- VCU (Vehicle Control Unit) extends the safety of the high-voltage forklifts. VCU provides precise control and real-time monitoring of critical parameters to ensure the truck operates within safe limits. It also features turn speed control, which adjusts the forklift’s speed based on the turning angle, ensuring stability during turns. An over-speed alarm alerts the operator if the forklift exceeds the safe speed limit.* The high-capacity forklift mast is equipped with a hydraulic buffering system that ensures smooth lifting and lowering of loads. With controlled deceleration, the fork movement is smooth with no abrupt stops that could damage the load or cause operator discomfort. This feature enhances operational safety and prolongs the lifespan of the mast components.

4.Low maintenance: Longer battery life span

Operating at a higher voltage allows the battery to be designed with fewer individual cells. With fewer components and a simpler design, the risk of battery failure is lowered. Thanks to advanced BMS (Battery Management System) which helps to regulate and monitor high-voltage battery, these batteries tend to have a longer life than low-voltage lithium batteries, reducing the need of battery replacement. The brushless, simple rotor design of PMSM eliminates mechanical wear from brushes and commutators. This durable, low-friction construction requires minimal periodic maintenance, reducing associated labor costs and downtime.

5.Strong adaptability adaptable to harsh outdoor weather conditions

Experience uninterrupted productivity through rain, puddles, and damp conditions with the overall IPX4 rating. Plus an exceptional IP67 rating for high-voltage components. Engineered to withstand harsh temperature, high-capacity trucks offer an ambient temperature range of -20℃~40℃ allowing them to perform no matter climate. Battery heating when charging comes as a standard function for high capacity models, which is activated when the surrounding temperature is below zero to always offer an optimal temperature range for efficient and safe charging even in cold weather conditions. The dual front wheels is a standard configuration on several models offering a wider base of support, which greatly improves the forklift’s stability. Considering the capacity loads of the high-capacity trucks, the weight of the load is more evenly distributed across a larger surface area. The increased ground contact area provided by the dual wheels enhances traction. This is particularly beneficial in environments where the floor may be slippery or uneven while operating outdoors, ensuring that the forklift can maintain a firm grip and operate safely. This not only helps in maintaining balance but also minimizes the stress on individual tires, extending the lifespan of the tires.

Application

The FB75MH Series is purpose-built for industries that demand strength, reliability, and safety in extreme working conditions — such as steel production, construction materials, ports, and heavy logistics. Its dual-wheel front axle enhances traction and balance when transporting bulky materials on uneven or slippery ground. With its fast 1C charging capability and long battery life (up to 4000 cycles), it is the ideal solution for multi-shift operations that require continuous power and minimal downtime.

About the FB75MH

The FB75MH Series embodies JK’s innovation in sustainable heavy lifting. Powered by a 309 V high-voltage LFP battery, it provides up to 15% energy savings compared with traditional AC systems, while maintaining strong torque and rapid acceleration. Its high-voltage PMSM drive (60 kW + 2× 27.8 kW lift motors) ensures consistent performance and smoother control across long operating cycles.

A triple cooling system — dual water cooling (for battery and motor) and oil cooling (for hydraulics) — keeps all systems within optimal temperature range, ensuring reliability even under –20 °C to +40 °C conditions. Advanced VCU control enables precise speed and turning management, mast buffering, and comprehensive safety monitoring.

Operators enjoy maximum comfort and safety with an ergonomic cabin, OPS safety system, fingertip control option, LED lighting, suspension seat, and optional A/C cabins. With zero emissions, low noise, and rugged build quality, the FB75MH Series is a robust and eco-efficient choice for modern heavy-duty logistics.

FAQs

What is the load capacity range of the FB75MH Series?

The FB75MH Series covers models from 5.0 tons up to 7.0 tons, making it suitable for handling heavy-duty materials such as metal coils, construction components, and industrial equipment in demanding operations.

What type of battery system powers the FB75MH forklifts?

These models are powered by JK’s 309 V/228 Ah high-voltage LFP Li-ion battery, providing consistent high torque and long endurance. The system supports 1C rapid charging, allowing a full charge in approximately one hour for maximum uptime.

Can the FB75MH operate in outdoor or harsh conditions?

Yes. The truck’s IPX4-rated chassis and IP67-protected electrical system ensure safe operation in wet, dusty, or extreme environments. Its dual water and oil cooling systems maintain stable performance across temperatures ranging from –20 °C to +40 °C.

How does the FB75MH improve stability and traction during heavy loads?

The dual front-wheel structure distributes weight evenly, improving traction and balance when lifting or transporting heavy materials. Combined with a wide chassis and high ground clearance, it guarantees stability even on ramps or uneven surfaces.

What operator comfort and safety features are available?

The FB75MH includes an ergonomic cabin with OPS safety system, suspension seat, and LED lighting. Optional upgrades include fingertip control, rear camera, radar systems, and an air-conditioned full cabin for superior comfort and safety.

PRODUCT FEATURES

Load Capacity	7500Kg(16534.67lb)
Battery	309V228AH Lithium Battery
Controller/Motor	AC
Lift Height	3000mm(118.11in)
Turning Radius	3255mm(128.15in)
Fork Dimensions	70x150x1220mm(2.76×5.91×48.03in) (sxexl)
Steering Design	Hydraulic
Tyre Type	Pneumatic tyre
Service Weight	10350Kg(22817.86lb)
Product Color	Ivory/Ochre/Customization

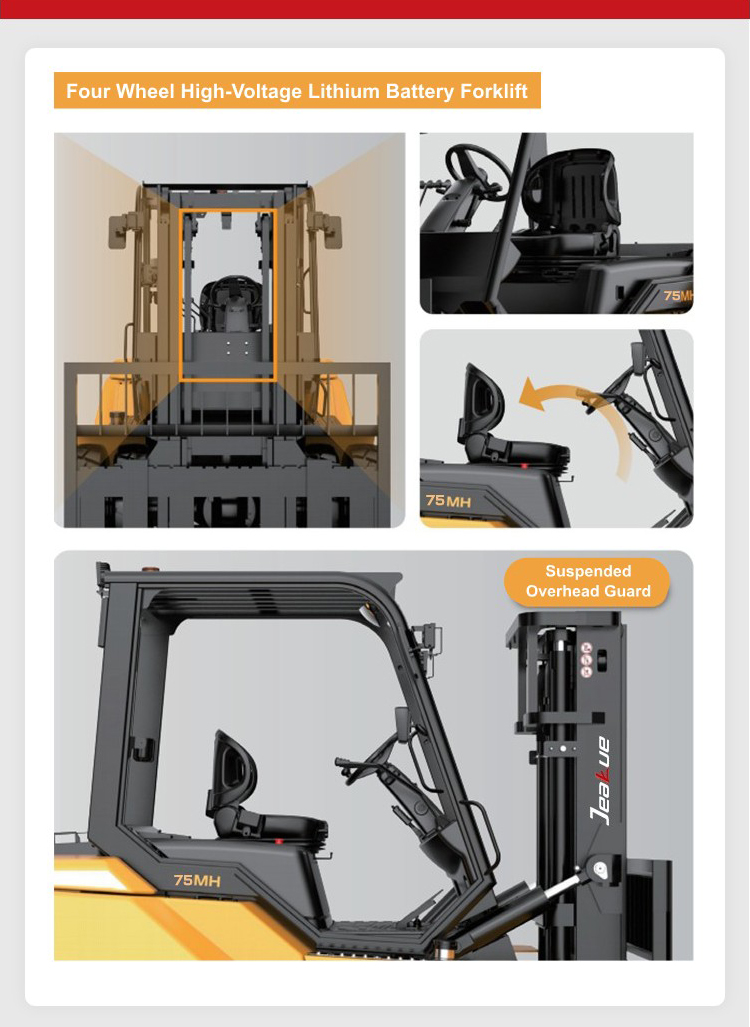

Four Wheel High-Voltage Lithium Battery Forklift

Suspended Overhead Guard JEAKUE 7.5 Ton High-voltage Lithium Battery Electric Forklift-75MH

Operating Console

Spacious Operating Space

High-Strength Mast

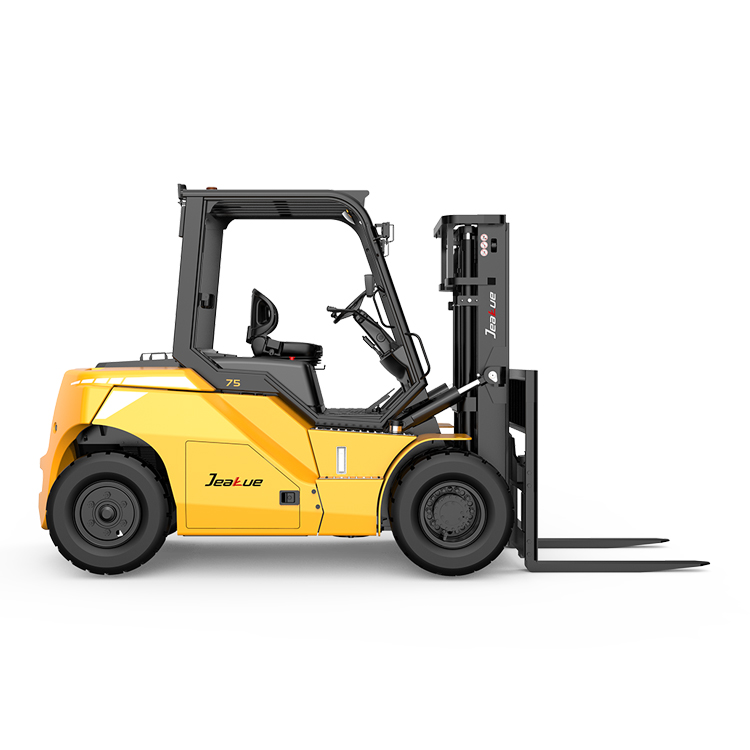

Super Powerful & Eco-Friendly JEAKUE 7.5 Ton High-voltage Lithium Battery Electric Forklift-75MH

◎ Overall performance comparable to internal combustion forklifts of the same class: high-performance drive motor and pump motor deliver strong power, matching the performance of IC forklifts (Travel speed: 25/26 km/h empty/full load; Gradeability: 30%/24%; Lifting speed: 0.51/0.53 m/s).JEAKUE 7.5 Ton High-voltage Lithium Battery Electric Forklift-75MH

◎ Optimized power distribution: single motor for travel, dual motors for lifting, steering, and braking.JEAKUE 7.5 Ton High-voltage Lithium Battery Electric Forklift-75MH

◎ Zero emissions: clean power, zero emissions, and environmentally friendly.JEAKUE 7.5 Ton High-voltage Lithium Battery Electric Forklift-75MH

Energy-Saving & High Efficiency JEAKUE 7.5 Ton High-voltage Lithium Battery Electric Forklift-75MH

◎ Significant energy savings: automotive-grade 309V high-voltage platform, permanent magnet synchronous motor, and lithium iron phosphate battery system deliver outstanding energy efficiency.JEAKUE 7.5 Ton High-voltage Lithium Battery Electric Forklift-75MH

◎ Easy steering: full-hydraulic priority steering with fixed-displacement system and dynamic load feedback ensures light and flexible steering.JEAKUE 7.5 Ton High-voltage Lithium Battery Electric Forklift-75MH

◎ High maneuverability: heavy-duty forklift steering axle with large steering angle, minimum turning radius as small as 3235 mm.JEAKUE 7.5 Ton High-voltage Lithium Battery Electric Forklift-75MH

◎ Efficient operation: low-center-of-gravity and lightweight design concept with hydraulic fork positioner, achieving higher operational efficiency.JEAKUE 7.5 Ton High-voltage Lithium Battery Electric Forklift-75MH

Appearance

◎ Adopts a newly designed family-style look with a tough and robust appearance, featuring clean and smooth lines for a refined and stable overall design.JEAKUE 7.5 Ton High-voltage Lithium Battery Electric Forklift-75MH

Safe & Reliable

◎ High structural strength: key components such as frame and mast undergo CAE finite element analysis and strength optimization.JEAKUE 7.5 Ton High-voltage Lithium Battery Electric Forklift-75MH

◎ High protection level: automotive-grade motor and controller with IP67 protection rating, meeting all-weather operation requirements.JEAKUE 7.5 Ton High-voltage Lithium Battery Electric Forklift-75MH

◎ High safety level: heavy-duty forklift drive axle, steering axle, and automotive-grade high-voltage lithium battery standard box ensure safety, stability, and proven reliability.JEAKUE 7.5 Ton High-voltage Lithium Battery Electric Forklift-75MH

◎ Superior cooling: dual water-cooling system for motor and battery, suitable for various working conditions; keeps the battery at optimal operating temperature for higher efficiency, slower degradation, and longer service life.JEAKUE 7.5 Ton High-voltage Lithium Battery Electric Forklift-75MH

Comfortable & Convenient

◎ Excellent visibility: wide-view mast with lowering buffer ensures safer and more comfortable operation.JEAKUE 7.5 Ton High-voltage Lithium Battery Electric Forklift-75MH

◎ Easy maintenance: seat and hood can be tilted for large maintenance space, making servicing more convenient.JEAKUE 7.5 Ton High-voltage Lithium Battery Electric Forklift-75MH

◎ Ergonomic design: standard suspended overhead guard with excellent shock absorption; internal instrument layout designed ergonomically for comfortable operation.JEAKUE 7.5 Ton High-voltage Lithium Battery Electric Forklift-75MH
