Description

Explore the FB80MH

This groundbreaking development adopts world-leading high-voltage Lithium-ion power combined with advanced PMSM (Permanent Magnet Synchronous Motor) technology. These high-capacity forklifts ensure triple guarantees of high performance, long running time and safety while aligning with the current trend of green and sustainable development.
1.High Performance: High speed and high gradeability

High-voltage Li-ion batteries enable more power delivery to motors, improving acceleration and travel speeds for high-capacity trucks. PMSMs complement this with rapid response times, swiftly reaching required speeds and torques. This combination of PMSM and high voltage can provide stable and strong power output, which further gives high-capacity trucks excellent climbing capabilities ensuring that the forklift can cope with various applications with ease. The high-voltage model offers a 1.5-2 times performance improvement over the low-voltage model. Taking the 10-ton model as an example: 100% improvement in travel speed for high voltage models in laden and unladen conditions. The high-voltage model demonstrates a 45% faster lifting speed. 100% improvement in gradeability when unladen, 45% improvement when laden for high voltage models.

2.Energy Efficiency: extended runtime and fast charging

High-voltage Li-ion batteries have high energy density and can store more electrical energy within a compact volume. High-voltage systems consume less energy and provide longer battery running time comparing low-voltage systems. Notably, these high-voltage Li-ion batteries boast an impressive cycle life of up to 4000 cycles, ensuring long-term durability and minimizing the need for battery replacements. The PMSMs incorporate advanced control technology to optimize motor efficiency. Unlike traditional AC motors, PMSMs have higher energy conversion efficiency and reduce energy waste. This means that high-capacity trucks can work continuously for prolonged hours at lower costs. Equipped with fast charging capabilities, high-capacity trucks offer a remarkable charging experience. The high-voltage models are compatible with vehicle-grade charging stations and support 1C charging rating, allowing them to be fully charged in as fast as 1-1.2 hours. This minimizes downtime and maximizes productivity, making it ideal for multi-shift operations Lithium batteries present considerably lower charging costs than fuel expenses. The integration of high-voltage and PMSM technology achieves up to 15% greater electricity savings versus traditional lithium and AC technology configurations. This significantly reduces long-term energy consumption costs.

3.Safety Assured: Battery, motor protection, monitoring and mast buffering

Both high-voltage lithium batteries and PMSM employ multiple protective measures to ensure safe operations including overcharge protection, over-temperature monitoring, short-circuit protection, etc. minimizing the risk of potential hazards and maximizing operational safety. The central controlling module- VCU (Vehicle Control Unit) extends the safety of the high-voltage forklifts. VCU provides precise control and real-time monitoring of critical parameters to ensure the truck operates within safe limits. It also features turn speed control, which adjusts the forklift’s speed based on the turning angle, ensuring stability during turns. An over-speed alarm alerts the operator if the forklift exceeds the safe speed limit.* The high-capacity forklift mast is equipped with a hydraulic buffering system that ensures smooth lifting and lowering of loads. With controlled deceleration, the fork movement is smooth with no abrupt stops that could damage the load or cause operator discomfort. This feature enhances operational safety and prolongs the lifespan of the mast components.

4.Smart and reliable strategy for thermal management

The high-capacity trucks utilize three distinct cooling systems to ensure optimal performance and reliability. Specifically, two water cooling systems are employed for the motor and the battery, while an oil cooling system is dedicated to the hydraulics system. The water cooling systems provide superior cooling performance, preventing the truck from overheating even under the most demanding conditions or in the heat of summer. Water’s higher heat transfer capacity compared to air allows it to dissipate heat more efficiently from critical components like the motor and battery. This efficient heat dissipation helps maintain the battery temperature around 30~35℃, protecting these vital components from overheating and potential damage or failure. Consequently, this enhances the overall reliability and longevity of the high-capacity trucks. Additionally, water cooling systems typically operate with less noise compared to air cooling systems that rely on high-speed fans. This noise reduction is particularly beneficial in applications where a quieter operation is desirable, such as in urban areas or indoor facilities. The oil cooling system, on the other hand, is used for the hydraulics system. This system ensures that the hydraulic components remain within optimal temperature ranges, thereby maintaining their efficiency and preventing overheating. By effectively managing the temperature of the hydraulics system, the oil cooling system contributes to the smooth and reliable operation of the truck’s hydraulic functions.

5.Low maintenance: Longer battery life span

Operating at a higher voltage allows the battery to be designed with fewer individual cells. With fewer components and a simpler design, the risk of battery failure is lowered. Thanks to advanced BMS (Battery Management System) which helps to regulate and monitor high-voltage battery, these batteries tend to have a longer life than low-voltage lithium batteries, reducing the need of battery replacement. The brushless, simple rotor design of PMSM eliminates mechanical wear from brushes and commutators. This durable, low-friction construction requires minimal periodic maintenance, reducing associated labor costs and downtime.

6.Sustainability : Zero emissions for cleaner environment

As fully electric trucks powered by lithium-ion batteries, these forklifts produce zero emissions during operation, eliminating exposure to toxic fumes like carbon monoxide and nitrogen oxides. Unlike lead-acid batteries which can leak corrosive acid, lithium-ion batteries do not risk hazardous spills. The high-capacity li-ion trucks contribute to a cleaner and safer indoor working environment without compromising handling capabilities.

7.Strong adaptability adaptable to harsh outdoor weather conditions

Experience uninterrupted productivity through rain, puddles, and damp conditions with the overall IPX4 rating. Plus an exceptional IP67 rating for high-voltage components. Engineered to withstand harsh temperature, high-capacity trucks offer an ambient temperature range of -20℃~40℃ allowing them to perform no matter climate. Battery heating when charging comes as a standard function for high capacity models, which is activated when the surrounding temperature is below zero to always offer an optimal temperature range for efficient and safe charging even in cold weather conditions. The dual front wheels is a standard configuration on several models offering a wider base of support, which greatly improves the forklift’s stability. Considering the capacity loads of the high-capacity trucks, the weight of the load is more evenly distributed across a larger surface area. The increased ground contact area provided by the dual wheels enhances traction. This is particularly beneficial in environments where the floor may be slippery or uneven while operating outdoors, ensuring that the forklift can maintain a firm grip and operate safely. This not only helps in maintaining balance but also minimizes the stress on individual tires, extending the lifespan of the tires.

8.Great support for clients’ investment: After-sales Service

Remote/Online Services: Telematics technology enables remote monitoring of battery conditions, performance status, and other critical parameters for forklifts. Additionally, production, technical, and after-sales experts are available around the clock to provide prompt and comprehensive solutions for any maintenance issues through virtual support. Physical Services: Comprehensive manuals and supporting documents are provided for all forklift models. In case of breakdowns or replacements, spare parts are swiftly delivered to the clients’ locations by global subsidiaries or domestic inventory, minimizing operational disruptions caused by equipment downtime.

Application

The FB80MH Series is purpose-built for industries such as mining, steel, construction materials, ports, and heavy manufacturing. Thanks to their dual front wheels, high ground clearance, and robust IPX4/IP67-rated protection, they operate confidently on rough or wet terrain. With travel speeds up to 30 km/h, lift heights up to 7 meters, and the ability to handle diverse load types via optional fork positioners and attachments, these models ensure productivity in even the toughest working environments.



About the FB80MH

The FB80MH Series represents the future of heavy-duty electric forklifts. Featuring high-voltage Li-ion technology (309V/304Ah), these models deliver 45% faster lifting, 100% higher gradeability, and up to 15% energy savings compared to traditional low-voltage systems.

The integrated PMSM drive and lift motors ensure instant torque response, while advanced cooling systems — dual water for motor and battery plus oil for hydraulics — maintain consistent performance even under extreme conditions. Operators benefit from enhanced stability through dual front wheels, smooth hydraulic mast buffering, and ultra-low noise operation.

The truck’s design emphasizes comfort and visibility: a spacious cabin with optional full air-conditioned enclosure, ergonomic seating with armrests, fingertip controls, and LED lighting for optimal safety. With telematics connectivity and optional attachments like fork positioners with sideshift or roller-guided forks, the FB80MH adapts seamlessly to a variety of heavy industries. Combining sustainability with power, it is the definitive choice for companies transitioning from diesel to electric without compromise.

FAQs

Can the FB80MH operate in harsh or outdoor environments?

Yes. The series is IPX4-rated overall and IP67-rated for high-voltage components, making it resistant to water, dust, and humidity. With dual front wheels, 180 mm ground clearance, and integrated heating for cold climates, it performs reliably in ports, construction sites, and outdoor yards

How does the cooling system ensure consistent performance?

The FB80MH features a triple cooling system: dual water cooling for both the motor and battery, and oil cooling for hydraulic circuits. This intelligent setup maintains optimal operating temperatures between 30–35°C, even during continuous heavy-duty operations.

Can the FB80MH operate in harsh or outdoor environments?

Yes. The series is IPX4-rated overall and IP67-rated for high-voltage components, making it resistant to water, dust, and humidity. With dual front wheels, 180 mm ground clearance, and integrated heating for cold climates, it performs reliably in ports, construction sites, and outdoor yards.

What features enhance operator comfort and visibility?

Designed for long shifts, the cabin includes an ergonomic suspension seat with headrest, fingertip hydraulic controls, and optional air-conditioned enclosure. The wide-view mast, LED lighting package, and low noise levels ensure excellent comfort and operational visibility

What makes the FB80MH different from conventional diesel forklifts?

The FB80MH delivers the same power and endurance as diesel forklifts but with zero emissions, lower operating costs, and quieter performance. Its high-voltage 309V Li-ion system and PMSM motors provide instant torque, fast acceleration, and superior energy efficiency — eliminating the maintenance and fuel costs of IC trucks.

PRODUCT FEATURES

Load Capacity	8000Kg(17636.98lb)
Battery	309V304AH Lithium Battery
Controller/Motor	AC
Lift Height	3000mm(118.11in)
Turning Radius	3605mm(141.93in)
Fork Dimensions	75x160x1520mm(2.95×6.30×59.84in) (sxexl)
Steering Design	Hydraulic
Tyre Type	Pneumatic tyre
Service Weight	12325Kg(27171.91lb)
Product Color	Ivory/Ochre/Customization

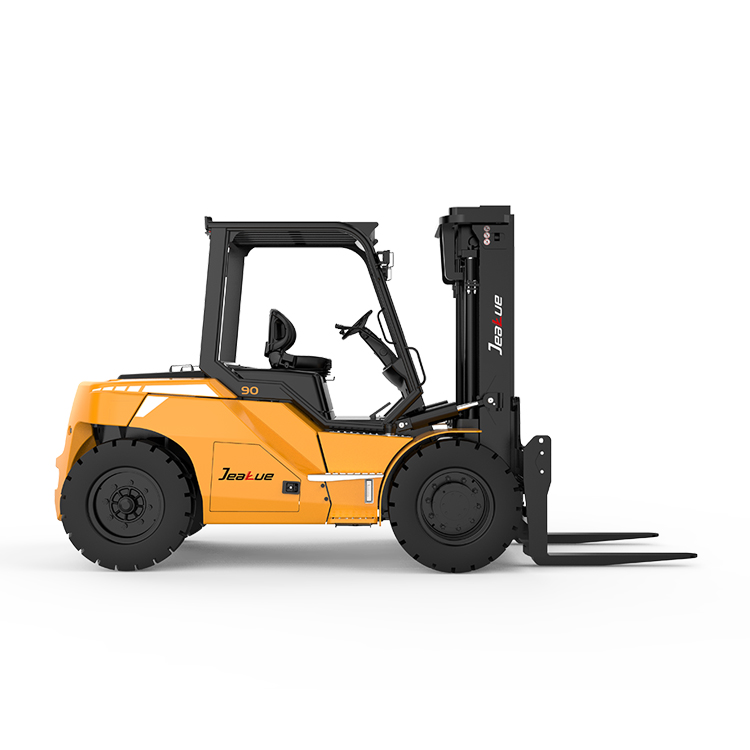

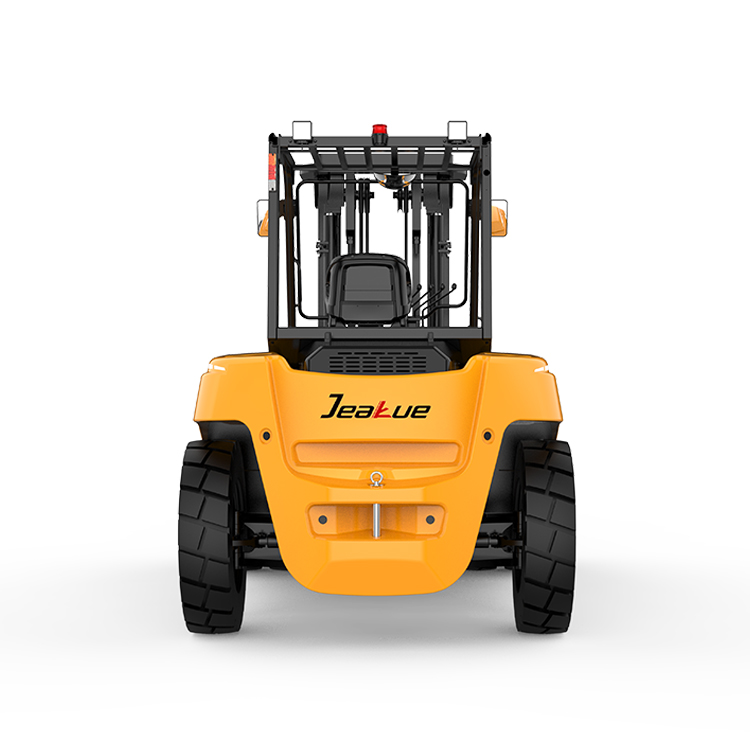

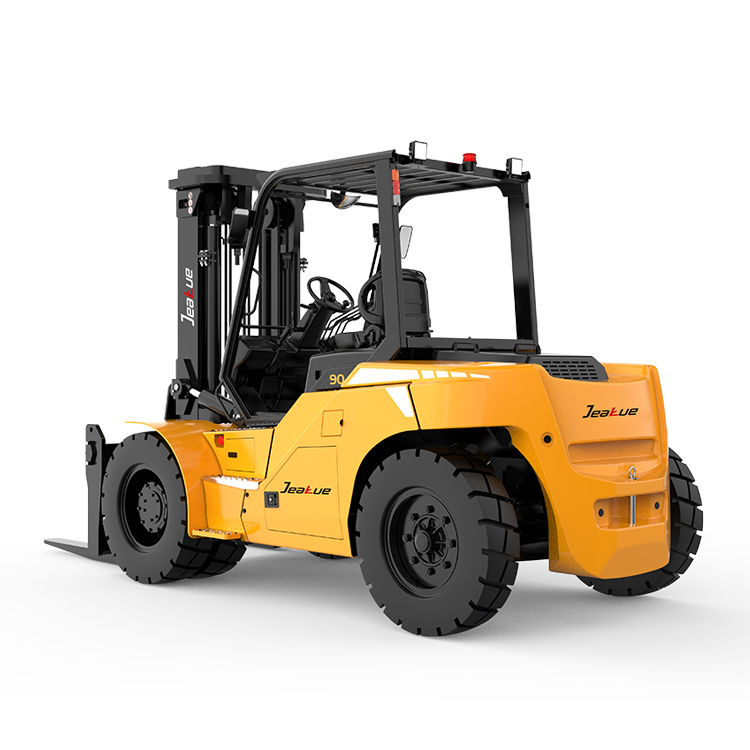

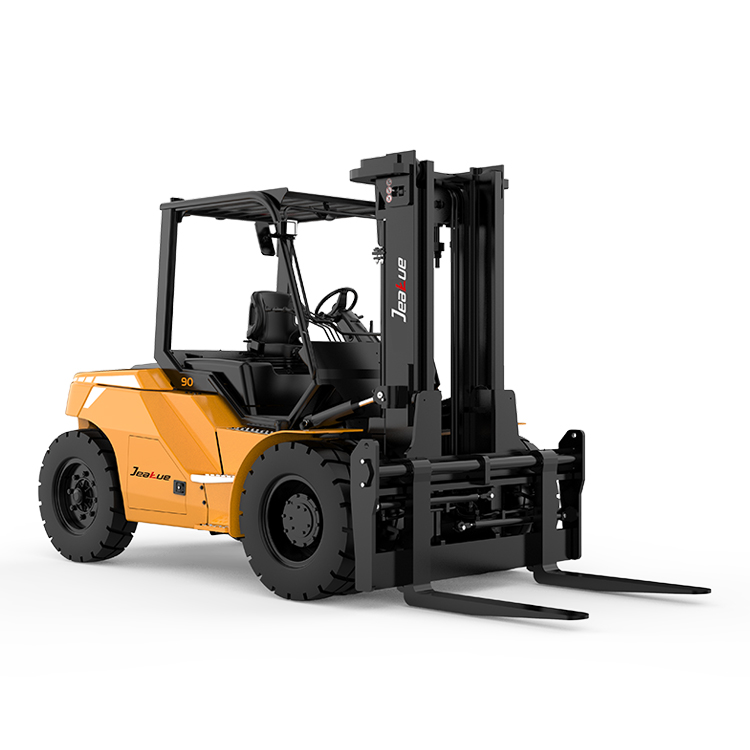

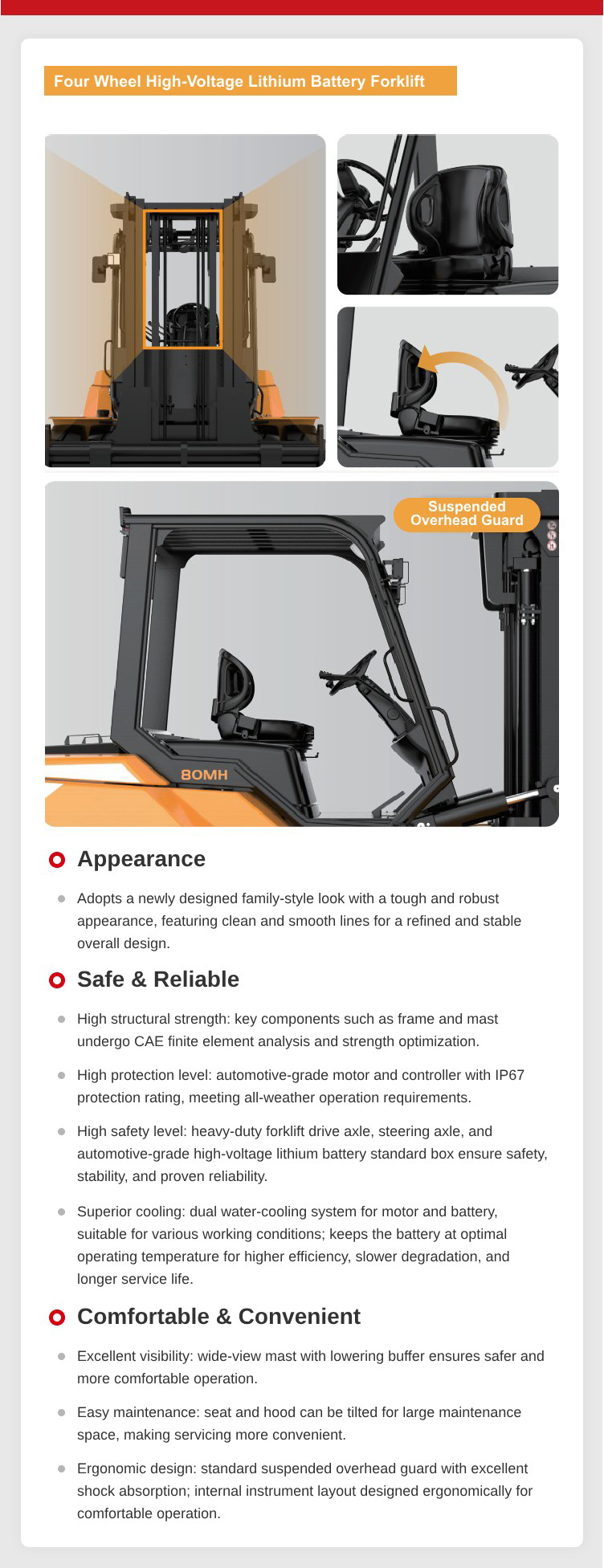

Four Wheel High-Voltage Lithium Battery Forklift

Suspended Overhead Guard

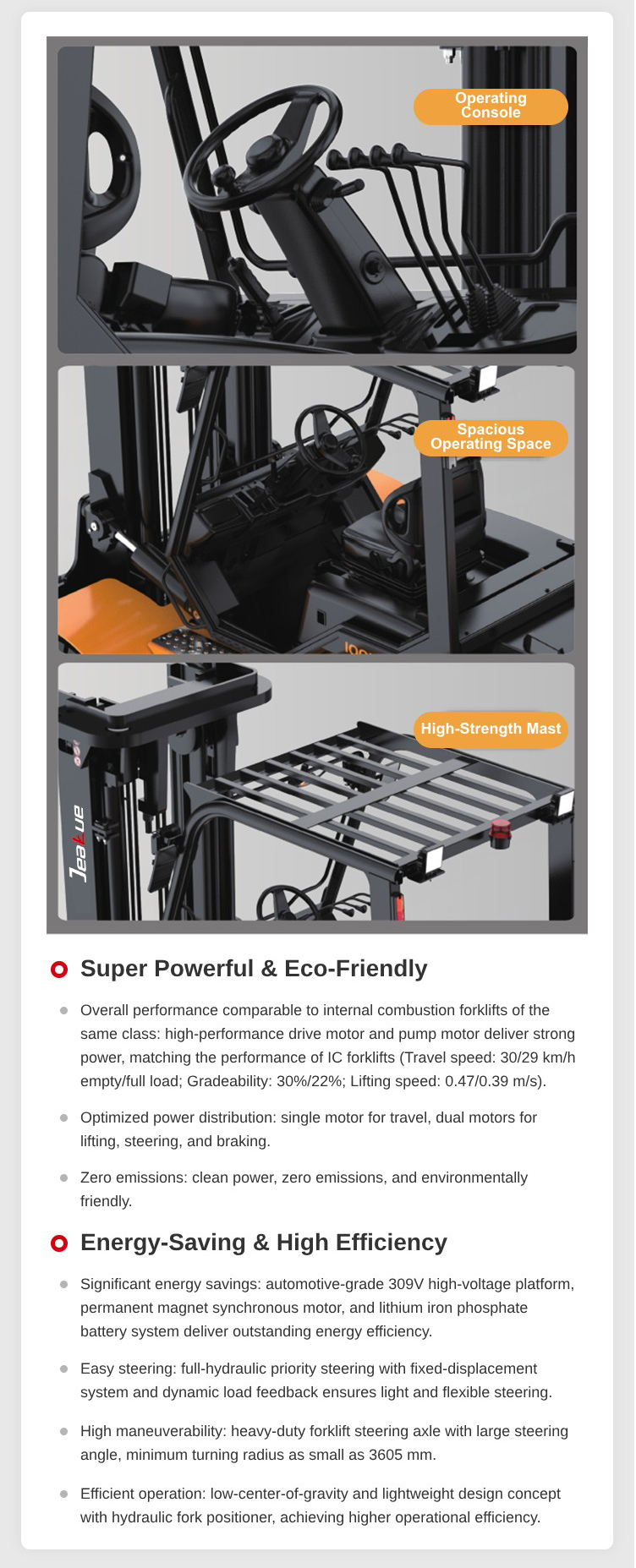

Operating Console

Spacious Operating Space

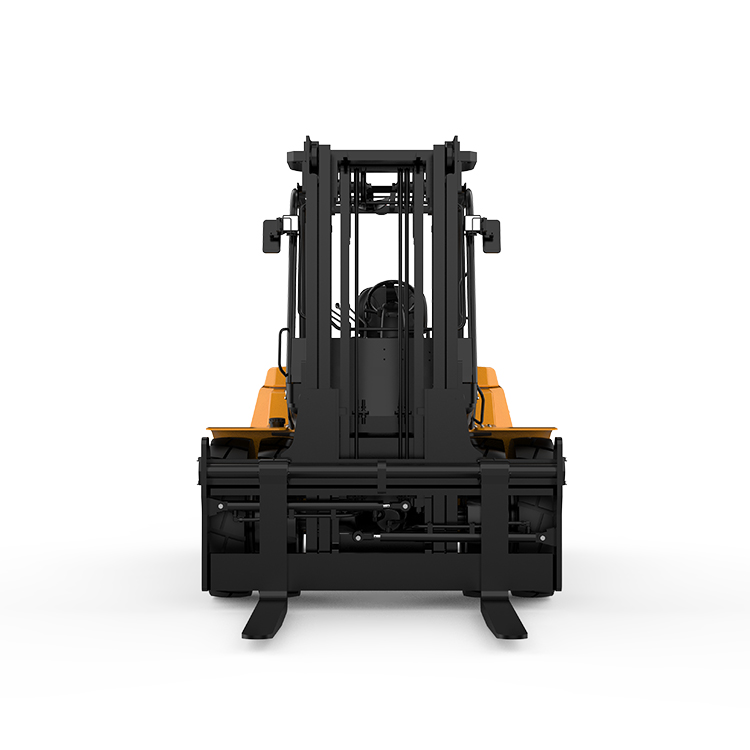

High-Strength Mast

Super Powerful & Eco-Friendly

◎ Overall performance comparable to internal combustion forklifts of the same class: high-performance drive motor and pump motor deliver strong power, matching the performance of IC forklifts (Travel speed: 30/29 km/h empty/full load; Gradeability: 30%/22%; Lifting speed: 0.47/0.39 m/s).JEAKUE 8 Ton High-voltage Lithium Battery Electric Forklift-80MH

◎ Optimized power distribution: single motor for travel, dual motors for lifting, steering, and braking.JEAKUE 8 Ton High-voltage Lithium Battery Electric Forklift-80MH

◎ Zero emissions: clean power, zero emissions, and environmentally friendly.JEAKUE 8 Ton High-voltage Lithium Battery Electric Forklift-80MH

Energy-Saving & High Efficiency

◎ Significant energy savings: automotive-grade 309V high-voltage platform, permanent magnet synchronous motor, and lithium iron phosphate battery system deliver outstanding energy efficiency.JEAKUE 8 Ton High-voltage Lithium Battery Electric Forklift-80MH

◎ Easy steering: full-hydraulic priority steering with fixed-displacement system and dynamic load feedback ensures light and flexible steering.JEAKUE 8 Ton High-voltage Lithium Battery Electric Forklift-80MH

◎ High maneuverability: heavy-duty forklift steering axle with large steering angle, minimum turning radius as small as 3605 mm.JEAKUE 8 Ton High-voltage Lithium Battery Electric Forklift-80MH

◎ Efficient operation: low-center-of-gravity and lightweight design concept with hydraulic fork positioner, achieving higher operational efficiency.JEAKUE 8 Ton High-voltage Lithium Battery Electric Forklift-80MH

Appearance

◎ Adopts a newly designed family-style look with a tough and robust appearance, featuring clean and smooth lines for a refined and stable overall design.JEAKUE 8 Ton High-voltage Lithium Battery Electric Forklift-80MH

Safe & Reliable

◎ High structural strength: key components such as frame and mast undergo CAE finite element analysis and strength optimization.JEAKUE 8 Ton High-voltage Lithium Battery Electric Forklift-80MH

◎ High protection level: automotive-grade motor and controller with IP67 protection rating, meeting all-weather operation requirements.JEAKUE 8 Ton High-voltage Lithium Battery Electric Forklift-80MH

◎ High safety level: heavy-duty forklift drive axle, steering axle, and automotive-grade high-voltage lithium battery standard box ensure safety, stability, and proven reliability.JEAKUE 8 Ton High-voltage Lithium Battery Electric Forklift-80MH

◎ Superior cooling: dual water-cooling system for motor and battery, suitable for various working conditions; keeps the battery at optimal operating temperature for higher efficiency, slower degradation, and longer service life.JEAKUE 8 Ton High-voltage Lithium Battery Electric Forklift-80MH

Comfortable & Convenient

◎ Excellent visibility: wide-view mast with lowering buffer ensures safer and more comfortable operation.JEAKUE 8 Ton High-voltage Lithium Battery Electric Forklift-80MH

◎ Easy maintenance: seat and hood can be tilted for large maintenance space, making servicing more convenient.JEAKUE 8 Ton High-voltage Lithium Battery Electric Forklift-80MH

◎ Ergonomic design: standard suspended overhead guard with excellent shock absorption; internal instrument layout designed ergonomically for comfortable operation.JEAKUE 8 Ton High-voltage Lithium Battery Electric Forklift-80MH
