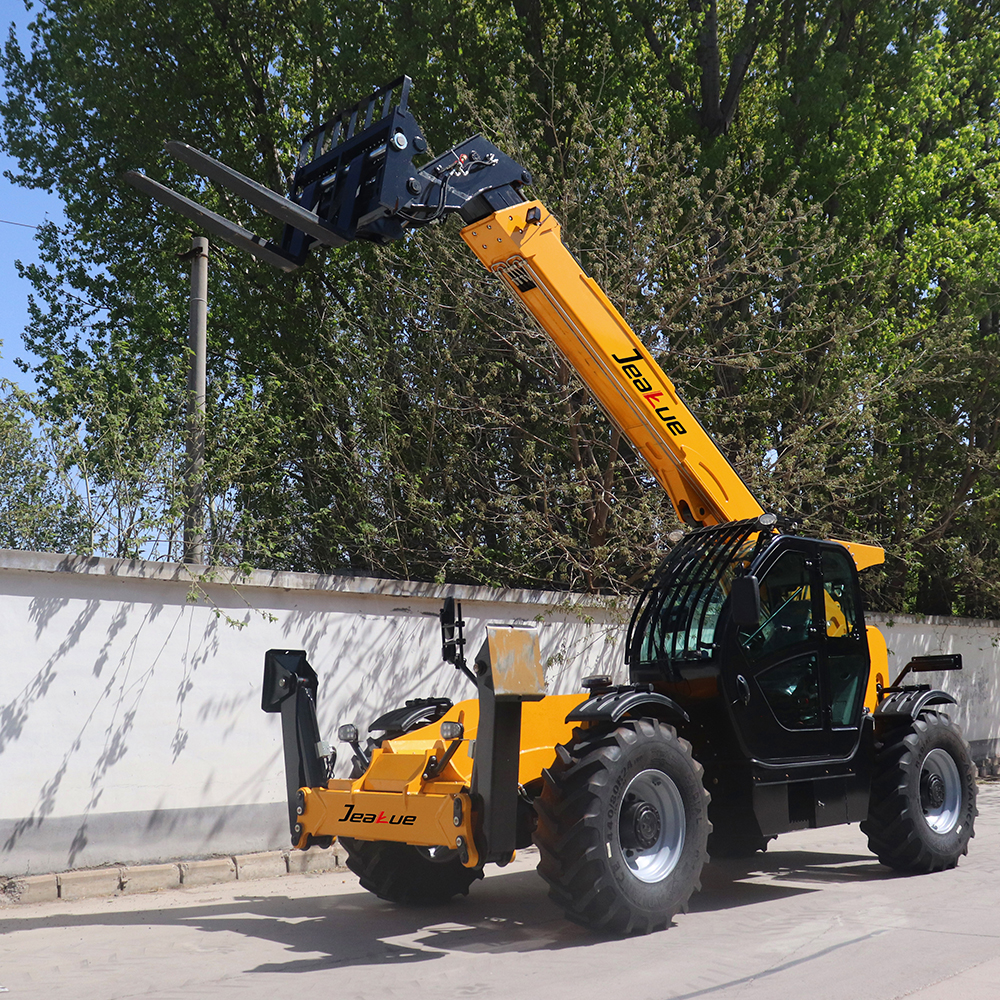

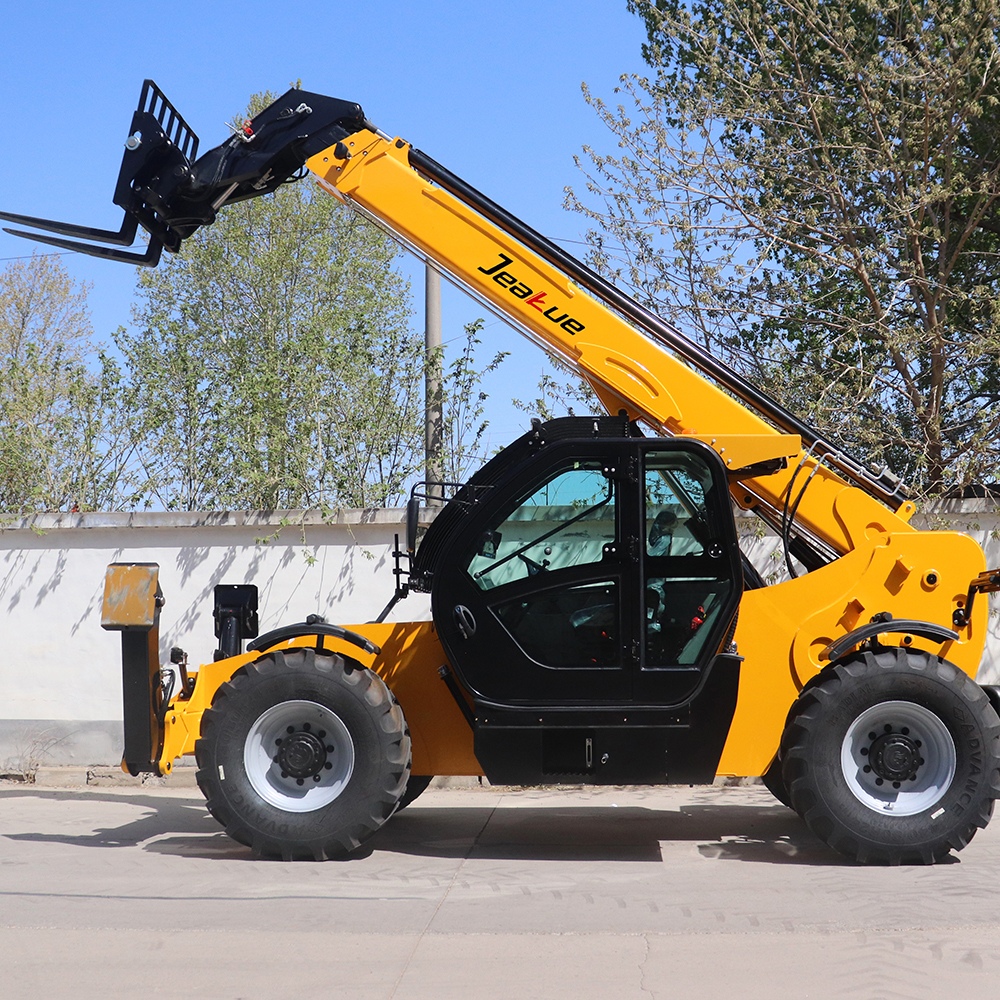

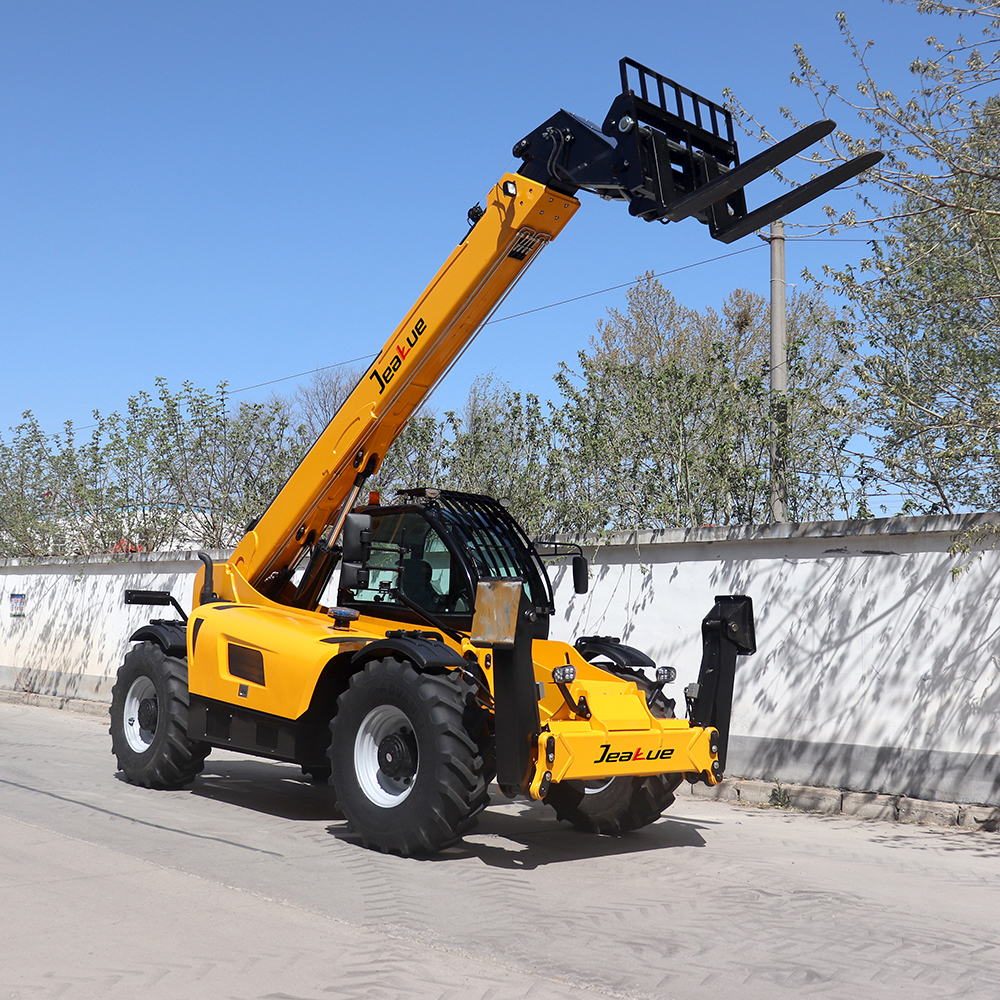

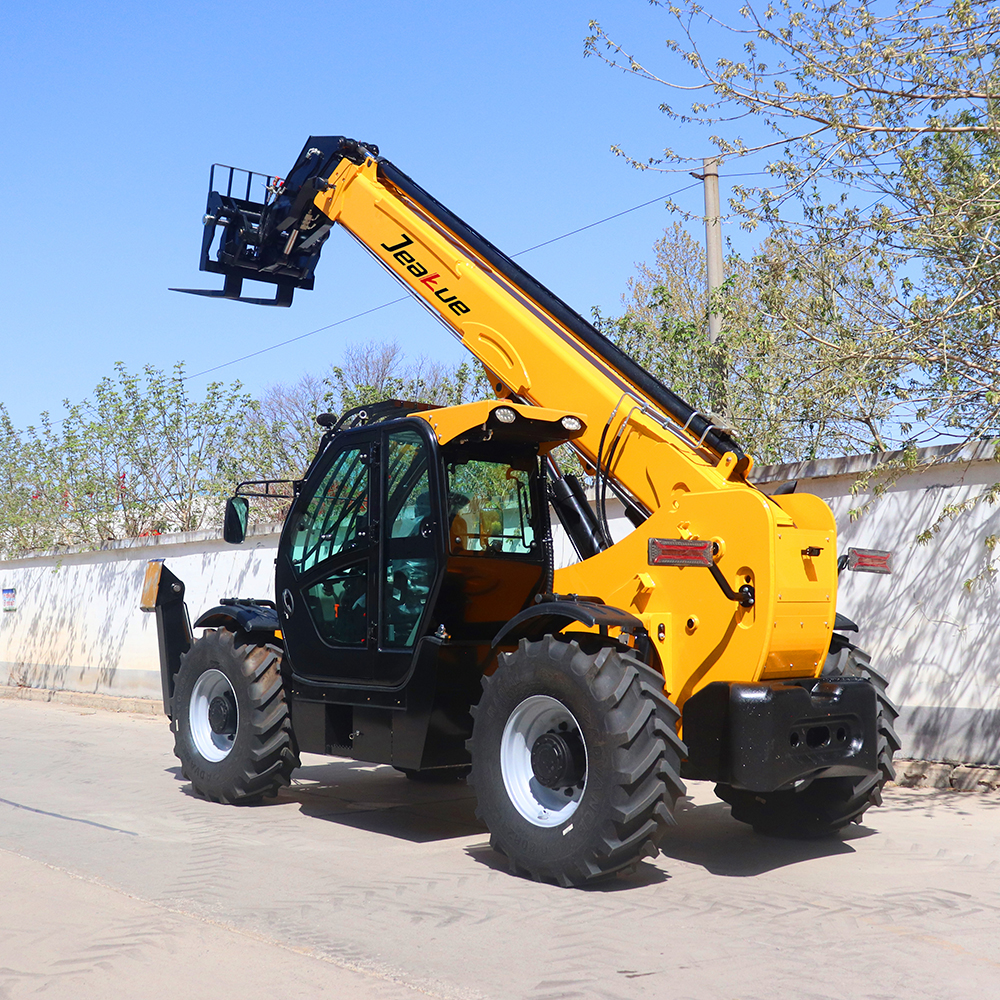

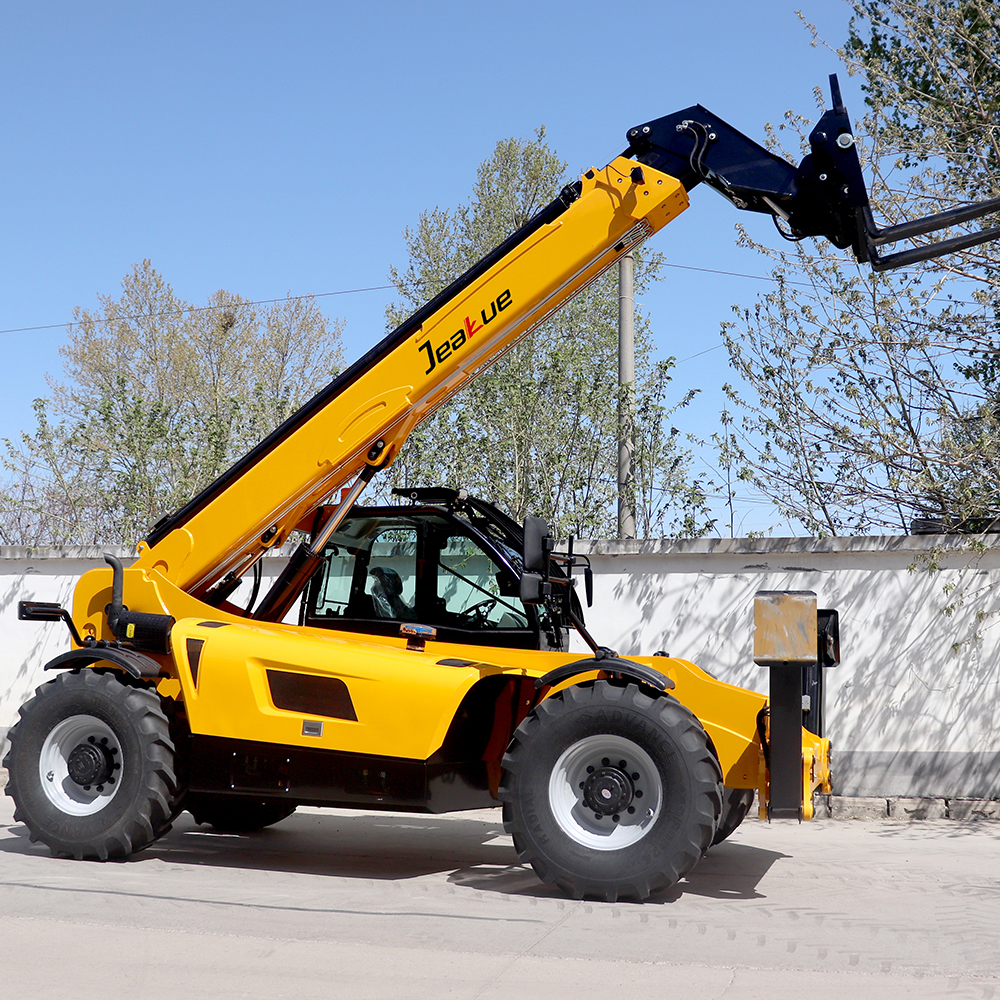

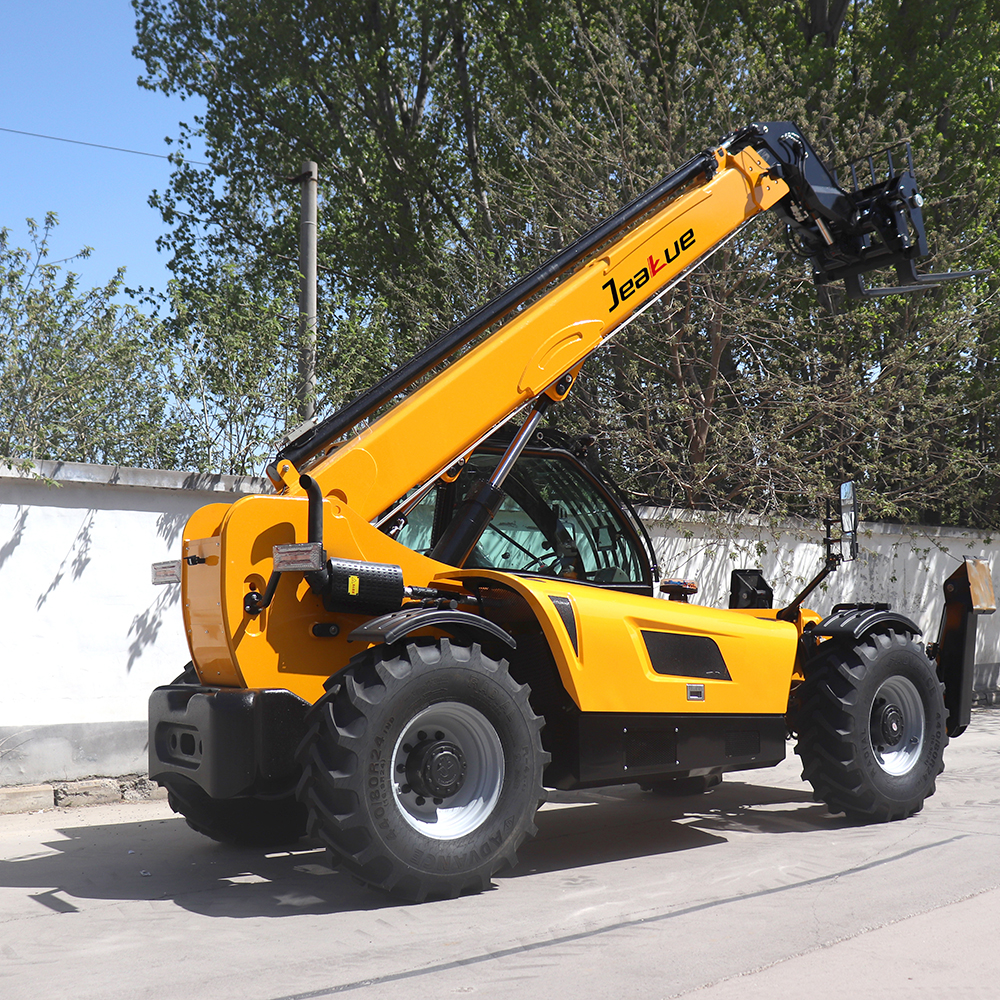

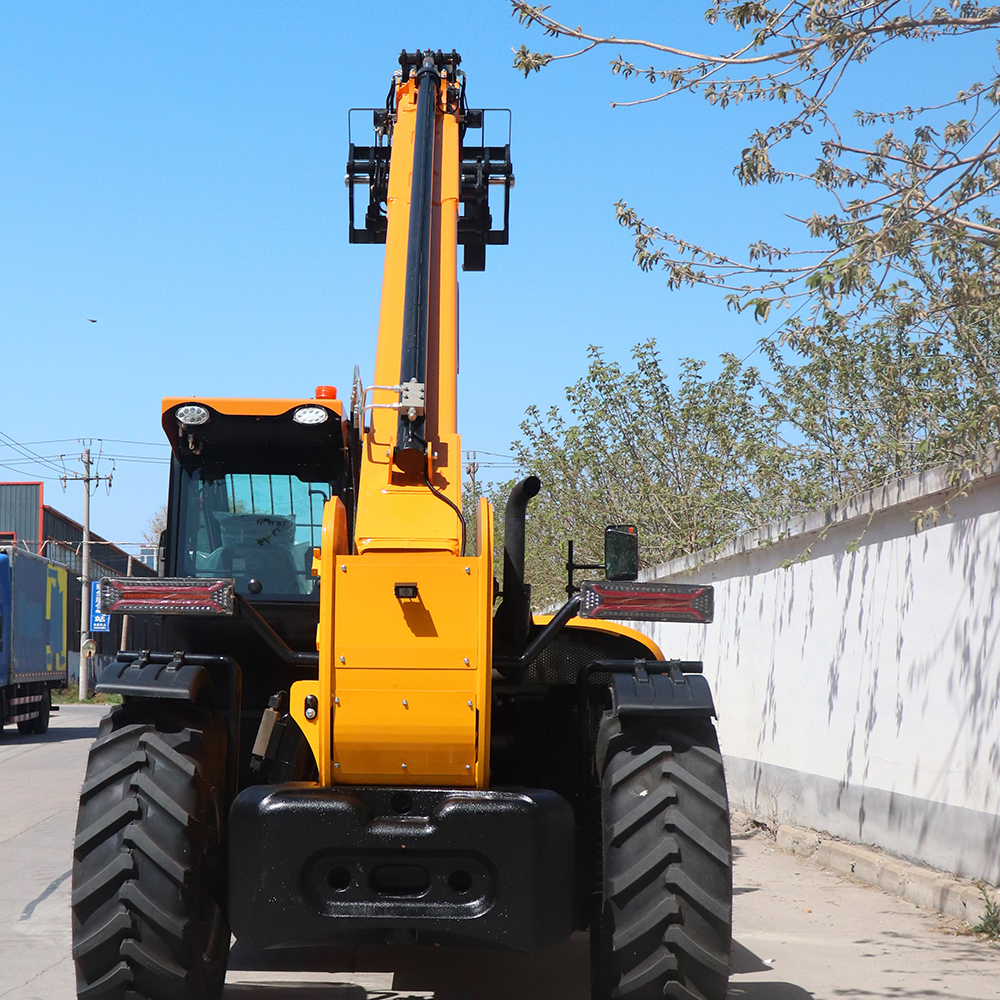

5 Ton Diesel Telehandler Forklift-T5010
Lifting height:9800mm
Rated load:5000Kg
Power:91Kw/122hp
Tyre:16/70-24 Semi-solid
Description


Specification |
|
| Max. capacity | 5000 kg |
| Max. lifting height | 9.8 m |
| Max. outreach | 5.0 m |

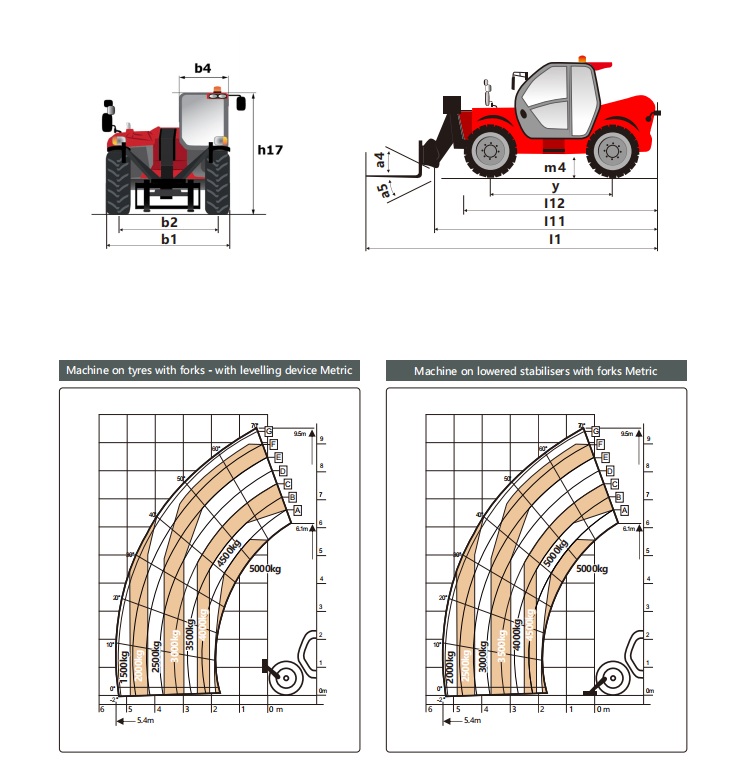

| Overall length to carriage (l110) | 6.4 m |
| Length to face of forks (l1) | 7.62 m |
| Min transport size (l12) | 5.6 m |
| Overall width (b1) | 2.35 m |
| Track width (b2) | 1.95 m |
| Overall height (h17) | 2.55 m |
| Wheelbase (y) | 3.6 m |
| Ground clearance (m4) | 0.38 m |
| Overall cab width(b4) | 0.84 m |
| Tilt-up angle(a4) | 12 ° |
| Tilt-down angle (a5) | 114 ° |
| External turning radius(over tyres) | 4.1 m |
| Unladen weight(with fork) | 12800 kg |
| Tires type | Semi-solid |
| Standard tires (l/e/s) | 16/70 -24 |
| Forks length/ width/ section | 1220 mm x 125 mm / 50 mm |
| Lifting | 16 s |
| Lowering | 12.4 s |
| Extension | 17.3 s |
| Retraction | 13 s |
| Crowd | 4.8 s |
| Dump | 4.0 s |
| Engine brand | Yuchai (optional brand) |
| Engine norm | National II |
| Max. fuel sulphur content | 5000 ppm |
| Engine model | YCD4J22T-125 |
| Number of cylinders / Capacity of cylinders | 4 – 4400 cm³ |
| I.C. Engine power rating – Power | 122 Hp / 91 kW |
| Max. torque / Engine rotation | 400 Nm @ 1400 rpm |
| Drawbar pull (Laden) | 10000 daN |
| Transmission type | Torque converter (optional hydrostatic) |
| Number of gears (forward / reverse) | 4/4 |
| Max. travel speed | 40 km/h |
| Parking brake | Automatic air-cut brake (optional wet braking) |
| Service brake | Immersed multi-discs braking on front & rear axles |
| Hydraulic pump type | Gear pump (optional piston pump) |
| Hydraulic flow | 150 L |
| Engine oil | 5.5 L |
| Hydraulic oil | 170 L |
| Fuel tank | 195 L |
| Noise at driving position (LpA) | 82 dB |
| Noise to environment (LwA) | 105 dB |
| Vibration on hands / arms | < 2.50 m/s² |
| Steering wheels (front / rear) | 2/2 |
| Drive wheels (front / rear) | 2/2 |
| Safety cab homologation | FOPS level 2 cab |

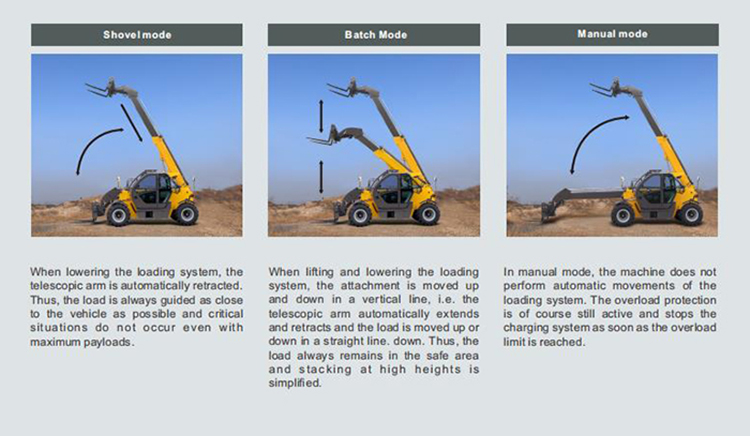

Shovel mod:When lowering the loading system, the telescopic arm is automatically retracted. Thus, the load is always guided as close to the vehicle as possible and critical situations do not occur even with maximum payloads.JEAKUE 5 Ton Diesel Telehandler Forklift-T5010
Batch Mode:When lifting and lowering the loading system, the attachment is moved up and down in a vertical line, i.e. the telescopic arm automatically extends and retracts and the load is moved up or down in a straight line. down. Thus, the load always remains in the safe area and s tac k ing at high height s i s simplified.JEAKUE 5 Ton Diesel Telehandler Forklift-T5010
Manual mode:In manual mode, the machine does not perform automatic movements of the loading system. The overload protection
is of course still active and stops the charging system as soon as the overload limit is reached.JEAKUE 5 Ton Diesel Telehandler Forklift-T5010

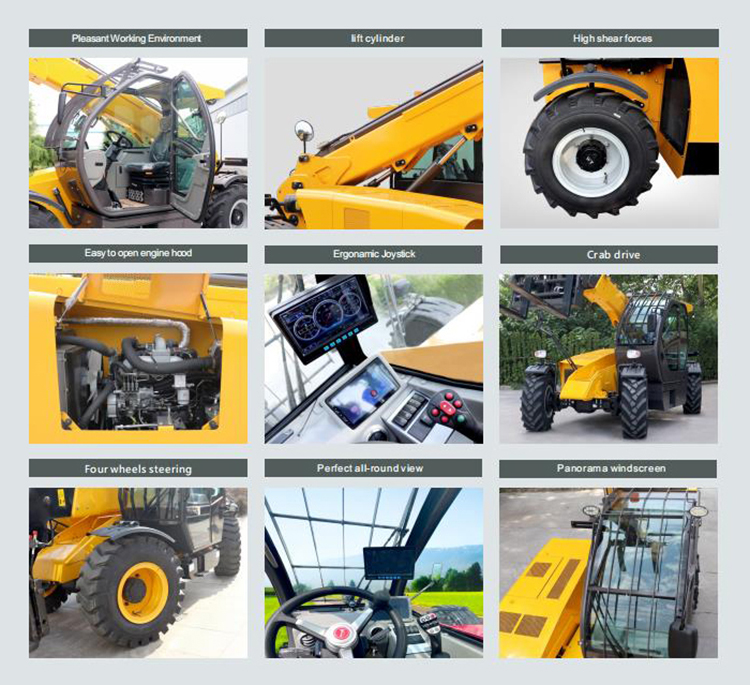

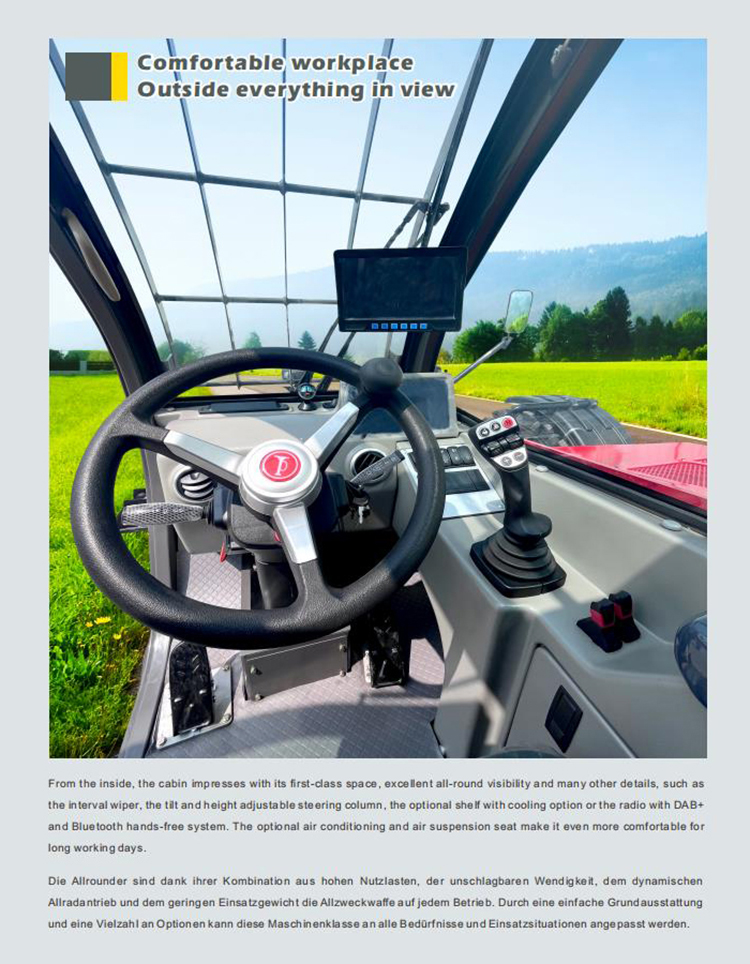

From the inside, the cabin impresses with its first-class space, excellent all-round visibility and many other details, such as
the interval wiper, the tilt and height adjustable steering column, the optional shelf with cooling option or the radio with DAB+ and Bluetooth hands-free system. The optional air conditioning and air suspension seat make it even more comfortable for long working days.JEAKUE 5 Ton Diesel Telehandler Forklift-T5010
Die Allrounder sind dank ihrer Kombination aus hohen Nutzlasten, der unschlagbaren Wendigkeit, dem dynamischen
Allradantrieb und dem geringen Einsatzgewicht die Allzweckwaffe auf jedem Betrieb. Durch eine einfache Grundausstattung
und eine Vielzahl an Optionen kann diese Maschinenklasse an alle Bedürfnisse und Einsatzsituationen angepasst werden.JEAKUE 5 Ton Diesel Telehandler Forklift-T5010
