Description

PRODUCT FEATURES

Load Capacity	5000Kg(11023.10 lb)
Fork Dimensions	55 x 170 x 1150mm(2.17/6.69/45.28in)(s x e x l)
Distance Between Fork-arms	560/685mm（22.05/26.97in）
Battery Voltage/Nominal Capacity	48V53Ah Lead-acid Battery
Turning Radius	1585mm（62.40in）
Lift Height	125mm（4.92in）
Steering Design	Mechanical
Service weight	320Kg（705.48lb）
Product Color	Ivory/Red/Customization

Heavy-Duty Material Handling Assistan MN-02 5.0 ton heavy duty electric pallet truck. JEAKUE 5000Kg Electric Pallet Truck.

All-Metal Chassis, Durable and Wear-Resistant

The entire chassis is made of all-metal material, which is more resistant to corrosion in harsh environments, effectively extending the service life.5000Kg JEAKUE 5 Ton Pedestrian Electric Pallet Truck

Large Wheel Diameter, Good Passability

JEAKUE 5 Ton Pedestrian Electric Pallet Truck.Standard 300mm large diameter wheels, driving height 155mm, good passability, strong power.

PU wheels can be selected, meeting different ground requirements.JEAKUE 5 Ton Pedestrian Electric Pallet Truck

Equipped with a standard internal charger, making charging more convenient.JEAKUE Electric Pallet Jack | Pallet Jack for Sale

The standard 48V/53Ah lithium battery can be upgraded to a 48V/65Ah large capacity lithium battery, offering longer battery life.

Lithium battery option available.JEAKUE Industrial Trucks | Powered Pallet Trucks

Height from ground: 155mm

JEAKUE 5 Ton Pedestrian Electric Pallet Truck Good Stability

Supports four-point support, making the turning more stable.5T Electric Pallet Truck | JEAKUE

Small Turning Radius, Flexible and Suitable for More Work Scenarios.JEAKUE Electric Pallet Trucks | Forklifts Types

The turning radius is only 1585mm, making it easy to navigate narrow spaces.

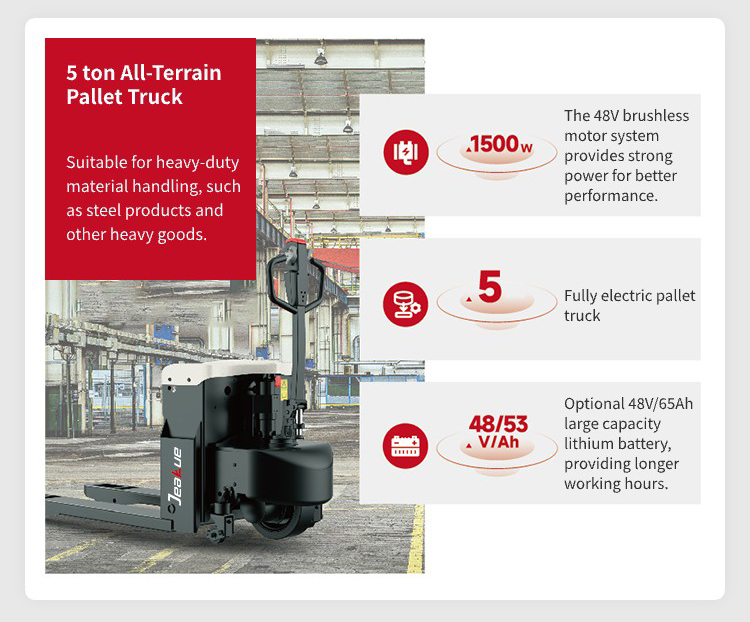

5 ton All-Terrain Pallet Truck.2025 JEAKUE Electric pallet truck

Suitable for heavy-duty material handling, such as steel products and other heavy goods.

The 48V brushless motor system provides strong power for better performance.

Fully electric pallet truck.JEAKUE Electric Pallet Jack Trucks

Optional 48V/65Ah large capacity lithium battery, providing longer working hours.

Multifunctional handle head,JEAKUE 5 Ton Pedestrian Electric Pallet Truck

Standard upright walking function

Easily adapt to a variety of complex working conditions.JEAKUE Electric Pallet Jack Trucks

Standard interlock cancellation function.

Equipped with brake release function.JEAKUE Electric Pallet Trucks – Efficient Material Handling Solutions

Cancel The Interlock Function(Can Achieve Straight Travel)

Turn off the vehicle power and press and hold the emergency reverse switch.JEAKUE 5 Ton Pedestrian Electric Pallet Truck

Push the accelerator knob toward the fork and do not release it. Turn on the vehicle power for about 2 seconds. After the buzzer beeps, it enters the upright walking mode and can work normally without triggering the interlock.JEAKUE Electric Walkie Pallet Jack

Turn off the vehicle power, press and hold the emergency reverse switch. Push the accelerator knob to the opposite direction of the fork and do not release it, then turn on the power for about 2 seconds. After the buzzer beeps, exit the upright walking mode.JEAKUE Electric Pallet Truck for heavy loads always battery operated.

After the interlock function is turned on, the vehicle will move when the knob is operated at any handle position to avoid misoperation.

Brake Release Function (Can Manually Tow the Vehicle)JEAKUE 5 Ton Pedestrian Electric Pallet Truck

Make sure the power is off and the power button is in the off position.JEAKUE 5 Ton Pedestrian Electric Pallet Truck

Press and hold the horn button and the emergency reverse button, then turn on the power button to power the vehicle. After 2 seconds, the buzzer starts to sound continuously to indicate that the brake is released.JEAKUE 5 Ton Pedestrian Electric Pallet Truck

Restart the vehicle to exit brake release mode.JEAKUE Electric Powered Pallet Trucks

The brake release function is intended for emergency vehicle braking only and must not be used for normal vehicle operation.
