Description

PRODUCT PARAMETERS

1High Performance and High Reliability JEAKUE 3 Ton Pedestrian Lead-acid Battery Tow Tractor
● AC drive system provides strong power;control is more precise and operation ismore stable;
● High-strength vertical gearbox with ultra-long service life;
● Low-noise and low-fault hydraulic station,
with oil cylinders and pipelines testedthrough multiple layers,ensuring highreliability of the hydraulic system;
● Reliable American AMP waterproof connectors and electrical components.All wires and cables are reliably protected and fixed,greatly reducing electrical failures.

2 Safer JEAKUE 3 Ton Pedestrian Lead-acid Battery Tow Tractor
● The arc plate design on the front frame improves safety during the upward movement of the front frame and avoids
hand-pinching accidents;
● The arc-shaped design of the rear frame enclosure ensures the passability of the vehicle.The precise design of the height ofthe rear vehicle body edge from the ground avoids injury to the operator’s feet;
● The emergency reverse function protects the operator from injury:the emergency power-off plug-in can easily cut off all power supplies when the operation is out of control to avoid emergencies;
● The long operating handle design avoids collisions between the operator and the vehicle body during driving.

3 Easy to Operate JEAKUE 3 Ton Pedestrian Lead-acid Battery Tow Tractor
● Handle head design fully considering ergonomics,with each function button easyand convenient to operate;
● The long operating handle design greatly reduces the steering force and makesoperation light;
● The handle steering angle is greater than 180 degrees,and the whole vehicle body isshort,resulting in a smaller turning radiusof the vehicle and increasing the flexibilityof operation;
● The slow driving function:when the handle is in a nearly vertical state,the driving speed will automatically decrease,facilitating precise operations in narrow spaces.

4 Easy to Maintain JEAKUE 3 Ton Pedestrian Lead-acid Battery Tow Tractor
● AC motor,maintenance-free;
● Equipped with a timer and an electricity meter to conveniently remind the operatorto charge in time and protect the battery;
● The body is easy to disassemble and assemble.Just unscrew 2 screws toremove the rear cover,and then the mainkey components can be inspected,repaired and replaced;
● The battery box cover is easy to open, facilitating the supplement of distilled wateror electrolyte to the battery;
● The use of a vertical motor makes the inspection and maintenance of the motor,brake,etc.directly convenient,and the
maintenance performance is much better than that of a horizontally placed motor;
● The controller self-diagnosis system displays fault codes through the handheld unit, making it more convenient to solve faults;
● Low-voltage automatic protection to extend battery life.

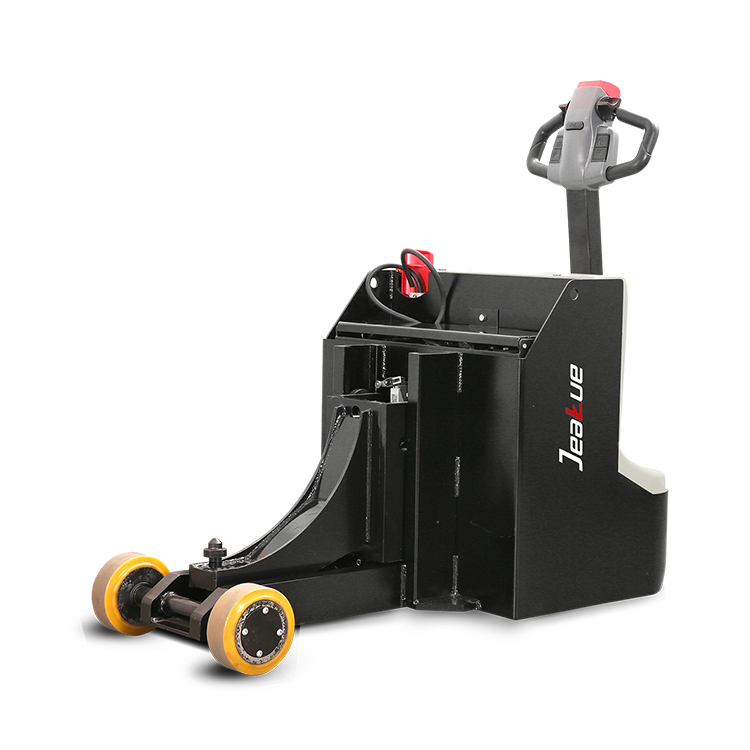

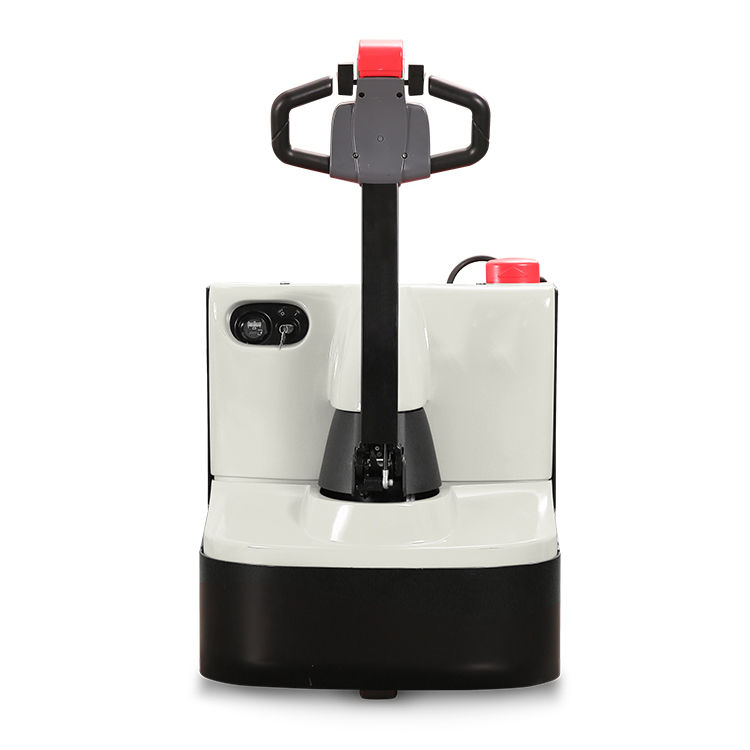

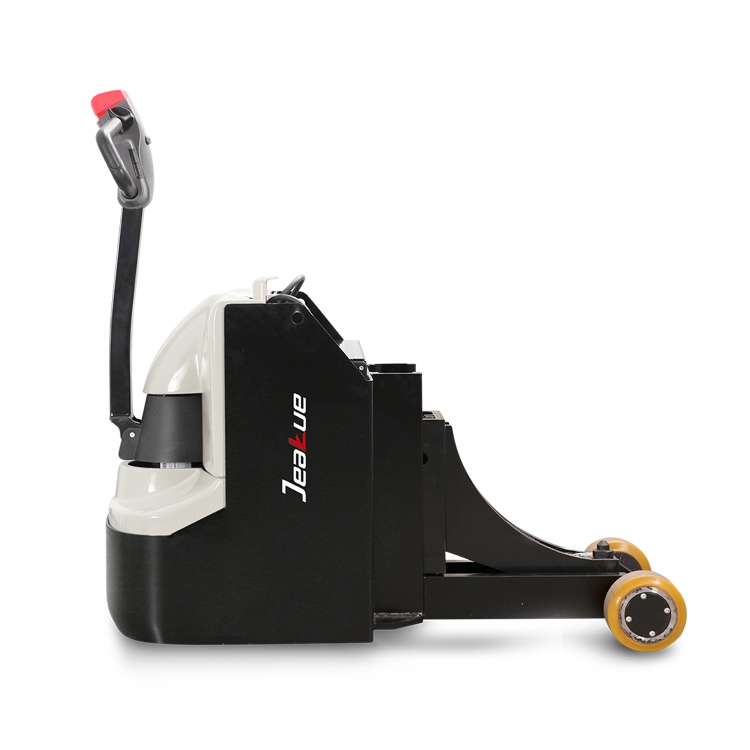

JEAKUE 3 Ton Pedestrian Lead-acid Battery Tow Tractor
