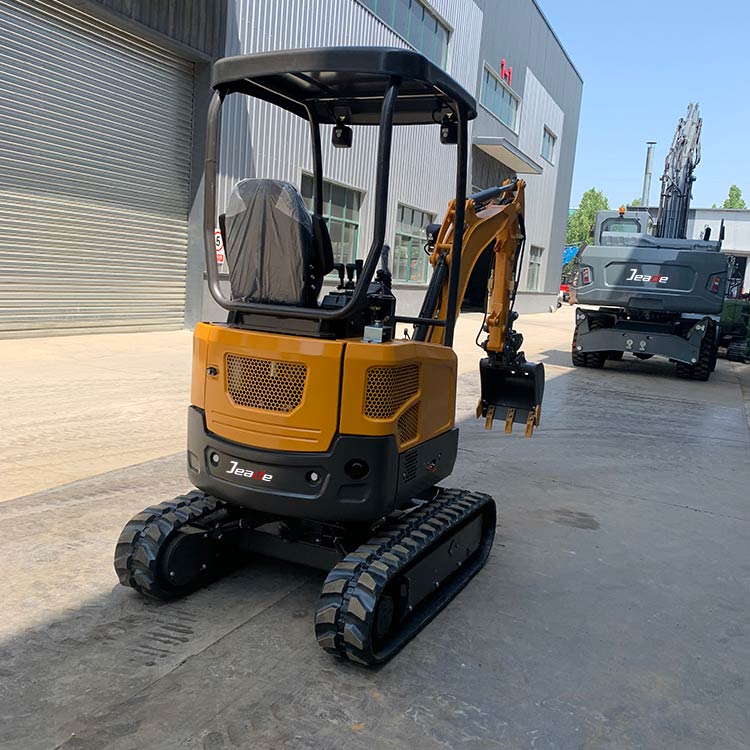

2 Ton(4409.24 lb) Diesel Crawler Excavator-JH8020
Operating Weight: 2000 (Kg)(4409.24 lb)
Bucket Capacity: 0.07 (m³)(2.47 ft³)
Engine Power: 14/2200 (kW/rpm)
Maximum Bucket Digging Force:18(kN)
Description
Specifications
| Parameter | Value |
|---|---|
| Bucket Capacity (m³) | 0.07 |
| Swing Speed (rmp) | 0–9 |
| Gradeability (°) | 35 |
| Max. Bucket Digging Force (KN) | 18 |
| Max. Arm Digging Force (KN) | 11 |
| Engine Model | KUBOTA D1105 |
| Power/revolution speed (KW/rpm) | 14/2200 |
| Tire Model | – |
| System Pressure (MPa) | 21.5 |
| Total Length (mm) | 3555 |
| Total Width (mm) | 990/1300 |
| Total Height (mm) | 2330 |
| Cabin Height (mm) | 2290 |
| Axle Base (mm) | 1230 |
| Wheel(track) Distance (mm) | 760 |
| Minimum ground clearance (mm) | 150 |
| Tail Swing Radius (mm) | 650 |
| Max. Digging Height (mm) | 3570 |
| Max. Dumping Height (mm) | 2440 |
| Max. Digging Depth (mm) | 2400 |
| Max. Vertical Digging Depth (mm) | 2025 |
| Max. Digging Radius (mm) | 4040 |
| Min. Swing Radius (mm) | 1610 |
| Max. Dozer Blade Lifting Distance (mm) | 240 |
| Max. Dozer Blade Cutting Distance (mm) | 270 |
 |
 |
