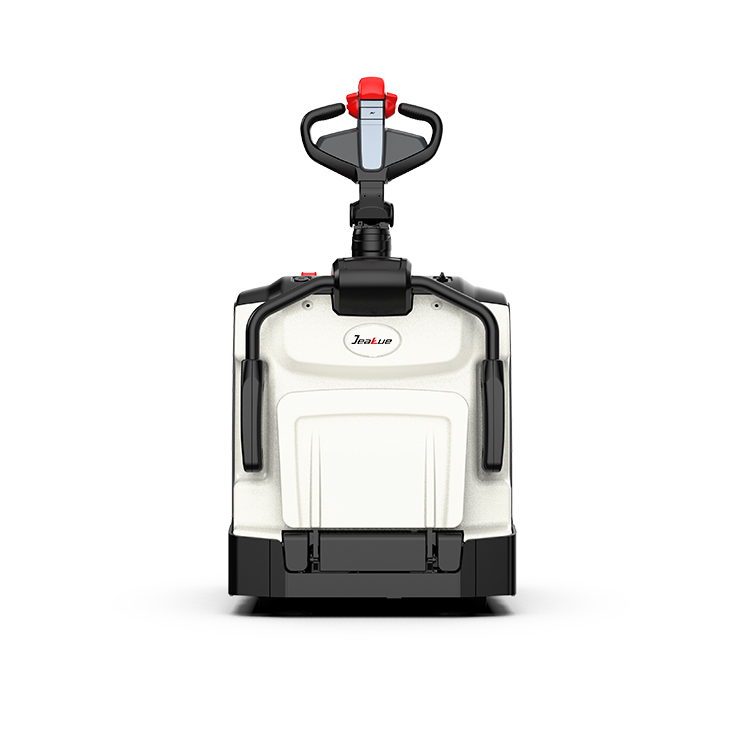

2 Ton (4409.24 lb) Ride-on Lithium Battery Pallet Truck-RPL203 - Image 2

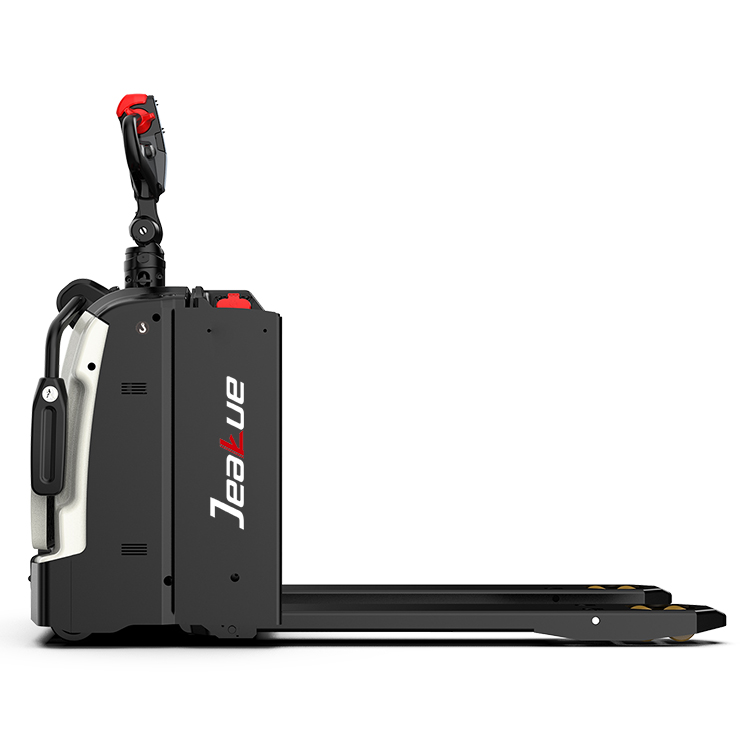

2 Ton (4409.24 lb) Ride-on Lithium Battery Pallet Truck-RPL203 - Image 3

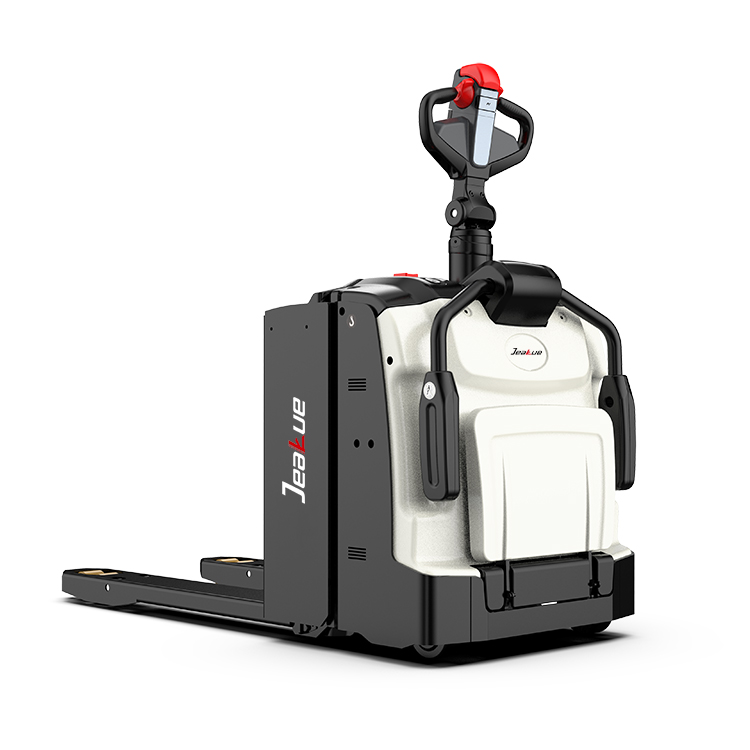

2 Ton (4409.24 lb) Ride-on Lithium Battery Pallet Truck-RPL203 - Image 4

2 Ton (4409.24 lb) Ride-on Lithium Battery Pallet Truck-RPL203

Load Capacity:2000kg(4409.24 lb) Electric Pallet Truck

Lift Height: 120mm(4.72in)

Battery Voltage:24V280Ah lithium battery

Categories: -Electric, -Ride on, –Material Handling, –Pallet Trucks

Add to quote

Description

Explore the RPL203

The RPL 203 is a professional heavy-duty ride-on pallet truck equipped with a 2000 kg load capacity and foldable operator platform. Designed for intensive warehouse and logistics operations, it delivers unmatched comfort and control thanks to JK’s Li-ion battery system, electric power steering, and height-adjustable tiller head. Its compact 652 mm chassis and powerful 3.0 kW drive motor make it ideal for both long-distance and confined-space handling.

1.High stabilty

The low center of gravity, the redesigned stabilizing wheels, and the automatic speed reduction when turning ensure stable and safe driving while maintaining high productivity

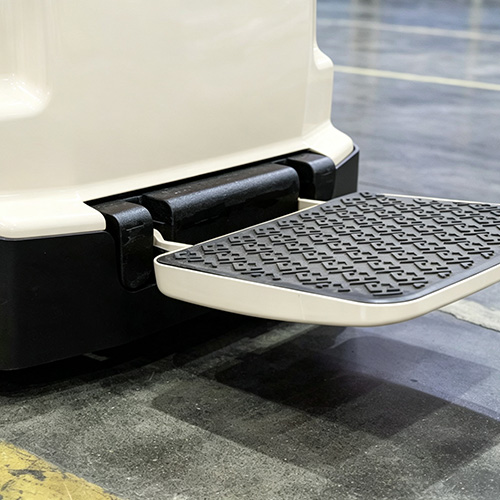

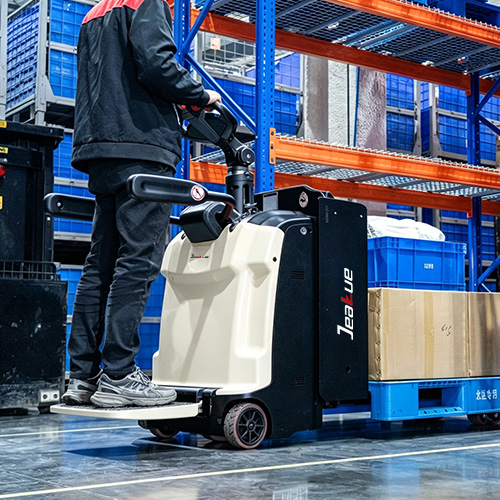

2.Optimized Foldable Platform Design

The new cushioned foldable platform is engineered for long-distance travel, reducing operator fatigue and enhancing comfort. Its improved vibration absorption and reinforced load capacity ensure stability and confidence during demanding operations,

3.Compact and Robust Chassis

With its industry-leading 652 mm chassis length (l2), the RPL 203 delivers excellent maneuverability in narrow aisles, especially when operated with the platform folded. Built on a sturdy frame, it offers reliable strength and smooth performance under heavy loads.

4.Powerful Performance, Extended Runtime, Silent Drive

The 3.0 kW drive motor enables fast, quiet operation and travelling speed up to 12.5 km/h, maintaining noise below 66 dB. The 24V 280Ah Li-ion battery supports multi-shift performance, while the external charging port allows quick and convenient recharging between shifts,

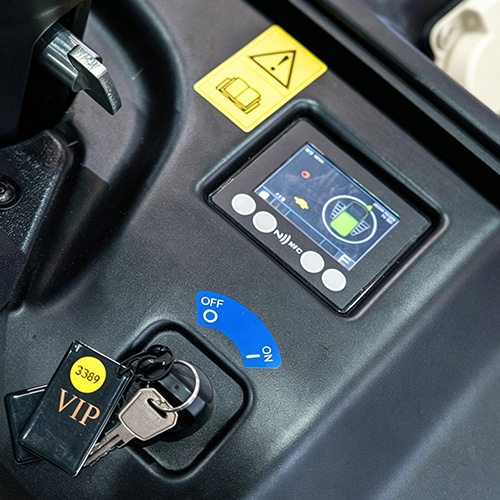

5.Smart Multi-function Display

The new intelligent display combines multiple functions in one device: . Informative display: shows speed, battery level, switch status, date, and time. . ESP driving mode selector: to match the needs of every operator · Parameter adjustment: allows personalized settings. . Bluetooth connectivity: pairs with the JK Bluetooth App for easy maintenance. . Optional operator ID: via card reader or PIN code.

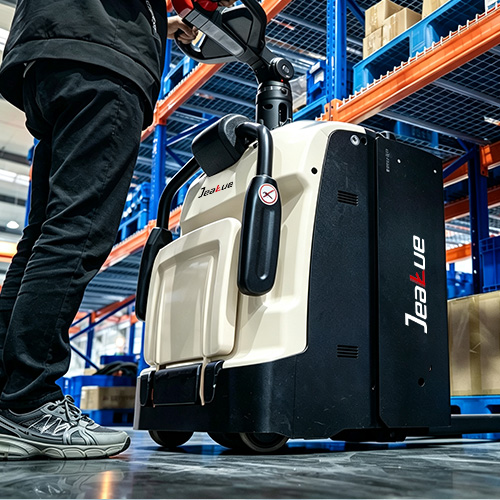

6.Ergonomic Design for Comfort and Safety

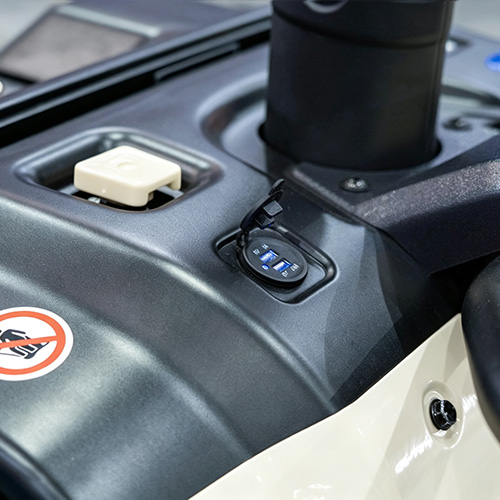

. Height-adjustable tiller head for adaptable ergonomics . Reinforced arm guards for impact protection and durability . Electric power steering with turn speed control for smooth, safe handling · USB port and practical storage compartments for operator convenience . Automatic power cutoff during charging cable disconnection for added safety

Application

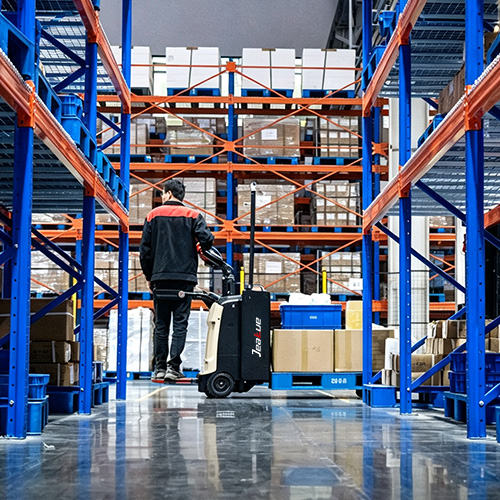

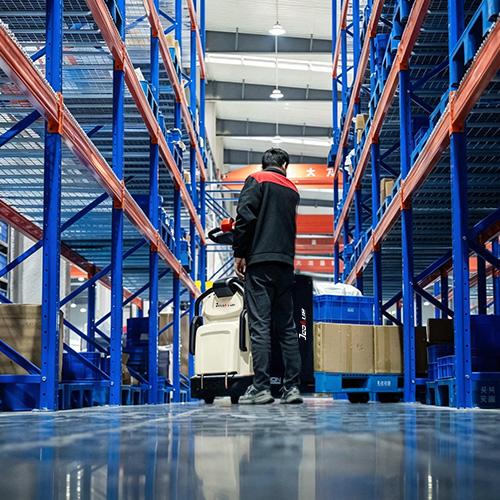

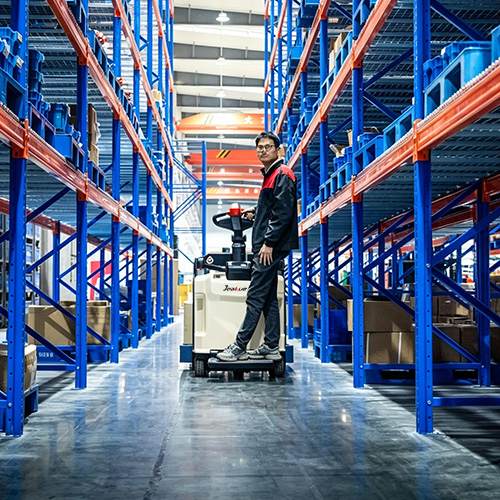

Perfect for high-throughput warehouses, logistics centers, and manufacturing facilities, the RPL 203 excels in long-distance pallet transport and loading dock operations. Its foldable cushioned platform and reinforced arm guards offer operator comfort and safety during extended shifts, while the compact design allows easy maneuverability in tight aisles. Whether used for cross-docking, trailer loading, or rapid pallet transfer, it ensures reliable, efficient handling in every environment.

About the RPL203

The JK RPL 203 redefines heavy-duty ride-on pallet truck performance through its intelligent engineering and operator-focused design. With a 3.0 kW AC drive motor, it reaches travel speeds of up to 12.5 km/h, maintaining whisper-quiet operation at below 66 dB. The 280 Ah Li-ion battery supports multi-shift use, and the external charging port enables quick recharging between shifts for maximum uptime. A height-adjustable tiller, electric power steering, and ESP drive modes ensure smooth, intuitive handling. The multi-function color display integrates speed, battery, and status indicators, plus Bluetooth connectivity for maintenance via the JK App. Designed with reinforced arm guards and automatic power cut-off safety, the RPL 203 offers unmatched performance, comfort, and reliability for professional logistics operations.

FAQs

What is the load capacity of the RPL 203?

The RPL 203 can lift and transport up to 2,000 kg, making it suitable for heavy-duty warehouse and logistics operations.

How fast can it travel?

Thanks to its 3.0 kW AC drive motor, the truck achieves a maximum travel speed of 12.5 km/h, ensuring efficient pallet handling over long distances.

What kind of battery does it use?

It features a 24 V / 280 Ah Li-ion battery (with an optional 205 Ah version), offering maintenance-free operation and the ability to fast charge via a 100 A external charger.

Is it suitable for narrow aisles?

Yes — the 652 mm chassis length makes it one of the most compact ride-on pallet trucks in its class, ideal for both open spaces and tight warehouse environments.

What operator features improve safety and comfort?

The RPL 203 includes a foldable cushioned platform, reinforced arm guards, height-adjustable tiller, electric steering, and automatic power cut-off for maximum comfort and safety.

PRODUCT PARAMETERS

Load Capacity	2T(4409.24 lb) Electric Pallet Truck
Fork Dimensions:	1150/170/55mm(45.28/5.91/2.17in)(lxexs)
Distance between fork-arms:	685/540mm(26.97/21.26in）
Battery Voltage/Nominal Capacity:	24V280Ah lithium battery
Turning Radius:	1806mm(71.10in）
Lift Height：	120mm(4.72in)
Steering Design:	Mechanical
Service Weight	750Kg(1664.49lb)
Product Color	Ivory/Red/Customization
Travel Speed, Laden/Unladen	7.5/8 km/h
Max Gradeability, Laden/Unladen	8/16 %
Motor power	1.6KW

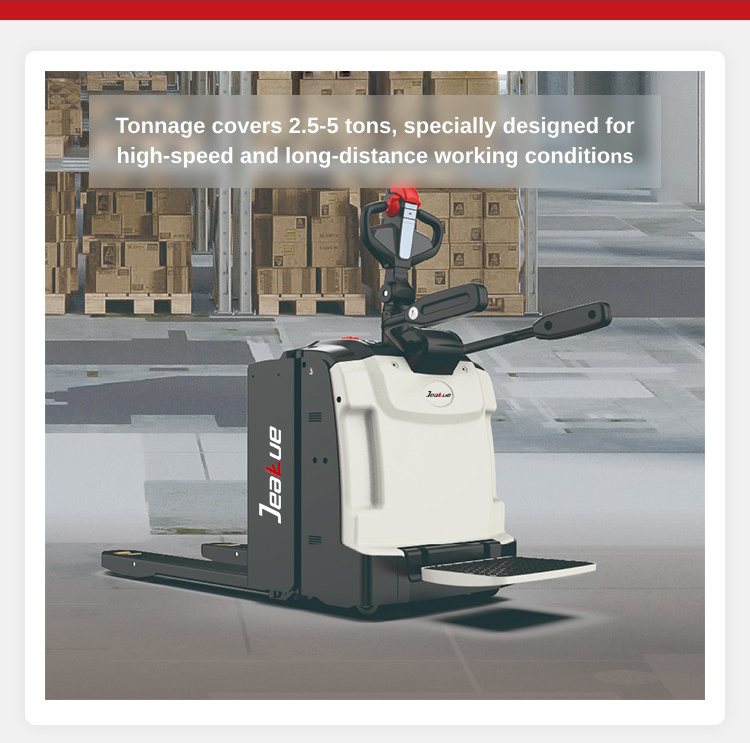

Tonnage covers 2.5-5 tons, specially designed for high-speed and long-distance working conditions

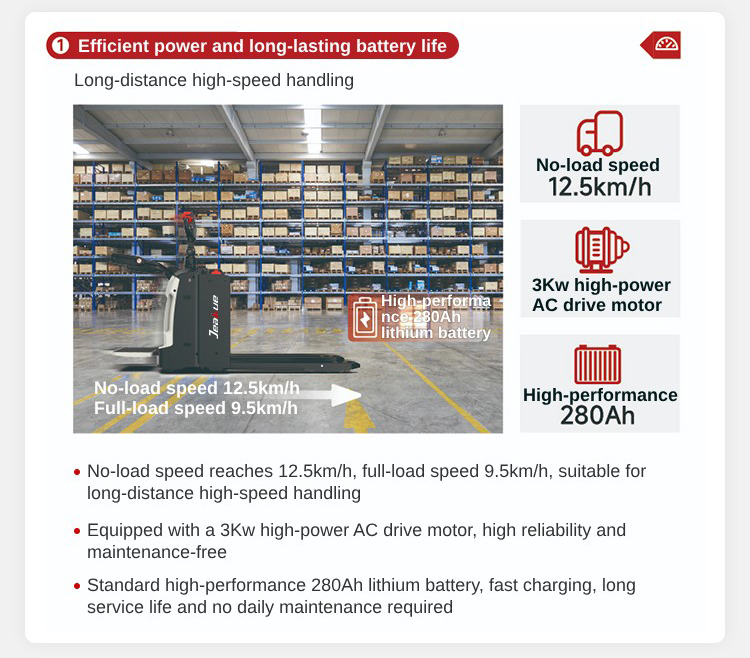

Efficient power and long-lasting battery life JEAKUE 2 Ton (4409.24 lb) Ride-on Lithium Battery Pallet Truck-RPL203

Long-distance high-speed handling

Stable battery with high endurance JEAKUE 2 Ton (4409.24 lb) Ride-on Lithium Battery Pallet Truck-RPL203

No-load speed reaches 12.5km/h, full-load speed 9.5km/h, suitable for long-distance high-speed handling

Equipped with a 3Kw high-power AC drive motor, high reliability and maintenance-free JEAKUE 2 Ton (4409.24 lb) Ride-on Lithium Battery Pallet Truck-RPL203

Standard high-performance 280Ah lithium battery, fast charging, long service life and no daily maintenance required

No-load speed 12.5km/h JEAKUE 2 Ton (4409.24 lb) Ride-on Lithium Battery Pallet Truck-RPL203

Full-load speed 9.5km/h

No-load speed 12.5km/h

3Kw high-power AC drive motor JEAKUE 2 Ton (4409.24 lb) Ride-on Lithium Battery Pallet Truck-RPL203

High-performance 280Ah lithium battery

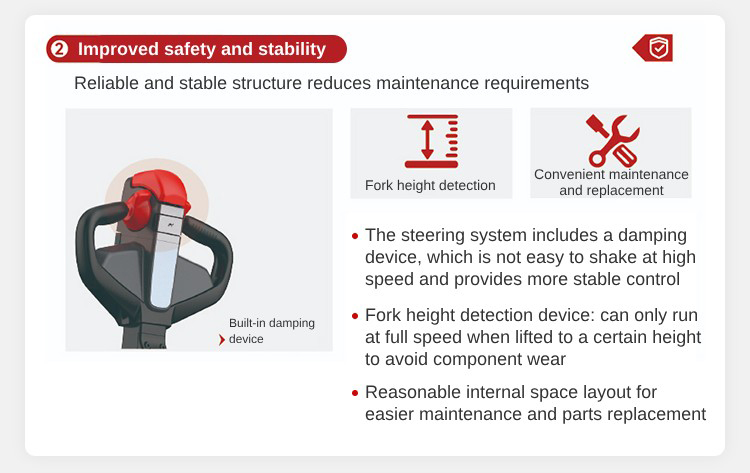

Improved safety and stability JEAKUE 2 Ton (4409.24 lb) Ride-on Lithium Battery Pallet Truck-RPL203

Reliable and stable structure reduces maintenance requirements

Built-in damping device

Fork height detection

Convenient maintenance and replacement JEAKUE 2 Ton (4409.24 lb) Ride-on Lithium Battery Pallet Truck-RPL203

The steering system includes a damping device, which is not easy to shake at high speed and provides more stable control JEAKUE 2 Ton (4409.24 lb) Ride-on Lithium Battery Pallet Truck-RPL203

Fork height detection device: can only run at full speed when lifted to a certain height to avoid component wear

Reasonable internal space layout for easier maintenance and parts replacement JEAKUE 2 Ton (4409.24 lb) Ride-on Lithium Battery Pallet Truck-RPL203

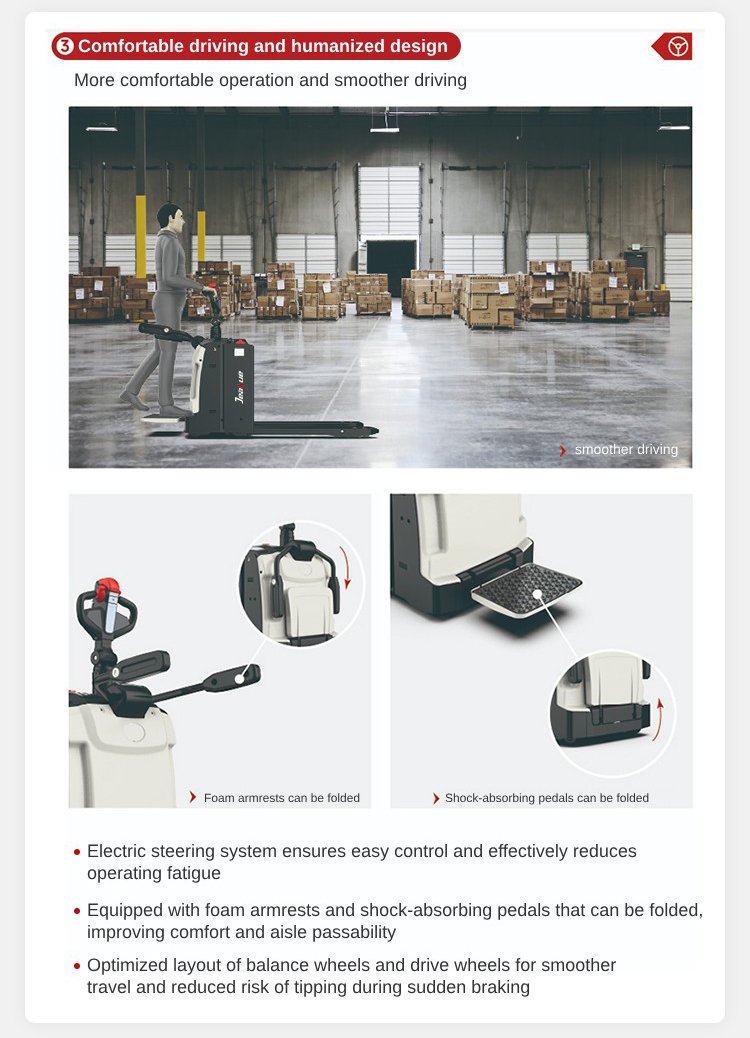

Comfortable driving and humanized design

More comfortable operation and smoother driving JEAKUE 2 Ton (4409.24 lb) Ride-on Lithium Battery Pallet Truck-RPL203

Electric steering system ensures easy control and effectively reduces operating fatigue

Optimized layout of balance wheels and drive wheels for smoother travel and reduced risk of tipping during sudden braking

Foam armrests can be folded JEAKUE 2 Ton (4409.24 lb) Ride-on Lithium Battery Pallet Truck-RPL203

Shock-absorbing pedals can be folded

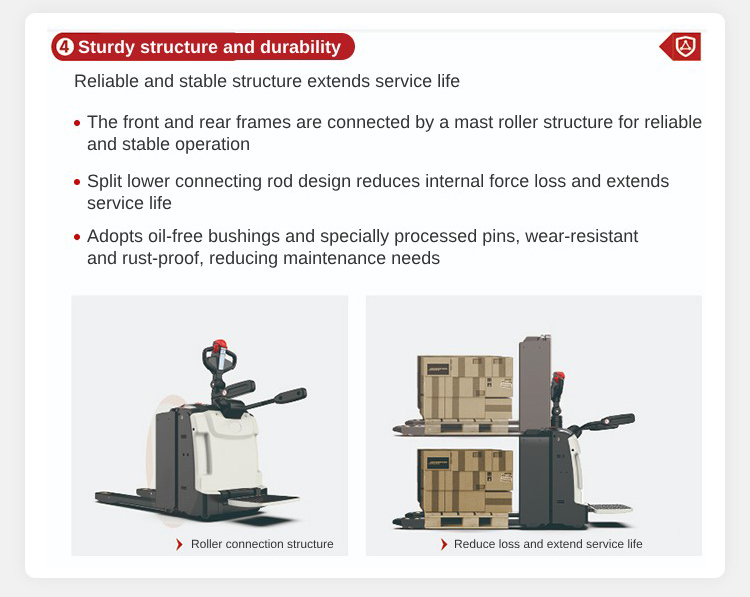

Sturdy structure and durability

Reliable and stable structure extends service life JEAKUE 2 Ton (4409.24 lb) Ride-on Lithium Battery Pallet Truck-RPL203

The front and rear frames are connected by a mast roller structure for reliable and stable operation

Split lower connecting rod design reduces internal force loss and extends service life

Adopts oil-free bushings and specially processed pins, wear-resistant and rust-proof, reducing maintenance needs

Roller connection structure JEAKUE 2 Ton (4409.24 lb) Ride-on Lithium Battery Pallet Truck-RPL203

Reduce loss and extend service life JEAKUE 2 Ton (4409.24 lb) Ride-on Lithium Battery Pallet Truck-RPL203
