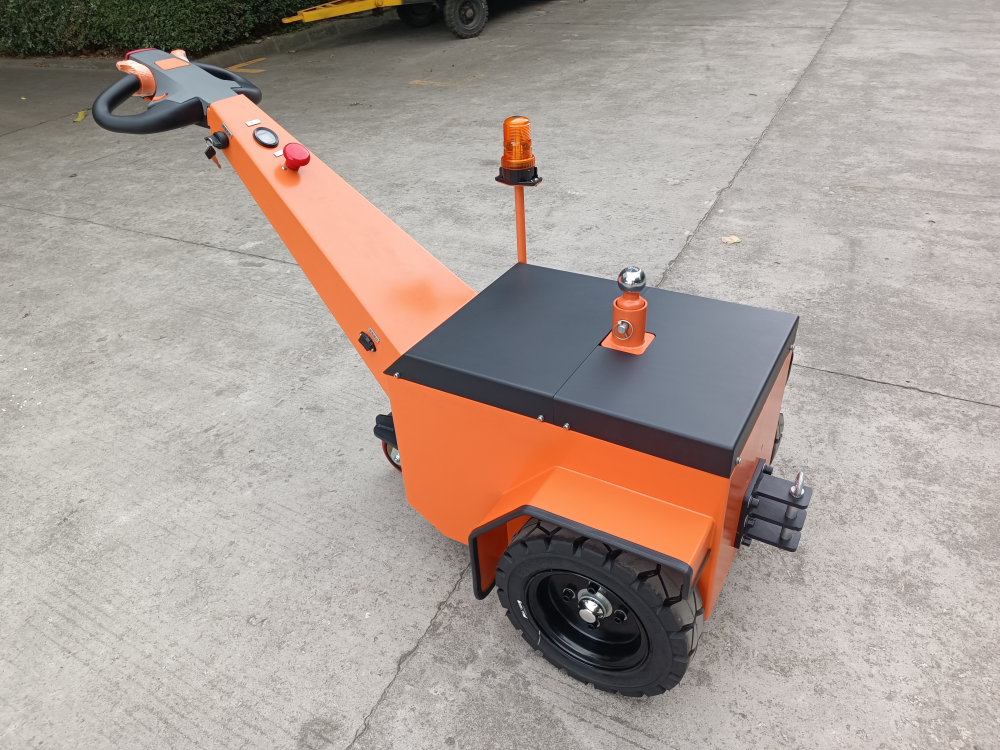

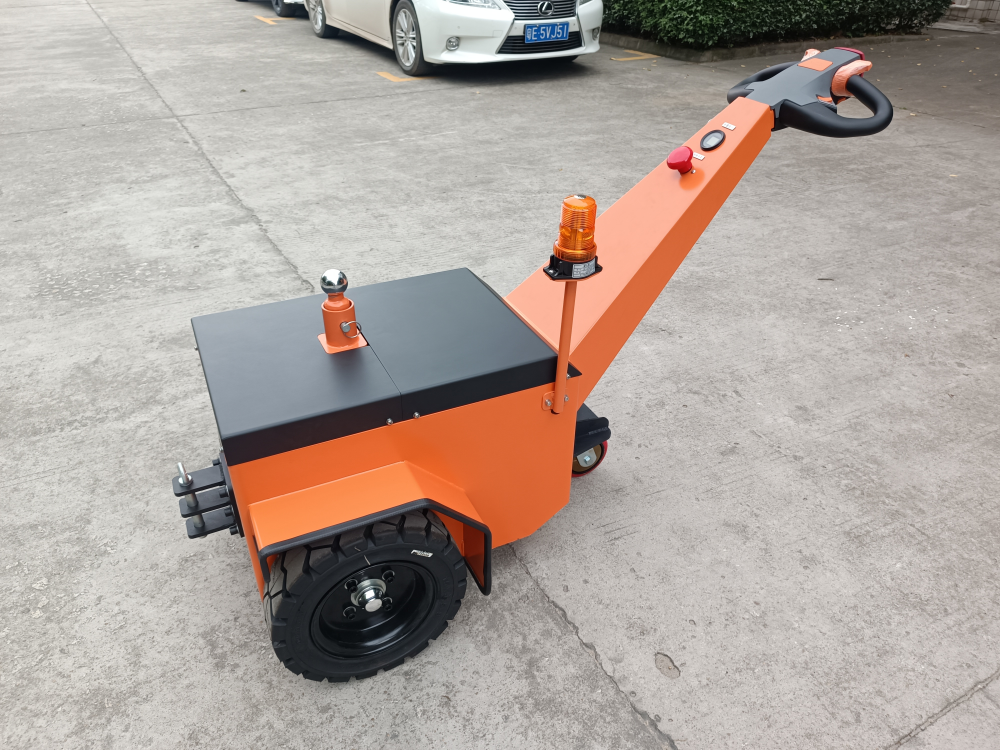

2.5 Ton Pedestrian Electric Tow Tractor-ET-250

Rated Capacity: 2500kg(5511.56lb)
Rated/Maximum traction:800N
24V86 Ah Lithium Battery/Lead-acid Battery

Description

Brand		JEAKUE
Model		ET-250
Power supply		Electric
Operating type		Pedestrian
Max traction weight	kg	2500
Rated pulling force	N	800
Wheelbase	mm	620
Truck weight（with battery）	kg	270
Battery weight	kg	50
Tire type,Drive wheel/Bearing wheel		PU Rubber/PU
Sizes of drive wheel（diameter×width）	mm	2×Φ375×115
Sizes of bearing wheel（diameter×width）	mm	2×Φ150×50
Drive wheel/bearing wheel number(X=Drive wheel)	mm	2×/1
Front gauge	mm	630
Overall height	mm	1020
Height of tiller in drive position	mm	950
Hook height	mm	235/285/345
Overall length	mm	1575
Overall width	mm	710
Ground clearance	mm	100
Turning radius	mm	1320
Drive speed load/unload	Km/h	3～5
Rated pulling force	N	800
Max pulling force	N	1100
Max gradeability load/unload	％	5/10
Brake type		Electromagnetic
Drive motor rating S2 60min	kw	1.2
Charger(external)	V/A	24/10
K20 Battery voltage/nominal capacity	V/Ah	24/86
Battery weight	kg	50
Type of drive control	kg	DC
Steering type		Mechanics
Noise level		<70
Type of trailer coupling	dB(A)	Latch
