2-2.5-3-3.5-3.8Ton Lithium Battery Forklift Truck-SE

2-2.5-3-3.5-3.8Ton Lithium Battery Forklift Truck-SE

2-2.5-3-3.5-3.8Ton Lithium Battery Forklift Truck-SE

Load Capacity:2000-2500-3000-3500-3800kg
Lift Height:3000mm(118.11in)
Battery:76.8v/150/202/280Ah Lithium Battery

Categories: , , ,

Add to quote

Description

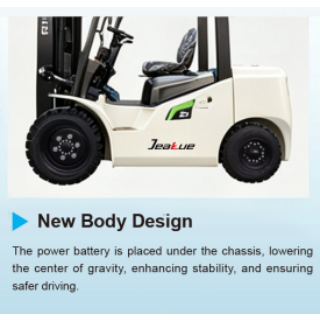

The SE series lithium-ion forklifts are a newly developed, high-performance, cost-effective electric forklift. Featuring the latest electric forklift frame design and a mature 80V AC system, it combines the advantages of both electric and internal combustion forklifts. The vehicle has a lower center of gravity, smaller dimensions, better performance, and more flexible operation.
BASIC TECHNICAL PARAMETERS
Model FB-SE20 FB-SE25 FB-SE30 FB-SE35 FB-SE38
Configuration number \ \ \ \ \
Power type Electric Electric Electric Electric Electric
Voltage plateau V 80  80  80  80  80
Operation type Seat Seat Seat Seat Seat
PERFORMANCE
Rated load lifting capacity kg 2000  2500  3000  3500  3800
Rated load center distance mm 500  500  500  500  500
Front overhang mm 460  460  475  480  490
Rear overhang mm 415  415  470  470  470
Wheelbase L4 mm 1650  1650  1750  1750  1750
Overweight(with/no battery) kg 3200/3020 3500/3320 4250/4050 4550/4350 4850/4610
Axle load full load(front/rear) kg 4730/470 5460/540 6570/680 7220/830 8157/493
Axle load no load(front/rear) kg 1410/1790 1540/1960 1880/2370 1820/2730 2996/1854
DIMENSIONS
Tire type Pneumatic tire Pneumatic tire Pneumatic tire Pneumatic tire Pneumatic tire
Number of wheels(x=drive wheels) 2x/2 2x/2 2x/2 2x/2 2x/2
Front tire specifications 7.00-12-12PR 7.00-12-12PR 28×9-15-14PR 28×9-15-14PR 28×9-15-14PR
Rear tire specifications 6.00-9-10PR 6.00-9-10PR 6.50-10-10PR 6.50-10-10PR 6.50-10-10PR
Front track width W1 mm 970  970  1000  1000  1000
Rear track width W2 mm 960  960  970  970  970
Mast tilt angle (front/rear) a/β o 6/12 6/12 6/12 6/12 6/12
Mast retraction height H1 mm 2005  2005  2070  2125  2125
Free lift height H5 mm 130  130  135  140  145
Max.lift height H mm 3000  3000  3000  3000  3000
Max.height during operation H2 mm 4035  4035  4230  4230  4230
Overall height(overhead guard) H3 mm 2125  2125  2145  2145  2145
Length (to the vertical plane of the fork) L mm 2535  2535  2695  2700  2700
Width W mm 1170  1170  1230  1230  1230
Fork size(H*W*L) mm 1070×122×40 1070×122×40 1070×122×45 1070×122×50 1070×122×50
Outer distance between forks(min/max) mm 250-1040 250-1040 250-1085 250-1085 250-1085
Mast ground clearance(no load) H4 mm 110  110  115  115  115
Min.ground clearance 115  115  130  130  130
Min.turning radius mm 2335  2335  2500  2500  2500
Max.travelling speed (full load/no load) km/h 14/15 14/15 15/16 15/16 15/16
Max.lift speed(full load/no load) mm/s 330/400 300/400 320/380 300/380 320/370
Lowering speed(full load/no load) mm/s 470/450 470/450 450/410 450/410 380/370
Max.traction N 15000  15000  16500  16500  23000
Gradeability (full load/no load) % 18/20 15/20 20/20 15/20 18/25
OTHER PARAMETERS
Service braking(mechanical,electronic,hydraulic) Hydraulic Hydraulic Hydraulic Hydraulic Hydraulic
Parking brake(mechanical,electronic,hydraulic) Mechanical Mechanical Mechanical Mechanical Mechanical
Rated power of traction motor,S260min working system kW 8AC 8AC 10AC 10AC 12AC
Rated power of oil pump motor,S315%working system kW 10AC 10AC 16AC 16AC 21AC
Motor type/protection level ac asynchronous\IP54 ac asynchronous\IP54 ac asynchronous\IP54 ac asynchronous\IP54 ac asynchronous\IP54
MOTOR AND CONTROLLER

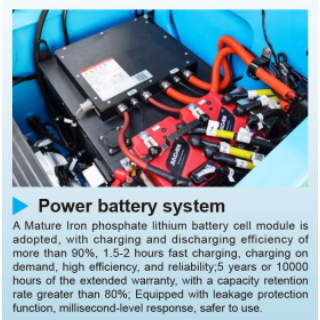

Battery type lithium iron phosphate battery lithium iron phosphate battery lithium iron phosphate battery lithium iron phosphate battery lithium iron phosphate battery
Standard battery voltage/capacity V/Ah 76.8/150 76.8/150 76.8/202 76.8/202 76.8/280
Standard battery weight kg 180  180  200  200  240
Heating form/protection level of battery Low temperature heating\IP54 Low temperature heating\IP54 Low temperature heating\IP54 Low temperature heating\IP54 Low temperature heating\IP54
MCU motor controller type MOSFET/AC MOSFETIAC MOSFET/AC MOSFET/AC MOSFET/AC
MCU motor controller manufacturer JIACHEN JIACHEN JIACHEN JIACHEN JIACHEN
MCU motor controller model ACM  Ⅲ  80C350 ACM  Ⅲ   80C350 ACM  Ⅲ  80C350 ACM  Ⅲ  80C350 ACM  Ⅲ  80C450
Hydraulic system working pressure Mpa 18.5 18.5 18.5 18.5 18.5
