Description

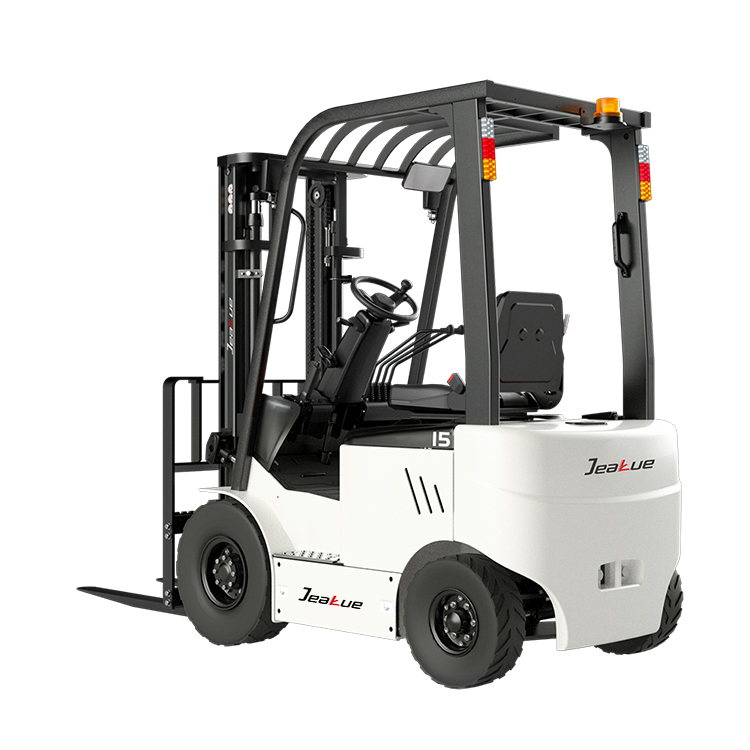

Explore the FB151Z/FB181Z

The FB151Z/FB181Z Li-Ion forklift is the next generation, entry-level forklift from JEAKUE. It was designed to replace Diesel forklifts on the yard, in the countryside and for everybody with occasional usage.

1.Plug&Play on-board charging

The integrated single-phase 48V charger enables effortless opportunity charging from any standard power outlet. This eliminates the need for external chargers or dedicated charging areas, ensuring uninterrupted workflow and maximum uptime

2.Compact and versatile design

Despite its compact frame, the EFL181 offers increased legroom for improved operator ergonomics. The small turning radius of 1,920 mm and narrow overall width of 1,080 mm make it ideal for tight spaces and mixed indoor-outdoor operations.

3.Durable and reliable construction

Built on a proven IC chassis and equipped with 10-year market-tested components, the EFL181 ensures stability and long-term reliability. The high ground clearance and solid rubber tires provide dependable performance even on uneven or wet surfaces.

4.Efficient Li-ion performance

The maintenance-free 48V/150Ah Li-ion battery system delivers consistent power output with fast recharging capability. The combination of 6 kW traction and 7.5 kW lift motors offers smooth acceleration, responsive handling, and excellent lifting efficiency

Application

Ideal for building sites and small companies with intermittent forklift needs.
Perfect for short-term rental due to its maintenance-free Li-Ion battery and integrated charger, ensuring it’s always ready for use.
Ideal for navigating in tight spaces due to compact size and short wheelbase.

About the FB151Z/FB181Z

The FB151Z/FB181Z redefines the entry-level forklift category with its advanced Li-ion battery system and compact 4-wheel configuration. Designed around a proven internal combustion chassis, it delivers the durability of a traditional IC truck with the clean, maintenance-free operation of an electric model.

Powered by a 48V/150Ah Li-ion battery, the FB151Z/FB181Z supports opportunity charging through its built-in 16A single-phase charger—just plug it into any standard outlet and keep working. Its 6 kW traction motor and 7.5 kW lift motor ensure smooth handling and powerful performance with travel speeds up to 9 km/h and a maximum gradeability of 15%.

Operators benefit from a comfortable and ergonomic layout featuring improved legroom, an adjustable steering column, and a supportive bucket seat. The FB151Z/FB181Z’s compact chassis, 1,920 mm turning radius, and 4,028 mm maximum lift height make it highly efficient for tight warehouse spaces and occasional outdoor use.

With over a decade of field-proven components and optional features such as LED lights, side shifters, and semi-enclosed cabins, the FB151Z/FB181Z offers a reliable, cost-effective, and flexible material handling solution.

FAQs

What is the main advantage of the FB151Z/FB181Z compared to traditional lead-acid forklifts?

The FB151Z/FB181Z is powered by a maintenance-free 48V/150Ah Li-ion battery that allows opportunity charging at any time through its built-in charger. This eliminates battery replacement, daily maintenance, and downtime, offering a faster and cleaner alternative to lead-acid trucks.
Can the FB151Z/FB181Z be used both indoors and outdoors?

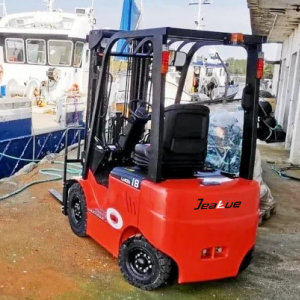

Yes. Its durable IC-style chassis, high ground clearance, and rainproof components make the FB151Z/FB181Z suitable for mixed indoor and outdoor use. It performs efficiently on warehouse floors, paved surfaces, and light outdoor environments.
How does the Plug&Play charging system work?

The FB151Z/FB181Z comes with a single-phase integrated charger that connects directly to a standard 230V socket. Operators can plug it in anywhere for fast opportunity charging—no need for separate chargers or charging rooms.
What are the key performance specifications of the FB151Z/FB181Z?

The FB151Z/FB181Z has a 1.8-ton load capacity, a maximum lift height of 4,028 mm, a travel speed of up to 9 km/h, and a gradeability of 15%. Its compact 1,920 mm turning radius ensures easy maneuvering in confined warehouse spaces.
What comfort and safety features does the FB151Z/FB181Z offer for operators?

The forklift includes an ergonomic bucket seat, adjustable steering wheel, and spacious legroom for comfortable operation. Optional features like LED lights, a semi-enclosed cabin, and side shifters further enhance visibility, safety, and versatility across different.

PRODUCT FEATURES

Load Capacity	1800Kg(3306.94lb)
Battery	40v150Ah Lithium Battery
Controller/Motor	AC
Lift Height	3000mm(118.11in)
Turning Radius	1920mm(75.59in)
Dimensions	40*100*920mm (s/e/1)
Steering Design	Hydraulic
Tyre Type	Solid tyre
Service Weight	2940Kg(6481.69lb)
Product Color	Ivory/Red/Customization

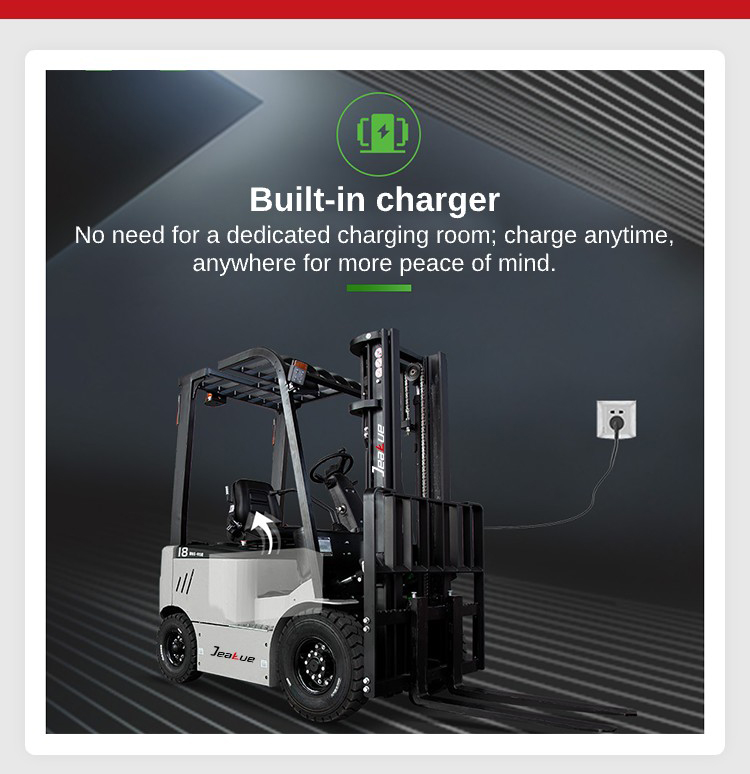

Built-in charger

JEAKUE Electric Forklift

No need for a dedicated charging room; charge anytime, anywhere for more peace of mind.

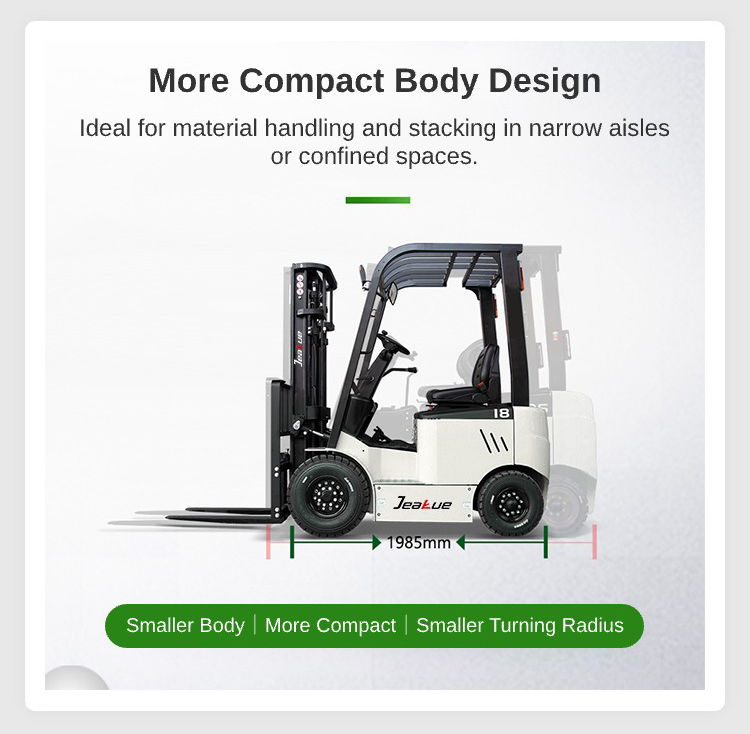

More Compact Body Design

JEAKUE 1.5-1.8 Ton Four Wheels Electric Forklift-151Z181Z

Ideal for material handling and stacking in narrow aisles or confined spaces.

Smaller Body｜More Compact｜Smaller Turning Radius

JEAKUE Electric Forklift

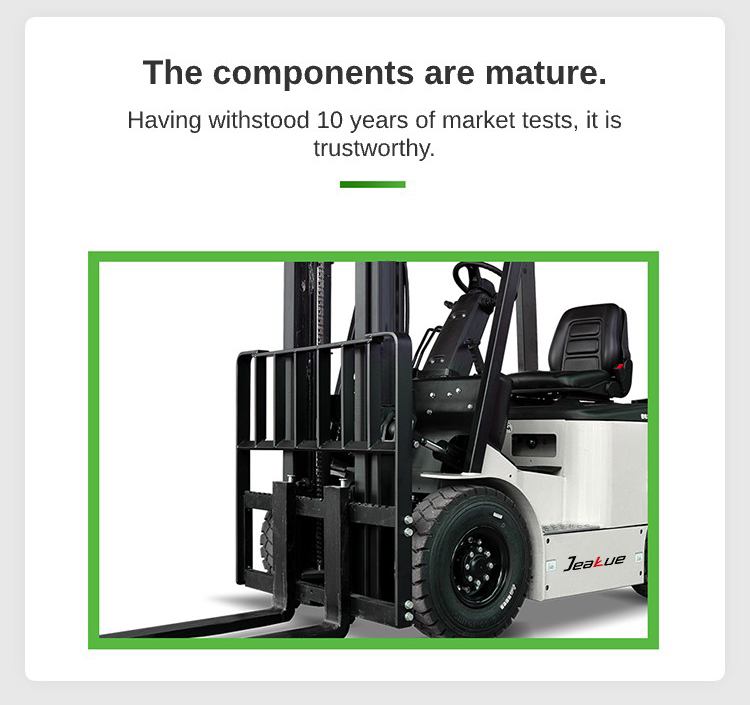

The components are mature.

Having withstood 10 years of market tests, it is trustworthy.

JEAKUE Electric Forklift
