Description

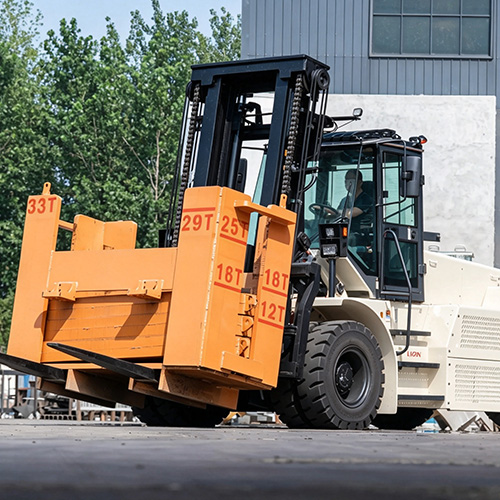

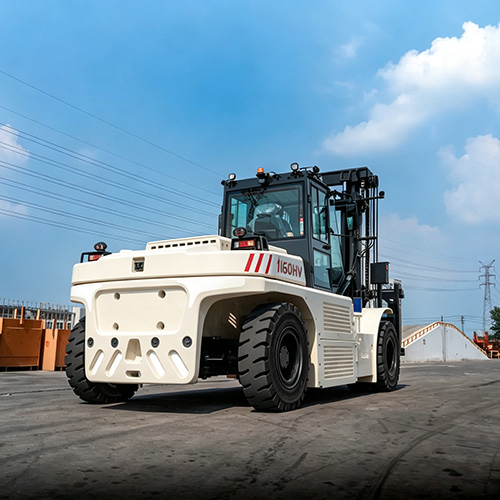

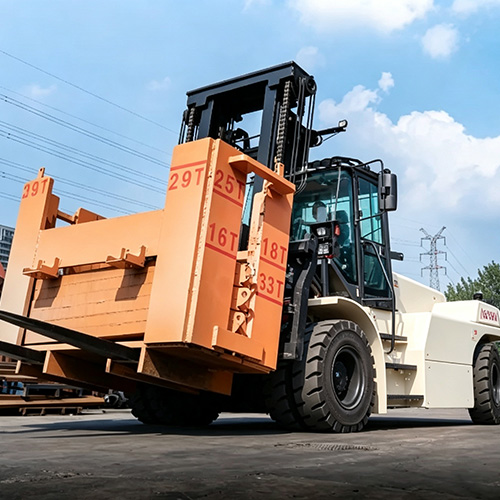

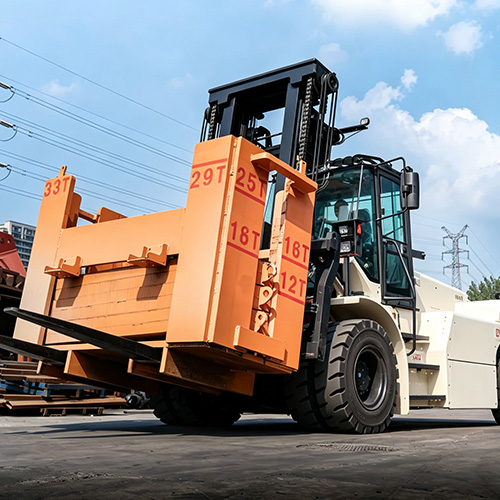

Explore the FB180MH

The FB160MH Series brings together cutting-edge 618V Li-ion technology and rugged engineering to tackle high-intensity industrial operations. Available in 16-ton and 18-ton configurations, it combines a heavy-duty PMSM drive system, dual hydraulic motors, and advanced mast control for smooth and safe operation. Designed for reliability in demanding environments, it achieves travel speeds up to 28 km/h and ensures stable lifting performance at heights up to 7 meters.

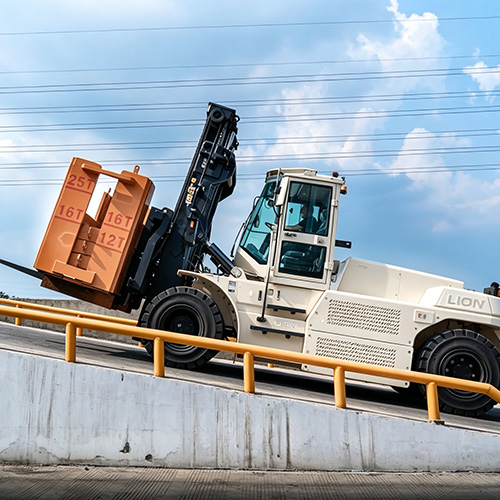

1.High Performance: High speed and high gradeability

High-voltage Li-ion batteries enable more power delivery to motors, improving acceleration and travel speeds for high-capacity trucks. PMSMs complement this with rapid response times, swiftly reaching required speeds and torques. This combination of PMSM and high voltage can provide stable and strong power output, which further gives high-capacity trucks excellent climbing capabilities ensuring that the forklift can cope with various applications with ease. The high-voltage model offers a 1.5-2 times performance improvement over the low-voltage model. Taking the 10-ton model as an example: 100% improvement in travel speed for high voltage models in laden and unladen conditions. The high-voltage model demonstrates a 45% faster lifting speed. 100% improvement in gradeability when unladen, 45% improvement when laden for high voltage models.

2.Energy Efficiency: extended runtime and fast charging

High-voltage Li-ion batteries have high energy density and can store more electrical energy within a compact volume. High-voltage systems consume less energy and provide longer battery running time comparing low-voltage systems. Notably, these high-voltage Li-ion batteries boast an impressive cycle life of up to 4000 cycles, ensuring long-term durability and minimizing the need for battery replacements. The PMSMs incorporate advanced control technology to optimize motor efficiency. Unlike traditional AC motors, PMSMs have higher energy conversion efficiency and reduce energy waste. This means that high-capacity trucks can work continuously for prolonged hours at lower costs. Equipped with fast charging capabilities, high-capacity trucks offer a remarkable charging experience. The high-voltage models are compatible with vehicle-grade charging stations and support 1C charging rating, allowing them to be fully charged in as fast as 1-1.2 hours. This minimizes downtime and maximizes productivity, making it ideal for multi-shift operations Lithium batteries present considerably lower charging costs than fuel expenses. The integration of high-voltage and PMSM technology achieves up to 15% greater electricity savings versus traditional lithium and AC technology configurations. This significantly reduces long-term energy consumption costs.

3.Safety Assured: Battery, motor protection, monitoring and mast buffering

Both high-voltage lithium batteries and PMSM employ multiple protective measures to ensure safe operations including overcharge protection, over-temperature monitoring, short-circuit protection, etc. minimizing the risk of potential hazards and maximizing operational safety. The central controlling module- VCU (Vehicle Control Unit) extends the safety of the high-voltage forklifts. VCU provides precise control and real-time monitoring of critical parameters to ensure the truck operates within safe limits. It also features turn speed control, which adjusts the forklift’s speed based on the turning angle, ensuring stability during turns. An over-speed alarm alerts the operator if the forklift exceeds the safe speed limit.* The high-capacity forklift mast is equipped with a hydraulic buffering system that ensures smooth lifting and lowering of loads. With controlled deceleration, the fork movement is smooth with no abrupt stops that could damage the load or cause operator discomfort. This feature enhances operational safety and prolongs the lifespan of the mast components.

4.Smart and reliable strategy for thermal management

The high-capacity trucks utilize three distinct cooling systems to ensure optimal performance and reliability. Specifically, two water cooling systems are employed for the motor and the battery, while an oil cooling system is dedicated to the hydraulics system. The water cooling systems provide superior cooling performance, preventing the truck from overheating even under the most demanding conditions or in the heat of summer. Water’s higher heat transfer capacity compared to air allows it to dissipate heat more efficiently from critical components like the motor and battery. This efficient heat dissipation helps maintain the battery temperature around 30~35℃, protecting these vital components from overheating and potential damage or failure. Consequently, this enhances the overall reliability and longevity of the high-capacity trucks. Additionally, water cooling systems typically operate with less noise compared to air cooling systems that rely on high-speed fans. This noise reduction is particularly beneficial in applications where a quieter operation is desirable, such as in urban areas or indoor facilities. The oil cooling system, on the other hand, is used for the hydraulics system. This system ensures that the hydraulic components remain within optimal temperature ranges, thereby maintaining their efficiency and preventing overheating. By effectively managing the temperature of the hydraulics system, the oil cooling system contributes to the smooth and reliable operation of the truck’s hydraulic functions.

5.Low maintenance: Longer battery life span

Operating at a higher voltage allows the battery to be designed with fewer individual cells. With fewer components and a simpler design, the risk of battery failure is lowered. Thanks to advanced BMS (Battery Management System) which helps to regulate and monitor high-voltage battery, these batteries tend to have a longer life than low-voltage lithium batteries, reducing the need of battery replacement. The brushless, simple rotor design of PMSM eliminates mechanical wear from brushes and commutators. This durable, low-friction construction requires minimal periodic maintenance, reducing associated labor costs and downtime.

6.Sustainability : Zero emissions for cleaner environment

As fully electric trucks powered by lithium-ion batteries, these forklifts produce zero emissions during operation, eliminating exposure to toxic fumes like carbon monoxide and nitrogen oxides. Unlike lead-acid batteries which can leak corrosive acid, lithium-ion batteries do not risk hazardous spills. The high-capacity li-ion trucks contribute to a cleaner and safer indoor working environment without compromising handling capabilities.

7.Strong adaptability adaptable to harsh outdoor weather conditions

Experience uninterrupted productivity through rain, puddles, and damp conditions with the overall IPX4 rating. Plus an exceptional IP67 rating for high-voltage components. Engineered to withstand harsh temperature, high-capacity trucks offer an ambient temperature range of -20℃~40℃ allowing them to perform no matter climate. Battery heating when charging comes as a standard function for high capacity models, which is activated when the surrounding temperature is below zero to always offer an optimal temperature range for efficient and safe charging even in cold weather conditions. The dual front wheels is a standard configuration on several models offering a wider base of support, which greatly improves the forklift’s stability. Considering the capacity loads of the high-capacity trucks, the weight of the load is more evenly distributed across a larger surface area. The increased ground contact area provided by the dual wheels enhances traction. This is particularly beneficial in environments where the floor may be slippery or uneven while operating outdoors, ensuring that the forklift can maintain a firm grip and operate safely. This not only helps in maintaining balance but also minimizes the stress on individual tires, extending the lifespan of the tires.

8.Great support for clients’ investment: After-sales Service

Remote/Online Services: Telematics technology enables remote monitoring of battery conditions, performance status, and other critical parameters for forklifts. Additionally, production, technical, and after-sales experts are available around the clock to provide prompt and comprehensive solutions for any maintenance issues through virtual support. Physical Services: Comprehensive manuals and supporting documents are provided for all forklift models. In case of breakdowns or replacements, spare parts are swiftly delivered to the clients’ locations by global subsidiaries or domestic inventory, minimizing operational disruptions caused by equipment downtime.

Application

The FB180MH Series is built for large-scale industries such as steel production, mining, ports, and construction material handling. With lifting heights of up to 7,000 mm and powerful traction performance, it enables efficient movement of heavy loads over long shifts. Thanks to its pneumatic tires, robust IC-style chassis, and hydraulic steering, it performs equally well on uneven outdoor terrain. Optional equipment—such as sideshift fork positioners, full cabins with AC, and telematics integration—makes it adaptable to a variety of specialized logistics applications.

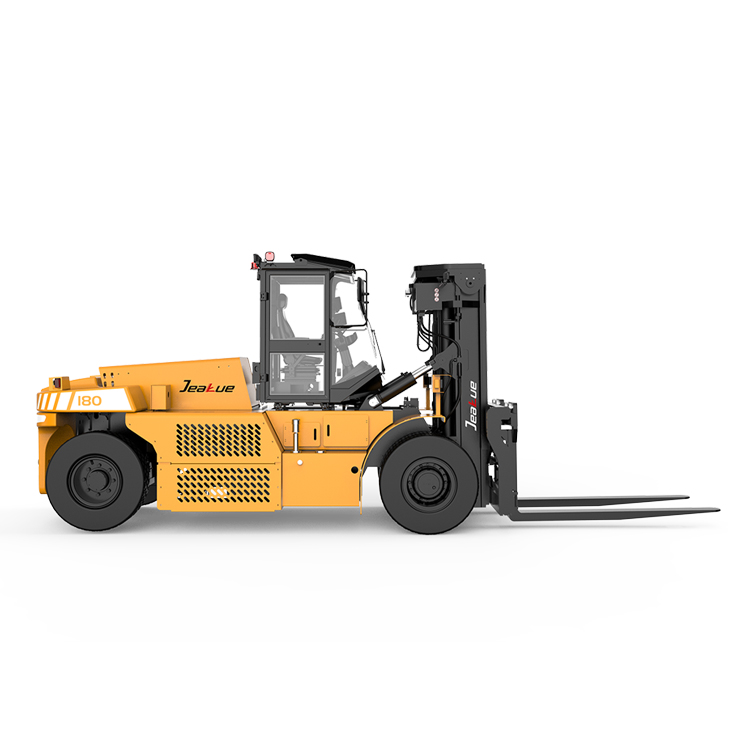

About the FB180MH

The FB180MH Series redefines the standards of electric heavy-duty forklifts. Equipped with JK’s 618V/228Ah LFP Li-ion battery and dual 90 kW PMSM traction motors, it offers unmatched acceleration, responsiveness, and energy efficiency. Its hydraulic lift system, rated at 60 kW, ensures quick and controlled load handling, with lifting speeds of up to 0.45 m/s.

High-voltage technology minimizes current draw, reducing thermal stress and energy loss while improving overall system longevity. The integrated water- and oil-cooling systems for the motors, battery, and hydraulics maintain consistent temperature control during intense operations.

For operator comfort, the FB180MH features an ergonomic cabin with suspension seat, OPS system, fingertip hydraulic controls, and full visibility. Optional all-weather cabins with air conditioning, LED lighting, and reversing cameras enhance safety and usability. Combining zero-emission technology with diesel-like strength, this series offers a powerful and sustainable solution for modern industrial fleets.

FAQs

What is the lifting capacity and performance range of the FB180MH?

The FB180MH Series includes models with 16-ton and 18-ton load capacities at a 600 mm load center. It delivers lifting speeds up to 0.45 m/s and travel speeds up to 28 km/h, combining exceptional strength with the precision and smoothness of Li-ion technology.

What are the main advantages of the 618V high-voltage Li-ion system?

The 618V/228Ah LFP Li-ion battery reduces current flow and heat buildup, improving overall energy efficiency and extending component life. This high-voltage system ensures powerful acceleration, fast lifting response, and longer operation time with minimal maintenance needs.

Is theFB180MH suitable for outdoor or heavy industrial use?

Yes. With its rugged chassis, pneumatic tires, and 300 mm ground clearance, the FB180MH performs reliably on rough terrain and outdoor environments such as ports, steel mills, and construction sites. The system’s IPX4-rated protection ensures durability under challenging weather conditions

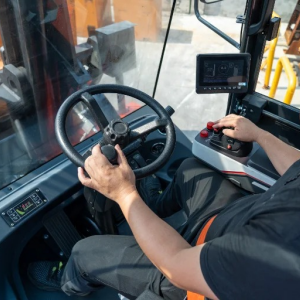

What operator comfort and safety features are included?

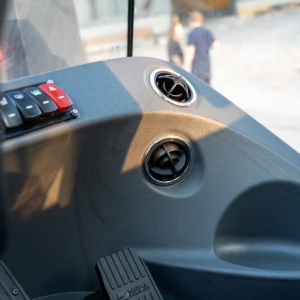

The cabin is designed for long shifts, featuring a Grammer suspension seat with heating, OPS presence system, and fingertip hydraulic controls. Optional full cabins with air conditioning, LED work lights, and reversing cameras enhance visibility and comfort, while maintaining top-tier safety standards.

How does the FB180MH compare to diesel forklifts in cost and maintenance?

The FB180MH delivers diesel-equivalent power without the fuel costs, emissions, or frequent maintenance. Its Li-ion battery requires no water refilling or replacement, supports fast opportunity charging, and significantly lowers total cost of ownership while improving operational uptime.

PRODUCT FEATURES

Load Capacity	18000Kg(39683.21lb)
Battery	618.24V228AH Lithium Battery
Controller/Motor	AC
Lift Height	4000mm(157.48in)
Turning Radius	5175mm(203.74in)
Fork Dimensions	100x250x1820mm(3.94/9.84/71.65in) (sxexl)
Steering Design	Hydraulic
Tyre Type	Pneumatic tyre
Service Weight	24100Kg(53131.49lb)
Product Color	Ivory/Ochre/Customization

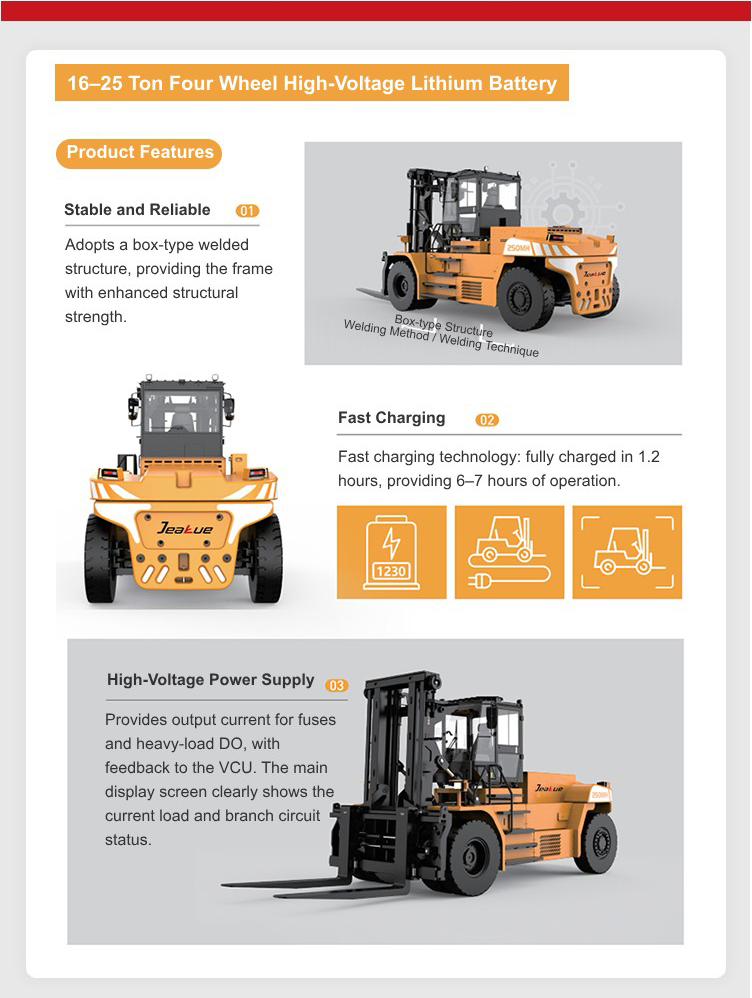

16–25 Ton Four Wheel High-Voltage Lithium Battery Forklift

Product Features JEAKUE 18 Ton High-voltage Lithium Battery Electric Forklift-180MH

Stable and Reliable

Adopts a box-type welded structure, providing the frame with enhanced structural strength.JEAKUE 18 Ton High-voltage Lithium Battery Electric Forklift-180MH

Box-type Structure JEAKUE 18 Ton High-voltage Lithium Battery Electric Forklift-180MH

Welding Method / Welding Technique

Fast Charging JEAKUE 18 Ton High-voltage Lithium Battery Electric Forklift-180MH

Fast charging technology: fully charged in 1.2 hours, providing 6–7 hours of operation.JEAKUE 18 Ton High-voltage Lithium Battery Electric Forklift-180MH

High-Voltage Power Supply

Provides output current for fuses and heavy-load DO, with feedback to the VCU. The main display screen clearly shows the current load and branch circuit status.JEAKUE 18 Ton High-voltage Lithium Battery Electric Forklift-180MH
