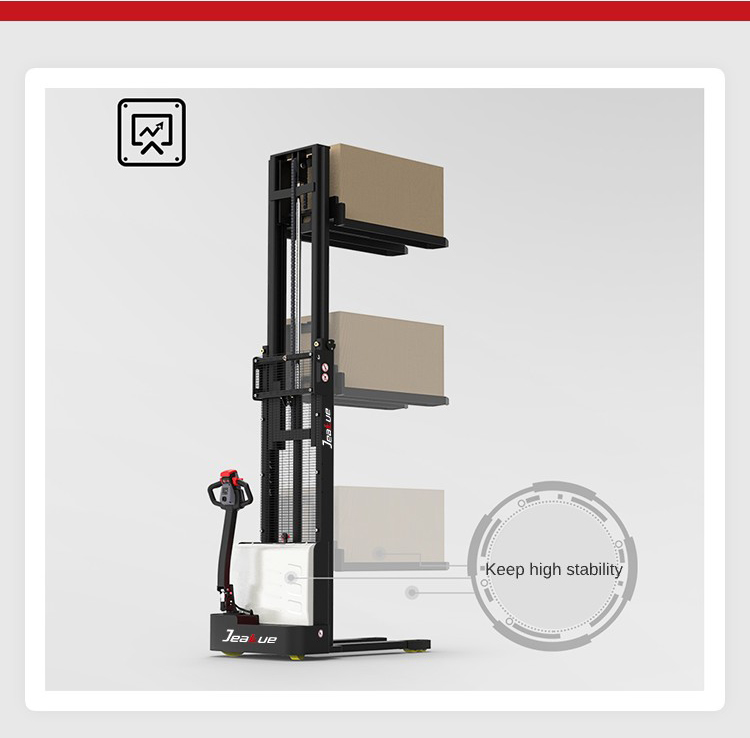

1.5 Ton(3306.93lb) Lead-acid Battery Electric Stacker -152Z

1.5 Ton(3306.93lb) Lead-acid Battery Electric Stacker -152Z

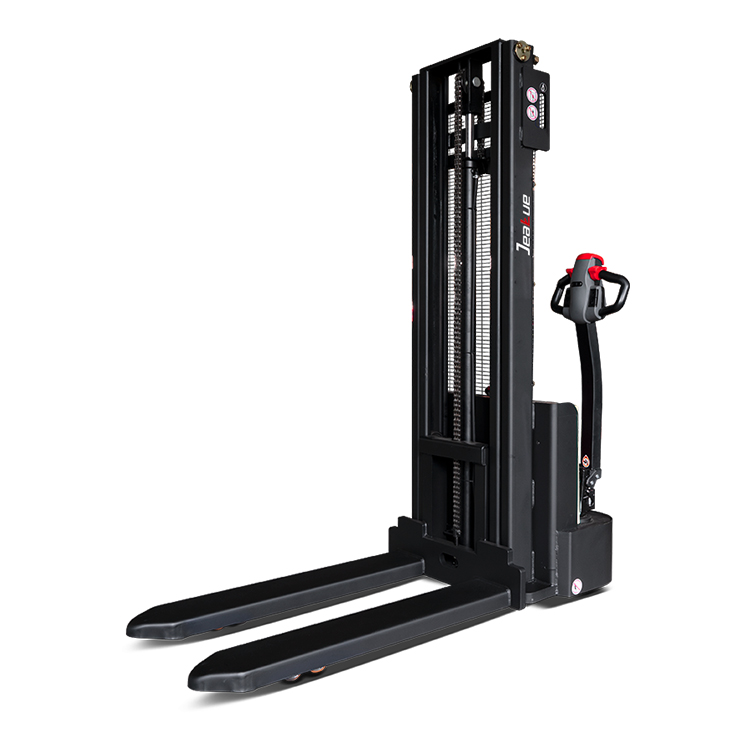

1.5 Ton(3306.93lb) Lead-acid Battery Electric Stacker -152Z - Image 2

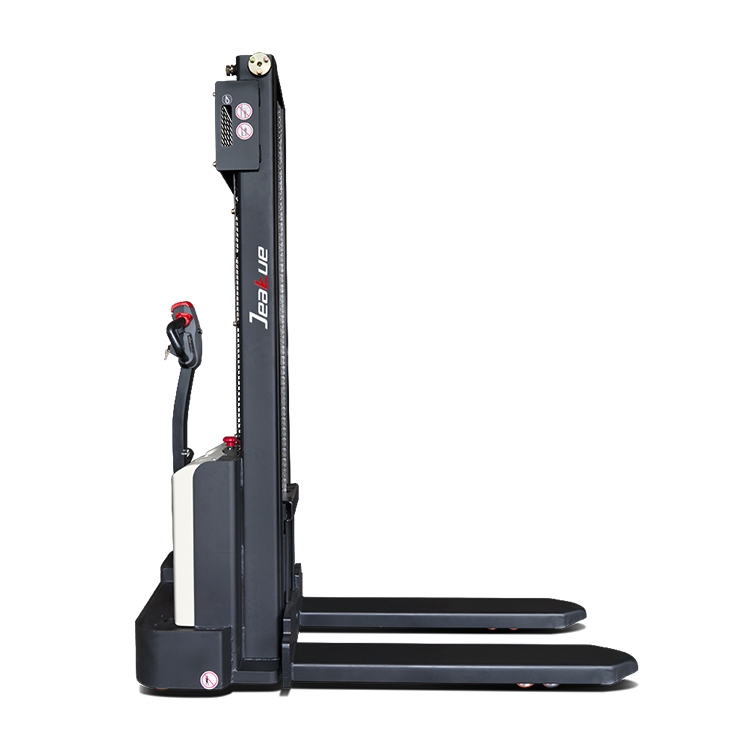

1.5 Ton(3306.93lb) Lead-acid Battery Electric Stacker -152Z - Image 3

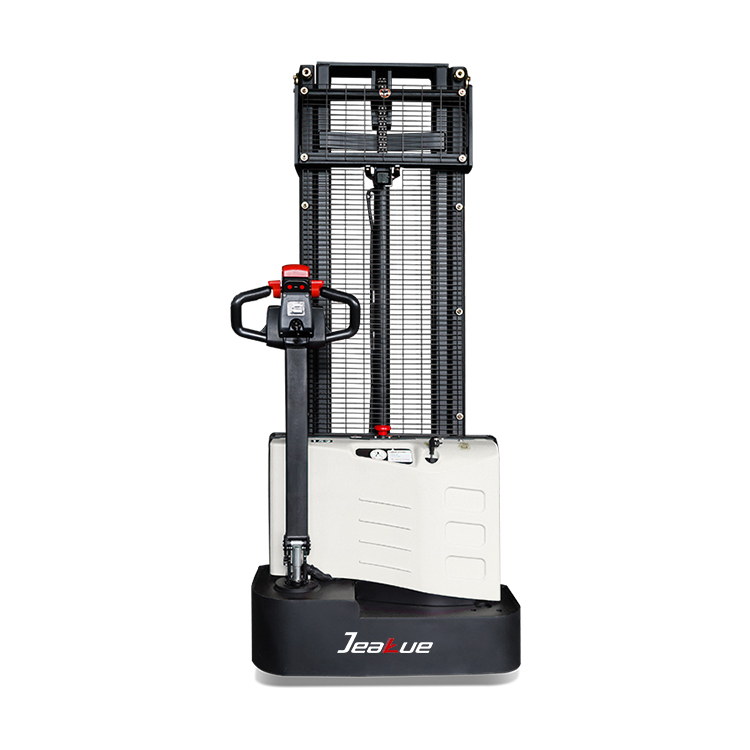

1.5 Ton(3306.93lb) Lead-acid Battery Electric Stacker -152Z - Image 4

1.5 Ton(3306.93lb) Lead-acid Battery Electric Stacker -152Z

Rate Capacity:1500kg(3306.93lb)

Lift Height:3000mm(118.11in)

Battery:24V80Ah lead-acid battery

Categories: , , ,

Add to quote

Description

 PRODUCT FEATURES

Load Capacity 1500Kg(3306.93lb)
Fork Dimensions 1150/190/60mm(45.28/7.48/2.36in)(l x e x s)
Distance Between Fork-arms 600mm(23.62in)
Battery Voltage/Nominal Capacity 24V80Ah lead-acid battery
Turning Radius 1480mm(58.27in)
Lift Height 3000mm(118.11in)
Steering Design Mechanical
Service weight 550Kg(1212.54lb)
Product Color Ivory/Red/Customization

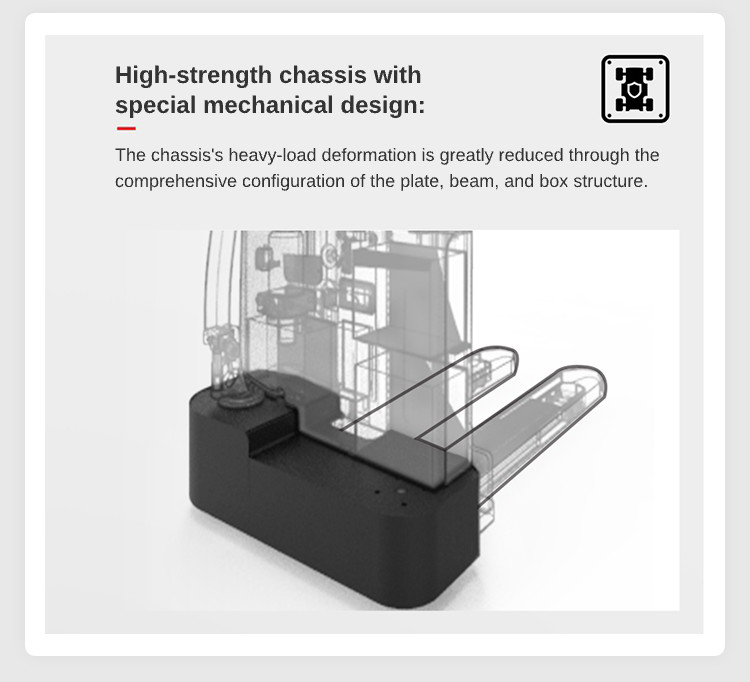

High-strength chassis with special mechanical design:JEAKUE  1.5 Ton Lead-acid Battery Electric Stacker -152Z
The chassis’s heavy-load deformation is greatly reduced through the comprehensive configuration of the plate, beam, and box structure.

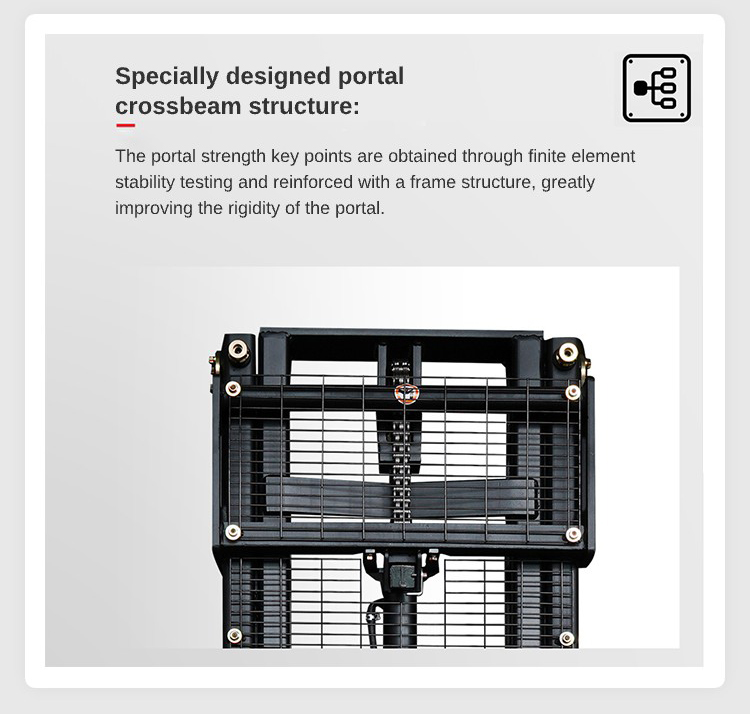

Specially designed portal crossbeam structure:JEAKUE  1.5 Ton Lead-acid Battery Electric Stacker -152Z
The portal strength key points are obtained through finite element stability testing and reinforced with a frame structure, greatly improving the rigidity of the portal.

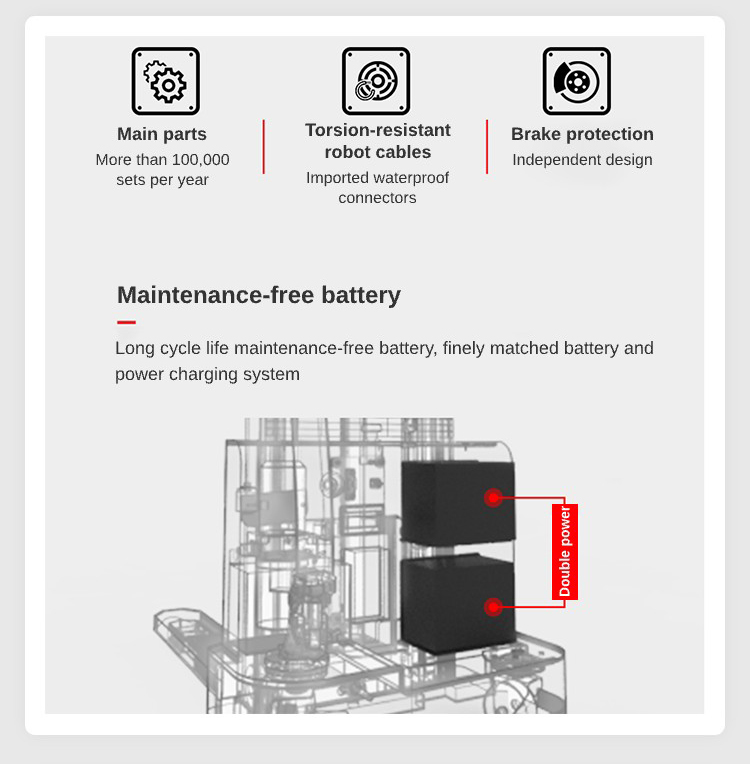

Maintenance-free battery JEAKUE  1.5 Ton Lead-acid Battery Electric Stacker -152Z
Long cycle life maintenance-free battery, finely matched battery and power charging system

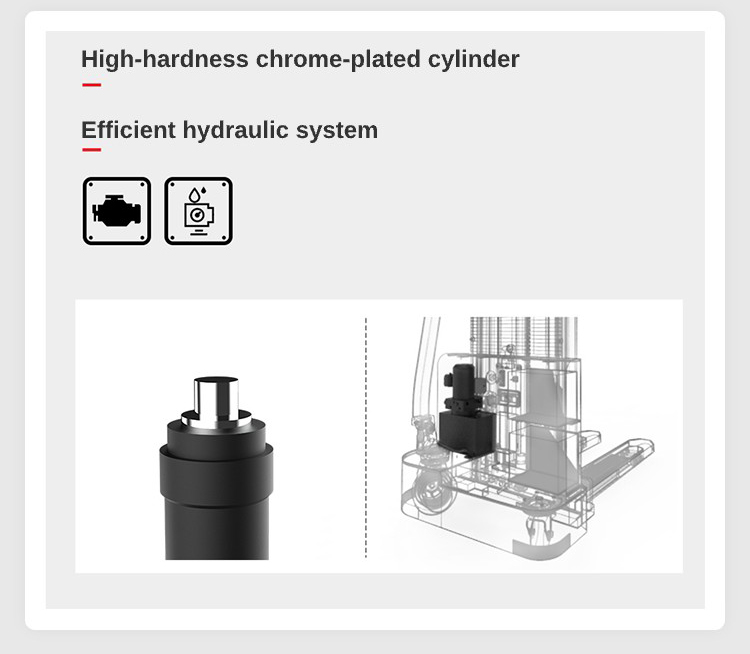

High-hardness chrome-plated cylinder
Efficient hydraulic system JEAKUE  1.5 Ton Lead-acid Battery Electric Stacker -152Z
