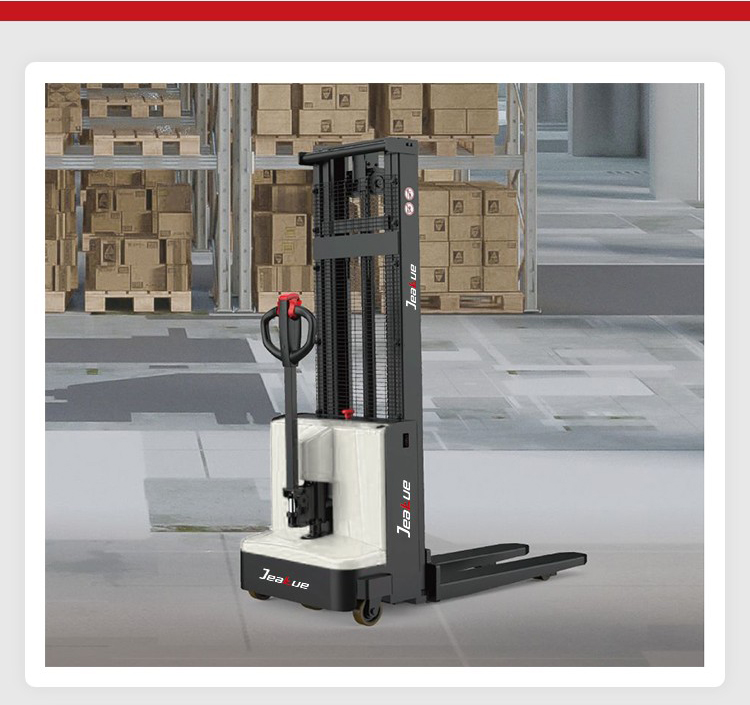

1.5 Ton(3306.93lb) Lead-acid Battery Stacker -DS4
Rate Capacity:1500kg(3306.93lb)
Lift Height:3000mm(118.11in)
Battery:24V80Ah lead-acid battery/lithium battery
Description
Explore the DS4
1.Max. lift height 3918mm
2.Centered drive motor with floating structure for stability assurance
3.Both Lead acid battery and Li-ion battery options available
4.Integrated charger for convenient and flexible operation
5.Modern design with durability
Application
The DS4 is an electric pedestrian stacker designed for efficient stacking and transport in various industrial environments. With a maximum lift height of up to 3918mm and a centered drive motor for enhanced stability, it is perfect for maneuvering in tight warehouse aisles and retail backrooms. Its flexible battery options (Lead-acid or Li-ion) and integrated charger make it ideal for multi-shift operations in logistics centers, supermarkets, and manufacturing plants.
About the DS4
The DS4 is a modern 1500kg electric pedestrian stacker built for durability and stability. It features a centered drive motor with a floating structure that ensures smooth operation and excellent load stability, even at its maximum lift height of 3918mm. Designed for flexibility, the DS4 offers both maintenance-free Lead-acid and advanced Li-ion battery options to suit different operational needs.
Equipped with an integrated charger, this stacker allows for convenient charging anywhere, maximizing uptime. Its compact design includes varied fork dimensions and a robust chassis, making it adaptable to diverse handling tasks. With advanced features like travel deceleration after lifting and optional vertical handle working, the DS4 combines safety with efficiency. Whether for light-duty stacking or busy logistics, the DS4 delivers reliable performance in a user-friendly package.
PRODUCT FEATURES
| Load Capacity | 1500Kg(3306.93lb) |
| Fork Dimensions | 75/170/1150mm(s/e/l)(2.95/6.69/45.28in) |
| Distance Between Fork-arms | 570mm(22.44in) |
| Battery Voltage/Nominal Capacity | 24V80Ah Lead-acid/Lithium Battery |
| Turning Radius | 1455mm(57.28in) |
| Lift Height | 3000mm(118.11in) |
| Steering Design | Mechanical |
| Service weight | 560kg(1234.59lb) |
| Product Color | Ivory/Red/Customization |

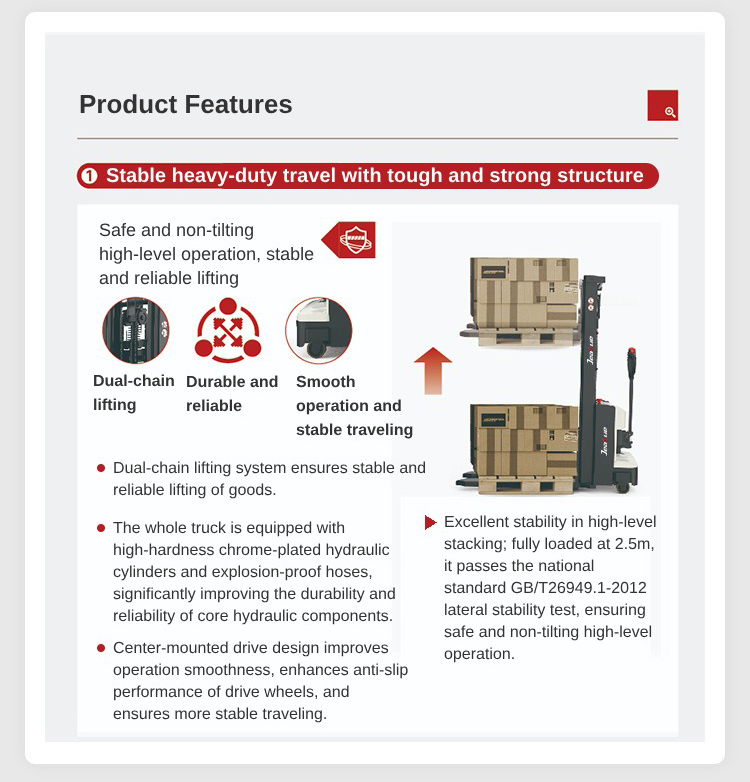

Product Features 1.5 Ton(3306.93lb) Lead-acid Battery Stacker -DS4
Stable heavy-duty travel with tough and strong structure
Safe and non-tilting high-level operation, stable and reliable lifting
Dual-chain lifting 1.5 Ton(3306.93lb) Lead-acid Battery Stacker -DS4
Durable and reliable
Smooth operation and stable traveling 1.5 Ton(3306.93lb) Lead-acid Battery Stacker -DS4

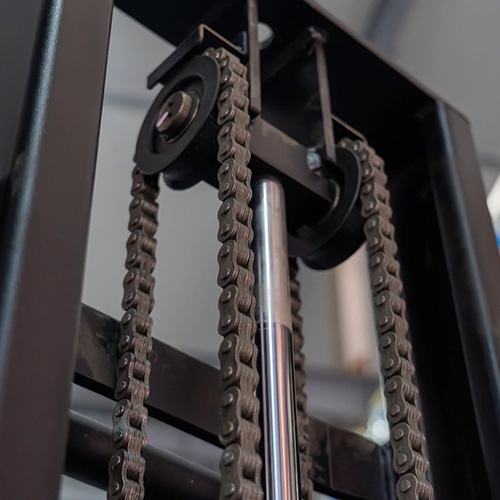

Dual-chain lifting system ensures stable and reliable lifting of goods.
The whole truck is equipped with high-hardness chrome-plated hydraulic cylinders and explosion-proof hoses, significantly improving the durability and reliability of core hydraulic components.1.5 Ton(3306.93lb) Lead-acid Battery Stacker -DS4

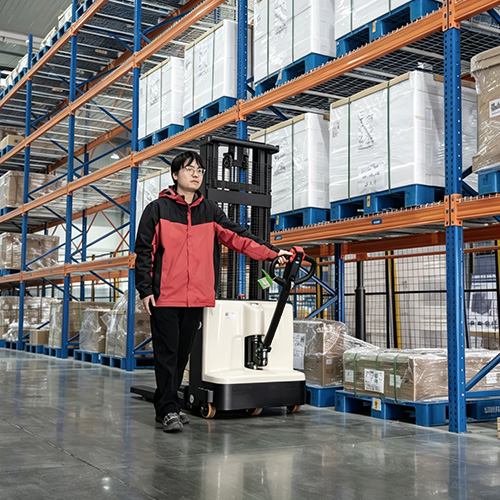

Center-mounted drive design improves operation smoothness, enhances anti-slip performance of drive wheels, and ensures more stable traveling.1.5 Ton(3306.93lb) Lead-acid Battery Stacker -DS4

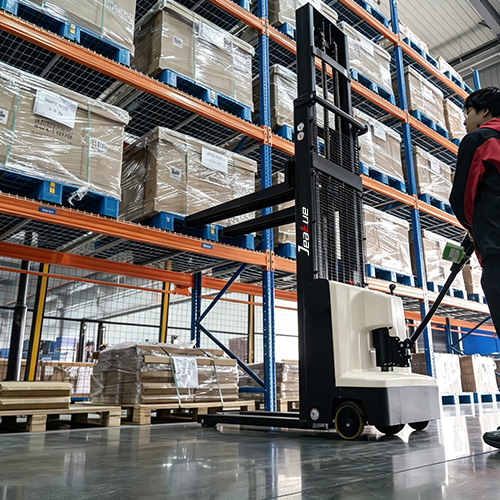

Excellent stability in high-level stacking; fully loaded at 2.5m, it passes the national standard GB/T26949.1-2012 lateral stability test, ensuring safe and non-tilting high-level operation.1.5 Ton(3306.93lb) Lead-acid Battery Stacker -DS4

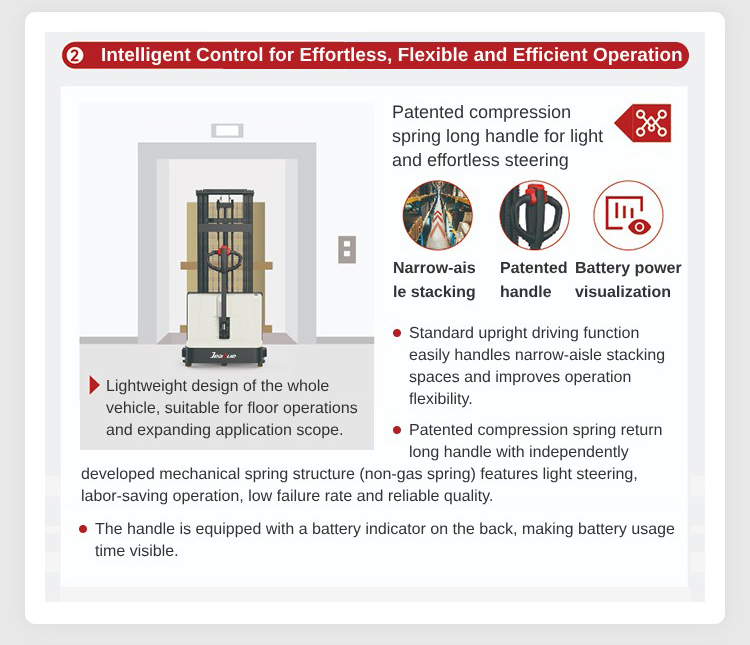

Lightweight design of the whole vehicle, suitable for floor operations and expanding application scope.
Patented compression spring long handle for light and effortless steering 1.5 Ton(3306.93lb) Lead-acid Battery Stacker -DS4
Narrow-aisle stacking 1.5 Ton(3306.93lb) Lead-acid Battery Stacker -DS4
Patented handle 1.5 Ton(3306.93lb) Lead-acid Battery Stacker -DS4
Battery power visualization

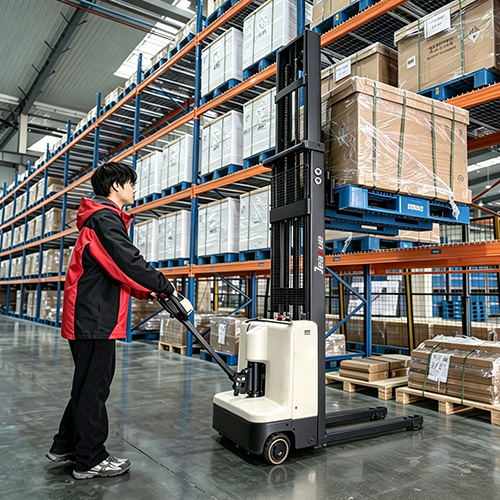

Standard upright driving function easily handles narrow-aisle stacking spaces and improves operation flexibility.1.5 Ton(3306.93lb) Lead-acid Battery Stacker -DS4
Patented compression spring return long handle with independently developed mechanical spring structure (non-gas spring) features light steering, labor-saving operation, low failure rate and reliable quality.1.5 Ton(3306.93lb) Lead-acid Battery Stacker -DS4

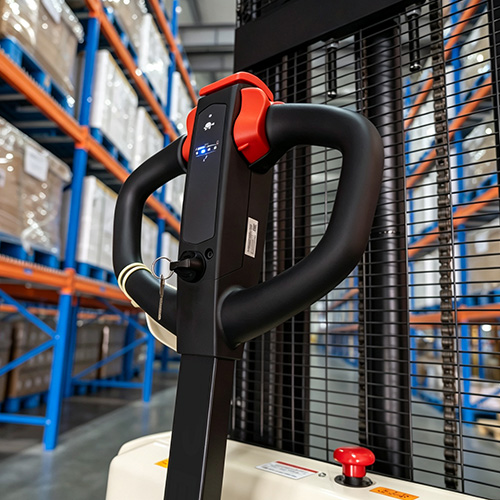

The handle is equipped with a battery indicator on the back, making battery usage time visible.1.5 Ton(3306.93lb) Lead-acid Battery Stacker -DS4

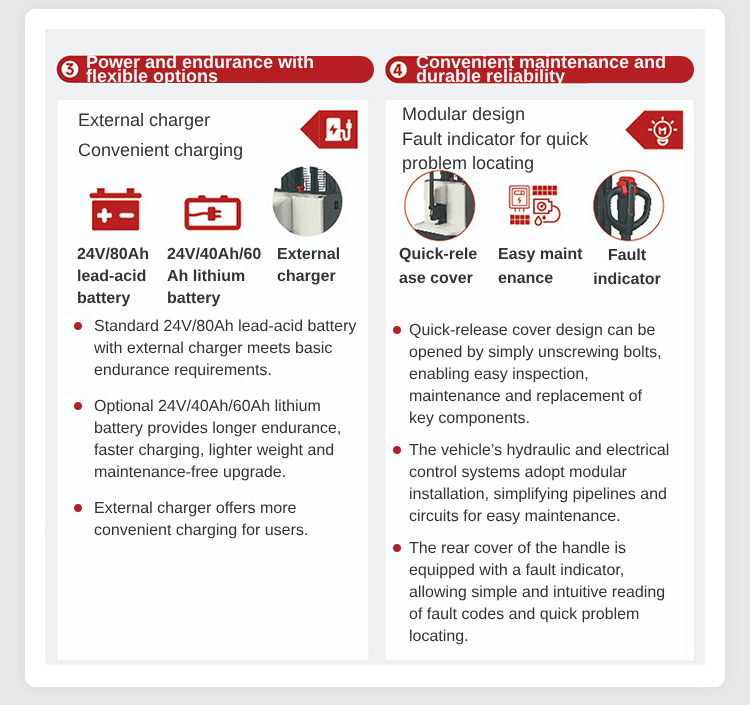

③ Power and endurance with flexible options 1.5 Ton(3306.93lb) Lead-acid Battery Stacker -DS4
External charger
Convenient charging
24V/80Ah lead-acid battery
24V/40Ah/60Ah lithium battery 1.5 Ton(3306.93lb) Lead-acid Battery Stacker -DS4
External charger
Standard 24V/80Ah lead-acid battery with external charger meets basic endurance requirements.1.5 Ton(3306.93lb) Lead-acid Battery Stacker -DS4
Optional 24V/40Ah/60Ah lithium battery provides longer endurance, faster charging, lighter weight and maintenance-free upgrade.
External charger offers more convenient charging for users.1.5 Ton(3306.93lb) Lead-acid Battery Stacker -DS4
Convenient maintenance and durable reliability
Modular design
Fault indicator for quick problem locating 1.5 Ton(3306.93lb) Lead-acid Battery Stacker -DS4
Quick-release cover
Easy maintenance
Fault indicator 1.5 Ton(3306.93lb) Lead-acid Battery Stacker -DS4
Quick-release cover design can be opened by simply unscrewing bolts, enabling easy inspection, maintenance and replacement of key components.1.5 Ton(3306.93lb) Lead-acid Battery Stacker -DS4
The vehicle’s hydraulic and electrical control systems adopt modular installation, simplifying pipelines and circuits for easy maintenance.1.5 Ton(3306.93lb) Lead-acid Battery Stacker -DS4
The rear cover of the handle is equipped with a fault indicator, allowing simple and intuitive reading of fault codes and quick problem locating.1.5 Ton(3306.93lb) Lead-acid Battery Stacker -DS4

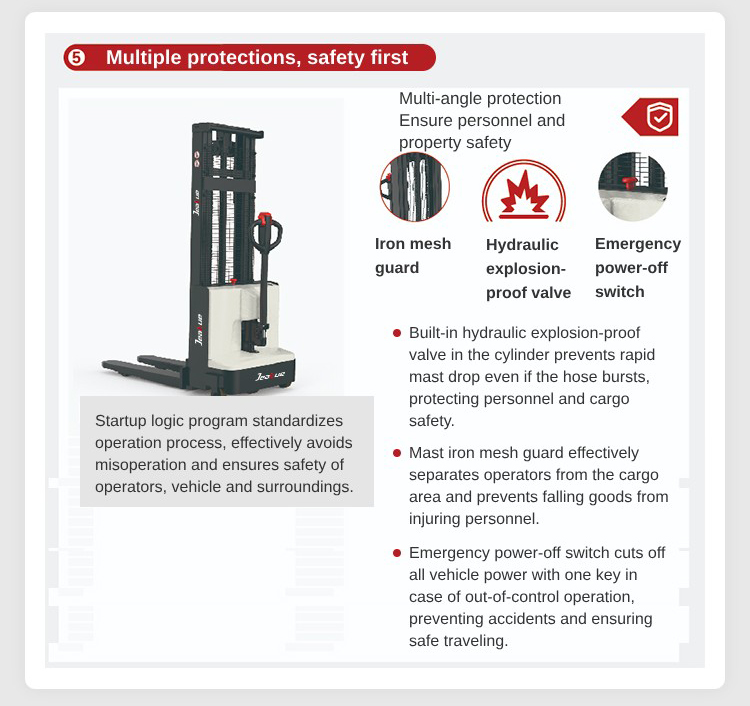

Multiple protections, safety first
Startup logic program standardizes operation process, effectively avoids misoperation and ensures safety of operators, vehicle and surroundings 1.5 Ton(3306.93lb) Lead-acid Battery Stacker -DS4
Multi-angle protection
Ensure personnel and property safety
Iron mesh guard
Hydraulic explosion-proof valve 1.5 Ton(3306.93lb) Lead-acid Battery Stacker -DS4
Emergency power-off switch
Built-in hydraulic explosion-proof valve in the cylinder prevents rapid mast drop even if the hose bursts, protecting personnel and cargo safety.1.5 Ton(3306.93lb) Lead-acid Battery Stacker -DS4
Mast iron mesh guard effectively separates operators from the cargo area and prevents falling goods from injuring personnel.1.5 Ton(3306.93lb) Lead-acid Battery Stacker -DS4

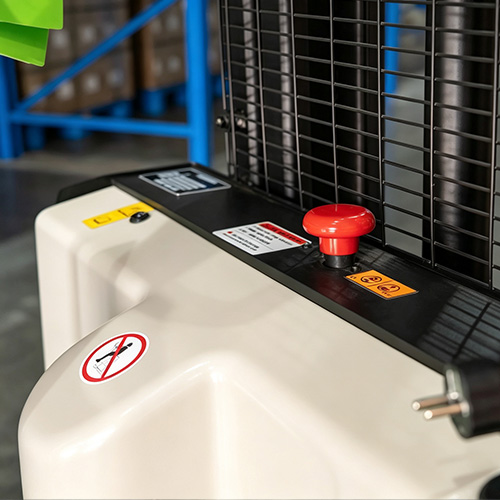

Emergency power-off switch cuts off all vehicle power with one key in case of out-of-control operation, preventing accidents and ensuring safe traveling.1.5 Ton(3306.93lb) Lead-acid Battery Stacker -DS4
