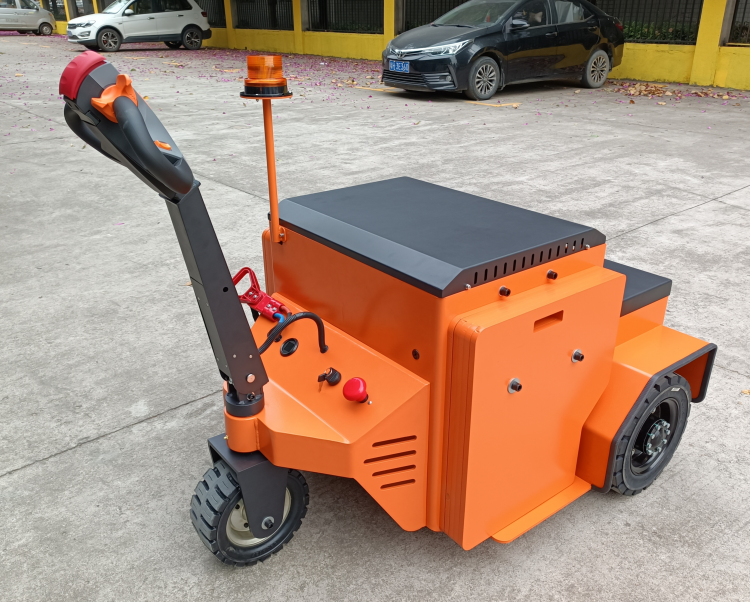

15-20-30 Ton Pedestrian Electric Tow Tractor-ET-1500/2000/3000L

Rated Capacity: 15000-20000-30000kg(33069.30-44092.40-66138.60lb)
Rated/Maximum traction:6000-7000-9000N
48V210Ah Lithium Battery/Lead-acid Battery

Description

Brand		JEAKUE	JEAKUE	JEAKUE
Model		ET-1500L	ET-2000L	ET-3000L
Power supply		Electric	Electric	Electric
Operating type		Pedestrian	Pedestrian	Pedestrian
Max traction weight	kg	15000	20000	30000
Rated pulling force	N	6000	7000	9000
Wheelbase	mm	980	980	980
Truck weight（with battery）	kg	1000	1200	1325
Battery weight	kg	400	400	400
Tire type,Drive wheel/Bearing wheel		Rubber	Rubber	Rubber
Sizes of drive wheel（diameter×width）	mm	2×Φ375×115	2×Φ375×115	2×Φ450×150
Sizes of bearing wheel（diameter×width）	mm	Φ280×127	Φ280×127	Φ280×127
Drive wheel/Supporting wheel number(X=Drive wheel)	mm	2×/1	2×/1	2×/1
Front gauge	mm	460	460	460
Overall height	mm	1225	1225	1225
Height of tiller in drive position	mm	950/1200	950/1200	950/1200
Hook height	mm	260/360/720	260/360/720	260/360/720

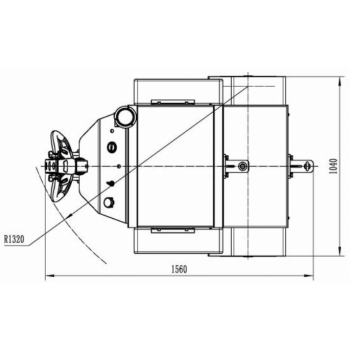

Overall length	mm	1560	1560	1560
Overall width	mm	1040	1040	1040
Ground clearance	mm	100	100	100
Turning radius	mm	1320	1320	1320
Drive speed load/unload	Km/h	2～3	2～3	2～3
Rated pulling force	N	6000	7000	9000
Max pulling force	N	9000	10000	12000
Max gradeability load/unload	％	2/5	2/5	2/5
Brake type		Electromagnetic	Electromagnetic	Electromagnetic
Drive motor rating S260min	V/kw	48/4	48/5	48/6
Charger(external)	V/A	48/30	48/30	48/30
K20 Battery voltage/nominal capacity	V/Ah	48/210	48/210	48/210
Battery weight	kg	400	400	400
Type of drive control	kg	AC	AC	AC
Steering type		Mechanics	Mechanics	Mechanics
Noise level		<70	<70	<70
Type of trailer coupling	dB(A)	Latch	Latch	Latch
