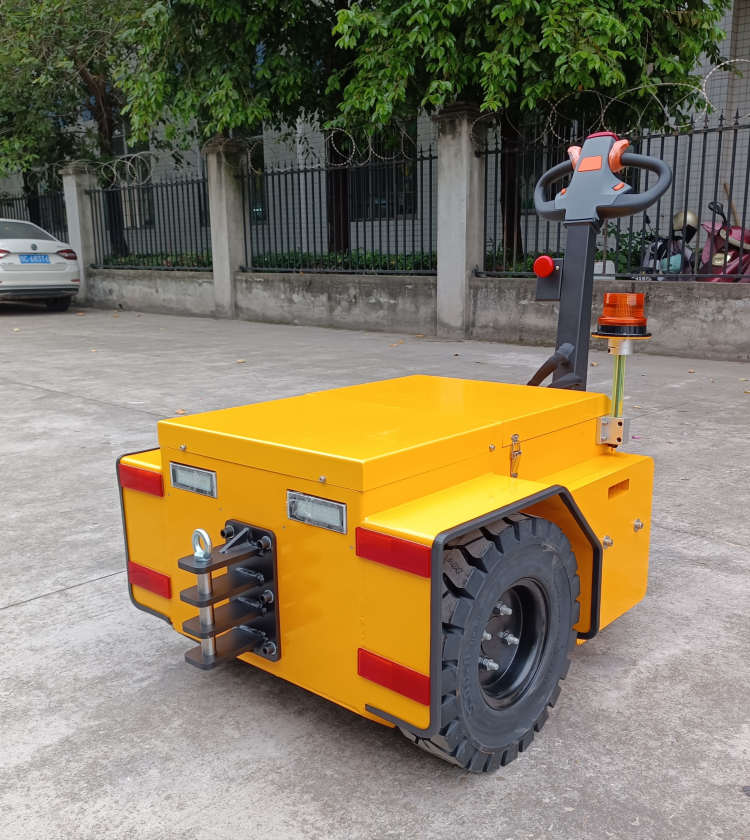

10-12 Ton Pedestrian Electric Tow Tractor-ET-1000/1200L

Rated Capacity: 10000-12000kg(22046.20-26455.44lb)
Rated/Maximum traction:4000-5000N
48V157/210Ah Lithium Battery/Lead-acid Battery

Description

Brand		JEAKUE	JEAKUE
Model		ET-1000L	ET-1200L
Power supply		Electric	Electric
Operating type		Pedestrian	Pedestrian
Max traction weight	kg	10000	12000
Rated pulling force	N	4000	5000
Wheelbase	mm	1070	1070
Truck weight（with battery）	kg	780	820
Battery weight	kg	206	400
Tire type,Drive wheel/Bearing wheel		Rubber	Rubber
Sizes of drive wheel（diameter×width）	mm	2×Φ450×117	2×Φ450×117
Sizes of bearing wheel（diameter×width）	mm	Φ300×100	Φ300×100
Drive wheel/bearing wheel number(X=Drive wheel)	mm	2×/1	2×/1
Front gauge	mm	460	460
Overall height	mm	1225	1225
Height of tiller in drive position	mm	950/1200	950/1200
Hook height	mm	295/395	295/395
Overall length	mm	1705	1705
Overall width	mm	870	870
Ground clearance	mm	100	100
Turning radius	mm	1370	1370
Drive speed load/unload	Km/h	2～3	2～3
Rated pulling force	N	4000	5000
Max pulling force	N	7000	8000
Max gradeability load/unload	％	3/6	3/6
Brake type		Electromagnetic	Electromagnetic
Drive motor rating S260min	V/kw	48/3	48/3.5
Charger(external)	V/A	48/25	48/30
K20 Battery voltage/nominal capacity	V/Ah	48/157	48/210
Battery weight	kg	206	400
Type of drive control	kg	AC	AC
Steering type		Mechanics	Mechanics
Noise level		<70	<70
Type of trailer coupling	dB(A)	Latch	Latch
