1.8 Ton (3968.32 lb) Diesel Crawler Excavator-JH8018

Operating Weight: 1800 (Kg)(3968.32 lb)
Bucket Capacity: 0.06 (m³)(2.12 ft³)
Engine Power: 18.4/2500 (kW/rpm)
Maximum Bucket Digging Force:14(kN)

Description

Parameter	Value
Bucket Capacity (m³)	0.06
Swing Speed (rmp)	10–12
Gradeability (°)	35
Max. Bucket Digging Force (KN)	14
Max. Arm Digging Force (KN)	10
Engine Model	3TE25
Power/revolution speed (KW/rpm)	18.4/2350
Tire Model	–
System Pressure (MPa)	18

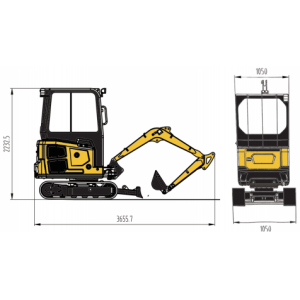

Dimension LengthWidthHeight (mm)	3655x1050x2232
Cabin Height (mm)	2232
Sprocket to Wheel (mm)	1233
Wheel(Track) Guage (mm)	820
Minimum ground clearance (mm)	210
Tail Swing Radius (mm)	1000

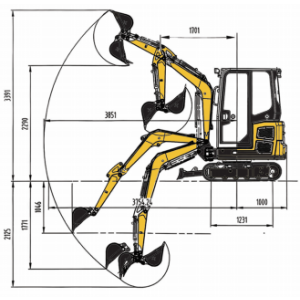

Max. Digging Height (mm)	3391
Max. Dumping Height (mm)	2290
Max. Digging Depth (mm)	2125
Max. Vertical Digging Depth (mm)	1771
Max. Digging Radius (mm)	3851
Min. Swing Radius (mm)	1701
Max. Dozer Blade Lifting Distance (mm)	230
Max. Dozer Blade Cutting Distance (mm)	275
Boom Swing Angle (Left) (°)	45
Boom Swing Angle (Right) (°)	45
