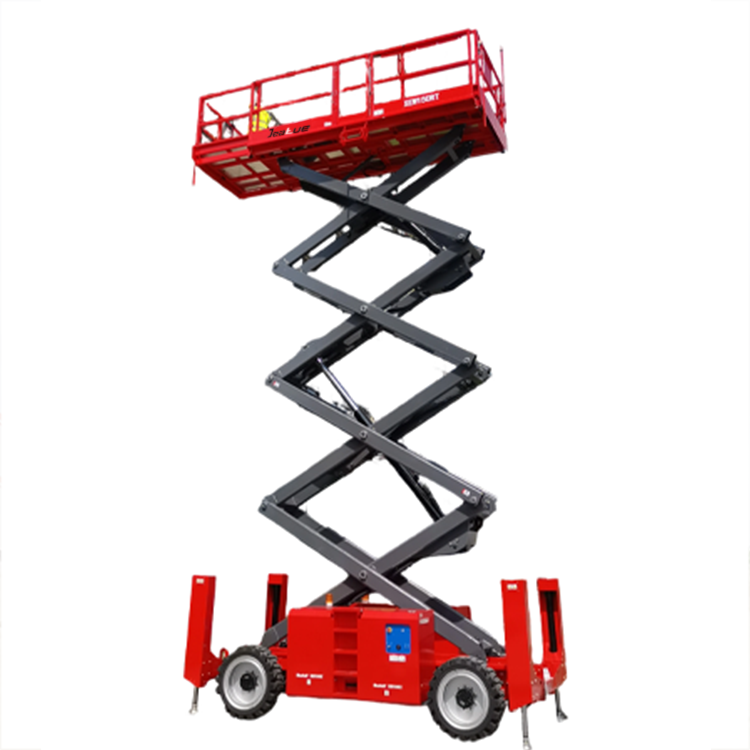

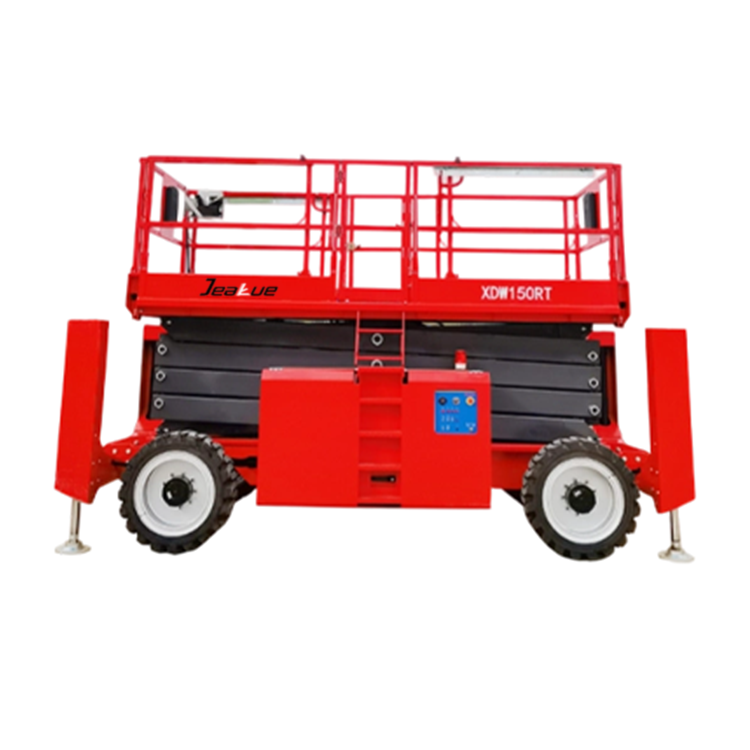

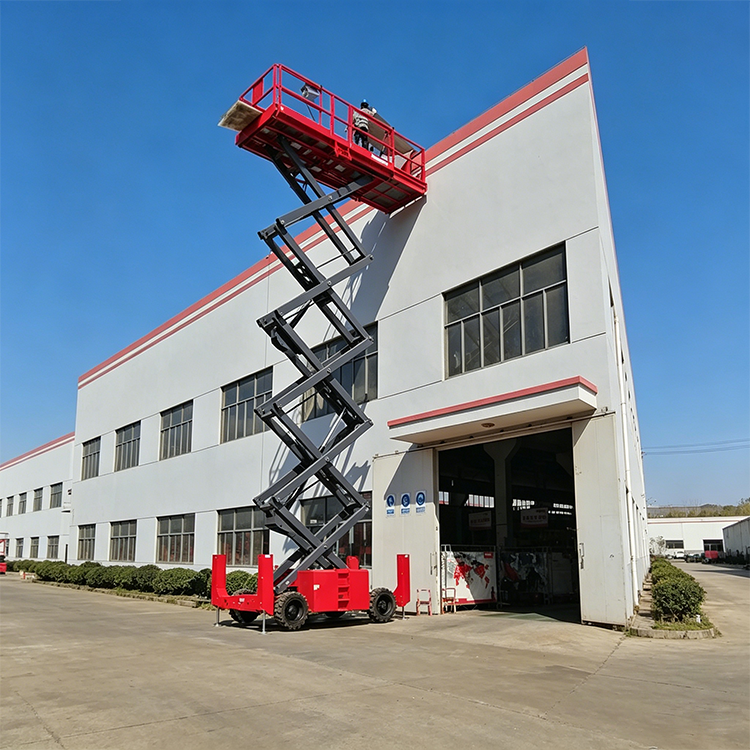

0.55Ton 15-18M Self-Propelled Rough Terrain Scissor Lift-XDW150RT/180RT
Load Capacity(kg):570 (1256.63(lb))
Working height max (m) :15-18 (590.55-708.66(in))
Weight(kg):6950-8810 (15322.13-19422.72(lb))
Description
Product Highlights
★Powerful gradeability to meet outdoor needs easily
High work efficiency
★Equipped with double extended platform
★One click leveling,fearless of uneven road surfaces for work
Easy maintenance
★Double sided liftback door design,convenient maintenance and repair
★Spin out engine compartment for easy maintenance
PRODUCT PARAMETERS
| Model | XDW150RT | XDW180RT |
| Dimension | ||
| Max. Working Height | 15m | 18m |

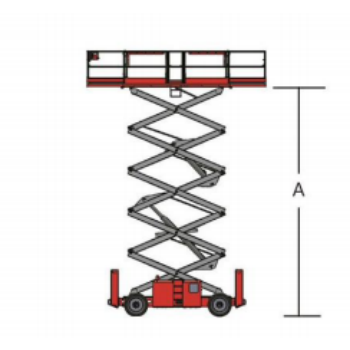

| A Max. Platform Height | 13m | 16m |

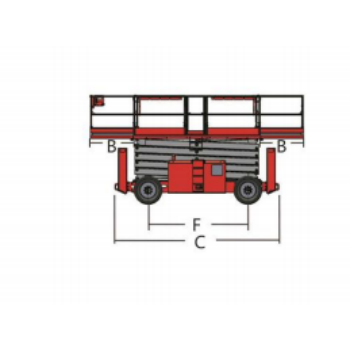

| B Max. Outreach | 1.2m | 1.2m |
| Min. platform height | 1.85m | 2.06m |
| C Length stowed(with outriggers) | 4.88m | 4.88m |

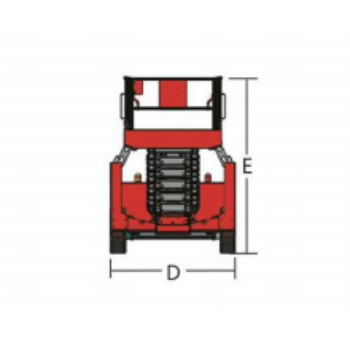

| D Width Stowed | 2.3m | 2.3m |
| Height Stowed(guardrails folded) | 2.19m | 2.47m |
| E Height Stowed(guardrails unfolded) | 2.99m | 3.2m |
| F Wheelbase | 2.97m | 2.97m |
| Ground Clearance | 0.32m | 0.32m |
| Platform size -outer length | 3.9m | 3.9m |
| Platform length -double extended | 6.3m | 6.3m |
| Platform size -outer width | 1.9m | 1.9m |
| Platform size-guardrail height | 1.15m | 1.15m |
| Skirting Board Height | 0.15m | 0.15m |
| Performance | ||
| Max. Load number (indoor/outdoor) | 6pers/6pers | 6pers/6pers |
| Lifting Capacity | 570kg | 570kg |
| Lifting Capacity(extended platform) | 230kg | 230kg |
| Drive Speed(Stowed) | 5km/h | 5km/h |
| Drive Speed(Raised) | 0.7km/h | 0.7km/h |
| Rising Time | 68s | 75s |
| Lowering Time | 50s | 55s |
| Gradeability | 45% | 40% |
| Turing Radius-inside/outside | 2.72m/5.89m | 2.72m/5.89m |
| Tilt Sensor-Front to Back | 3° | 3° |
| Tilt Sensor-Side to Side | 1.5° | 2° |
| Outrigger level ability -front to back | 7° | 7° |
| Outrigger level ability-side to side | 11° | 11° |
| Tire Specification/Type | 33×12-20 | 33×12-20 |
| Power | ||
| Power source | 4TNV88/35.3KW Yanmar | |
| Drive mode | 4WD×2WS | 4WD×2WS |
| Diesel Fuel Tank Capacity | 115L | 115L |
| Hydraulic Tank Capacity | 115L | 115L |
| Battery Specifications | ||
| Control mode | Proportional control | |
| Weight | ||
| Weight | 6950kg | 8810kg |
| Standard | GB/CE | |
Standard Features
| 4 wheels drive | Solid rough ground tires | Proportional Control |
| Tilt alarm | Buzzer | Tilt level sensor with an audible alarm |
| Automatic brake system | Hour meter | Dual flashing beacon |
| Double extended platform | Foldable guardrails | Lowering alarm |
| Safety support bar | Diagnosis system | Horn |
| Forklift and lifting holes | Emergency stop button | AC power to platform |
Options Features
| Top Stop Sensor | Power socket to platform | GPS |
| Anti-collision system | Overload sensor | Platform work light |
| Automatic leveling hydraulic outriggers | No-mark rough ground tires | Air line to platform |
 |
 |
 |
