0.3-1Ton 5-18M Mobile Electric Scissor Lift-XE-A/M SERIES
Load Capacity(kg):300-1000 (661.39-2204.62(lb))
Working height max (m) :5-18 (196.85-708.66(in))
Weight(kg):540-2900 (1190.49-6393.41(lb))
Description
Product Highlights
Flexible operation and handling
★Ultra stable design greatly improves safety factor. Featuring compact body, and wide operating area
★Standard forklift hole, high equipment transportation turnover efficiency, and convenient transportation
Reduce maintenance costs
★High universality of components and no pressure on spare parts
★Drawer style door design for more convenient maintenance and upkeep
★Self diagnosis of faults, displaying fault information for rapid troubleshooting
More reliable performance
★Multiple protection for lifting circuit,safe and reliable
★Anti collision strip protection, more effective in preventing scratches and collisions
PRODUCT PARAMETERS

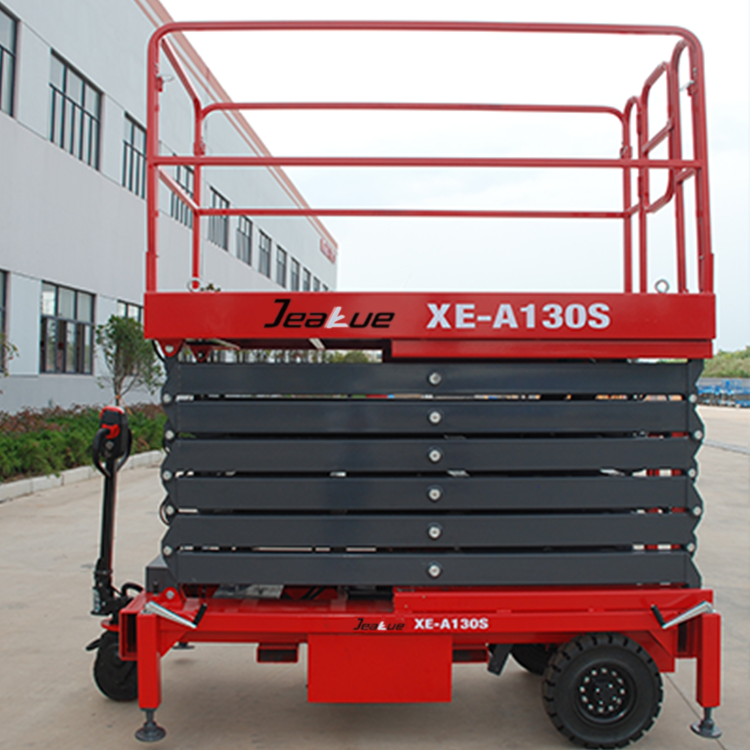

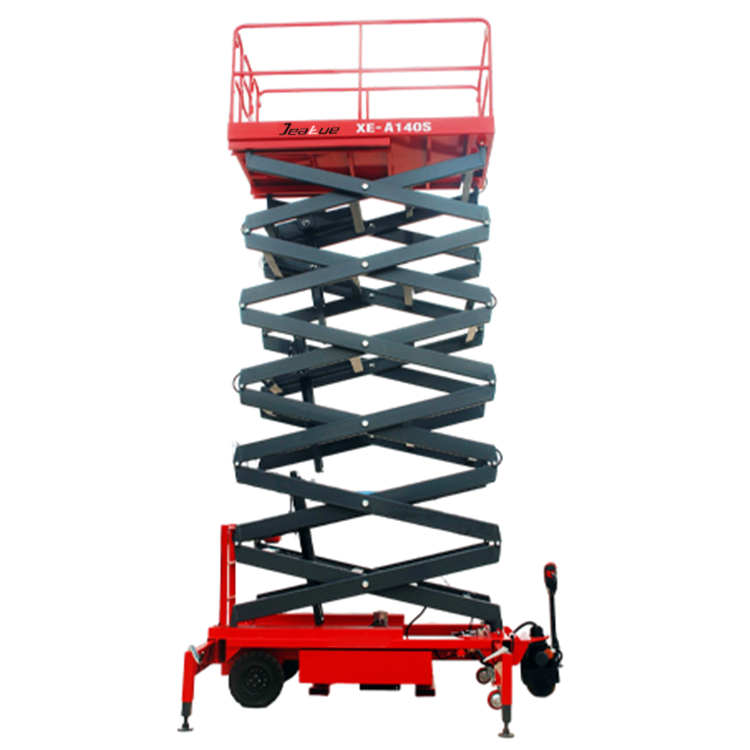

| Model | XE-A50S | XE-A80S | XE-A95S | XE-A110S | XE-A130S | XE-A140S | XE-A160S | XE-A180S |
| Max.Working Height m | 5 | 8 | 9.45 | 11 | 13 | 14 | 16 | 18 |
| Max.Platform Height m | 3 | 6 | 7.45 | 9 | 11 | 12 | 14 | 16 |
| Lifting Capacity KG | 450 | 450 | 450 | 450 | 450 | 450 | 450 | 300 |
| Platform Size mm | 1300*700 | 1850*880 | 1800*1000 | 1800*1000 | 2100*1150 | 2450*1350 | 2450*1350 | 2700*1500 |
| Stowed Size m | 1.35*0.94*0.8 | 2.26*1.15*1.26 | 2.26*1.3*1.65 | 2.26*1.3*1.8 | 2.5*1.4*1.8 | 3.03*1.6*1.9 | 3.1*1.6*2.1 | 3.37*1.75*2.1 |
| Rising Time s | 30 | 54 | 72 | 80 | 88 | 90 | 120 | 130 |
| Traction Speed km/h | 0-16.7 | 0-16.8 | 0-16.8 | 0-16.8 | 0-16.8 | 0-16.8 | 0-16.8 | 0-16.8 |
| Power Source | DC-24V | DC-24V | DC-24V | DC-24V | DC-24V | DC-24V | DC-24V | DC-24V |
| Lifting Motor Power kw | 2.2 | 2.2 | 2.2 | 2.2 | 3 | 3 | 2.2*2 | 2.2*2 |
| Driving Motor Power kw | 0.75 | 0.75 | 0.75 | 0.75 | 0.75 | 0.75 | 1.2 | 1.2 |
| Weight kg | 540 | 740 | 950 | 1260 | 1480 | 2000 | 2180 | 2900 |
| Model | XE-A80H | XE-A110H | XE-A140H |
| Max.Working Height m | 8 | 11 | 14 |
| Max.Platform Height m | 6 | 9 | 12 |
| Lifting Capacity KG | 1000 | 1000 | 1000 |
| Platform Size mm | 1800*1000 | 1800*1250 | 2450*1350 |
| Stowed Size m | 1.85*1.24*1.11 | 1.85*1.49*1.65 | 2.5*1.59*1.85 |
| Rising Time s | 80 | 108 | 128 |
| Traction Speed km/h | 0-16.8 | 0-16.8 | 0-16.8 |
| Power Source | DC-24V | DC-24V | DC-24V |
| Lifting Motor Power kw | 3 | 3 | 2.2*2 |
| Driving Motor Power kw | 0.75 | 1.2 | 1.2 |
| Weight kg | 960 | 1850 | 2260 |
| Model | XE-M50S | XE-M80S | XE-M95S | XE-M110S | XE-M130S | XE-M140S | XE-M160S | XE-M180S |
| Max.Working Height m | 5 | 8 | 9.45 | 11 | 13 | 14 | 16 | 18 |
| Max.Platform Height m | 3 | 6 | 7.45 | 9 | 11 | 12 | 14 | 16 |
| Lifting Capacity KG | 450 | 450 | 450 | 450 | 450 | 450 | 450 | 300 |
| Platform Size mm | 1300*700 | 1850*880 | 1800*1000 | 1800*1000 | 2100*1150 | 2450*1350 | 2450*1350 | 2700*1500 |
| Stowed Size m | 1.35*0.94*0.8 | 2.16*1.3*1.65 | 2.16*1.3*1.8 | 2.16*1.3*1.8 | 2.4*1.4*1.8 | 2.68*1.6*1.9 | 2.7*1.6*2.1 | 3.1*1.75*2.1 |
| Rising Time s | 30 | 54 | 72 | 80 | 88 | 90 | 120 | 130 |
| Motor Power kw | 0.75 | 1.1 | 1.5 | 1.5 | 2.2 | 3 | 3 | 3 |
| Power Source | AC220V/380V | AC220V/380V | AC220V/380V | AC220V/380V | AC220V/380V | AC220V/380V | AC220V/380V | AC220V/380V |
| Weight kg | 450 | 650 | 1100 | 1260 | 1380 | 1850 | 2150 | 2680 |
| Tire Size | φ250 mm rubber solid tires | φ400-8mm rubber solid tires | φ500-8mm rubber solid tires | |||||
| Model | XE-M80H | XE-M110H | XE-M140H |
| Max.Working Height m | 8 | 11 | 14 |
| Max.Platform Height m | 6 | 9 | 12 |
| Lifting Capacity KG | 1000 | 1000 | 1000 |
| Platform Size mm | 1800*1000 | 1800*1250 | 2450*1350 |
| Stowed Size m | 1.85*1.24*1.1 | 1.85*1.49*1.65 | 2.5*1.59*1.85 |
| Rising Time s | 80 | 108 | 128 |
| Motor Power kw | 2.2 | 3 | 3 |
| Power Source | AC220V/380V | AC220V/380V | AC220V/380V |
| Weight kg | 950 | 1680 | 2100 |
| Tire Size | φ500-8mm rubber solid tires | ||
XE-A Series Standard Features
| Auxiliary, can operate by one person for drive |
| Hydraulic line rupture protection device |
| Screw support levelling device |
| Emergency stop button |
| Emergency lower down |
| Rain-proof control box |
| Automatically battery charger |
XE-A Options Features
| Extended platform (6-12m) |
XE-M Series Standard Features
| Emergency Lower down | Screw support levelling device |
| Rain-proof control box | Emergency stop button |
| Hydraulic line rupture protection device |
XE-M Options Features
| Power:AC220V(6-11).DC24/48V,manual hydraulic power |
| Extended platform |
| Rubber solid tires |
