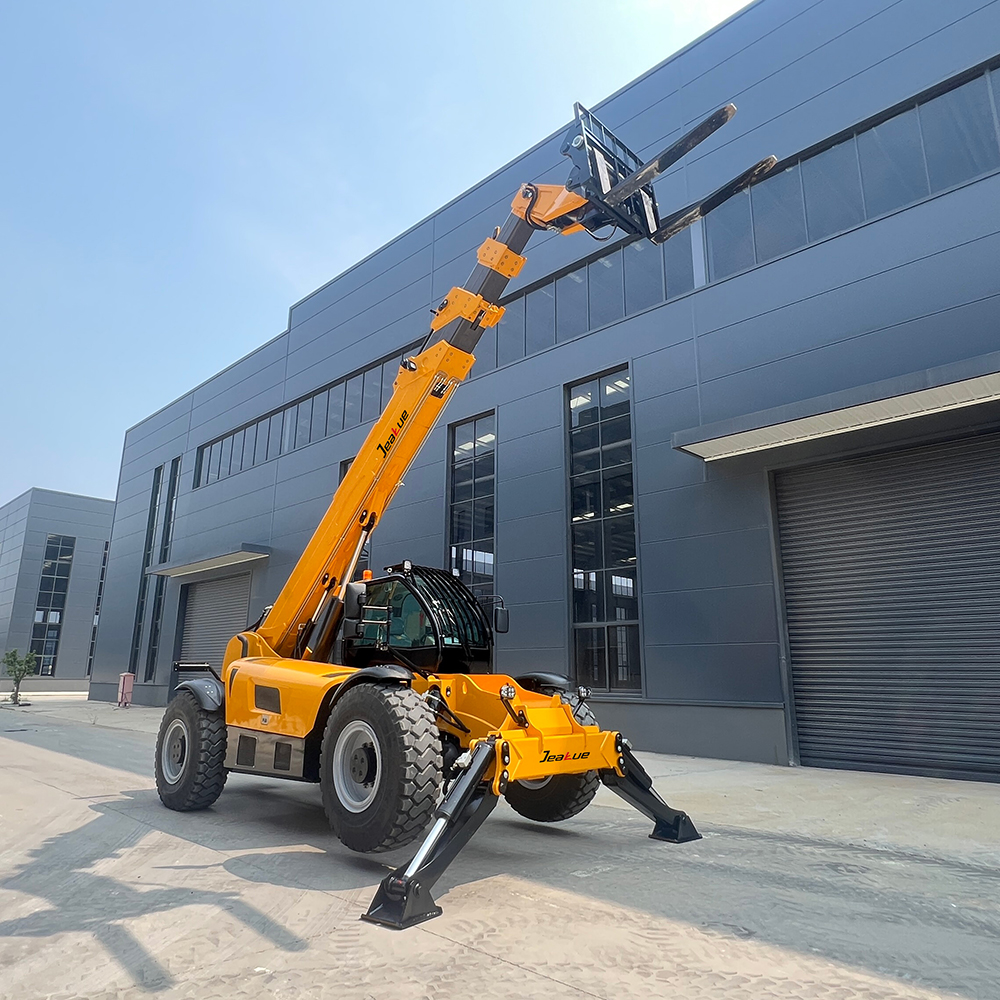

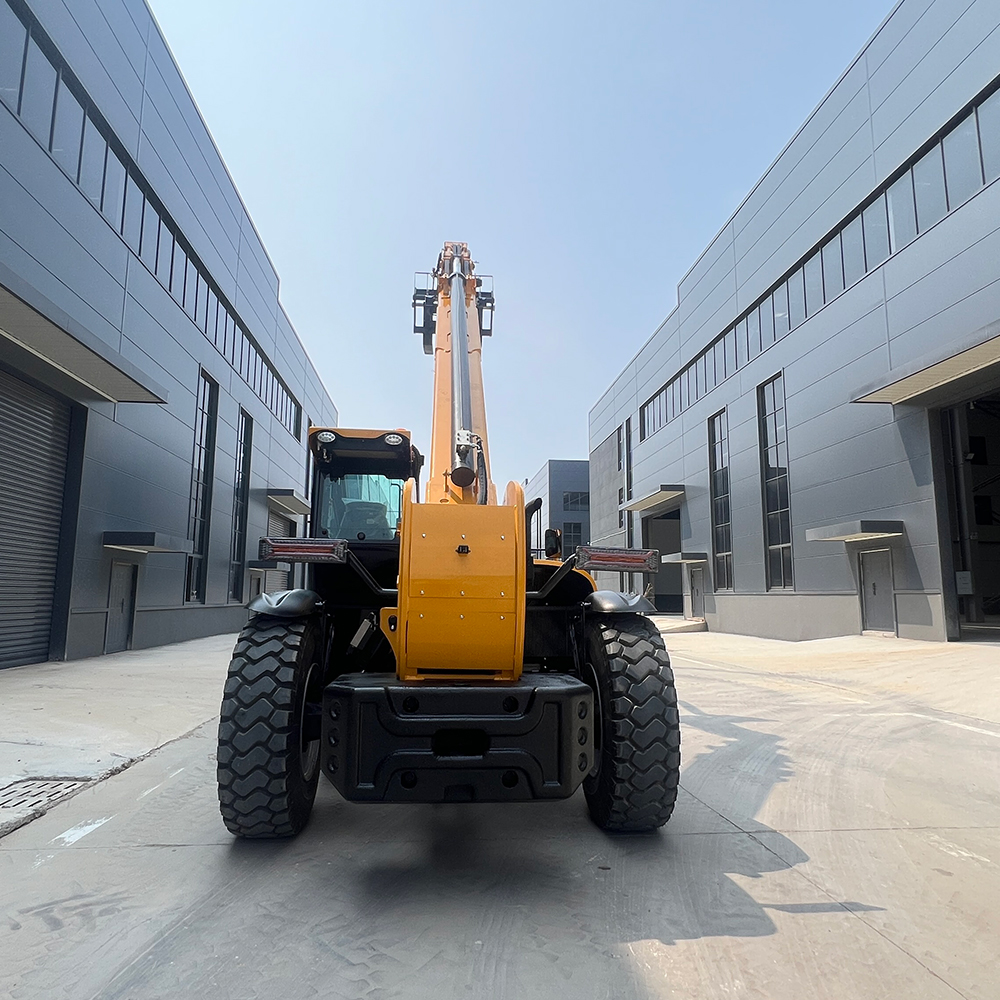

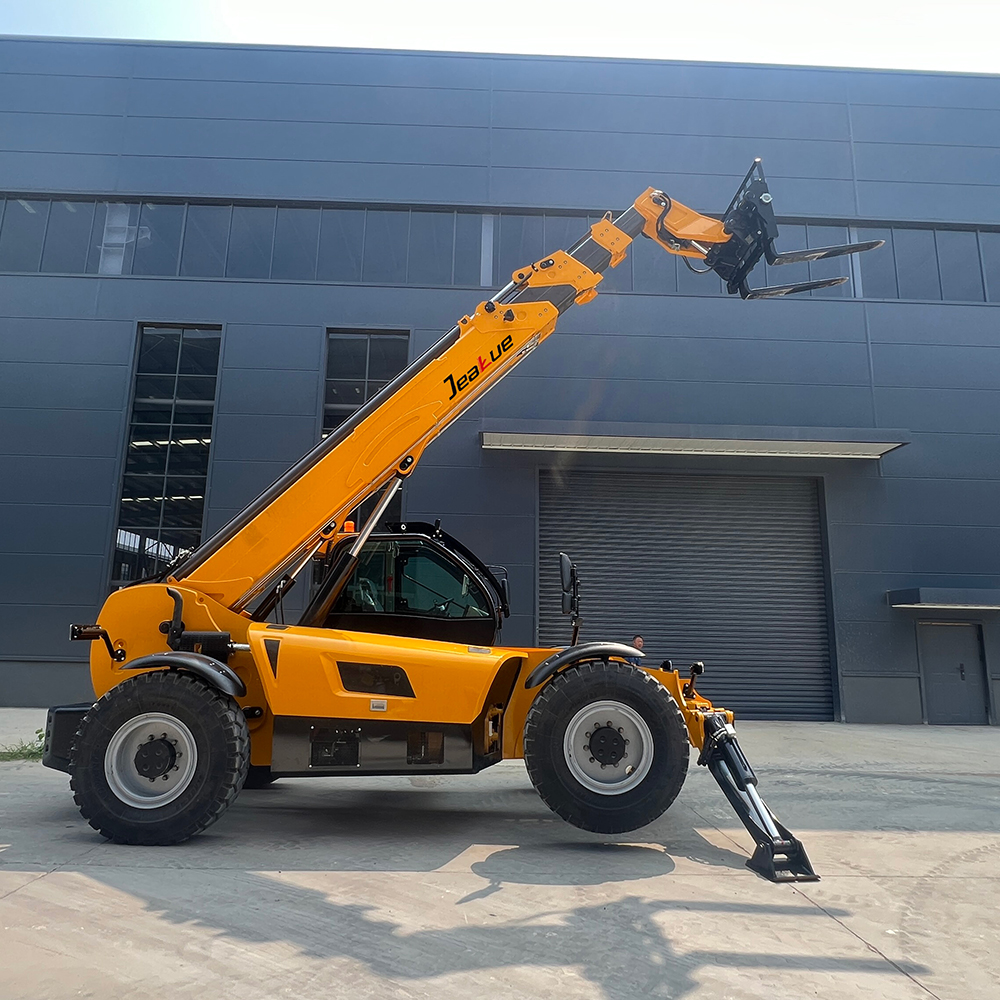

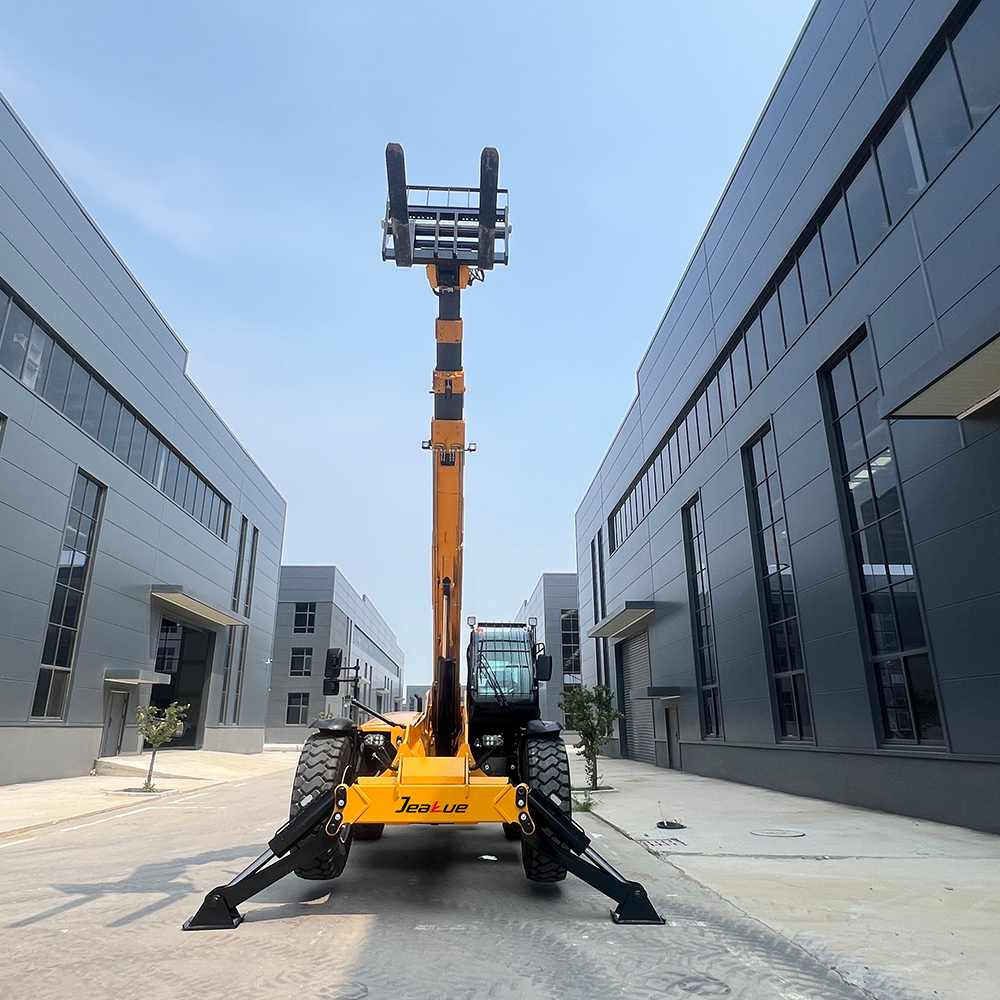

6 Ton Diesel Telehandler Forklift-T6018

6 Ton Diesel Telehandler Forklift-T6018 - Image 2

6 Ton Diesel Telehandler Forklift-T6018 - Image 3

6 Ton Diesel Telehandler Forklift-T6018 - Image 4

6 Ton Diesel Telehandler Forklift-T6018 - Image 5

6 Ton Diesel Telehandler Forklift-T6018 - Image 6

6 Ton Diesel Telehandler Forklift-T6018 - Image 7

Lifting height:17800mm
Rated load:6000Kg
Power:110Kw/150hp
Tyre:17.5-25 Tubeless

Categories: -Diesel, –Material Handling, –Telehandlers

Add to quote

Description

Specification

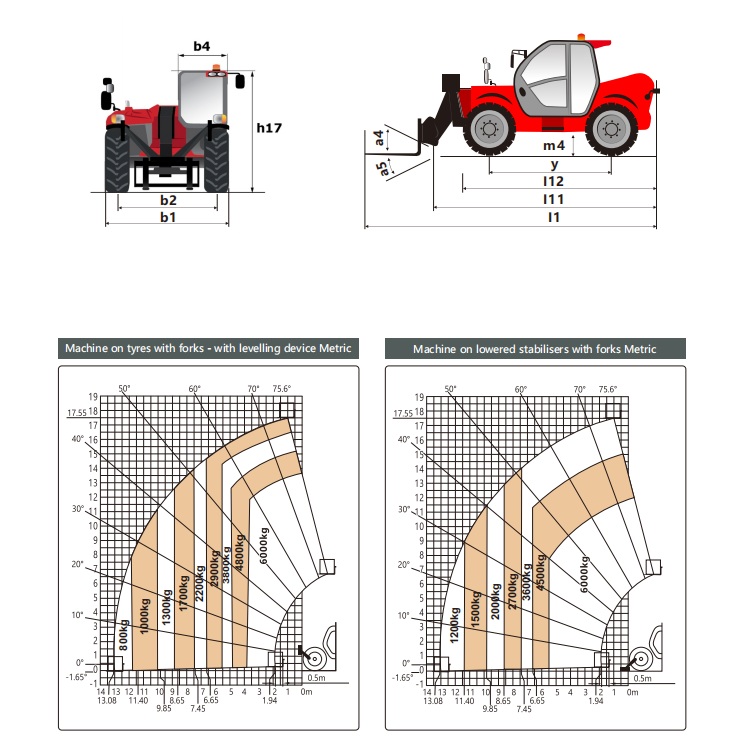

Max. capacity	6000 kg
Max. lifting height	17.80 m
Max. outreach	12 m

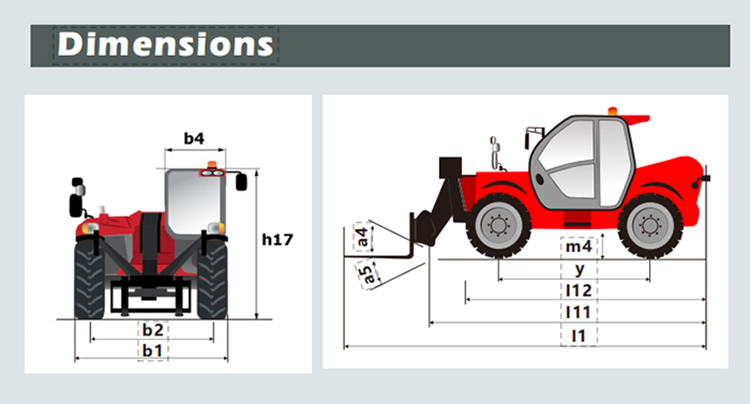

Overall length to carriage （l110)	6.9 m
Length to face of forks (l1)	8.12 m
Min transport size (l12)	6.4 m
Overall width (b1)	2.65 m
Track width (b2)	2.3 m
Overall height (h17)	2.85 m
Wheelbase (y)	3.6 m
Ground clearance (m4)	0.50 m
Overall cab width(b4)	0.84 m
Tilt-up angle(a4)	12 °
Tilt-down angle (a5)	114 °
External turning radius(over tyres)	4.1 m
Unladen weight(with fork)	14800 kg
Tires type	Tubeless
Standard tires (l/e/s)	17.5-25
Forks length/ width/ section	1220 mm x 125 mm / 50 mm
Lifting	35 s
Lowering	35 s
Extension	29 s
Retraction	17 s
Crowd	9 s
Dump	9 s
Engine brand	Yuchai (optional brand)
Engine norm	National II
Max. fuel sulphur content	5000 ppm
Engine model	1PG605
Number of cylinders / Capacity of cylinders	4 – 4400 cm³
I.C. Engine power rating – Power	150 Hp / 110 kW
Max. torque / Engine rotation	400 Nm @ 1400 rpm
Drawbar pull (Laden)	10000 daN
Transmission type	Torque converter (optional hydrostatic)
Number of gears (forward / reverse)	4/4
Max. travel speed	40 km/h
Parking brake	Automatic air-cut brake (optional wet braking)
Service brake	Immersed multi-discs braking on front & rear axles
Hydraulic pump type	Gear pump (optional piston pump)
Hydraulic flow	180 L
Engine oil	5.5 L
Hydraulic oil	170 L
Fuel tank	195 L
Noise at driving position (LpA)	82 dB
Noise to environment (LwA)	105 dB
Vibration on hands / arms	< 2.50 m/s²
Steering wheels (front / rear)	2/2
Drive wheels (front / rear)	2/2
Safety cab homologation	FOPS level 2 cab

JEAKUE 6 Ton Telehandler-T6018

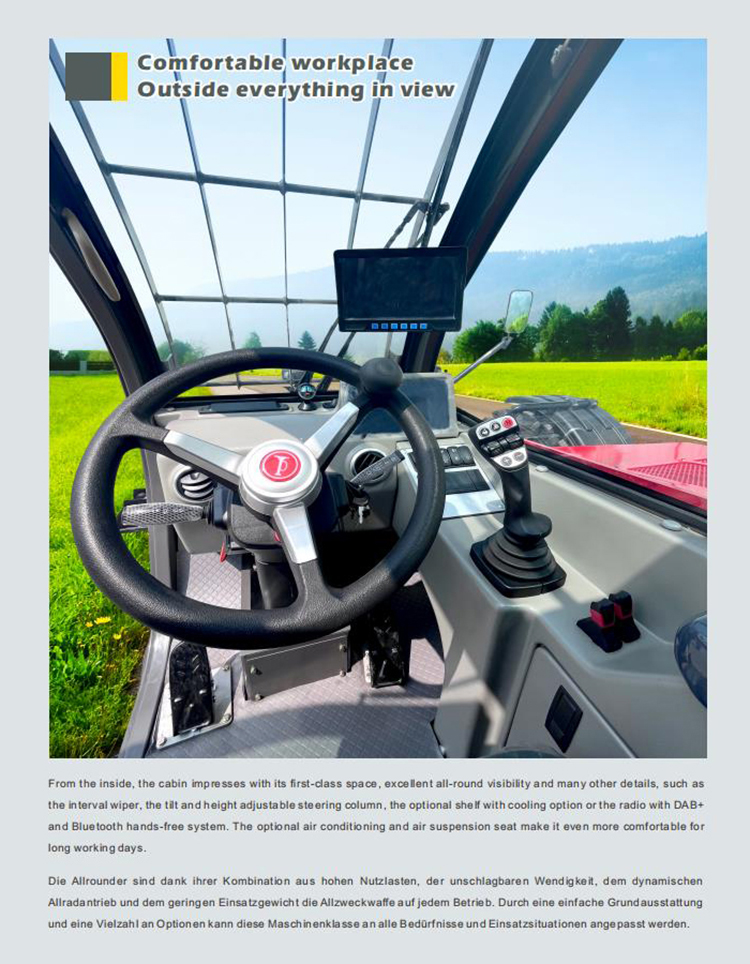

From the inside, the cabin impresses with its first-class space, excellent all-round visibility and many other details, such as

the interval wiper, the tilt and height adjustable steering column, the optional shelf with cooling option or the radio with DAB+

and Bluetooth hands-free system. The optional air conditioning and air suspension seat make it even more comfortable for

long working days.JEAKUE 6 Ton Diesel Telehandler Forklift-T6018

Die Allrounder sind dank ihrer Kombination aus hohen Nutzlasten, der unschlagbaren Wendigkeit, dem dynamischen

Allradantrieb und dem geringen Einsatzgewicht die Allzweckwaffe auf jedem Betrieb. Durch eine einfache Grundausstattung

und eine Vielzahl an Optionen kann diese Maschinenklasse an alle Bedürfnisse und Einsatzsituationen angepasst werden.JEAKUE 6 Ton Diesel Telehandler Forklift-T6018
