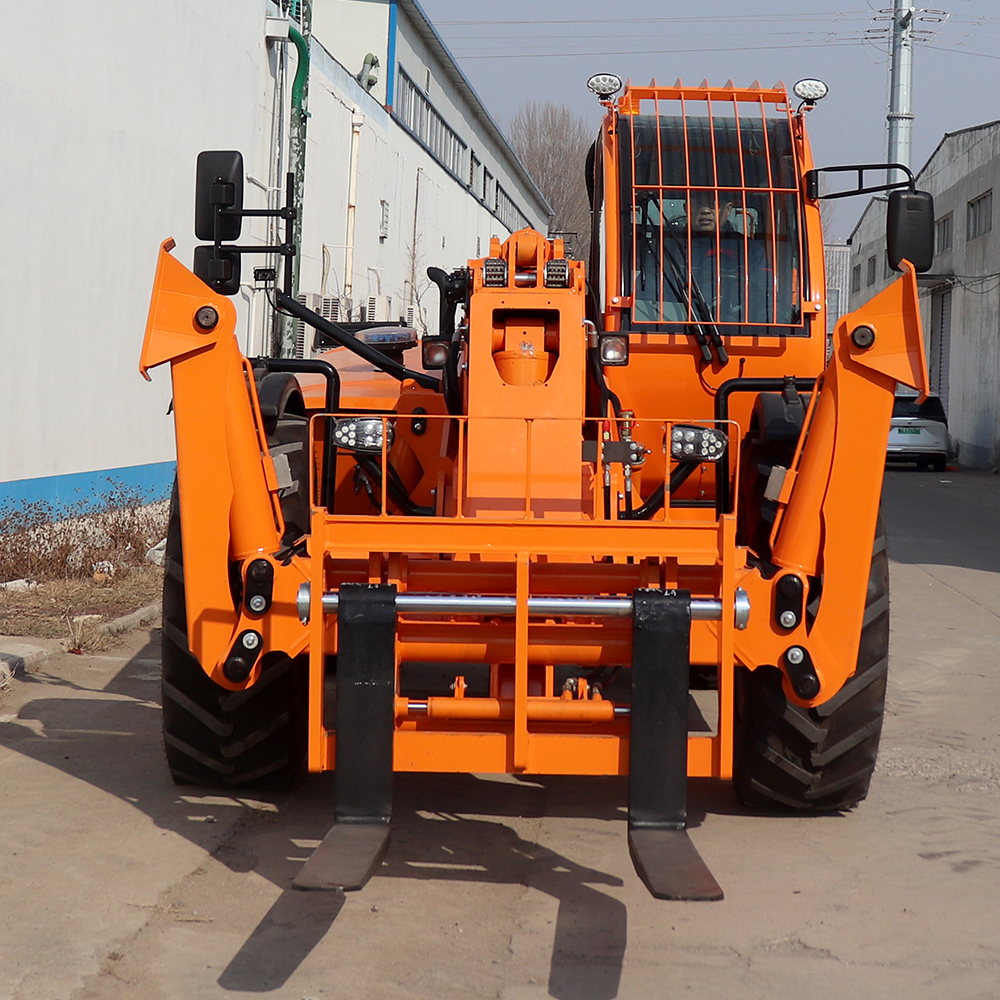

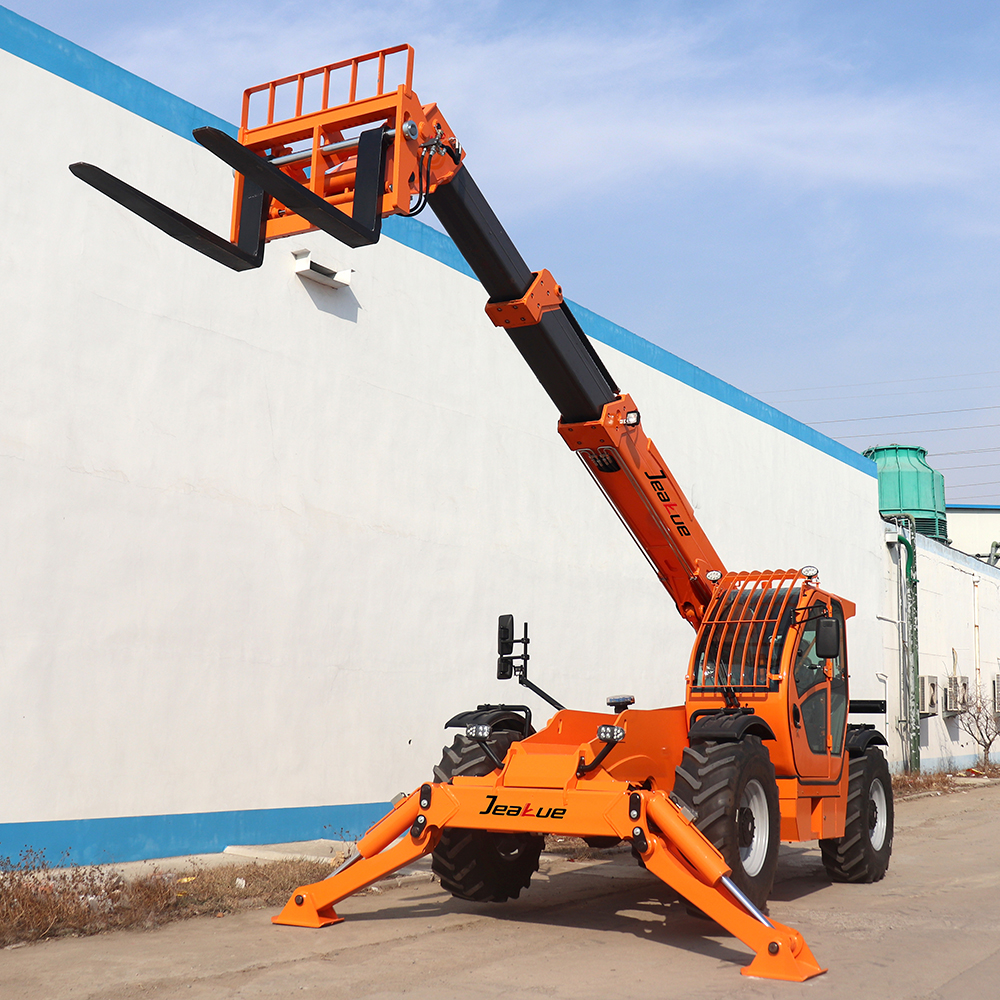

5 Ton Diesel Telehandler Forklift-T5014

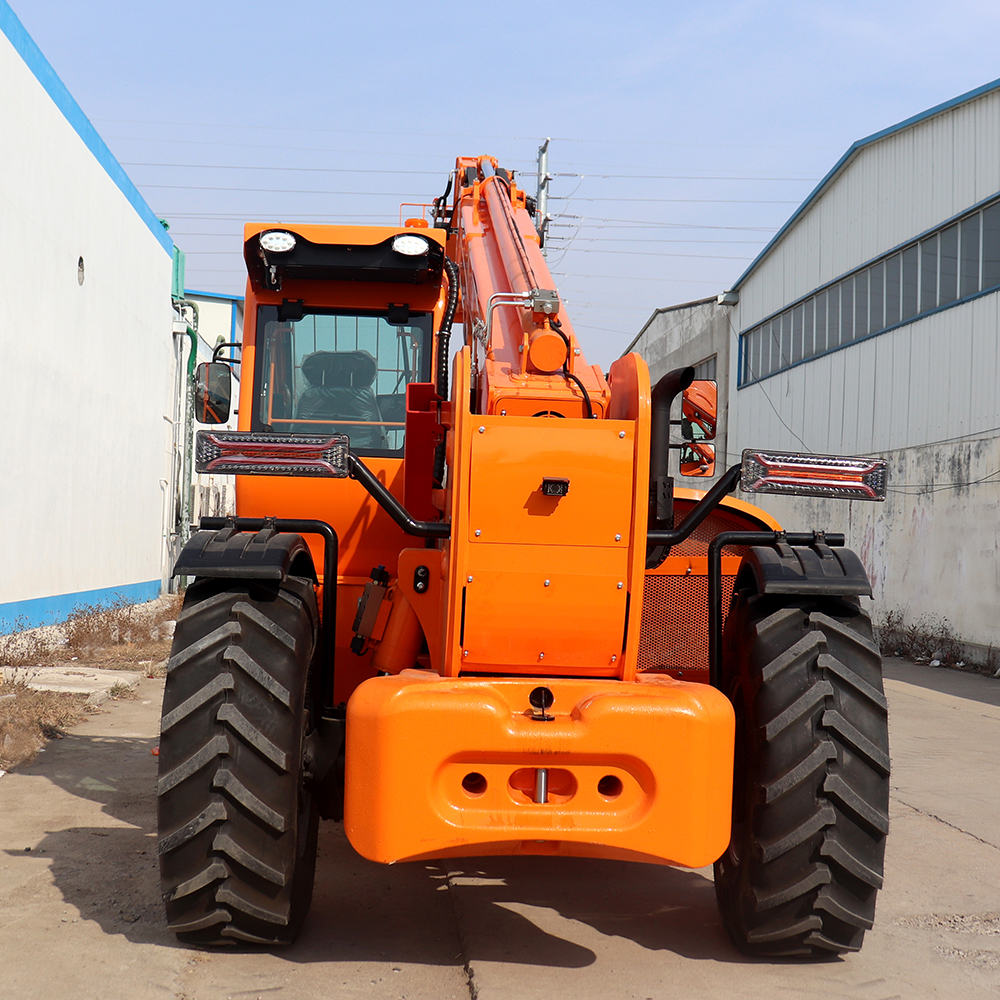

5 Ton Diesel Telehandler Forklift-T5014 - Image 2

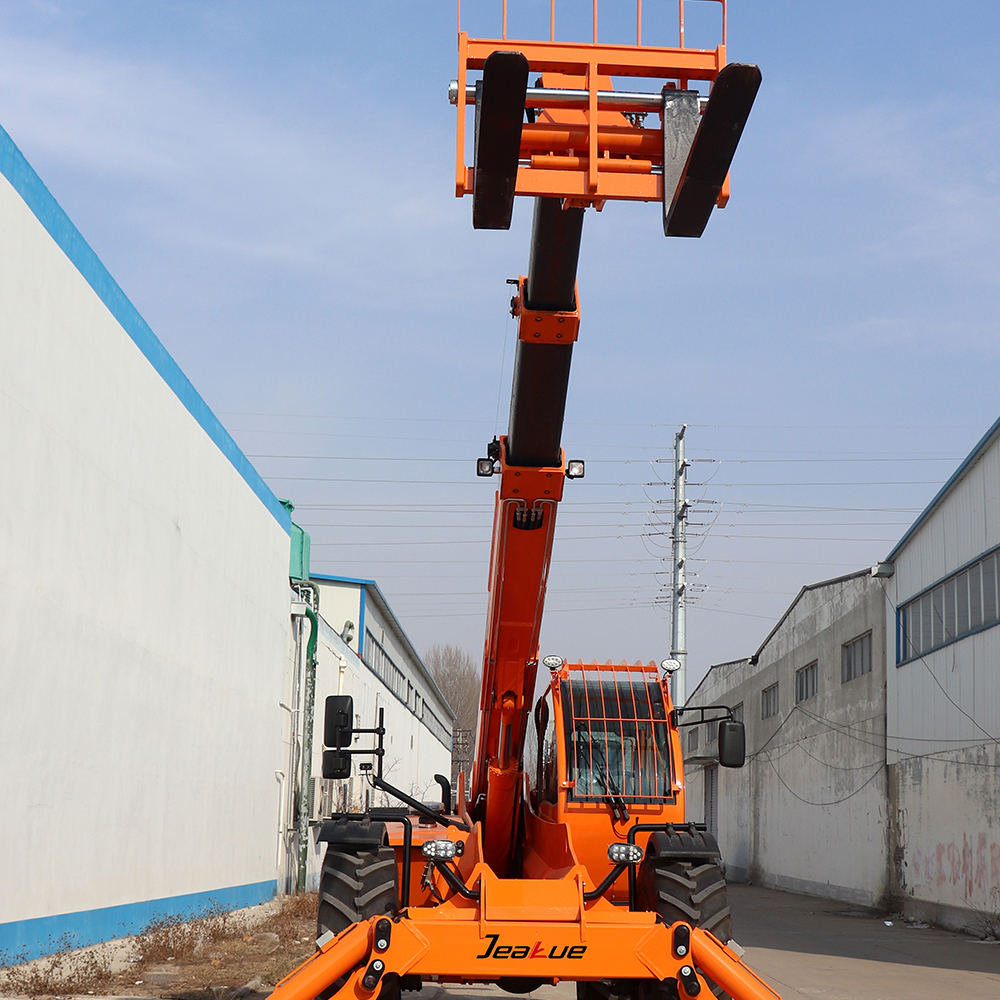

5 Ton Diesel Telehandler Forklift-T5014 - Image 3

5 Ton Diesel Telehandler Forklift-T5014 - Image 4

Lifting height:13800mm
Rated load:5000Kg
Power:91Kw/122hp
Tyre:440/80-24 Tubeless

Categories: -Diesel, –Material Handling, –Telehandlers

Add to quote

Description

Specification
Max. capacity	5000 kg
Max. lifting height	13.8 m
Max. outreach	8.0 m

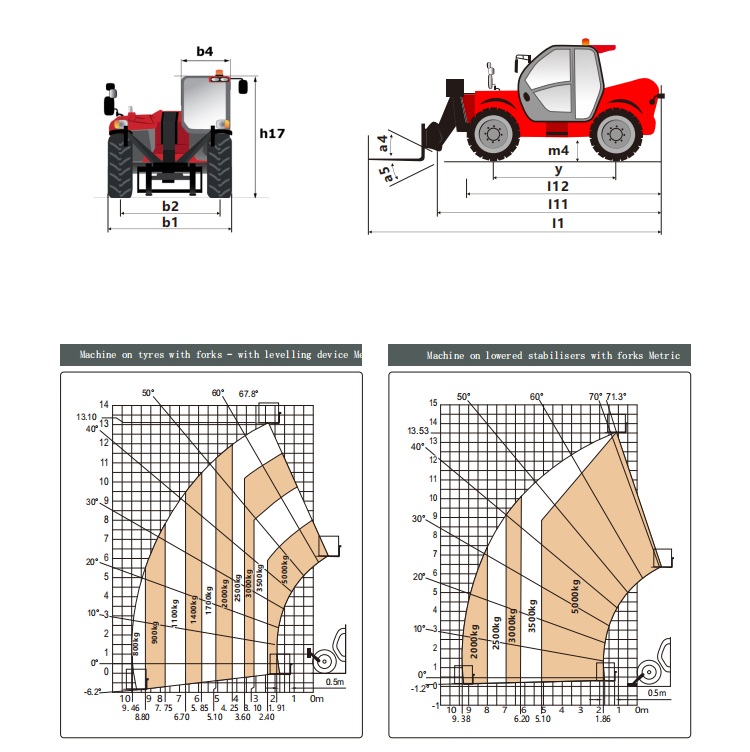

Overall length to carriage （l110)	6.4 m
Length to face of forks (l1)	7.62 m
Min transport size (l12)	6.3 m
Overall width (b1)	2.35 m
Track width (b2)	1.90 m
Overall height (h17)	2.65 m
Wheelbase (y)	3.6 m
Ground clearance (m4)	0.38 m
Overall cab width(b4)	0.84 m
Tilt-up angle(a4)	12 °
Tilt-down angle (a5)	114 °
External turning radius(over tyres)	4.1 m
Unladen weight(with fork)	13300 kg
Tires type	Tubeless
Standard tires (l/e/s)	440/80-24
Forks length/ width/ section	1220 mm x 125 mm / 50 mm
Lifting	26 s
Lowering	26 s
Extension	29 s
Retraction	17 s
Crowd	9 s
Dump	9 s
Engine brand	Yuchai (optional brand)
Engine norm	National II
Max. fuel sulphur content	5000 ppm
Engine model	YCD4J22T-125
Number of cylinders / Capacity of cylinders	4 – 4400 cm³
I.C. Engine power rating – Power	122 Hp / 91 kW
Max. torque / Engine rotation	400 Nm @ 1400 rpm
Drawbar pull (Laden)	10000 daN
Transmission type	Torque converter (optional hydrostatic)
Number of gears (forward / reverse)	4/4
Max. travel speed	40 km/h
Parking brake	Automatic air-cut brake (optional wet braking)
Service brake	Immersed multi-discs braking on front & rear axles
Hydraulic pump type	Gear pump (optional piston pump)
Hydraulic flow	150 L
Engine oil	5.5 L
Hydraulic oil	170 L
Fuel tank	195 L
Noise at driving position (LpA)	82 dB
Noise to environment (LwA)	105 dB
Vibration on hands / arms	< 2.50 m/s²
Steering wheels (front / rear)	2/2
Drive wheels (front / rear)	2/2
Safety cab homologation	FOPS level 2 cab

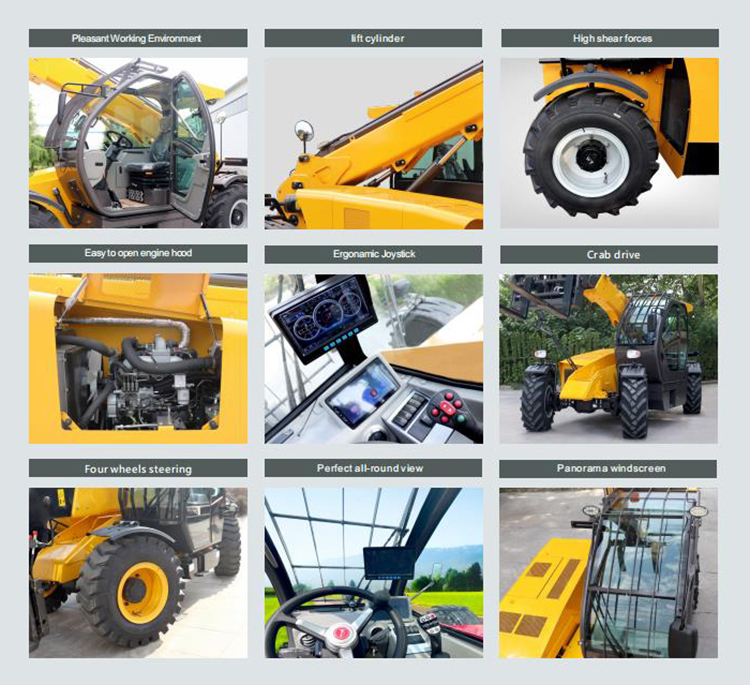

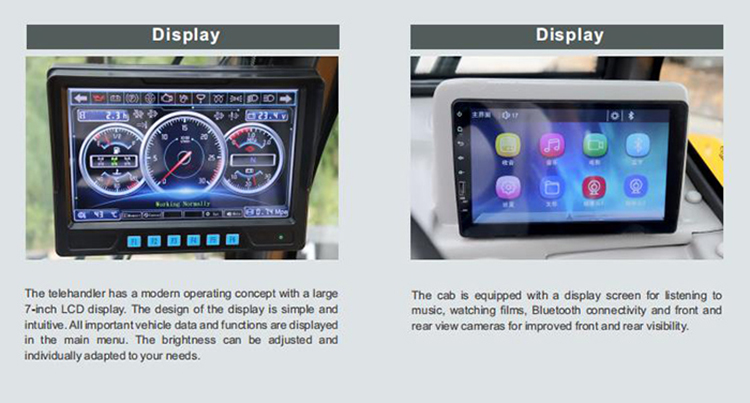

Display：The telehandler has a modern operating concept with a large 7-inch LCD display. The design of the display is simple and intuitive. All important vehicle data and functions are displayed in the main menu. The brightness can be adjusted and individually adapted to your needs.JEAKUE 5 Ton Diesel Telehandler Forklift-T5014
The cab is equipped with a display screen for listening to music, watching films, Bluetooth connectivity and front and rear view cameras for improved front and rear visibility.JEAKUE 5 Ton Diesel Telehandler Forklift-T5014

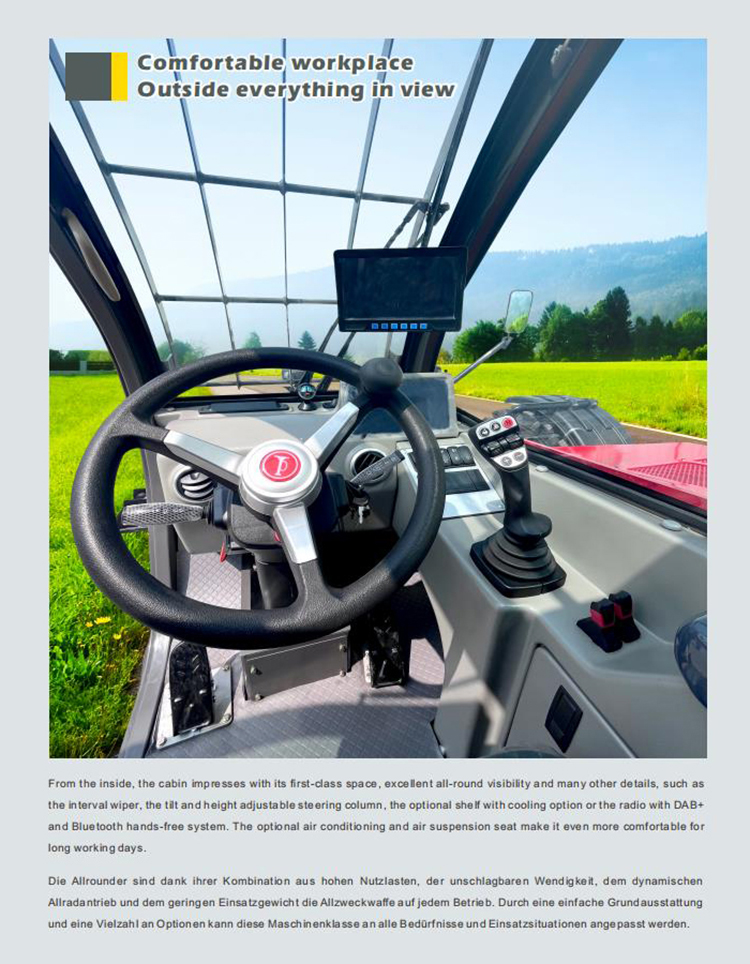

From the inside, the cabin impresses with its first-class space, excellent all-round visibility and many other details, such as
the interval wiper, the tilt and height adjustable steering column, the optional shelf with cooling option or the radio with DAB+ and Bluetooth hands-free system. The optional air conditioning and air suspension seat make it even more comfortable for long working days.JEAKUE 5 Ton Diesel Telehandler Forklift-T5014
Die Allrounder sind dank ihrer Kombination aus hohen Nutzlasten, der unschlagbaren Wendigkeit, dem dynamischen
Allradantrieb und dem geringen Einsatzgewicht die Allzweckwaffe auf jedem Betrieb. Durch eine einfache Grundausstattung
und eine Vielzahl an Optionen kann diese Maschinenklasse an alle Bedürfnisse und Einsatzsituationen angepasst werden.JEAKUE 5 Ton Diesel Telehandler Forklift-T5014
