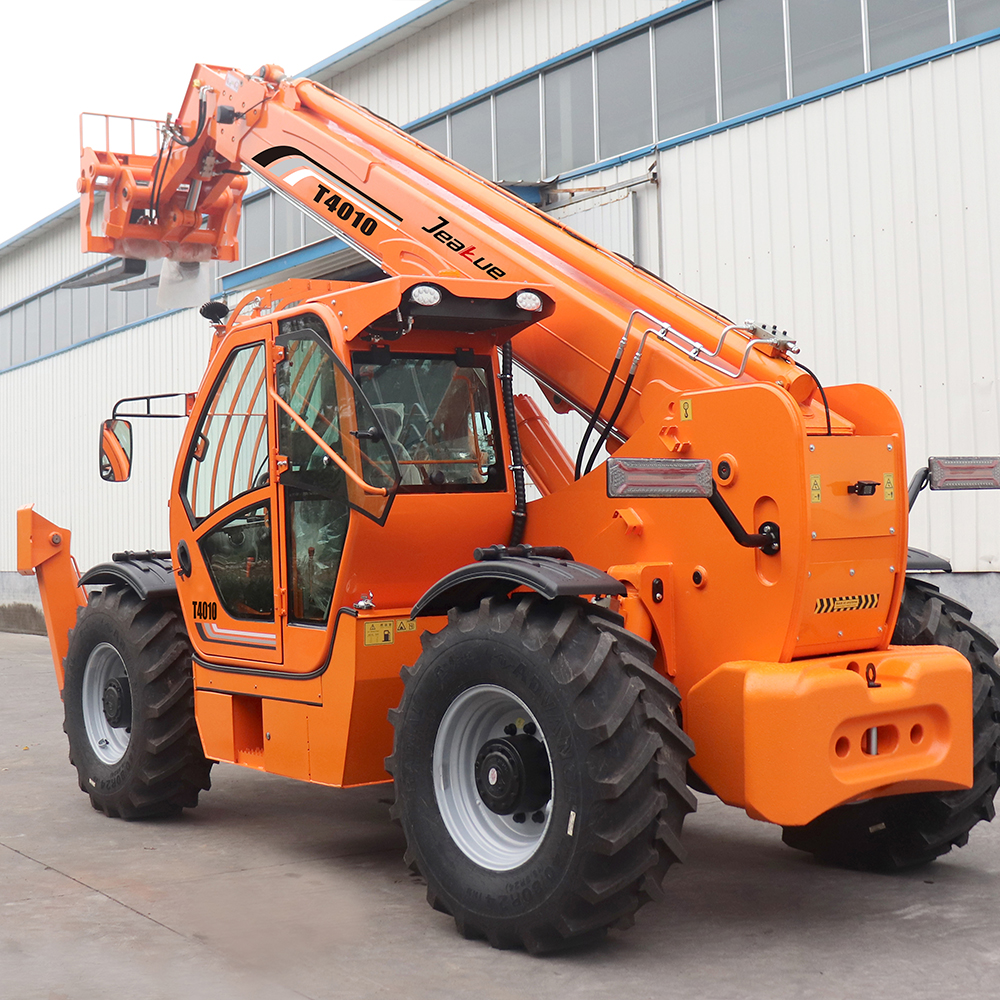

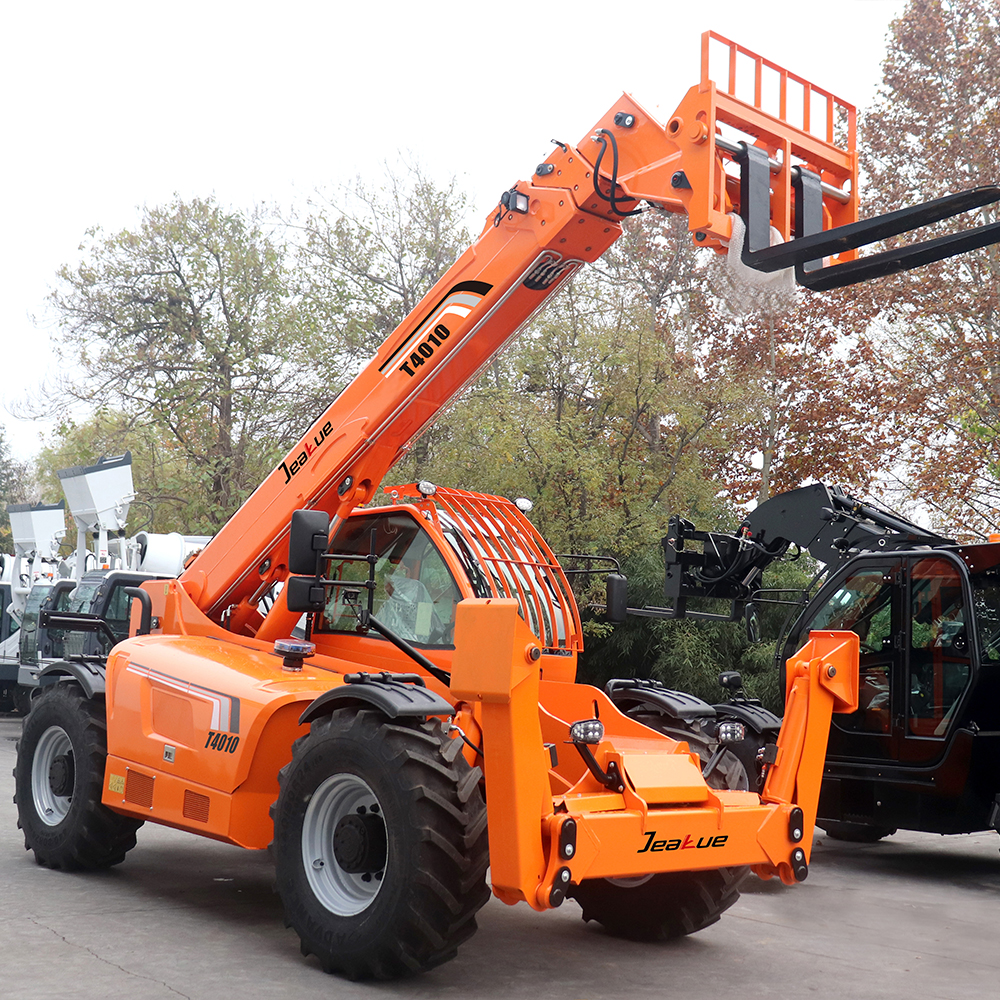

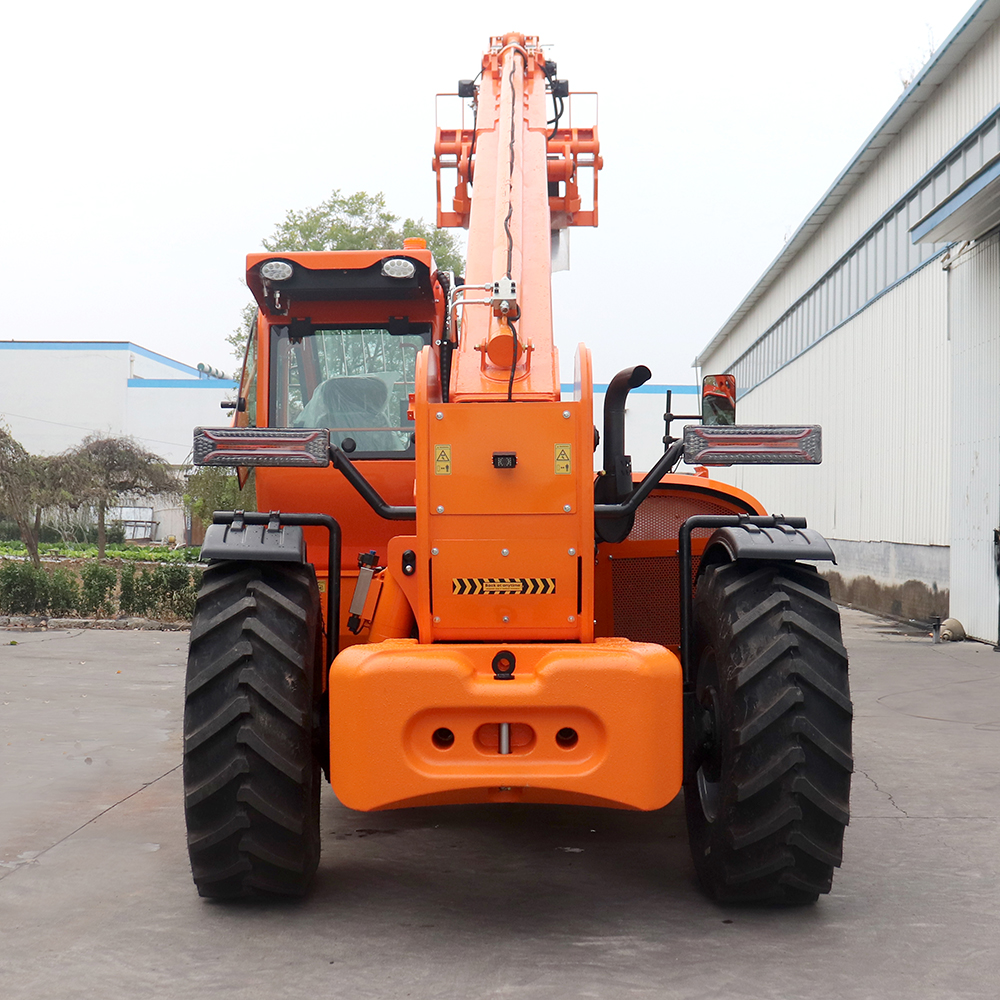

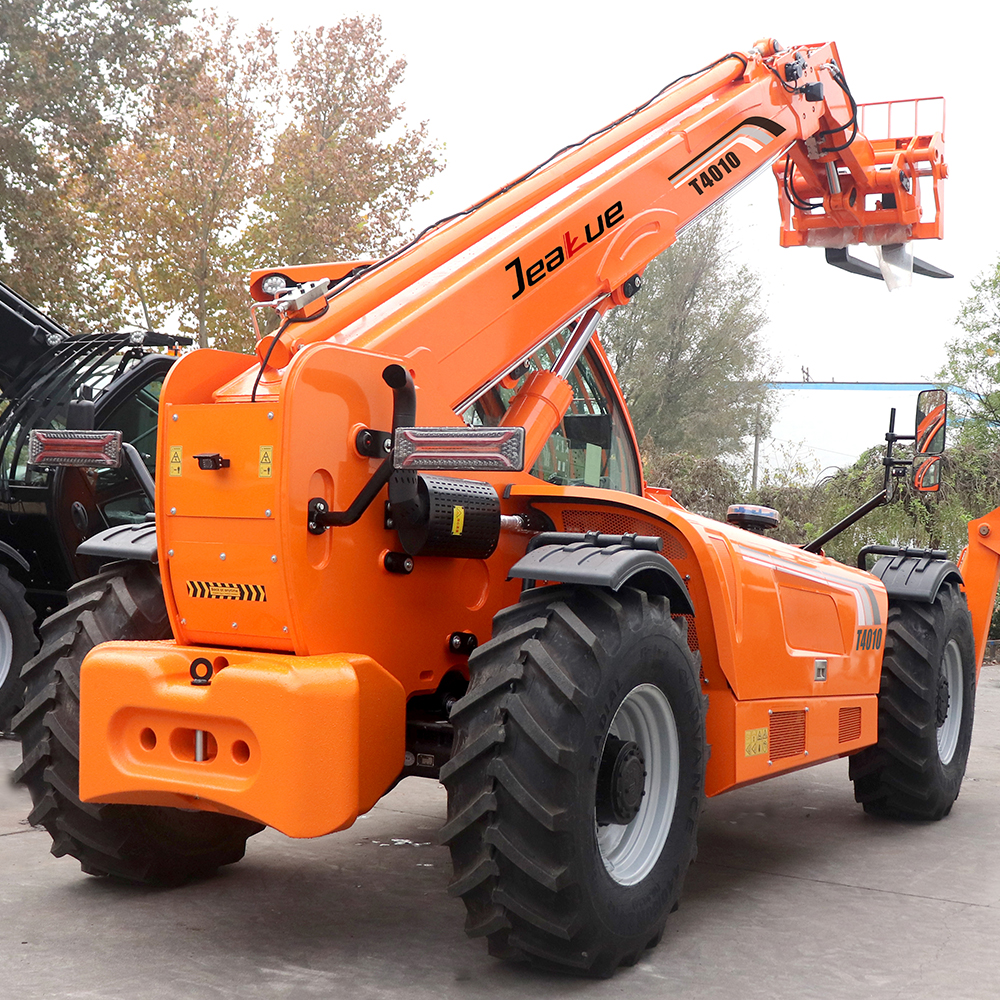

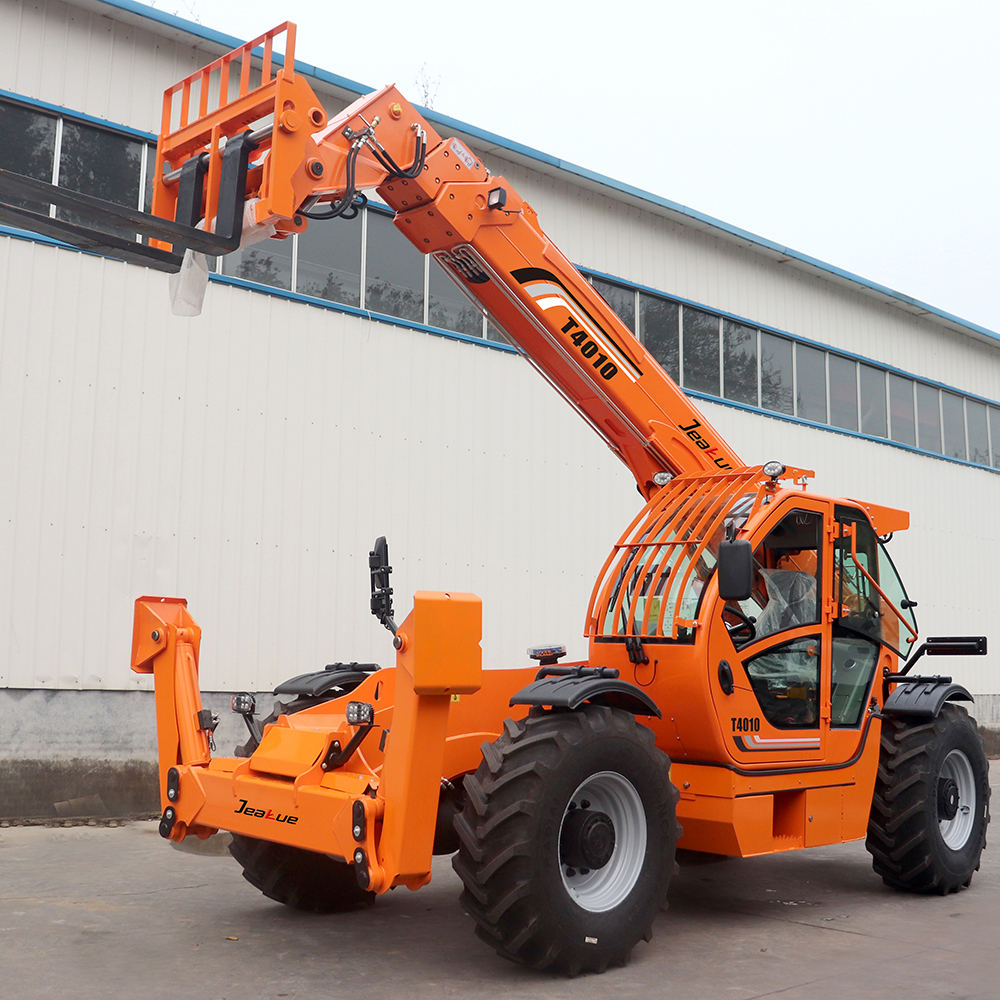

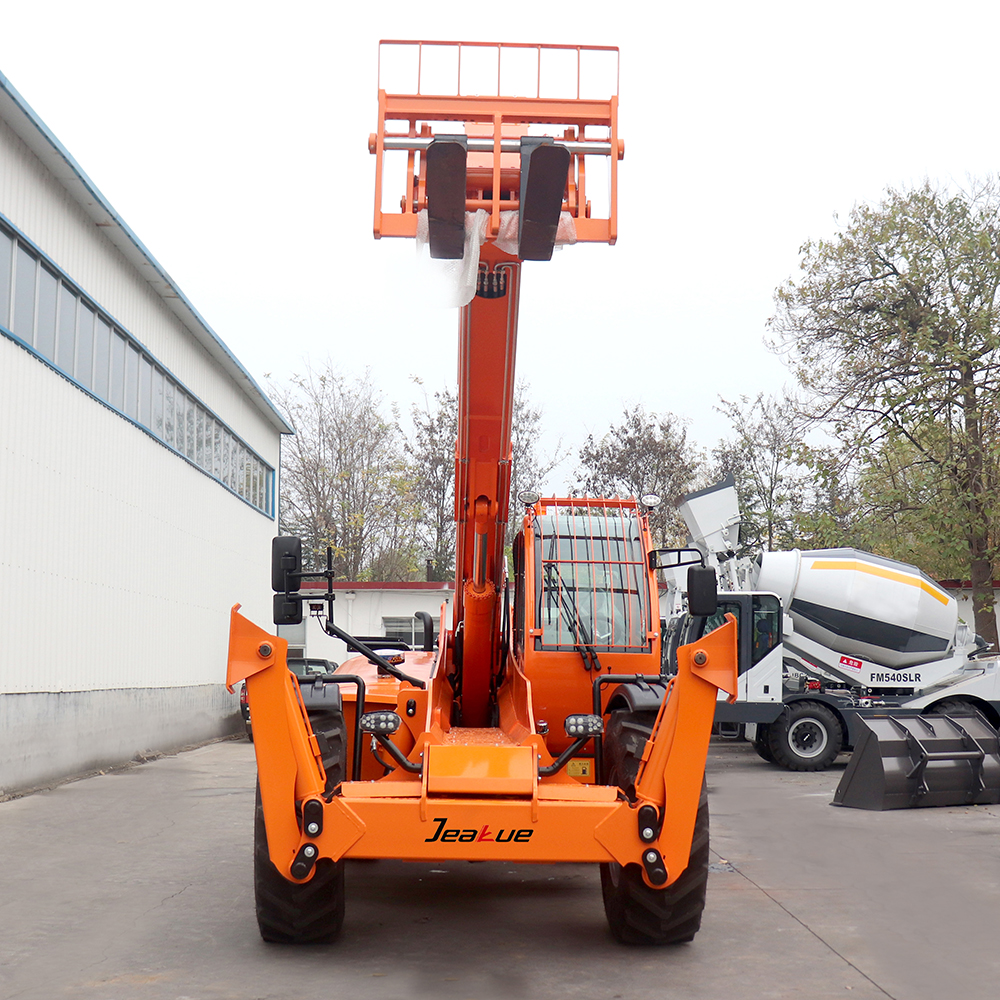

4 Ton Diesel Telehandler Forklift-T4010

4 Ton Diesel Telehandler Forklift-T4010 - Image 2

4 Ton Diesel Telehandler Forklift-T4010 - Image 3

4 Ton Diesel Telehandler Forklift-T4010 - Image 4

4 Ton Diesel Telehandler Forklift-T4010 - Image 5

Lifting height:9800mm
Rated load:4000Kg
Power:85Kw/114hp
Tyre:400/70-24Tubeless

Categories: -Diesel, –Material Handling, –Telehandlers

Add to quote

Description

Specification
Max. capacity	4000 kg
Max. lifting height	10.6 m
Max. outreach	6.1 m

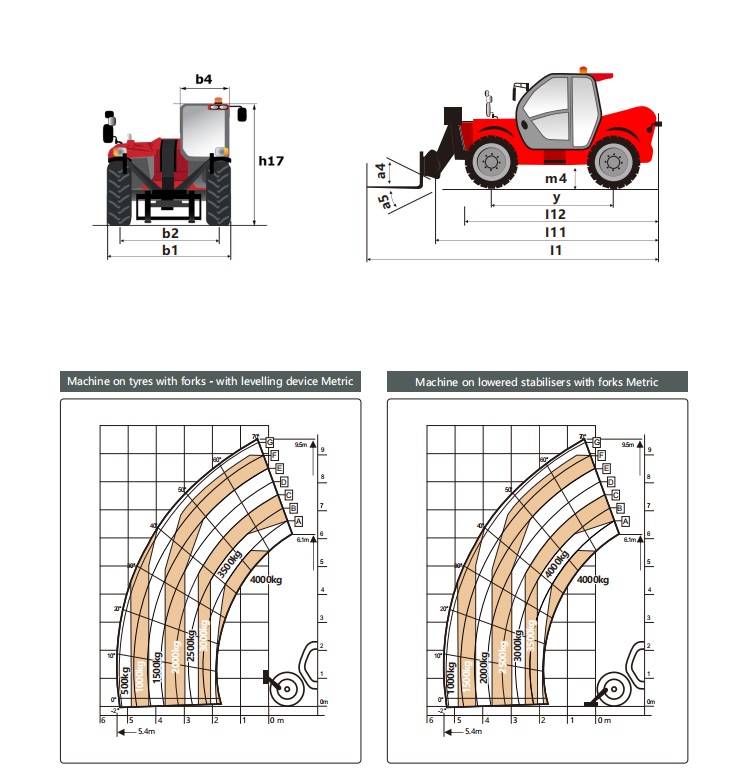

Overall length to carriage （l110)	5.8 m
Length to face of forks (l1)	7.0 m
Min transport size (l12)	5.05 m
Overall width (b1)	2.2 m
Track width (b2)	1.78 m
Overall height (h17)	2.55 m
Wheelbase (y)	3.15 m
Ground clearance (m4)	0.35 m
Overall cab width(b4)	0.84 m
Tilt-up angle(a4)	12 °
Tilt-down angle (a5)	114 °
External turning radius(over tyres)	4.25 m
Unladen weight(with fork)	10300 kg
Tires type	Tubeless
Standard tires (l/e/s)	400/70-24
Forks length/ width/ section	1220 mm x 125 mm / 50 mm
Lifting	10 s
Lowering	7 s
Extension	12 s
Retraction	8.6 s
Crowd	4.8 s
Dump	3.4 s
Engine brand	Yuchai (optional brand)
Engine norm	National II
Max. fuel sulphur content	5000 ppm
Engine model	YCD4M22T-105
Number of cylinders / Capacity of cylinders	4 – 4400 cm³
I.C. Engine power rating – Power	114 Hp / 85 kW
Max. torque / Engine rotation	400 Nm @ 1400 rpm
Drawbar pull (Laden)	10000 daN
Transmission type	Torque converter (optional hydrostatic)
Number of gears (forward / reverse)	4/4
Max. travel speed	35 km/h
Parking brake	Automatic air-cut brake (optional wet braking)
Service brake	Immersed multi-discs braking on front & rear axles
Hydraulic pump type	Gear pump (optional piston pump)
Hydraulic flow	150 L
Engine oil	5.5 L
Hydraulic oil	170 L
Fuel tank	195 L
Noise at driving position (LpA)	82 dB
Noise to environment (LwA)	105 dB
Vibration on hands / arms	< 2.50 m/s²
Steering wheels (front / rear)	2/2
Drive wheels (front / rear)	2/2
Safety cab homologation	FOPS level 2 cab

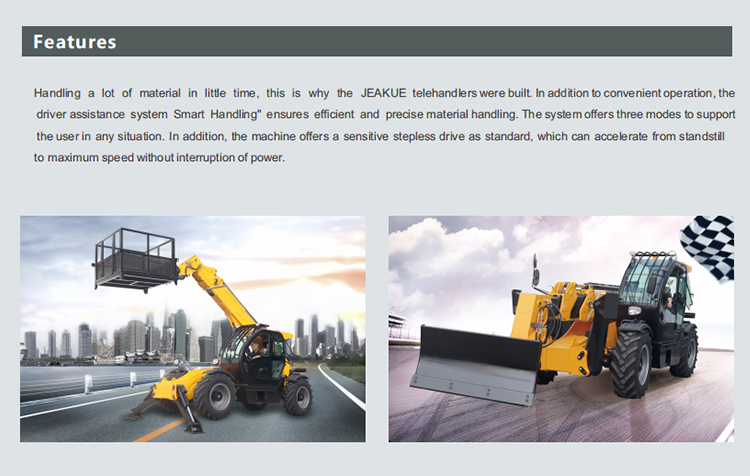

Features：Handling a lot of material in little time, this is why the Hank telehandlers were built. In addition to convenient operation, the driver assistance system Smart Handling” ensures efficient and precise material handling. The system offers three modes to support the user in any situation. In addition, the machine offers a sensitive stepless drive as standard, which can accelerate from standstill to maximum speed without interruption of power.JEAKUE 4 Ton Diesel Telehandler Forklift-T4010

From the inside, the cabin impresses with its first-class space, excellent all-round visibility and many other details, such as
the interval wiper, the tilt and height adjustable steering column, the optional shelf with cooling option or the radio with DAB+ and Bluetooth hands-free system. The optional air conditioning and air suspension seat make it even more comfortable for long working days.JEAKUE 4 Ton Diesel Telehandler Forklift-T4010
Die Allrounder sind dank ihrer Kombination aus hohen Nutzlasten, der unschlagbaren Wendigkeit, dem dynamischen
Allradantrieb und dem geringen Einsatzgewicht die Allzweckwaffe auf jedem Betrieb. Durch eine einfache Grundausstattung
und eine Vielzahl an Optionen kann diese Maschinenklasse an alle Bedürfnisse und Einsatzsituationen angepasst werden.JEAKUE 4 Ton Diesel Telehandler Forklift-T4010
