Description



Specifications

Items	Uint	FD-320	FD-350	FD-360
Rated Load	Q(t)	32	35	36
Load center	mm	1250	1250	1250
Wheelbase	D(mm)	4800	4800	5000
Weight	kg	41000	43000	49000
Tyre Specs.:Front	–	14.00-24-32PR	16.00-25-32PR	16.00-25-32PR
TyreSpecs.:Rear	–	14.00-24-32PR	16.00-25-32PR	16.00-25-32PR
Tyres Qty,front/rear(X-drive wheels)	–	4/2	4/2	4/2
Wheel tread: Front	mm	2420	2400	2467
Wheel tread:Rear	mm	2390	2450	2657
Mast/carriage tilt angle(front/rear)	Degree(°)	6/12	6/12	6/12
Mast height(fork lowering)	l(mm)	3950	4010	4010
Mast lifting height	P(mm)	3500	3500	3500
Max.lifting height	Q(mm)	5700	5760	5760
Height to head guard(height to cab)	A(mm)	3800	3860	3860
Overall length(without forks)	E(mm)	7150	7150	7300
Overall width	L(mm)	3200	3320	3440
Fork dimension	H/M(mm)	2440X320X110	2440X320X125	2440X320X125
Fork carriage width	N(mm)	3100	3100	3200
Mast min ground dearance(with load)	G(mm)	350	400	400
Wheelbase center min ground clearance(loaded)	C(mm)	410	460	460
Min.Turning radius	K(mm)	7260	7260	7260
Travel speed(loaded/unloaded)	km/h	24/28	25/28	25/28
Max.lifting speed(loaded/unloaded)	mm/s	260/280	260/280	260/280
Max. Lowering speed(loaded/unloaded)	mm/s	250/180	250/180	250/180
Traction	kN	220	220	260
Gradeablity(loaded/unloaded)	%	20/21	20/20	20/20
Driving brake	–	Hydraulic clamp disc	Hydraulic clamp disc	Hydraulic clamp disc
Engine（China IV）	–	Yuchai engine	Yuchai engine	FOTON Cummins
model	–	YCK09245-T400	YCK09245-T400	X12 FR21142
Rated output/ Speed	kW/rpm	178/2200	178/2200	250/2100
Engine（China III）	–	GuangKangCummins	GuangKangCummins	Xi,An Cummins
model	–	QSL9.3-C240	QSL9.3-C240	QSM11
Rated output/ Speed	kW/rpm	180/2200	180/2200	250/2100
Engine（EU Stage V）	–	Cummins	Cummins
model	–	L9 FR95760	L9 FR95760
Rated output/ Speed	kW/rpm
Cylinder No.	–	6	6	6
Transmission gears(Front/rear)
Attachments working pressure	MPa	18	18	18
Attachments using oil amount	L/min	80	80	80

Optional attachment

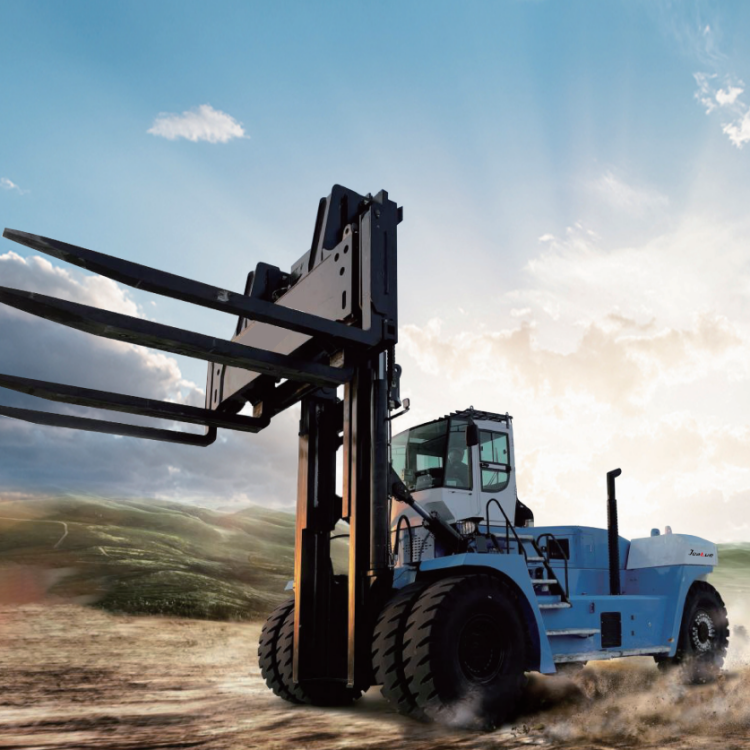

JEAKUE 32-36 Ton(70547.84/79366.32lb) Balanced Heavy-Duty Diesel Forklift .Shenchuan(shanghai)Heavy Industrial Machinery Co.,ltd.(JEAKUE)is a collection of logis-ticshandling machinery and electric engineering machinery research and development, production, sales,and service as one of the national high-tech enterprises, professional equipment export industry leading en-terprises, the product range includes heavy-duty forklifts, telescopic handlers, electric engineering machinery, nonstandard custom products, etc.

JEAKUE 32-36 Ton(70547.84/79366.32lb) Balanced Heavy-Duty Diesel Forklift .The series heavy-duty forklifts are JEAKUE’s flagship products, which it developed independently.The models range from 10 to 65 tons, and the vehicle’s key components are manufactured by well-knownlocal or worldwide brands. After years of precipitation and accumulation, JEAKUE’s products have foundwidespread use in airports, ports, docks, steel mills, warehouses, logistics, handling, and other industries. ltsoverall machine comfort, stability, safety,and intelligence are industrial-leading, earning trust and recogni-tion from global customers.

JEAKUE 32-36 Ton(70547.84/79366.32lb) Balanced Heavy-Duty Diesel Forklift .Standard with well-known brand high-pressure common rail engine, large torque, low fuel consumption, stable perfor-mance,high reliability, after-sales service and accessories are more convenient. Optional Cummins, Volvo and otherinternational brands. The emission standards can meet the different requirements of EU Stage V, US EPA Tier4,ChinaIVand China Ill.

JEAKUE 32-36 Ton(70547.84/79366.32lb) Balanced Heavy-Duty Diesel Forklift .Installation of air-to-air intercoolers in the powersystem to reduce the intake temperature of the engine,improve the charging efficiency, and prevent engineoverheating.

JEAKUE 32-36 Ton(70547.84/79366.32lb) Balanced Heavy-Duty Diesel Forklift .Standard with a domestic well-known brand transmission, smoother shift, safer operation, and more convenient maintenance,Germany-imported ZF and DANA gearbox optional.

JEAKUE 32-36 Ton(70547.84/79366.32lb) Balanced Heavy-Duty Diesel Forklift .Full hydraulic load sensing steering system, the rear steering axle has a large steering angle and asmall turningradius,and the steering is light and flexible.

JEAKUE 32-36 Ton(70547.84/79366.32lb) Balanced Heavy-Duty Diesel Forklift .Double pumps merge, steering priority hydraulic system. The system has small flow, low power consumption,reliableperformance and excellent operating performance.

JEAKUE 32-36 Ton(70547.84/79366.32lb) Balanced Heavy-Duty Diesel Forklift .The hydraulic components such as cylinders, pumps, valves, and fluids all use well-known brands. The hydraulic systemis equipped with oil retum radiator and back pressure protection device to ensure the thermal balance of the whole ma-

JEAKUE 32-36 Ton(70547.84/79366.32lb) Balanced Heavy-Duty Diesel Forklift .The hydraulic or electric control pilot handle controls multiple valves and speed valves, making the operation of thewhole machine lighter and more flexible.

JEAKUE 32-36 Ton(70547.84/79366.32lb) Balanced Heavy-Duty Diesel Forklift .Equipped with hydraulic oil, transmission fluid, antifreeze, and air-cooled radiator, the cooling capacity is sufficient toensure the thermal balance of the entire machine.

JEAKUE 32-36 Ton(70547.84/79366.32lb) Balanced Heavy-Duty Diesel Forklift .The transmission fluid and hydraulic oil cooler are independently and rigidly arranged, to improve system stability.

JEAKUE 32-36 Ton(70547.84/79366.32lb) Balanced Heavy-Duty Diesel Forklift .Standard with well-known domestic brand drive axle,Germany-imported Kessler wet drive axle is optional.

JEAKUE 32-36 Ton(70547.84/79366.32lb) Balanced Heavy-Duty Diesel Forklift .The rear axle adopts a horizontal hydraulic cylinder steering mechanism.The steering axle has a compact structure and asteering angle is up to 70.5 ° , which is beneficial to reduce steering resistance reduce tire wear, and improve driving com-fort.

JEAKUE 32-36 Ton(70547.84/79366.32lb) Balanced Heavy-Duty Diesel Forklift .Optional spokeless pressure plate rim, the wheel hub has a stronger load-bearing capacity and is easy to repair and disas-semble.

JEAKUE 32-36 Ton(70547.84/79366.32lb) Balanced Heavy-Duty Diesel Forklift .By using caliper disc brakes or wet brakes, ensures faster heat dissipation, more reliable braking and safer operation.

JEAKUE 32-36 Ton(70547.84/79366.32lb) Balanced Heavy-Duty Diesel Forklift .Cooperate with Fujian Institute of Research on the Structure of Matter, Chinese Academy of Sciences，on the “Overall Structure Optimization Scheme”, conducted stiffness verification, strength accounting and fatigue life estimation, comprehensively adopted finite element mechanics analysis and force cloud map analog operation, and optimized the structure design to ensure product reliability and durability.

JEAKUE 32-36 Ton(70547.84/79366.32lb) Balanced Heavy-Duty Diesel Forklift .The long wheelbase, box-shaped double-beam framecan provide good rigidity and strength to ensure thehigh reliability of the forklift chassis.

JEAKUE 32-36 Ton(70547.84/79366.32lb) Balanced Heavy-Duty Diesel Forklift .The whole machine has passed overload, partialload and stability type test, optimized center of grav-ity and axle load, prevent the vehicle from overturn-ing, and meet the safety requirements of heavy loadoperations.

JEAKUE 32-36 Ton(70547.84/79366.32lb) Balanced Heavy-Duty Diesel Forklift .The inner and outer masts are made of high-strength structural steel, with C-shaped, J-shaped, and L-shaped sectionscombined. The strength and rigidity have been analyzed through finite element mechanics, ensuring a high safety factor.

JEAKUE 32-36 Ton(70547.84/79366.32lb) Balanced Heavy-Duty Diesel Forklift .Speed limit valve and pressure selection valve are used for the mast lowering to reduce the impact of the hydraulicsystem. When the engine is flameout, the mast can be lowered from the height to the ground to ensure the safety of oper-ation.

JEAKUE 32-36 Ton(70547.84/79366.32lb) Balanced Heavy-Duty Diesel Forklift .The inner and outer masts have a wide field of vision, and are equipped with main and side rollers for lifting, The liftingheight of the mast can reach more than 3.5 meters, and high, low, and standard mast are available for selection

JEAKUE 32-36 Ton(70547.84/79366.32lb) Balanced Heavy-Duty Diesel Forklift .lt adopts quick-change shelves and hydraulic distance-adjustable forks, which are easy to replace and adjust.

JEAKUE 32-36 Ton(70547.84/79366.32lb) Balanced Heavy-Duty Diesel Forklift .Cascade high-strength forks are stronger and more wear-resistant, and can double their lifespan.

JEAKUE 32-36 Ton(70547.84/79366.32lb) Balanced Heavy-Duty Diesel Forklift .The work attachments can be replaced according to the working conditions to meet the work needs of “forking,hoisting,loading, clamping,moving and tuming”, realizing one machine with multiple functions.

JEAKUE 32-36 Ton(70547.84/79366.32lb) Balanced Heavy-Duty Diesel Forklift .The luxurious wide-view cab is equipped with a sunroof, low noise and good sealing, making it easy for the driver toobserve all around.

JEAKUE 32-36 Ton(70547.84/79366.32lb) Balanced Heavy-Duty Diesel Forklift .Built-in heating and cooling air conditioning, fire extinguisher, aviation OPSseat, ergonomic, more comfortable and saferto sit on.

JEAKUE 32-36 Ton(70547.84/79366.32lb) Balanced Heavy-Duty Diesel Forklift .It adopts adjustable steering gear and aviation handle pilot control, which makes the operation light and flexible andmakes the sitting feeling more comfortable.

JEAKUE 32-36 Ton(70547.84/79366.32lb) Balanced Heavy-Duty Diesel Forklift .Equipped with a multi-function LCD monitor to comprehensively monitor the engine’s working status (speed, oil pres-sure, oil temperature,water temperature, water level, etc.).

JEAKUE 32-36 Ton(70547.84/79366.32lb) Balanced Heavy-Duty Diesel Forklift .The cab complies with ROPS/FOPS intemational safety standards, providing great safety protection for the driver.

JEAKUE 32-36 Ton(70547.84/79366.32lb) Balanced Heavy-Duty Diesel Forklift .The cab is equipped with a fan, radio, heating and cooling air conditioner, and reversing display screen. A weight scale can be selected according to customer requirements.

JEAKUE 32-36 Ton(70547.84/79366.32lb) Balanced Heavy-Duty Diesel Forklift .Comes standard with reversing image and reversing buzzer. Monitor the surrounding working environment in real time,effectively eliminate blind spots in the field of vision, and reduce environmental safety risks.

JEAKUE 32-36 Ton(70547.84/79366.32lb) Balanced Heavy-Duty Diesel Forklift .Optional tilting cab，facilitates access to the interior of the vehicle for maintenance.

JEAKUE 32-36 Ton(70547.84/79366.32lb) Balanced Heavy-Duty Diesel Forklift .Standard equipped with well-known brand industrial vehicle heavy-duty tires, smooth driving, strong load-bearingcapacity, good wear resistance, and strong adhesion.

JEAKUE 32-36 Ton(70547.84/79366.32lb) Balanced Heavy-Duty Diesel Forklift .Standard configuration of well-known brand electrical components., maintenance-free batteries, and wires made offlame-retardant materials, making it reliable and durable.

JEAKUE 32-36 Ton(70547.84/79366.32lb) Balanced Heavy-Duty Diesel Forklift .It adopts standard and common parts such as filters, hoses, forks, seats, electrical components, hydraulic components,etc., makes daily maintenance and upkeep simple and quick.
