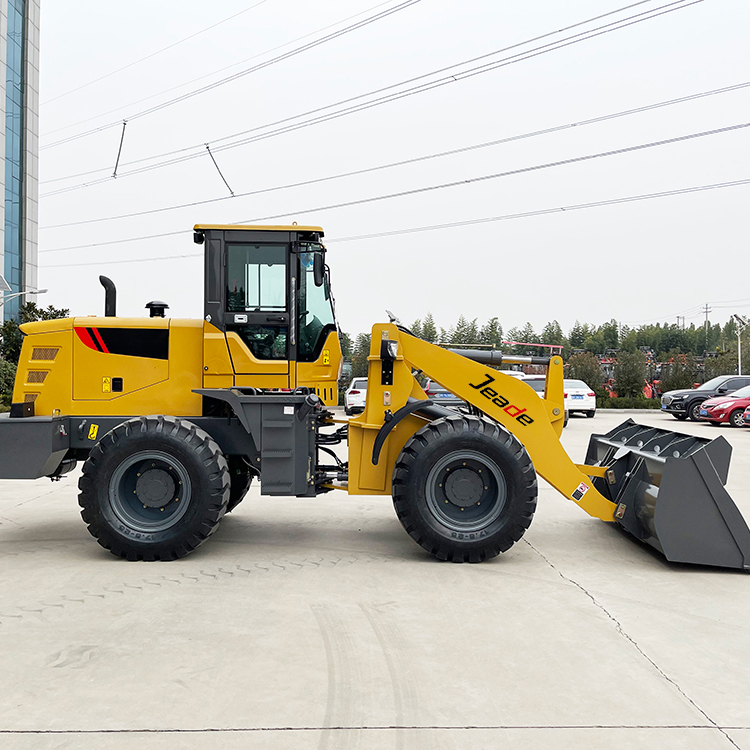

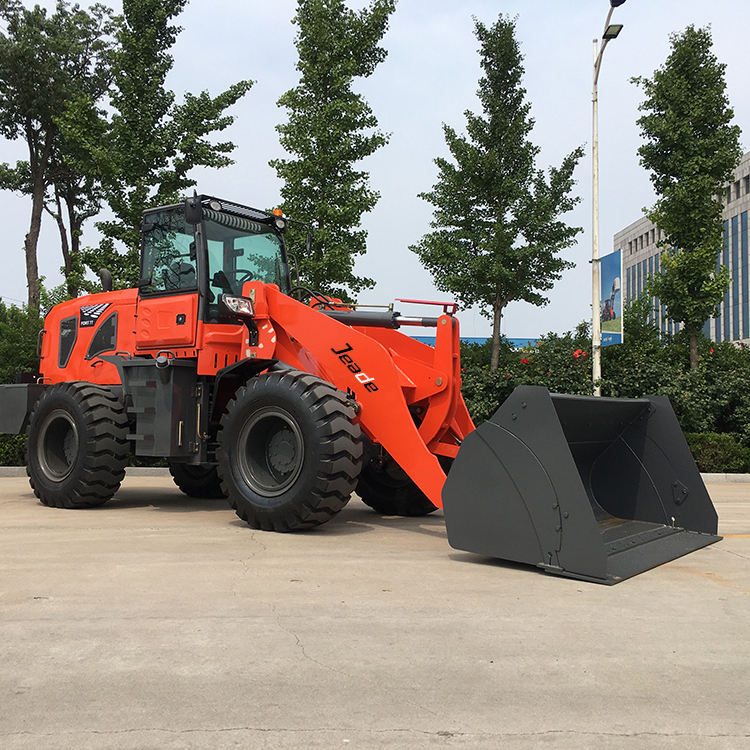

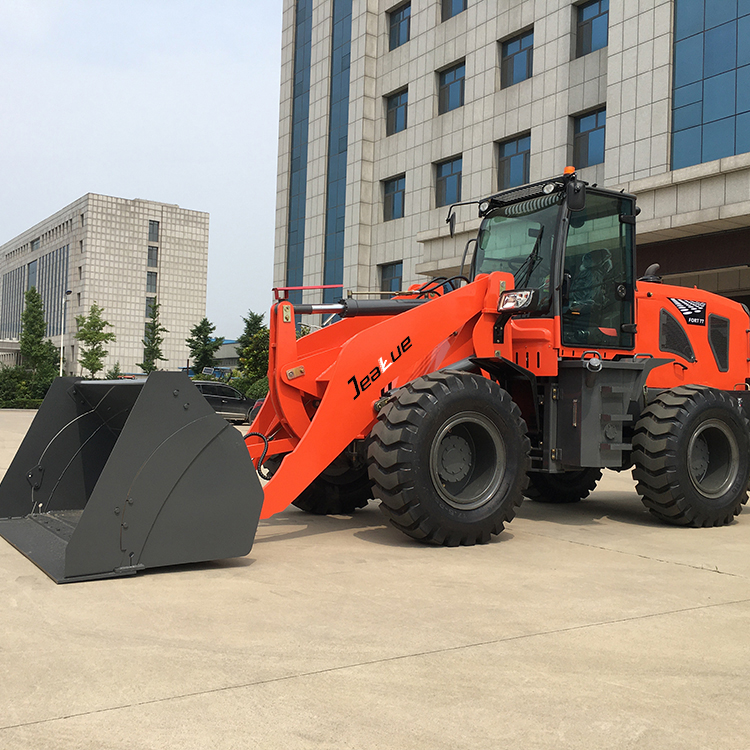

3 Ton(6613.87lb) Diesel Wheel Loader-ZL939C

Rated Load:.3000kg(6613.87lb)

Lifting Height:.3700mm(145.67in)

Bucket rated capacity:1.7 m³(60.03ft³)

Description

Performance	Rated load	3000kg
	Overall weight	7800kg
	Rated bucket capacity	1.7m³
	Maximum tractive force	97KN
	Maximum breakout force	≥98KN
	Maximum grade ability	30°
	Maximum dump height	3700mm
	Maximum dump reach	1260mm
	Overall dimension (L×W×H)	7350×2450×3050mm
	Minimum turning radius	5850mm
Engine	Model	Weichai DEUTZ WP6G125E322
	Type	In-line arrangment,water cooling, four-stroke
	No. of cylinder-bore/stroke	6-108×130mm
	Rated power	92kw–2200r/min
	Maximum torque	500N.m
	Min fuel-consume ratio	≤215g/kw.h
Transmission system	Torque converter	YJ 315
	Gearbox mode	Power shift normally engaged straight gear
	Gear shift	4 forward shift ,4 reverse shift
	Maximum speed	35km/h
Drive axles	Main reducing spiral	bevel gear grade 1reduction
	Decelerating mode	planetary reduction,grade 1
	Wheel base (mm)	2930mm
	Wheel tread(mm)	1660mm
	Minimum ground clearance	430mm
hydraulic system	System working pressure	16.5MPa
	bucket lifting time	≤5.5s
	bucket falling time	≤4.8s
	total time for a single working cycle	≤10.5s
	Function of leveling automatically	yes
Brake system	Service brake	air over hydraulic disc brake on 4 wheels
Brake system	Parking brake	manual parking brake
Tyre	Type specification	17.5-25
	Front tyre pressure	0.4Mpa
	Rear tyre pressure	0.35Mpa
