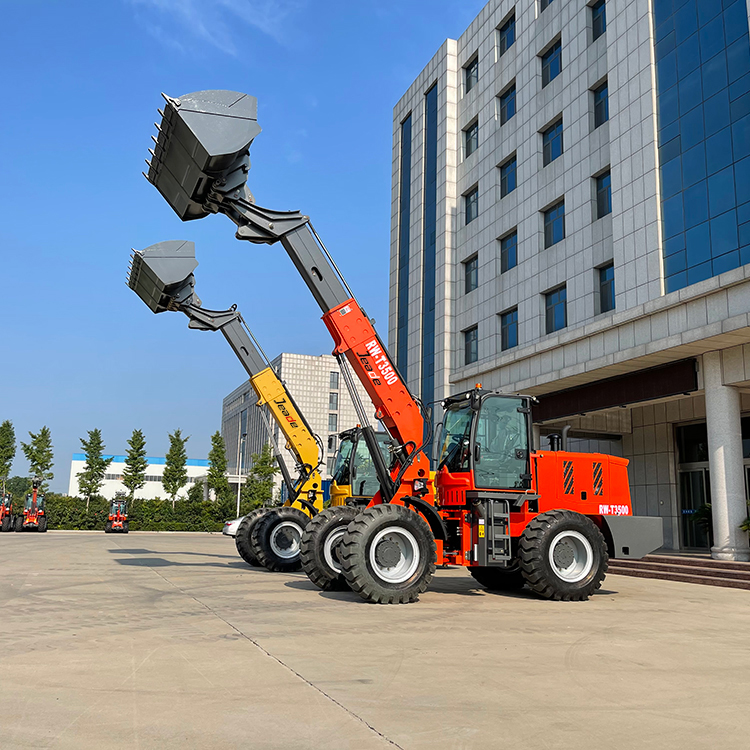

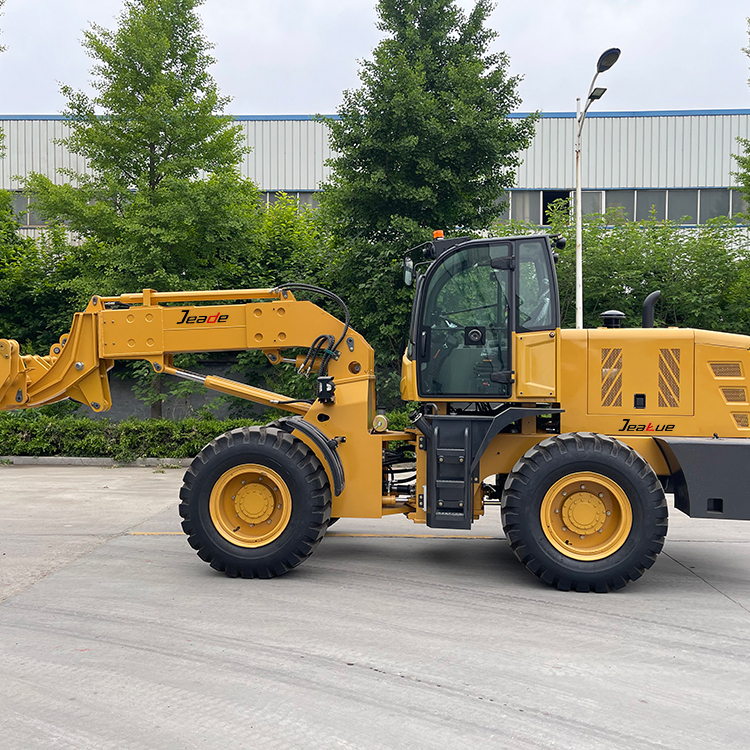

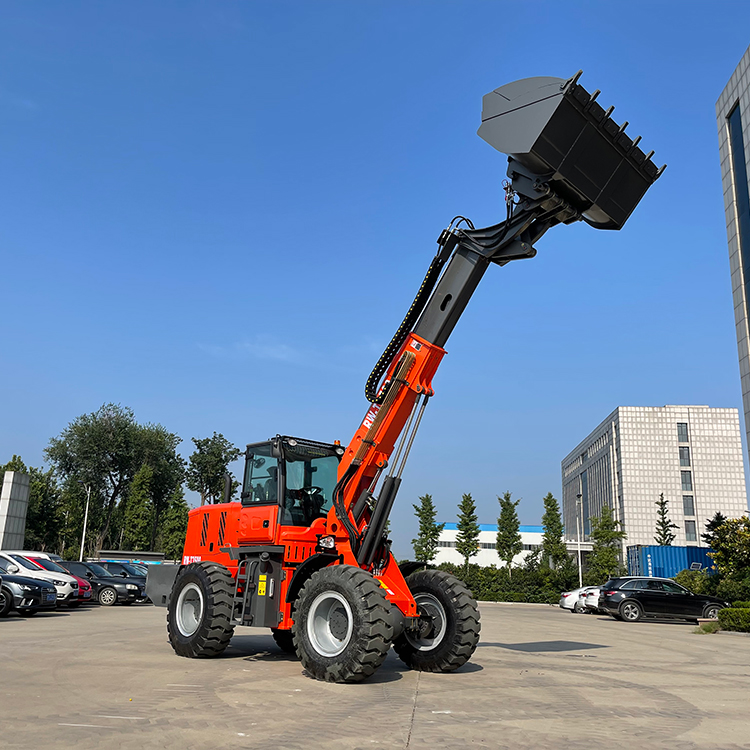

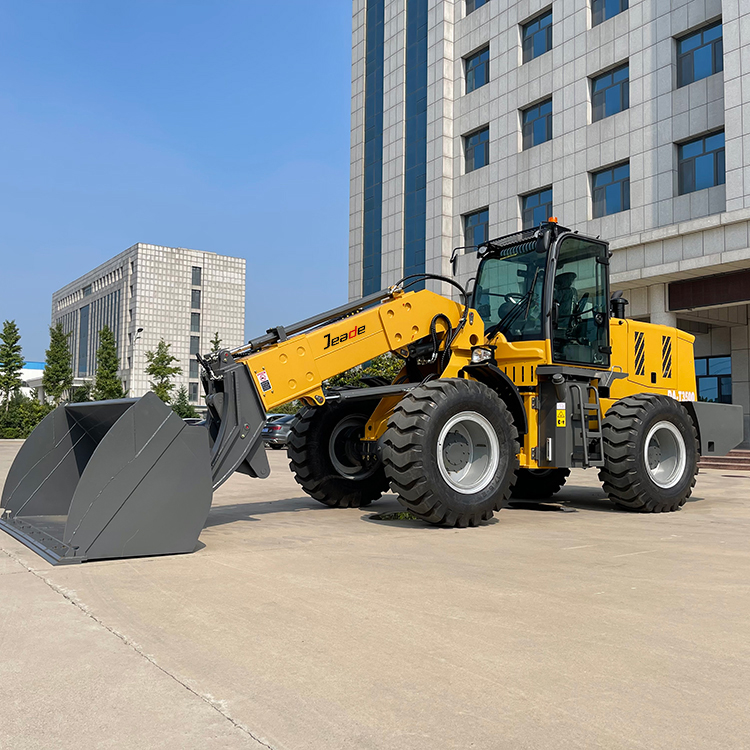

3.5 Ton(7716.18lb) Diesel Wheel Loader-T3500

Rated Load:.3500kg(7716.18lb)

Lifting Height:.4800mm(188.98in)

Bucket rated capacity:1.5 m³(52.97ft³)

Description

Performance	rated loading (kg)	3500
	rated loading（Max extension） (kg)	1800
	overall weight (kg)	8850
	rated bucket capacity (CBM)	1.5
	maximum tractive force (kN）	48
	maximum breakout force (kN）	19
	maximum grade ability（°）	25
	maximum dump height（mm）	4800
	maximum dump reach（mm）	1599
	overall dimension (L×W×H) （mm）	800024003070
	minimum turning radius（outside of wheels）（mm）	5640
	maximum steering angle	31°
	Oscillation angle	5°
Engine	model	WEICHAI WP6G125E22
	type	lnline water cooled, four stroke
	No. of cylinder-bore/stroke （mm）	6-108×130
	displacement （L）	6.75
	rated power（kW）	92
	idel speed (r/min)	800-850
	rated speed (r/min)	2200
	maximum torque N.m @speed r/min	500 @ 1400-1700
	min fuel-consume ratio	≤210g/kw.h
Transmission system	torque converter	315
	gearbox mode	Power shift normally engaged straight gear
	gear shift	Mechanical， 4forward shift 4reverse shift
	maximum speed	36km/h
Drive axles	main reducing mode	Bevel gear grade l reduction
	wheel base (mm)	2763
	wheel tread(mm)	1670
	ground clearance(mm)	440
Hydraulic system	system working pressure (Mpa)	18
	boom lifting time (s)	5.6
	total time (s)	9.9
	fuel tank capacity (L)	100
Brake system	service brake	Air-assist hydraulic brake, disc brake
Brake system	parking brake	Manual disc brake
Tyre	type specification	17.5-25
	front tyre pressure （kPa）	400
	rear tyre pressure （kPa）	350
