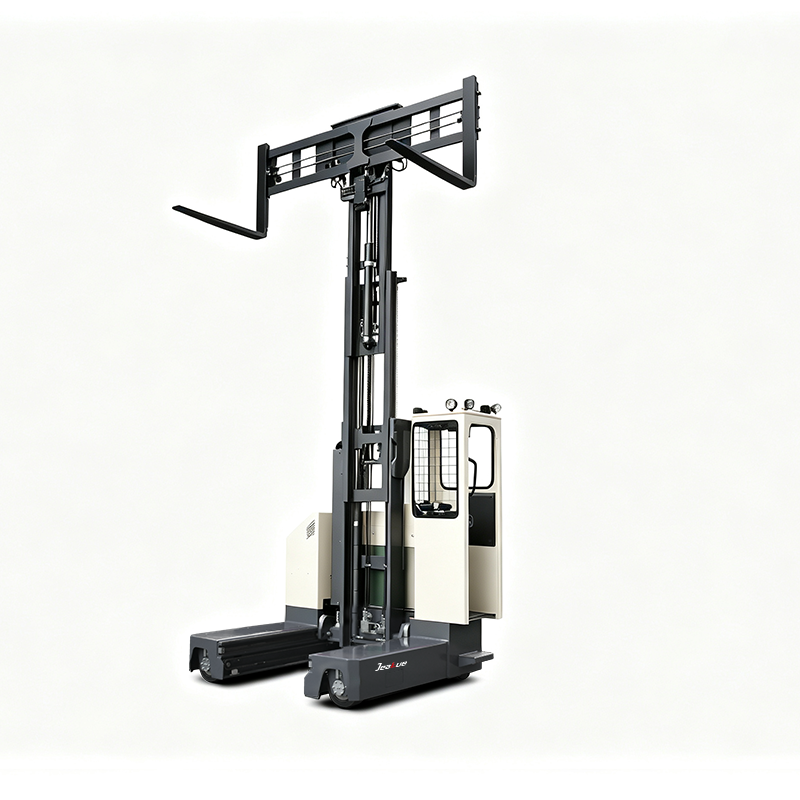

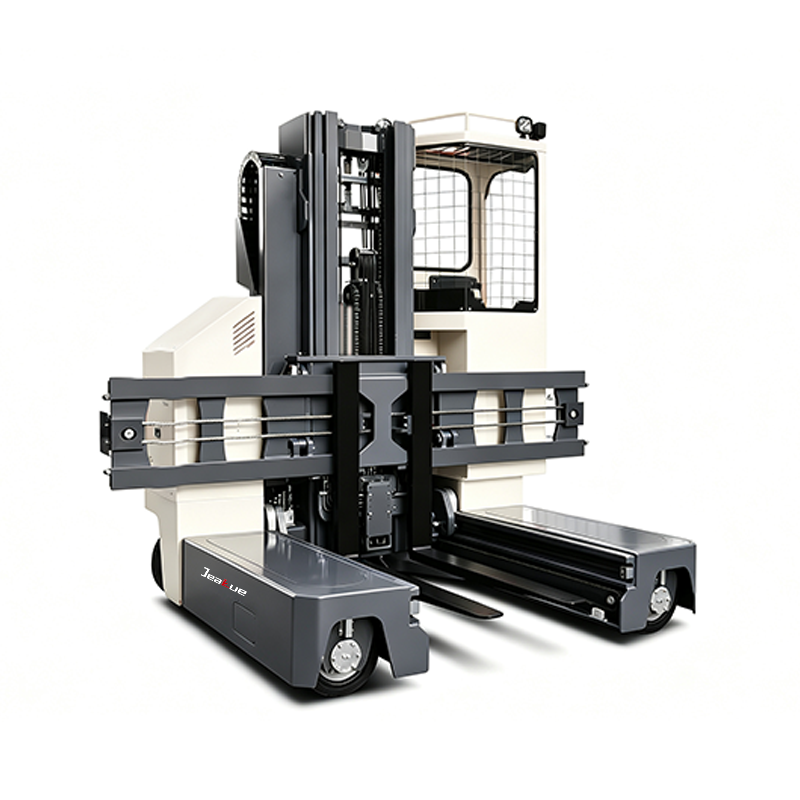

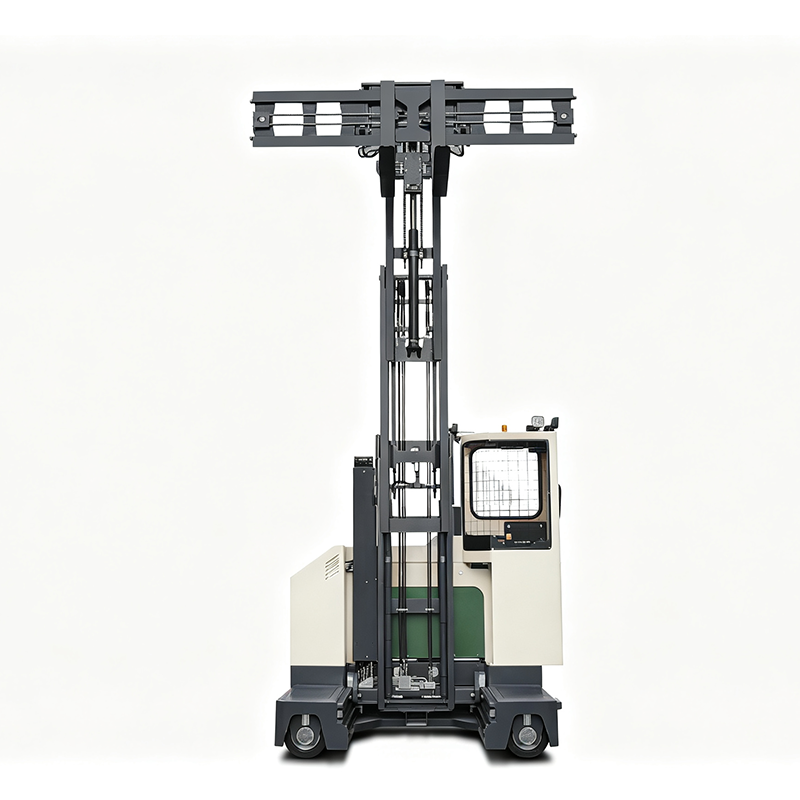

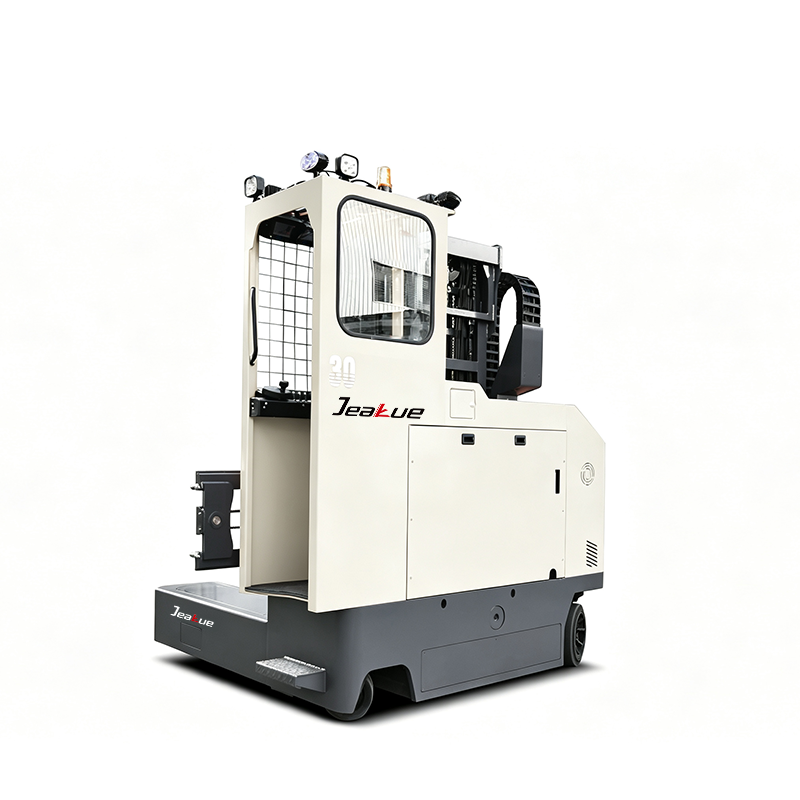

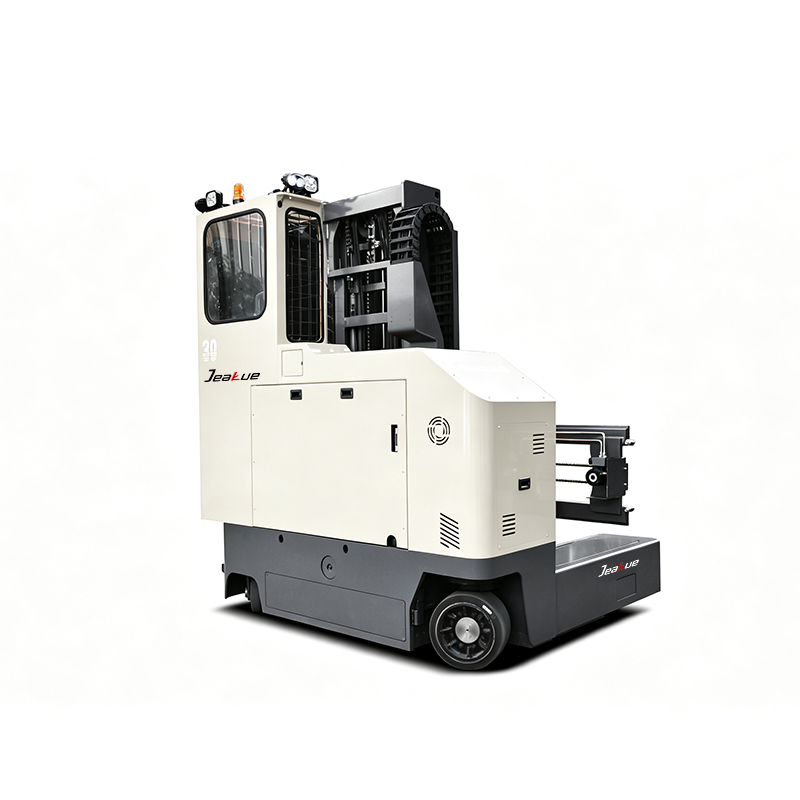

3 Ton Wide Body Stand-On Multi-Directional Forklift-MQ30
Load capacity:3000kg (6613.86lb)
Lift height:8000mm (314.96in)
Battery:48V/300Ah Lithium battery
Description
Omnidirectional and multi-directional travel: It is available with travel modes including straight travel, side travel, diagonal travel and in-situ rotation, suitable for long material handling and stacking operations in narrow aisles.
Strong endurance: Designed with a full AC system, it comes standard with a 48V 300Ah large-capacity lithium battery. With pure electric steering and pure electric forward movement, it can operate continuously for 6.5 hours, featuring strong power, safety and reliability, convenient charging, long cycle life and low maintenance cost.
Speed sensing function: It intelligently adjusts braking force during braking for smooth and reliable braking performance. It can detect speed and control front wheels, supporting switching between fast and slow speed modes. The rubber-tired drive wheels provide excellent road passability and can work on wet, slippery and icy ground, ensuring safer and more stable operation for operators.
High-reserve capacity mast: A high-precision mast that maintains outstanding performance even under ultra-high lift load conditions.
High operating comfort: Adopting thumb switch control, it reduces labor intensity and improves working efficiency.
Forward movement sensing and intelligent buffering are available.

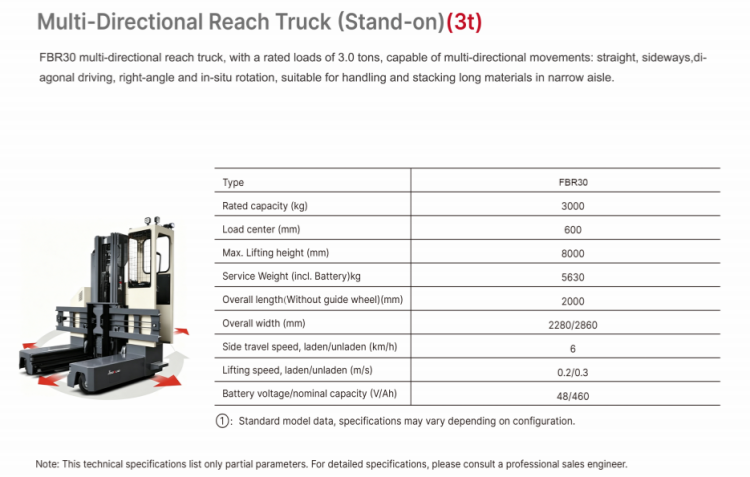

Vehicle Specifications
* Ultra-narrow side-stacking aisle width: 2400mm (for standard 1200mm-wide pallets)
* Travel modes: straight travel, side travel, diagonal travel, in-situ rotation
* Rated load capacity: 3T; Lift height: 4.6m–8m
* Maximum gradeability at full load: 6%
* Side travel speed: 6–7km/h; Straight travel speed: 4–5km/h
* Linked operation of fork lifting and mast forward shift
* Standard configuration: 48V 300Ah lithium battery
* Non-standard customization available
PRODUCT FEATURES
| Product Specifications | |||
| Characteristics | |||
| 0.1 | Manufacturer | MiMA | |
| 1.2 | Model | MQ30 | |
| 1.3 | Power Type | Electric | |
| 1.4 | Driving Mode | Stand-On | |

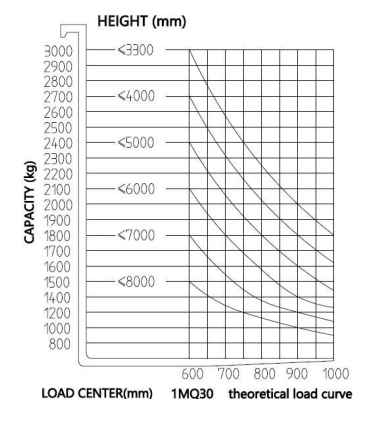

| 1.5 | Rated Capacity | Q(kg) | 3000 |
| 1.6 | Load Center Distance | C(mm) | 600 |
| 0.7 | Distance from Fork Vertical Face to Front Wheels | x(mm) | 285 (with forks fully reached) |
| 0.8 | Wheelbase | y(mm) | 1625 |
| Weights | |||
| 2.1 | Total Weight (with Battery) | kg | 5782 |
| Wheels | |||
| 3.1 | Tire Type | Rubber wheels / polyurethane wheels (drive / others) | |
| 3.2 | Front Wheel Size | φ330×145 | |
| 3.3 | Rear Wheel Size | φ204×76/381×203×285.8SM | |
| 3.4 | Number of Wheels Front/Rear (X = drive wheel) | 2/2/1X | |
| 3.5 | Front Track | b10(mm) | 1632 |
| 3.6 | Rear Track | b11(mm) | 1660 |

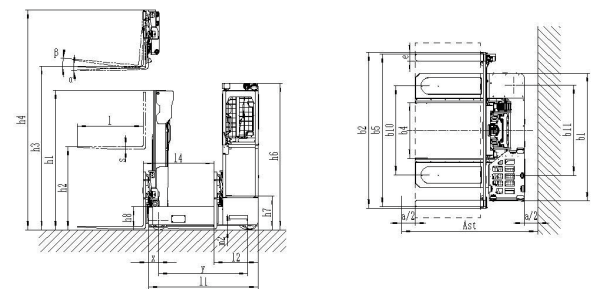

| Dimensions | |||
| 4.1 | Mast/Fork Tilt, Forward/Backward | a/B(°) | 2/5 (standard type) |
| 4.2 | Mast Height (Retracted) | h1(mm) | See mast specification table |
| 4.3 | Free Lift Height | h2(mm) | See mast specification table |
| 4.4 | Lift Height | h3(mm) | See mast specification table |
| 4.5 | Mast Height (Extended) | h4(mm) | See mast specification table |
| 4.6 | Overhead Guard Height | h6(mm) | 2700/2550 (with/without lamp) |
| 4.7 | Platform Height | h7(mm) | 620 |
| 4.8 | Support Leg Height | h8(mm) | 420 |
| 4.9 | Overall Length | l1(mm) | 2000 |
| 4.1 | Length from Fork Vertical Face | 12(mm) | 800 |
| 4.11 | Overall Width | b1/b2(mm) | 2280/2860 |
| 4.12 | Fork Size | /e/s(mm) | 1200/125/50 |
| 4.13 | Fork Carrier Width | b3(mm) | 2860 |
| 4.14 | Distance between Outer Fork Faces (Max.~Min.) | b5(mm) | 2800～560 |
| 4.15 | Inner Width of Support Legs | b4(mm) | 1000 |
| 4.16 | Reach Distance | 14(mm) | 1300 |
| 4.17 | Ground Clearance (Loaded, Below Mast) | m1( mm) | 75 |
| 4.18 | Aisle Width | Ast(mm) | See aisle specification table |
| 4.19 | Turning Radius | Wa(mm) | See aisle specification table |
| 4.2 | Inner Turning Radius | b13(mm) | See aisle specification table |
| Performance | |||
| 5.1 | Travel Speed (Loaded/Unloaded, Lateral) | km/h | 6.0～7.0 |
| 5.2 | Travel Speed (Loaded/Unloaded, Straight) | km/h | 4.0～5.0 |
| 5.3 | Lifting Speed (Loaded/Unloaded) | mm/s | 220/300 |
| 5.4 | Lowering Speed (Loaded/Unloaded) | mm/s | 300/220 |
| 5.5 | Reach Speed (Loaded/Unloaded) | m/s | 0.15/0.15 |
| 5.7 | Gradeability (Loaded/Unloaded) | % | 2026-06-08 0:00:00 |
| 5.1 | Service Brake | Electromagnetic | |
| Drive | |||
| 6.1 | Drive Motor Power, S2=60 | kw | 8AC |
| 6.2 | Lift Motor Power, S3=15% | kw | 12.5AC |
| 6.3 | Battery Voltage / Rated Capacity K5 | V/Ah | 48/300 (Li-ion battery) |
| 6.4 | Battery Weight | kg | 175 |
| 6.5 | 460Ah Li-ion Battery Voltage / Capacity / Weight | V/Ah/kg | 48/460/222 |
| Others | |||
| 7.1 | Drive Control Type | Full Electric Steering | |
| 7.2 | Noise Level at Driver’s Ear | dB( A) | 65 |
 |
 |
