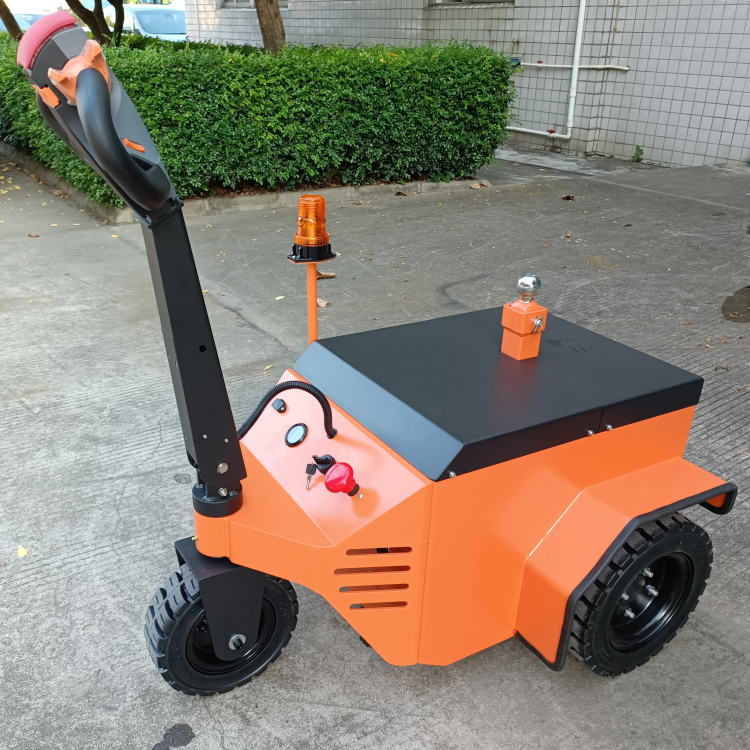

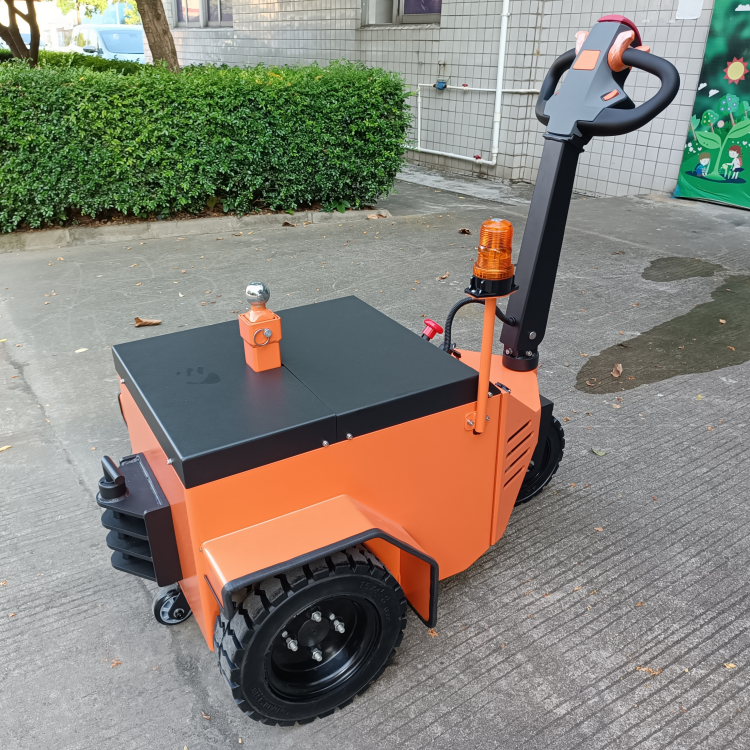

3 Ton Pedestrian Electric Tow Tractor-ET-350A

Rated Capacity: 1500-2000-2500kg
Rated/Maximum traction:500-700-800N
2×12V/66/86/103Ah Lithium Battery/Lead-acid Battery

Description

Brand		JEAKUE
Model		ET-350A
Power supply		Electric
Operating type		Pedestrian
Max traction weight	kg	3500
Rated pulling force	N	1100

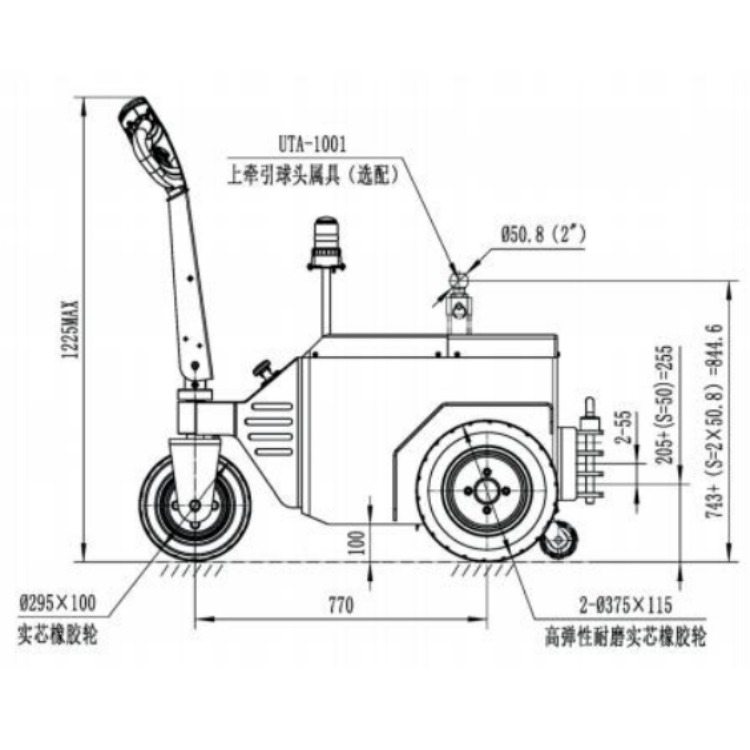

Wheelbase	mm	770
Truck weight（with battery）	kg	350
Battery weight	kg	70
Tire type,Drive wheel/Bearing wheel		Rubber
Sizes of drive wheel（diameter×width）	mm	2×Φ375×115
Sizes of bearing wheel（diameter×width）	mm	Φ300×100
Sizes of Supporting wheel(diameter×width)	mm	Φ100×50
Drive wheel/bearing wheel number(X=Drive wheel)	mm	2×/1
Front gauge	mm	460
Overall height	mm	1230
Height of tiller in drive position	mm	1100
Hook height	mm	205/315/370

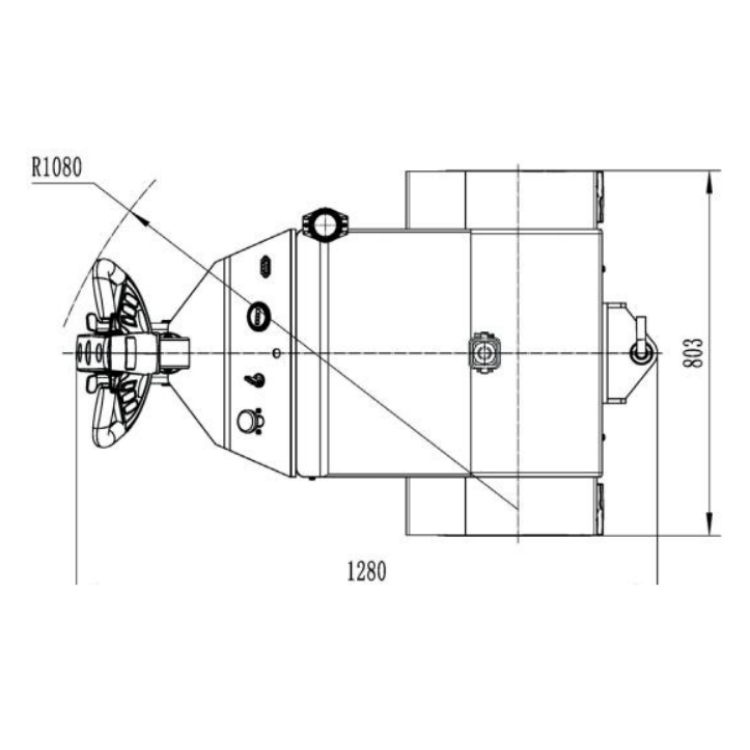

Overall length	mm	1280
Overall width	mm	810
Ground clearance	mm	100
Turning radius	mm	1080
Drive speed load/unload	Km/h	3～6
Rated pulling force	N	1100
Max pulling force	N	2200
Max gradeability load/unload	％	10
Brake type		Electromagnetic
Drive motor rating S2 60min	kw	1.5
Charger(external)	V/A	24/15
K20 Battery voltage/nominal capacity	V/Ah	24/107
Battery weight	kg	70
Type of drive control	kg	AC
Steering type		Mechanics
Noise level		<70
Type of trailer coupling	dB(A)	Latch
