Description

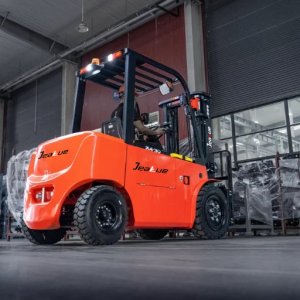

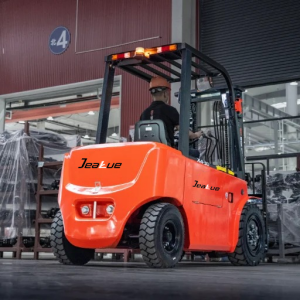

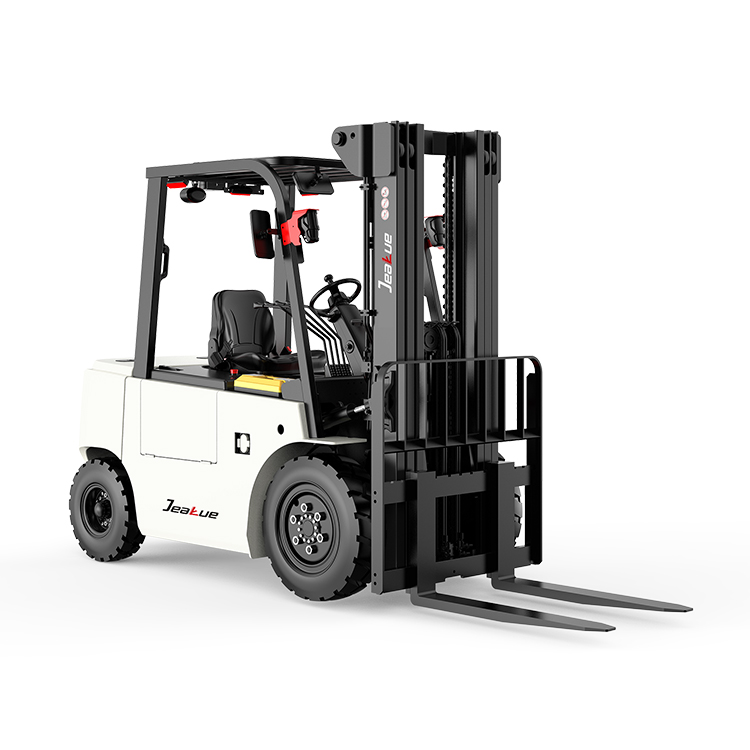

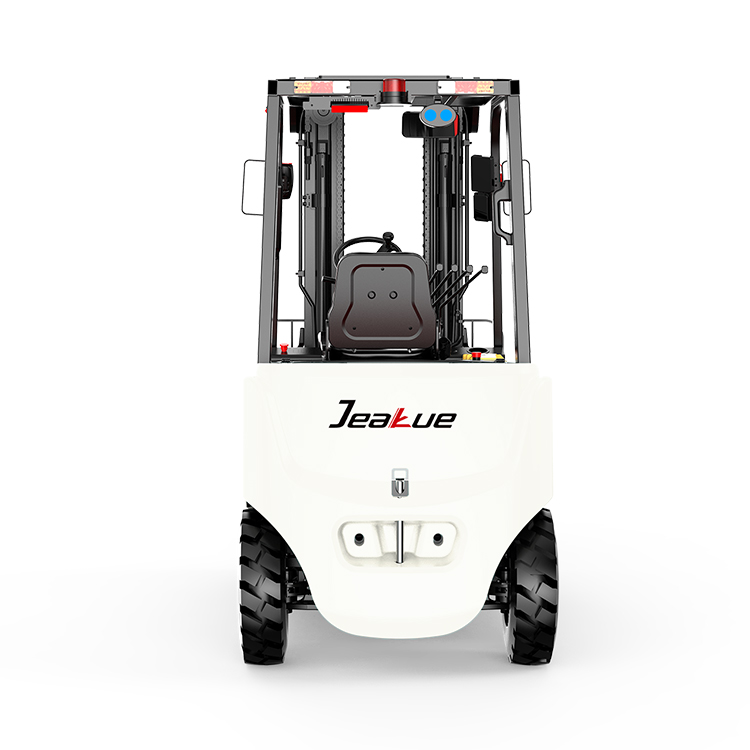

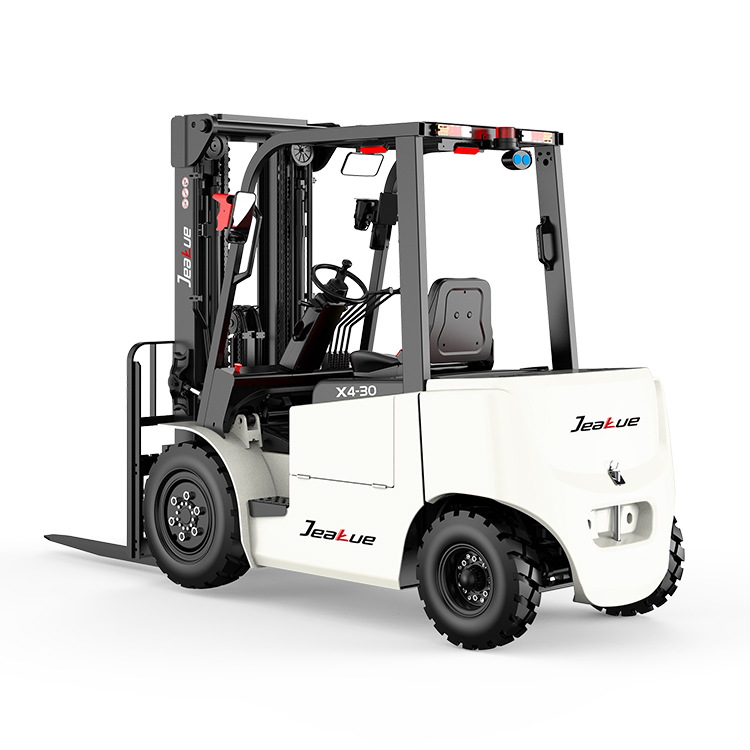

Explore the FB301-X4

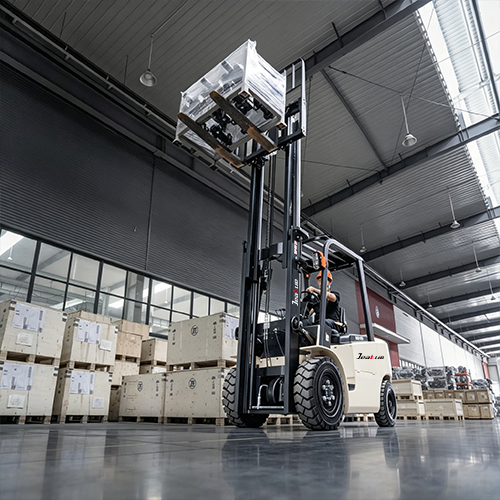

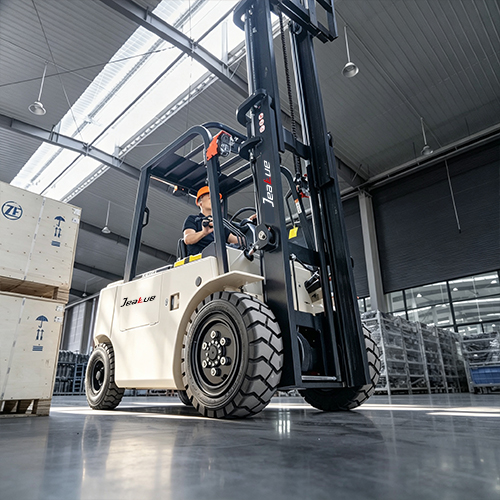

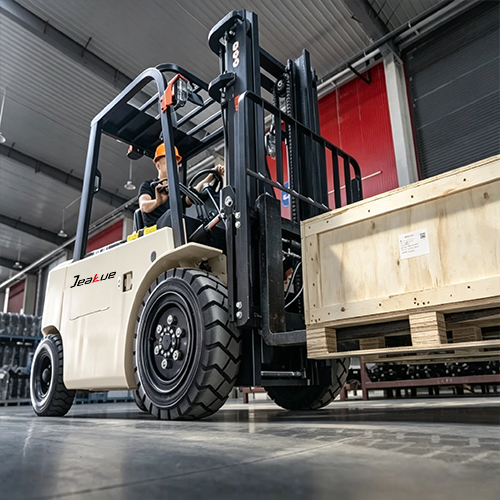

FB301-X4 introduces a new standard in forklift flexibility with its manual-swap lithium battery system. Each 26 kg battery module can be quickly replaced without tools or special equipment, ensuring continuous uptime. Designed for both industrial and off-grid use, it features a durable PMS motor, high-performance lithium power, and a comfortable operator cabin, delivering efficiency and safety across diverse applications.

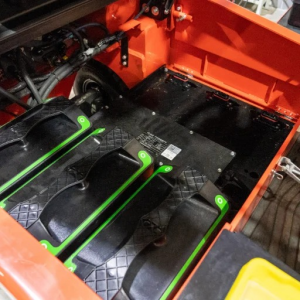

1.Manual-swap modular batteries

Lightweight 26 kg Li-ion battery packs can be manually replaced in seconds, eliminating downtime and enabling 24/7 operation. The side-access design simplifies handling and reduces maintenance requirements, making it ideal for rental and mobile applications.

2.Remote charging and optional station

The FB301-X4 supports off-site charging — batteries can be removed and charged separately using an optional six-slot charging station. This modular approach ensures operational safety, flexibility, and continuous power availability even without fixed infrastructure.

3.Advanced power and control system

Equipped with an 80V/100Ah lithium system, smart BMS, and PMS motor, the EFL302X4 ensures optimal energy efficiency, smooth acceleration, and extended runtime. Its powertrain reduces energy consumption and supports consistent performance across shifts.

4.Ergonomic design and visibility

A redesigned operator cabin with a high-visibility mast, LED front lighting, wider brake pedal, and adjustable seat enhances safety and comfort during long operations. Every detail is designed to boost precision, control, and operator satisfaction.

Application

The FB301-X4 is ideal for logistics companies, construction sites, and rental fleets that need dependable power in areas with limited charging infrastructure. Its swappable modular batteries allow uninterrupted operation by rotating charged packs, while the optional multi-battery charging station provides a convenient plug-and-play charging solution. Suitable for outdoor and off-grid environments, it combines the endurance of IC forklifts with the sustainability of electric power.

About the FBX4-301

The FBX4-301 revolutionizes counterbalance forklift operations with its advanced modular battery system. Six lightweight 26 kg packs can be swapped in seconds, allowing the truck to operate continuously while others charge externally. Powered by an 80V/100Ah Li-ion system and PMS motor, it delivers fast lifting speeds (0.36 m/s), stable 3-ton performance, and 15% gradeability. Its scalable configuration supports future growth — from three to six battery packs — ensuring operational flexibility. Combined with a wide mast, ergonomic seat, LED lighting, and advanced BMS integration, the FBX4-301 offers a durable, energy-efficient, and operator-friendly solution for heavy-duty applications.

PRODUCT FEATURES

Load Capacity	3000kg(6613.87lb)
Battery	80V/100Ah Lithium Battery
Motor power	8KW
Lift Height	3000mm(118.11in)
Turning Radius	2428mm(95.59in)
Dimensions	2665*1228*2143mm(104.92*48.35*84.48in)
Steering Design	Hydraulic
Tyre type	Pneumatic tyre
Service weight	4378kg(9651.84lb)
Product Color	Ivory/Red/Customization

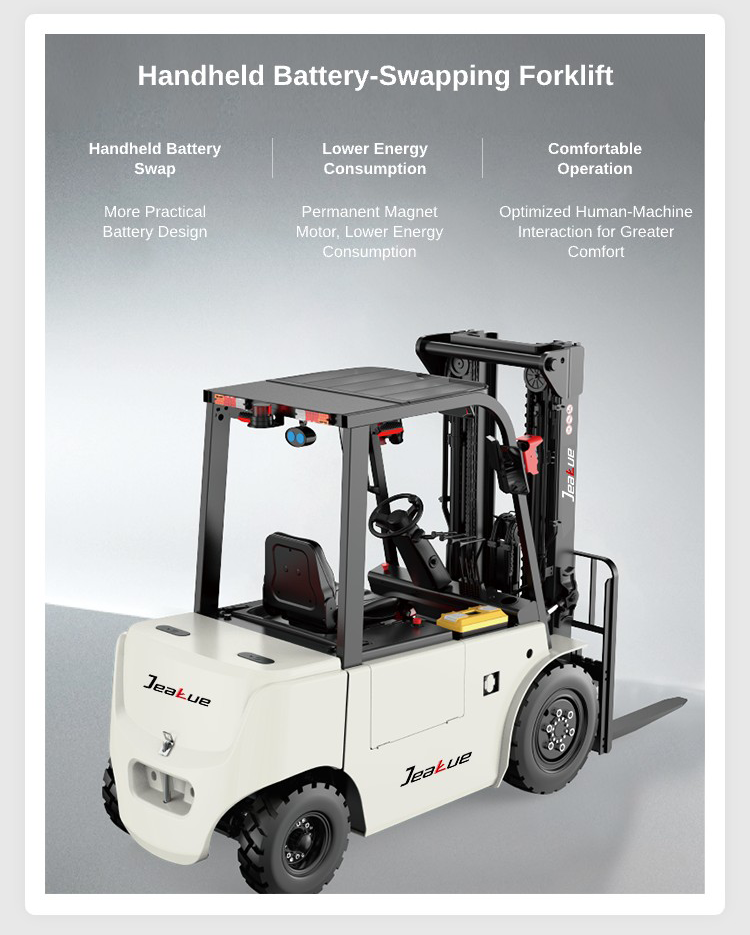

JEAKUE 3 Ton Lithium Battery Forklift Truck-X4 .Handheld Battery Swap:More Practical,Battery Design

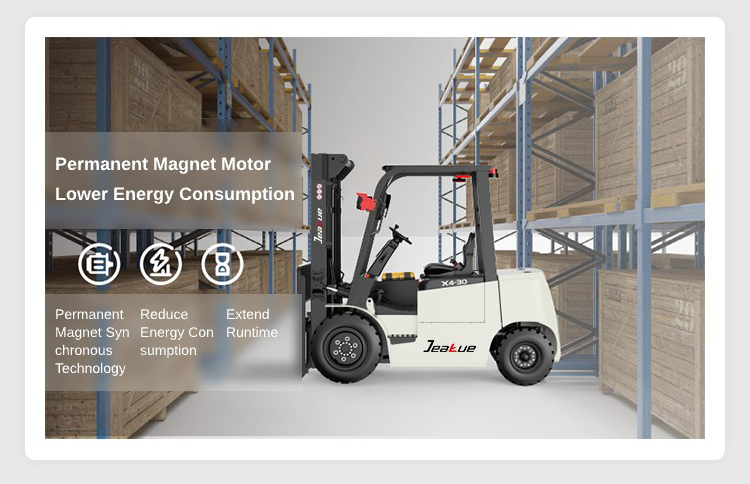

Maximal 3 Ton JEAKUE  Electric Forklift with Attachment Made in China.Lower Energy Consumption:Permanent Magnet Motor,Lower Energy Consumption

JEAKUE 3 Ton Lithium Battery Forklift Truck-X4.Comfortable Operation:Optimized Human-Machine,Interaction for Greater Comfort

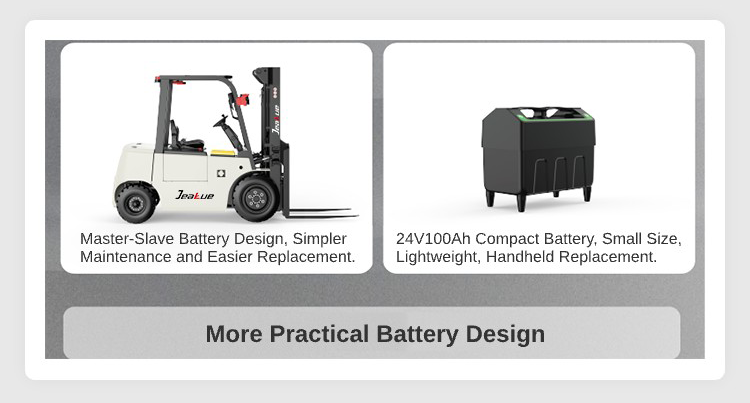

JEAKUE 3 Ton Lithium Battery Forklift Truck-X4.Master-Slave Battery Design,Simpler Maintenance and Easier Replacement

JEAKUE 3 Ton Lithium Battery Forklift Truck-X4.China Customized 3 TON Electric Forklift Manufacturer – Jeakue.24V100Ah Compact Battery, Small Size,Lightweight, Handheld Replacement.

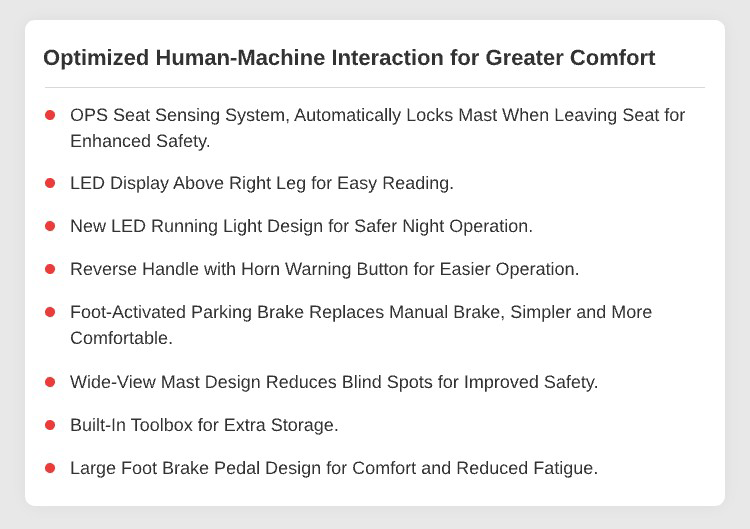

JEAKUE 3 Ton Lithium Battery Forklift Truck-X4.Optimized Human-Machine Interaction for Greater Comfort
1.OPS Seat Sensing System, Automatically Locks Mast When Leaving Seat for Enhanced Safety.
2.LED Display Above Right Leg for Easy Reading.

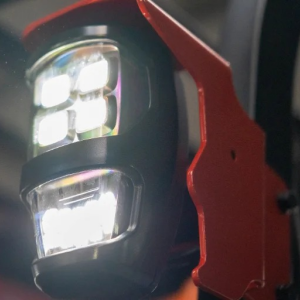

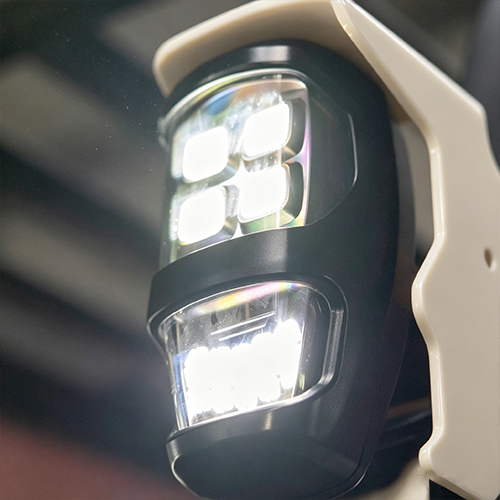

3.New LED Running Light Design for Safer Night Operation.
4.Reverse Handle with Horn Warning Button for Easier Operation.
5.Foot-Activated Parking Brake Replaces Manual Brake, Simpler and More Comfortable.

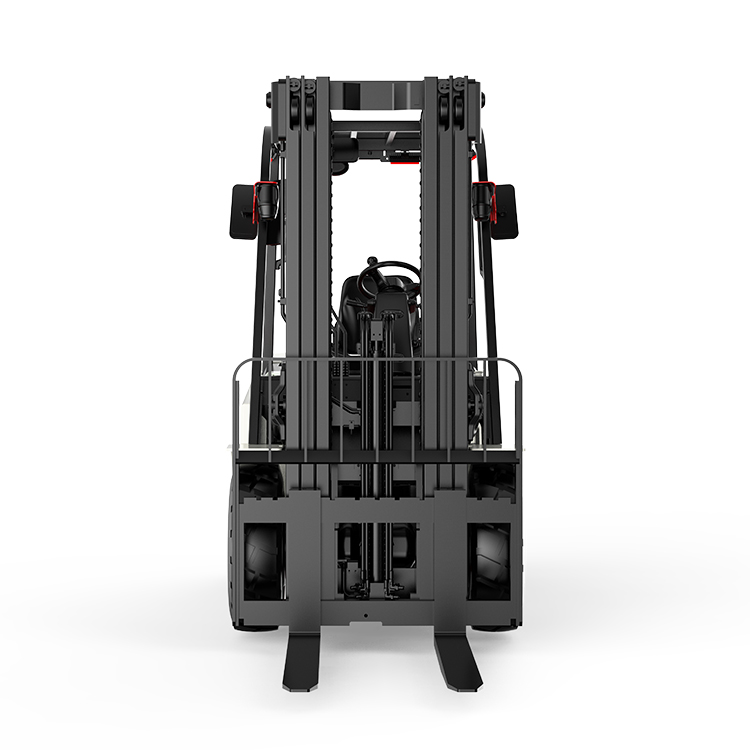

6.Wide-View Mast Design Reduces Blind Spots for Improved Safety.
7.Built-In Toolbox for Extra Storage.
8.Large Foot Brake Pedal Design for Comfort and Reduced Fatigue.
