3.6Ton(7936.63 lb) Diesel Skid Steer Load-JC100

3.6Ton(7936.63 lb) Diesel Skid Steer Load-JC100
3.6Ton(7936.63 lb) Diesel Skid Steer Load-JC100 - Image 2
3.6Ton(7936.63 lb) Diesel Skid Steer Load-JC100 - Image 3
3.6Ton(7936.63 lb) Diesel Skid Steer Load-JC100 - Image 4
3.6Ton(7936.63 lb) Diesel Skid Steer Load-JC100 - Image 5
3.6Ton(7936.63 lb) Diesel Skid Steer Load-JC100 - Image 6
3.6Ton(7936.63 lb) Diesel Skid Steer Load-JC100 - Image 7

3.6Ton(7936.63 lb) Diesel Skid Steer Load-JC100

Bucket Capacity: 0.6 (m³) (21.19 ft³)

Rated Load: 1200 (Kg) (2645.54 lb)

Operating Weight: 3600 (Kg) (7936.63 lb)

Maximum Dumping Height: 2500 (mm) (98.43 in)

Categories: ,

Add to quote

Description

PRODUCT PARAMETERS

Model JC100
Performance Operating weight(kg) 3600
Rated load(kg) 1200
Bucket  capacity(m³) 0.6
Max Speed(km/h) 12/18
Max traction(kN) >30
Max breakout(kN) ≥20
Lifting time of boom(s) 7
Engine Manufacturer Weichai
Model WP4.1
Rated power(kW/rpm) 74.9/2400
Engine displacement(L) 4.088
Emission Standard China III

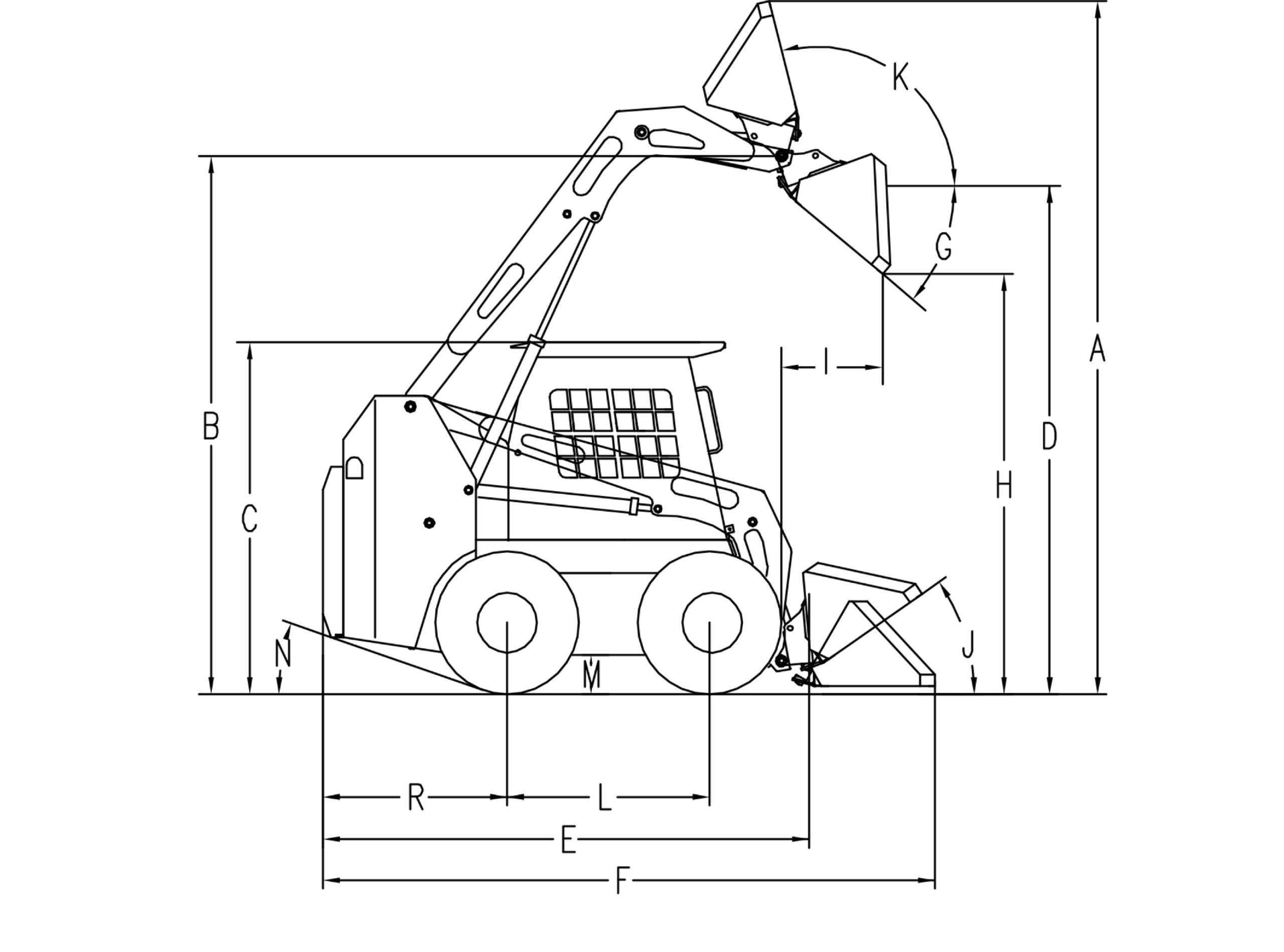

Dimension Overall operating height(mm) 4290
Height to bucket hinge pin(mm) 3278
Height to top of cab(mm) 2160
Height to bottom of level bucket(mm) 2983
Without bucket length(mm) 2963
Overall length with bucket(mm) 3735
Dumping angle at maximum height(°) 40
Dumping height(mm) 2500
Dumping     reach(mm) 700
Rollback of bucket on ground(°) 30
Rollback of bucket at full height(°) 104
Wheelbase(mm) 1185
Ground clearance(mm) 205
Angle of departure(°) 20

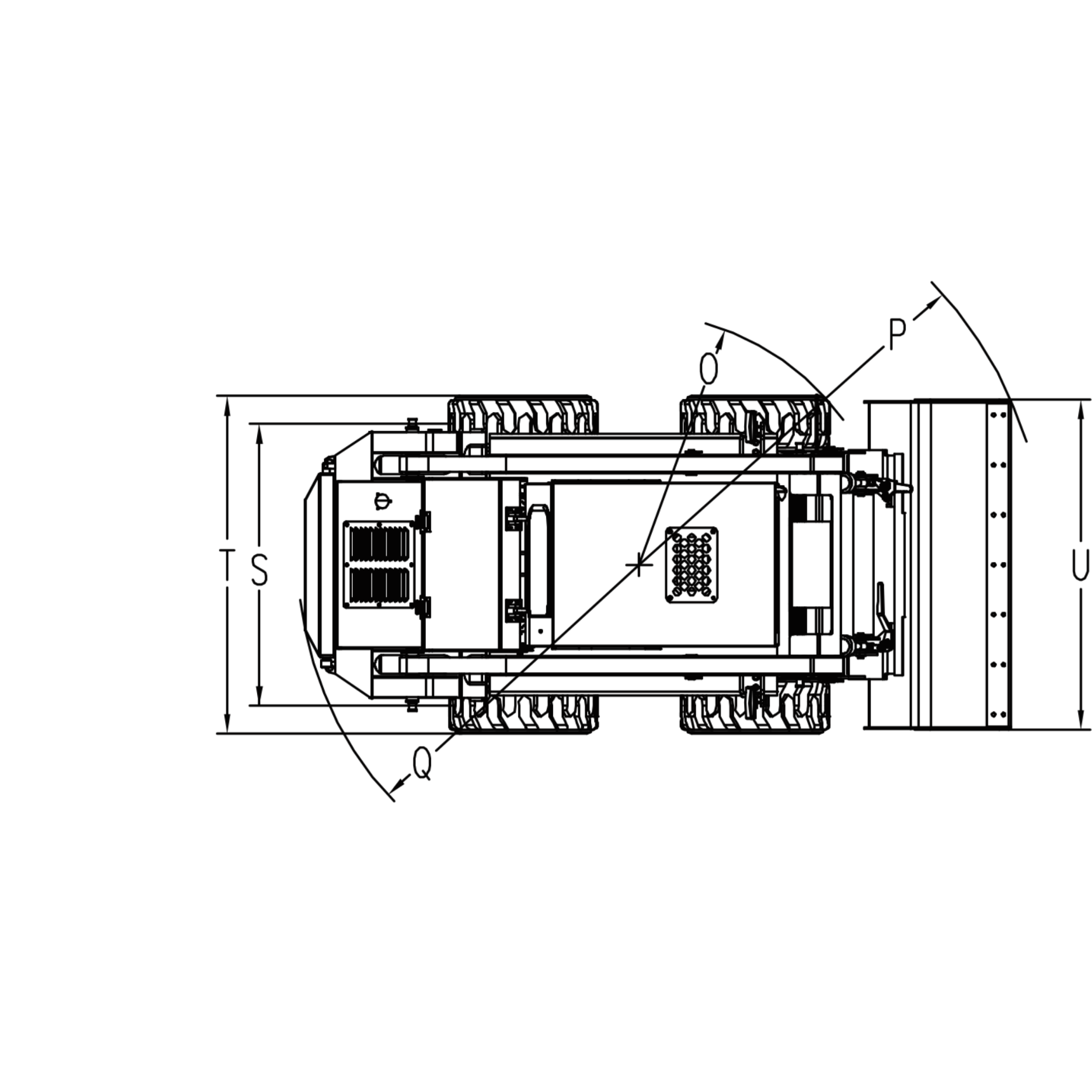

Front turning radius without bucket(mm) 1278
Front tuning radius(mm) 2144
Rear tuning radius(mm) 1857
Rear axle to bumper(mm) 1082
Tread width(mm) 1500
Width (mm) 1880
Bucket width(mm) 1880



JC100 model skid steer loader is most popular by every customer in the world JEADE 3.6Ton Diesel Skid Steer Load-JC100
Main features as follow:
2  ensure the safety of your goods, professional, environmentally friendly, JEADE 3.6Ton Diesel Skid Steer Load-JC100
3 Many configurations to optional,adoption world famous brand components JEADE 3.6Ton Diesel Skid Steer Load-JC100
4 Luxury cabin with joystick control system
5 Double accelerograph control
6 Multi-function with a wide range of attachments JEADE 3.6Ton Diesel Skid Steer Load-JC100
7 Hydraulic brake JEADE 3.6Ton Diesel Skid Steer Load-JC100
8 High flow double output JEADE 3.6Ton Diesel Skid Steer Load-JC100
9 Extended wheelbase JEADE 3.6Ton Diesel Skid Steer Load-JC100
10 Auto-leveling system JEADE 3.6Ton Diesel Skid Steer Load-JC100
11 flexible steer, compact body and replaceable mulitifunctional tools JEADE 3.6Ton Diesel Skid Steer Load-JC100

Features:
1. Using an internationally renowned brand engine, it is powerful, environmentally friendly, reliable and widely used.
2. Standardized configuration of imported hydraulic system, stable high-flow hydraulic output to meet various working conditions. JEADE 3.6Ton Diesel Skid Steer Load-JC100
3. Standardized configuration of quick hitch and connectors of international standards, different working devices can be replaced or connected at the job site in just a few minutes.JEADE 3.6Ton Diesel Skid Steer Load-JC100
4. High-strength overall frame, beautiful appearance, strong and durable.JEADE 3.6Ton Diesel Skid Steer Load-JC100
5. The entire series is equipped with high-performance heating and cooling air conditioners as standard, and the humanized design meets the construction environments of different regions and seasons.JEADE 3.6Ton Diesel Skid Steer Load-JC100
6. All series are equipped with wear-resistant hollow tires as standard, and solid tires or tracks are optional.JEADE 3.6Ton Diesel Skid Steer Load-JC100
7. All series are equipped with international standard cabs as standard, with wide visibility, solidity and reliability.JEADE 3.6Ton Diesel Skid Steer Load-JC100
8. Adopt an advanced and stable operating system to make operation easier and more comfortable.JEADE 3.6Ton Diesel Skid Steer Load-JC100
