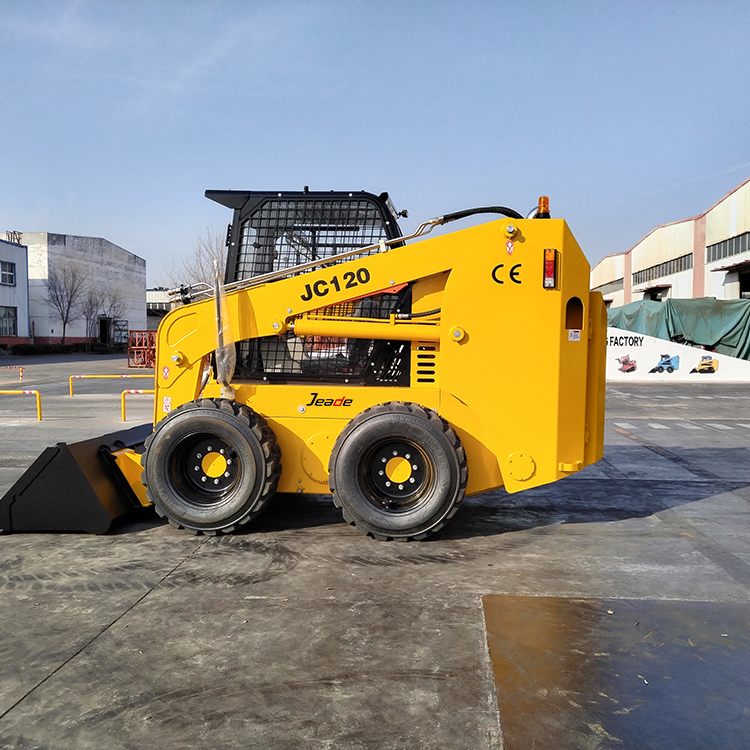

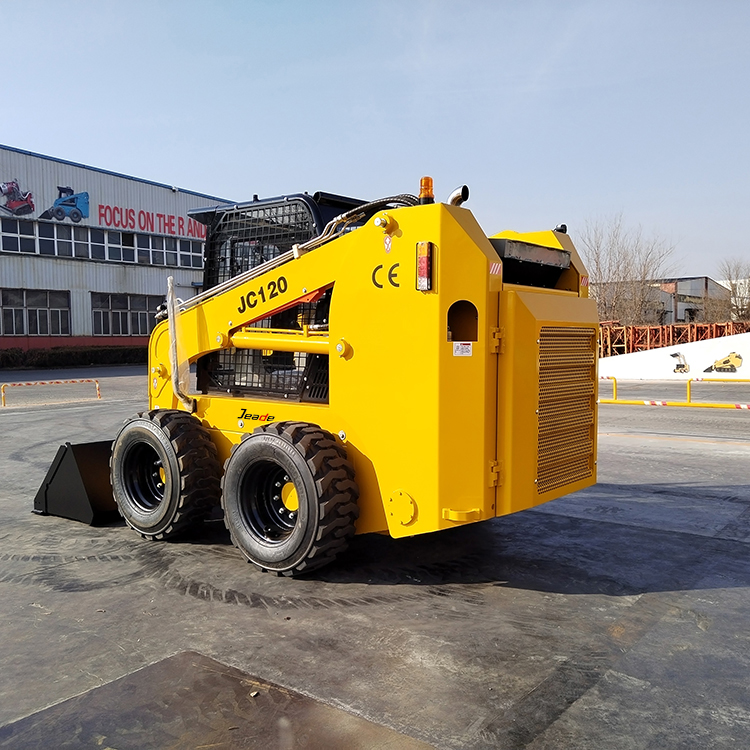

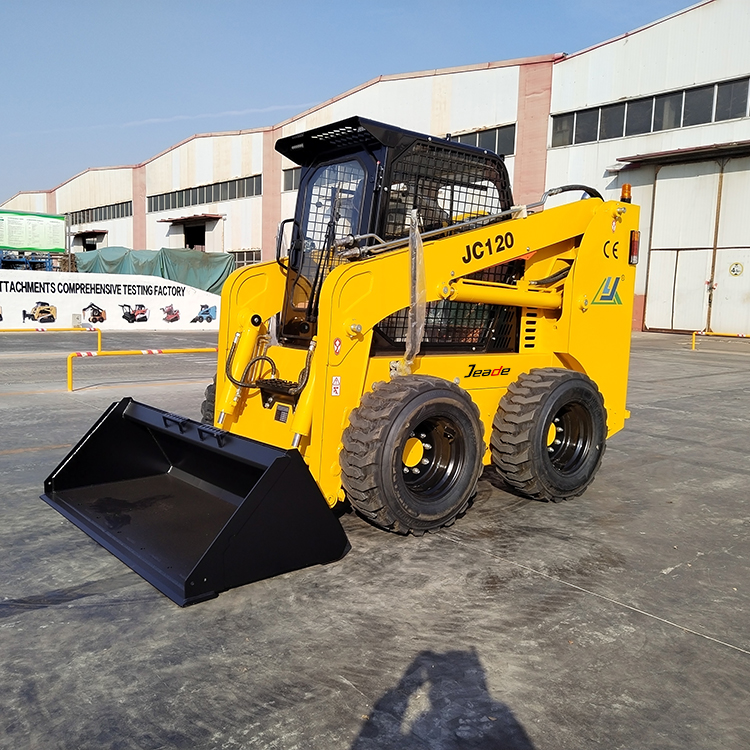

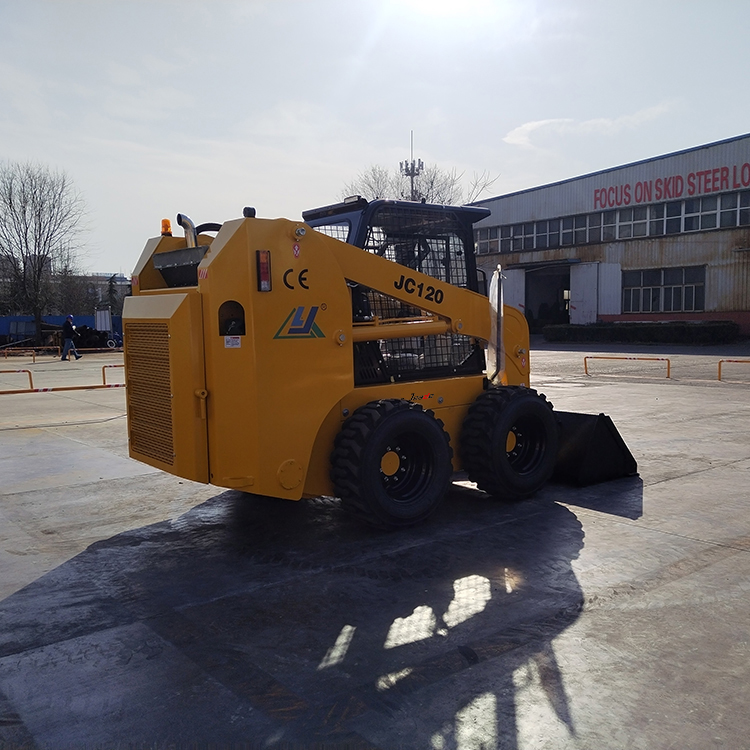

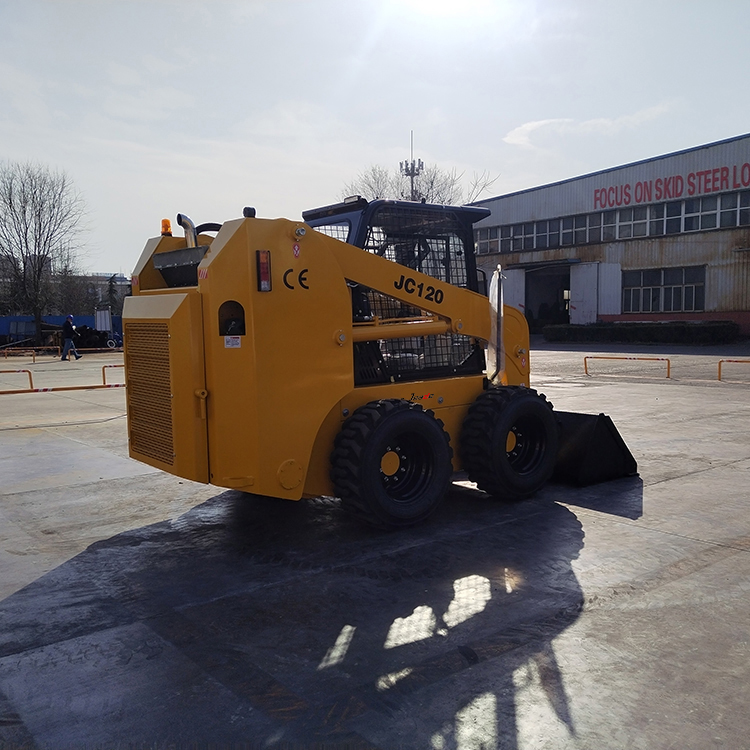

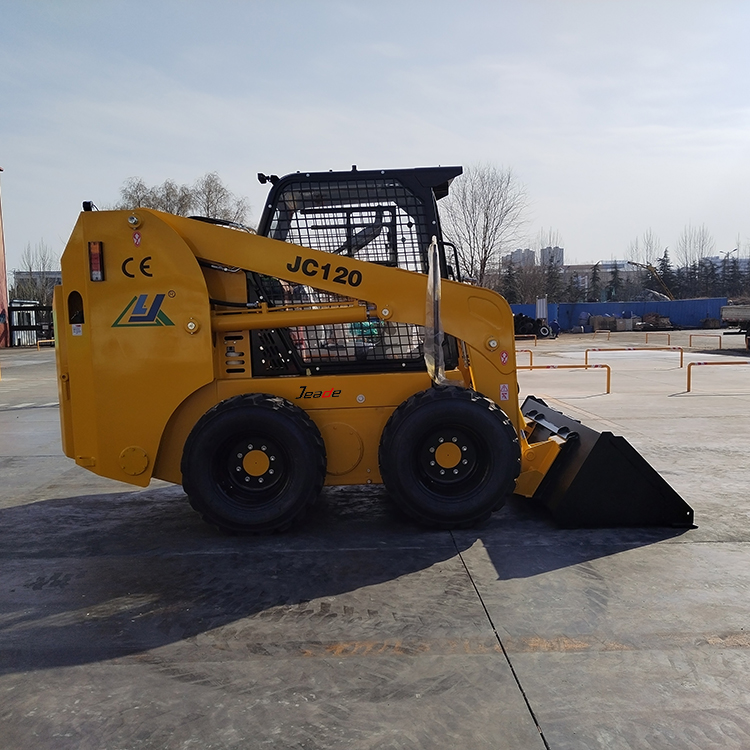

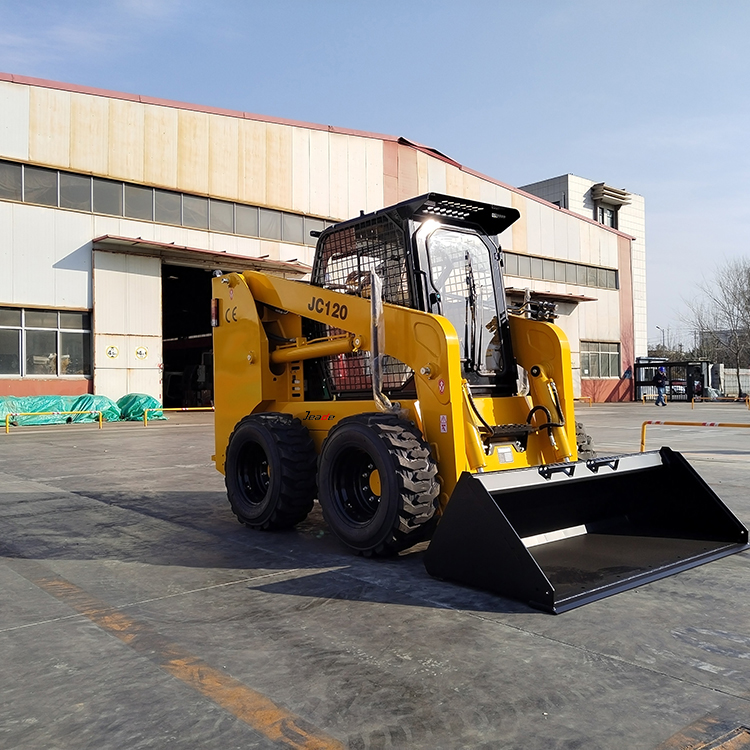

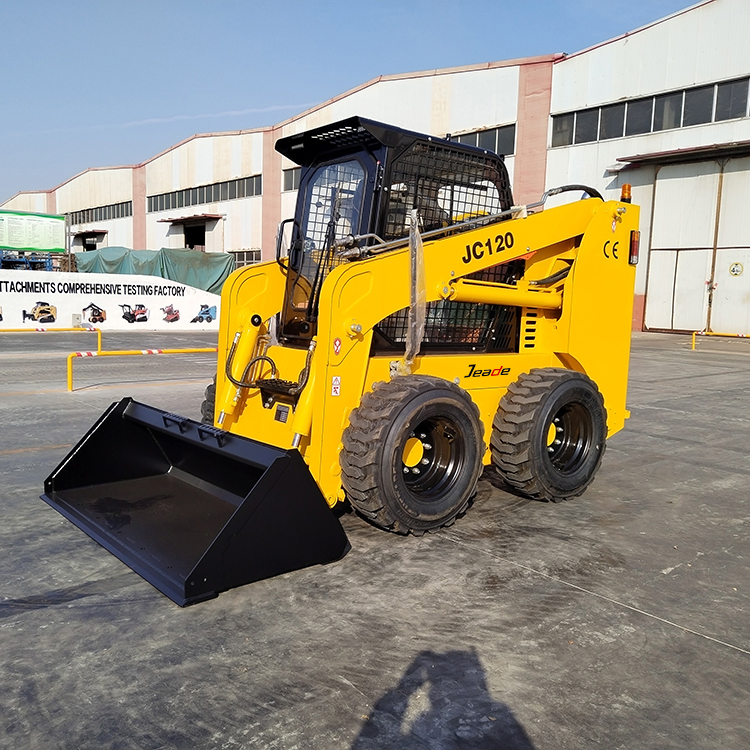

4 Ton(8818.48 lb) Diesel Skid Steer Load-JC120

Bucket Capacity: 0.55 (m³) (19.42 ft³)

Rated Load: 1500 (Kg) (3306.93 lb)

Operating Weight: 4000 (Kg) (8818.48 lb)

Maximum Dumping Height: 2500(mm) (98.43 in)

Description

	Model	JC120
Performance	Operating weight (kg)	4000
	Rated load (kg)	1500
	Bucket capacity (m³)	0.55
	Max Speed (km/h)	12/18
	Max traction (kN)	>32
	Max breakout (kN)	≥22
	Lifting time of boom (s)	7
Engine	Manufacturer	WEICHAI
	Model	WP4.1
	Rated power (kW/rpm)	103/2300
	Engine displacement (L)	4.088
	Emission Standard	China Ⅲ

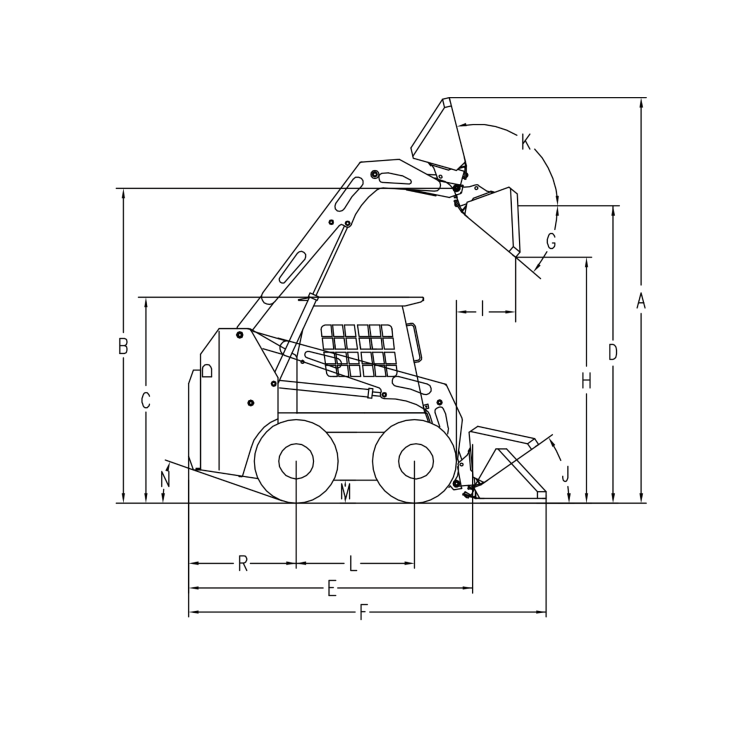

Dimension	Overall operating height (mm)	4290
	Height to bucket hinge pin (mm)	3278
	Height to top of cab (mm)	2160
	Height to bottom of level bucket (mm)	2983
	Without bucket length (mm)	3023
	Overall length with bucket (mm)	3795
	Dumping angle at maximum height (°)	40
	Dumping height (mm)	2500
	Dumping reach (mm)	700
	Rollback of bucket on ground (°)	30
	Rollback of bucket at full height (°)	104
	Wheelbase (mm)	1185
	Ground clearance (mm)	205
	Angle of departure (°)	20

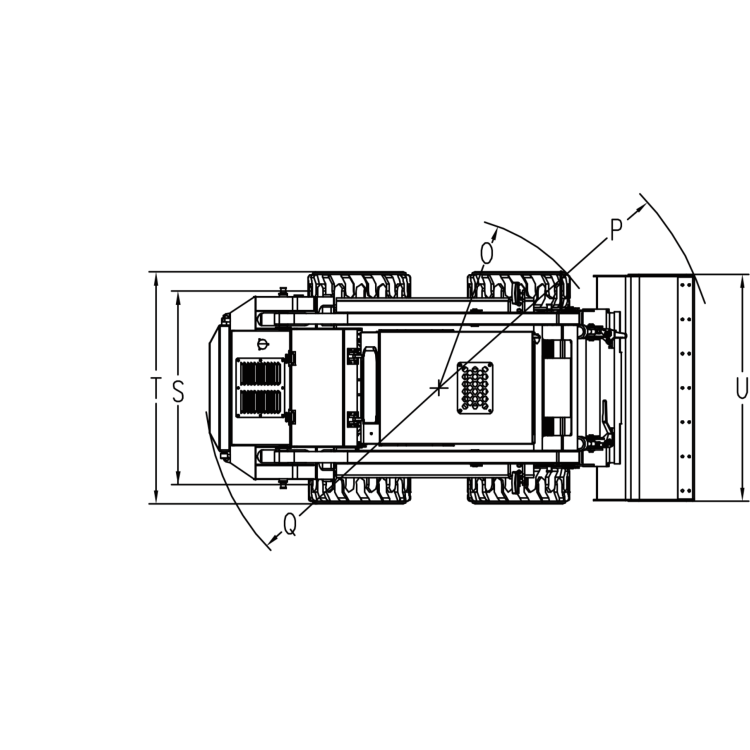

	Front turning radius without bucket (mm)	1278
	Front tuning radius (mm)	2144
	Rear tuning radius (mm)	1857
	Rear axle to bumper (mm)	1082
	Tread width (mm)	1500
	Width (mm)	1880
	Bucket width (mm)	1880
