Description

Explore the F4201

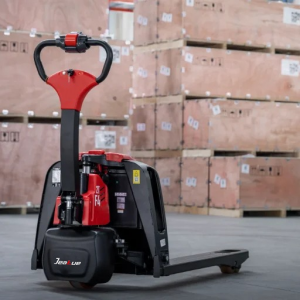

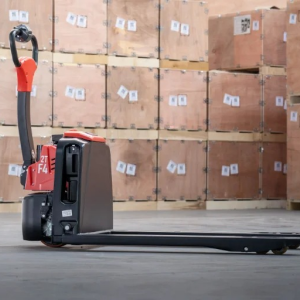

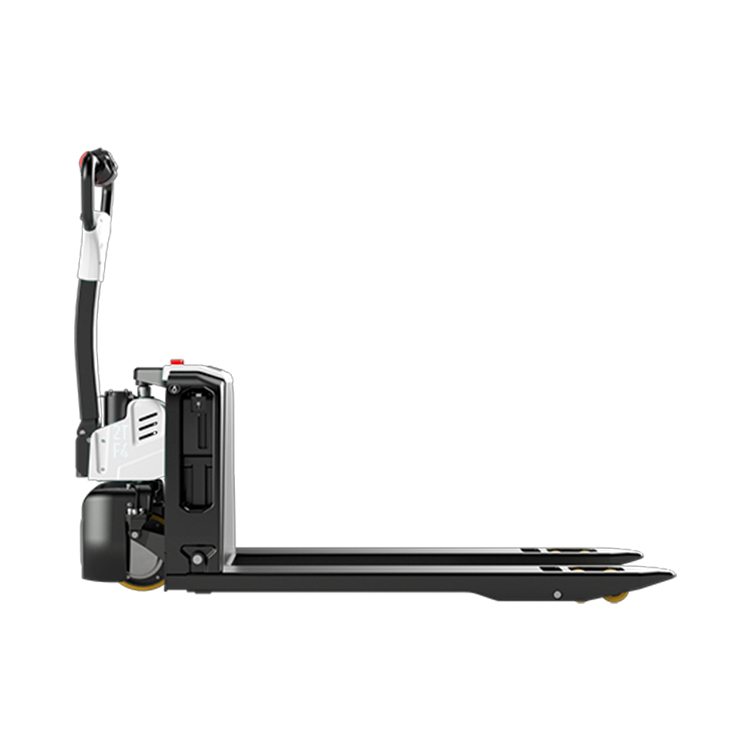

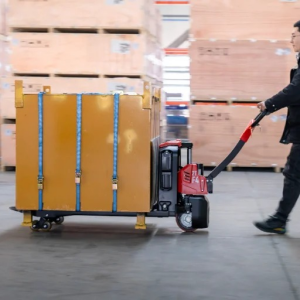

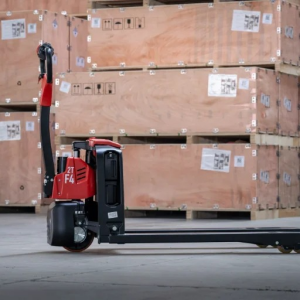

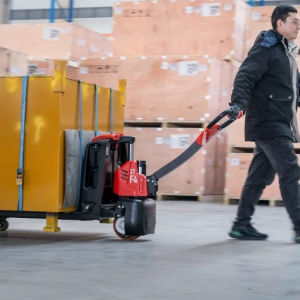

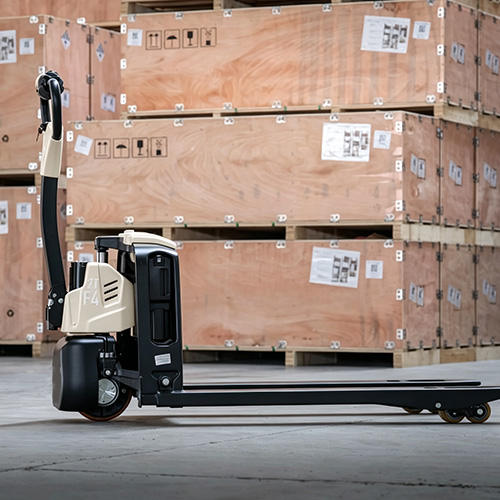

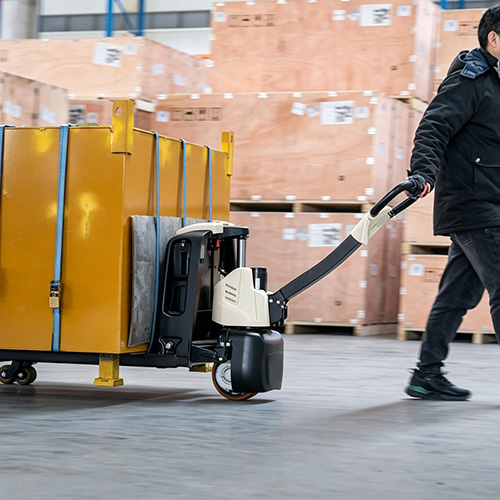

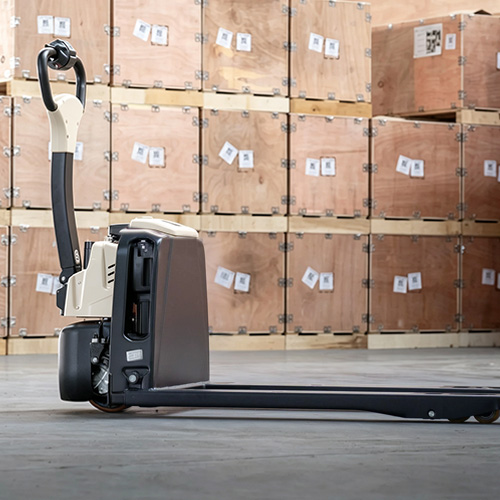

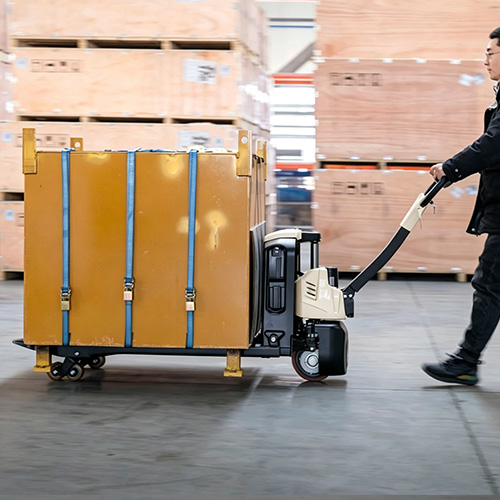

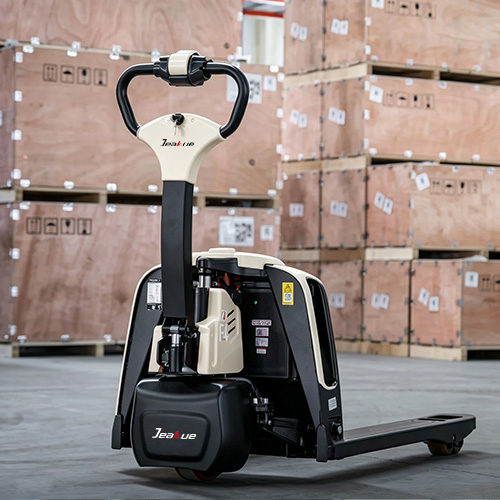

The F4201 takes JK’s F Series platform to the next level with a powerful 48V system, boosting both reliability and efficiency. Equipped with two removable 24V/20Ah Li-ion batteries, this 2.0-ton pallet truck delivers flexibility, fast charging, and zero maintenance. With its compact 400 mm fork face length and lightweight 140 kg build, the F4201 is designed for versatile applications in warehouses, logistics hubs, and retail.
1.48V power system

The F4 201’s 48V system boosts reliability and efficiency, allowing operators to move more goods with less effort.

2.Removable Li-ion batteries

Equipped with two 24V/20Ah plug-in batteries, the F4 201 offers flexible charging, fast replacement, and zero maintenance.

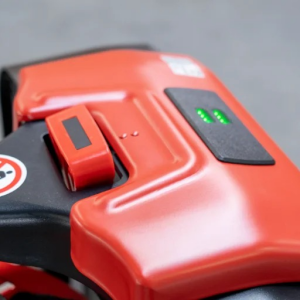

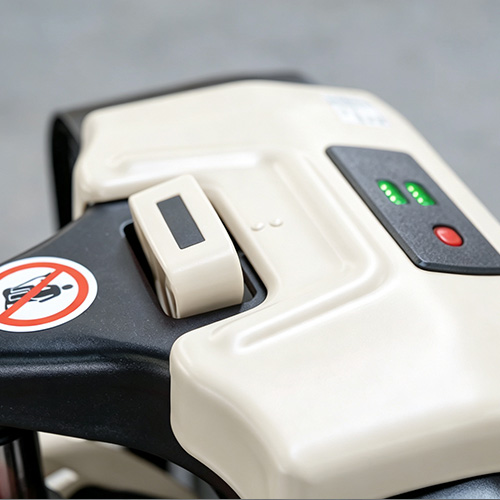

3.Ergonomic tiller design

The newly designed square-tube tiller provides strength, comfort, and smooth operation for daily industrial use.

4.Optional stabilizing wheels

Stabilizing wheels enhance safety and load stability, reducing risks when handling heavy or uneven loads.

Application

PRODUCT FEATURES

Load Capacity	2000Kg(4409.24 lb)
Fork Dimensions	1150/150/50mm(45.28/5.91/1.97in)(lxexs)
Distance between fork-arms	685/560(26.97/22.05in)mm
Battery Voltage/Nominal Capacity	48V20Ah lithium battery
Turning Radius	1360mm(53.54in)
Lift Height	105mm(4.13in)
Steering Design	Mechanical
Service Weight	140Kg(308.65lb)
Product Color	Ivory/Red/Customization

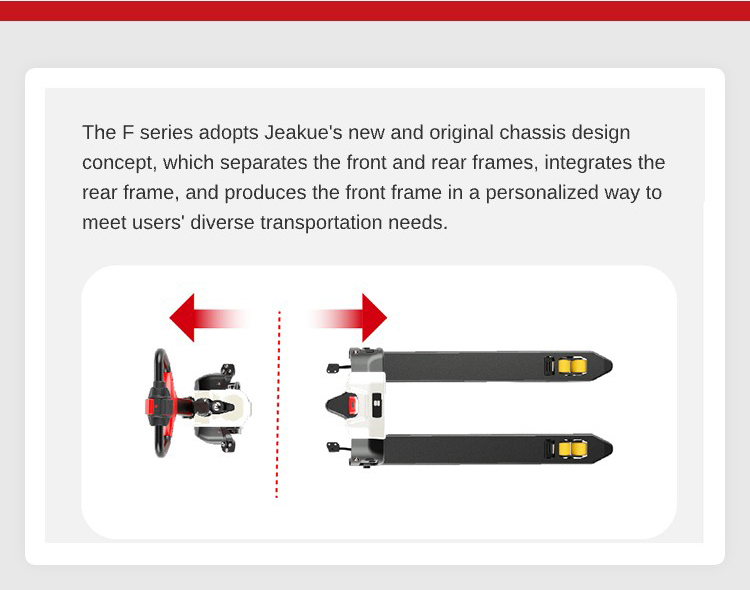

JEAKUE 2 Ton Pedestrian Lithium Battery Electric Pallet Truck-F4201 The F series adopts Jeakue’s new and original chassis design
concept, which separates the front and rear frames, integrates the rear frame, and produces the front frame in a personalized way to meet users’ diverse transportation needs.

JEAKUE 2 Ton Pedestrian Lithium Battery Electric Pallet Truck-F4201

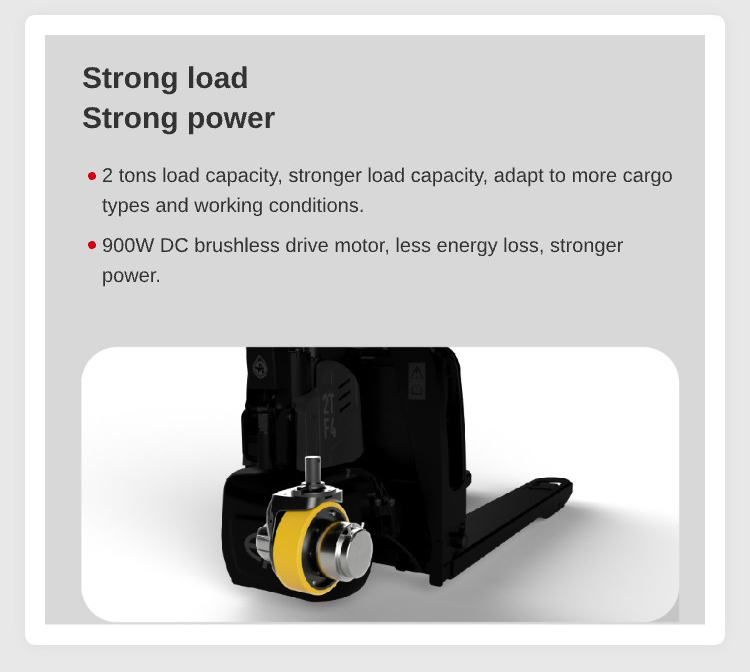

Strong load Strong power
2 tons load capacity, stronger load capacity, adapt to more cargo types and working conditions.
900W DC brushless drive motor, less energy loss, stronger power.

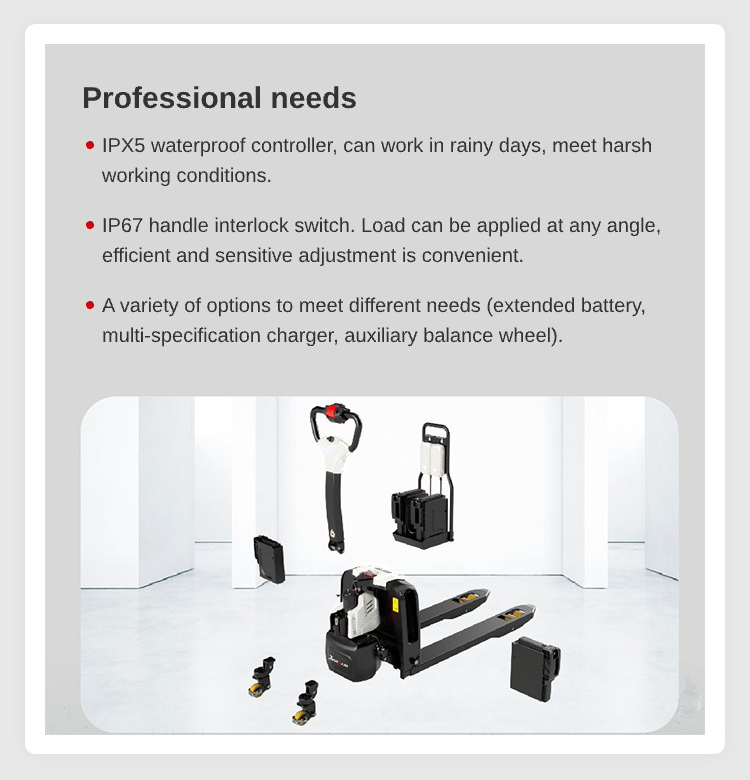

Professional needs JEAKUE 2 Ton Pedestrian Lithium Battery Electric Pallet Truck-F4201
IPX5 waterproof controller, can work in rainy days, meet harsh working conditions.
IP67 handle interlock switch. Load can be applied at any angle, efficient and sensitive adjustment is convenient.
A variety of options to meet different needs (extended battery, multi-specification charger, auxiliary balance wheel).

JEAKUE 2 Ton Pedestrian Lithium Battery Electric Pallet Truck-F4201

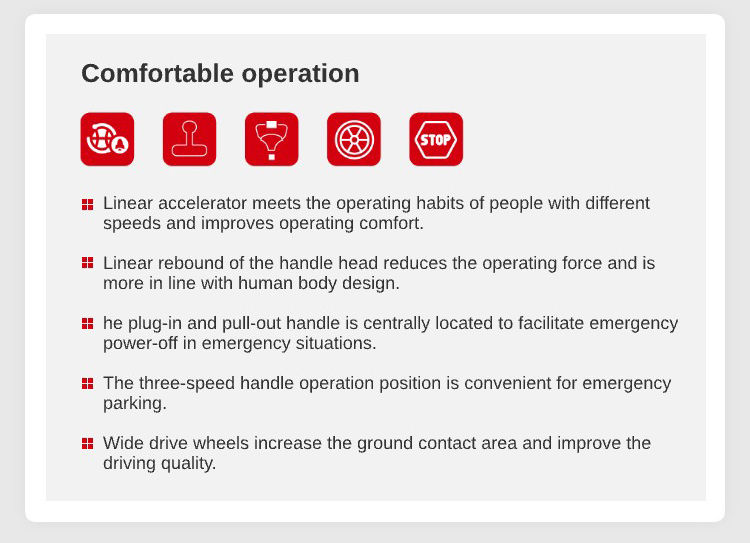

Comfortable operation
Linear accelerator meets the operating habits of people with different speeds and improves operating comfort.
Linear rebound of the handle head reduces the operating force and is more in line with human body design.
he plug-in and pull-out handle is centrally located to facilitate emergency power-off in emergency situations.
The three-speed handle operation position is convenient for emergency parking.

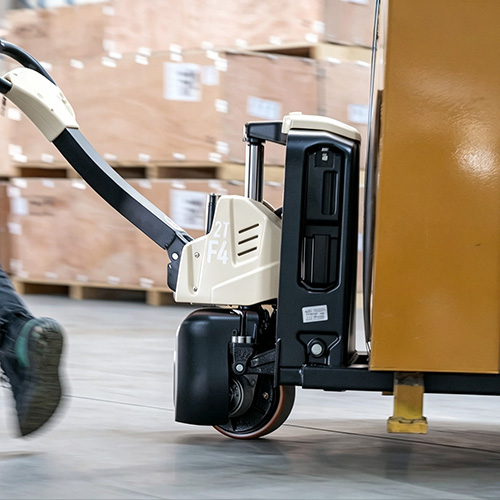

Wide drive wheels increase the ground contact area and improve the driving quality.

JEAKUE 2 Ton Pedestrian Lithium Battery Electric Pallet Truck-F4201

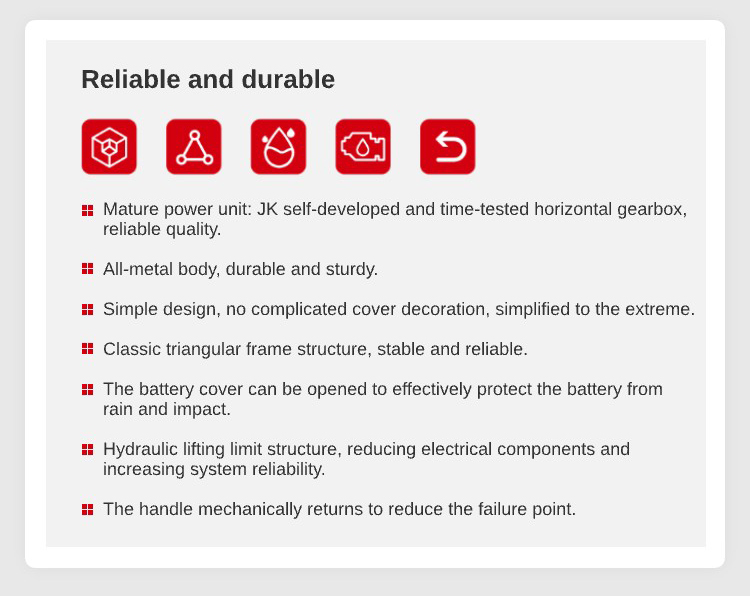

Reliable and durable

Mature power unit: JK self-developed and time-tested horizontal gearbox, reliable quality.
All-metal body, durable and sturdy.
Simple design, no complicated cover decoration, simplified to the extreme.
Classic triangular frame structure, stable and reliable.
The battery cover can be opened to effectively protect the battery from rain and impact.
Hydraulic lifting limit structure, reducing electrical components and increasing system reliability.
The handle mechanically returns to reduce the failure point.

JEAKUE 2 Ton Pedestrian Lithium Battery Electric Pallet Truck-F4201

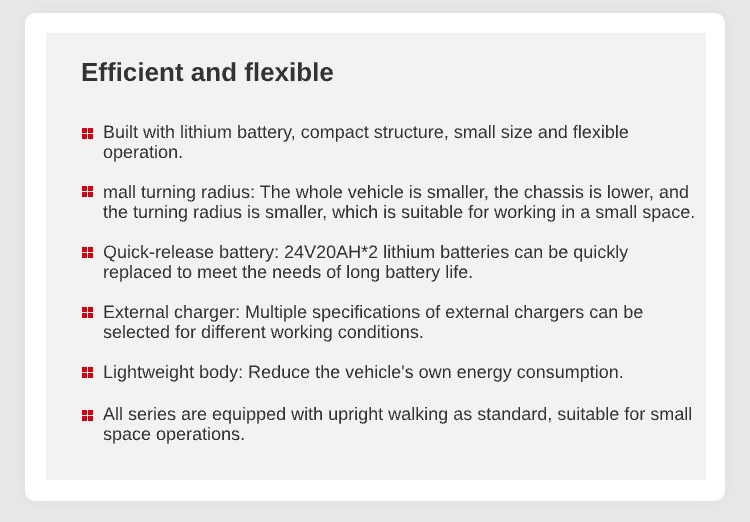

Efficient and flexible

Built with lithium battery, compact structure, small size and flexible operation.
mall turning radius: The whole vehicle is smaller, the chassis is lower, and the turning radius is smaller, which is suitable for working in a small space.

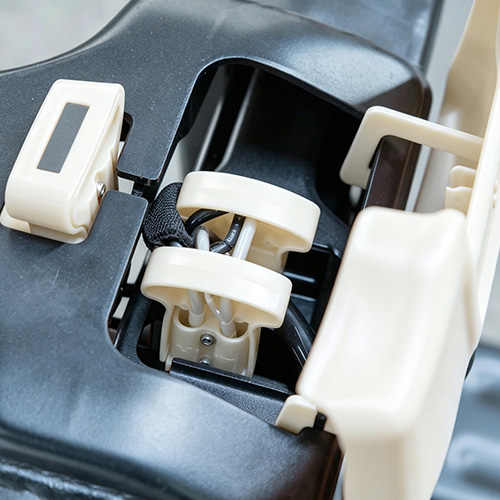

Quick-release battery: 24V20AH*2 lithium batteries can be quickly replaced to meet the needs of long battery life.
External charger: Multiple specifications of external chargers can be selected for different working conditions.
Lightweight body: Reduce the vehicle’s own energy consumption.JEAKUE 2 Ton Pedestrian Lithium Battery Electric Pallet Truck-F4201
All series are equipped with upright walking as standard, suitable for small space operations.

JEAKUE Full Electric Lithium Battery Operated Pallet Truck

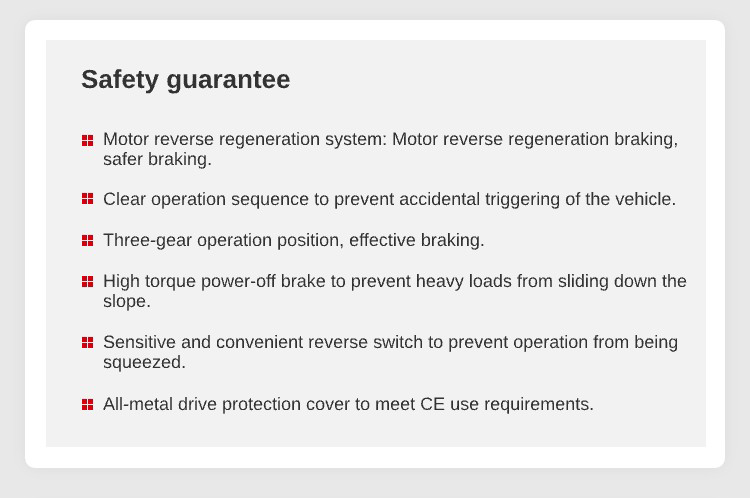

Safety guarantee
Motor reverse regeneration system: Motor reverse regeneration braking, safer braking.
Clear operation sequence to prevent accidental triggering of the vehicle.
Three-gear operation position, effective braking.

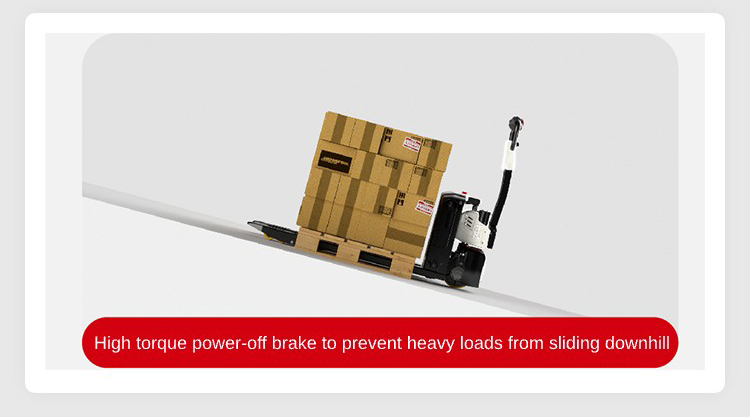

High torque power-off brake to prevent heavy loads from sliding down the slope.
Sensitive and convenient reverse switch to prevent operation from being squeezed.

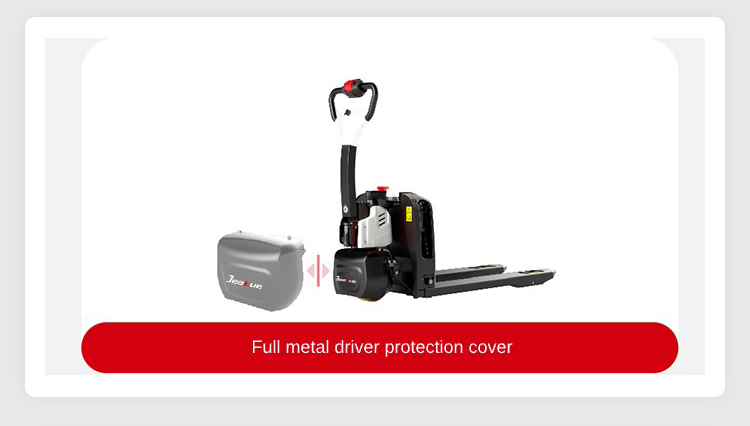

All-metal drive protection cover to meet CE use requirements.

JEAKUE 2 Ton Pedestrian Lithium Battery Electric Pallet Truck-F4201

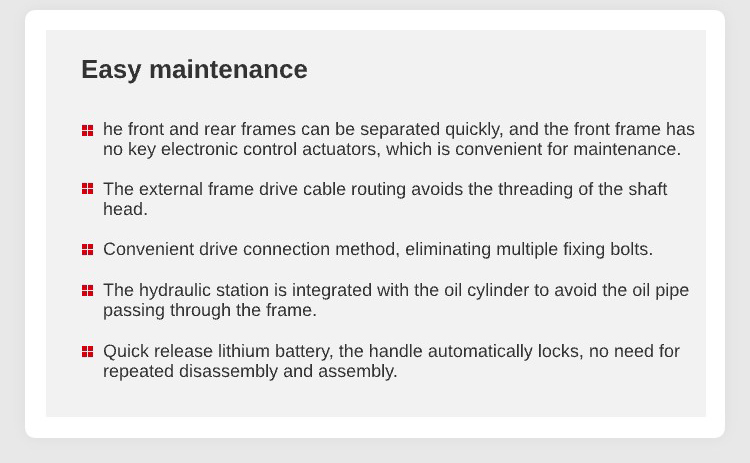

Easy maintenance

he front and rear frames can be separated quickly, and the front frame has no key electronic control actuators, which is convenient for maintenance.
The external frame drive cable routing avoids the threading of the shaft head.
Convenient drive connection method, eliminating multiple fixing bolts.
The hydraulic station is integrated with the oil cylinder to avoid the oil pipe passing through the frame.

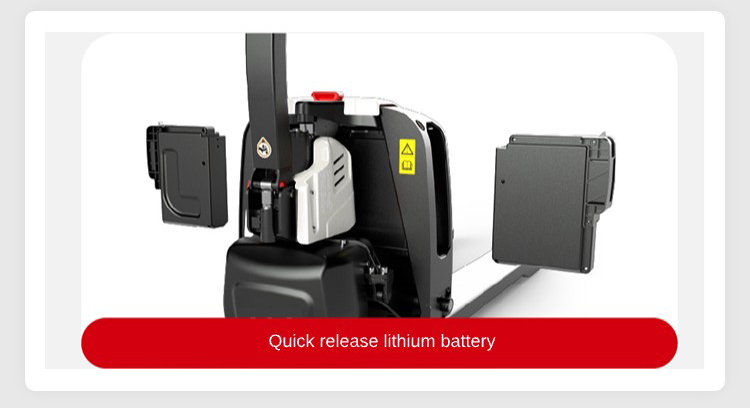

Quick release lithium battery, the handle automatically locks, no need for repeated disassembly and assembly.

JEAKUE 2 Ton Pedestrian Lithium Battery Electric Pallet Truck-F4201
