Description

Explore the EZ

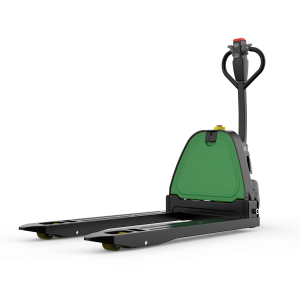

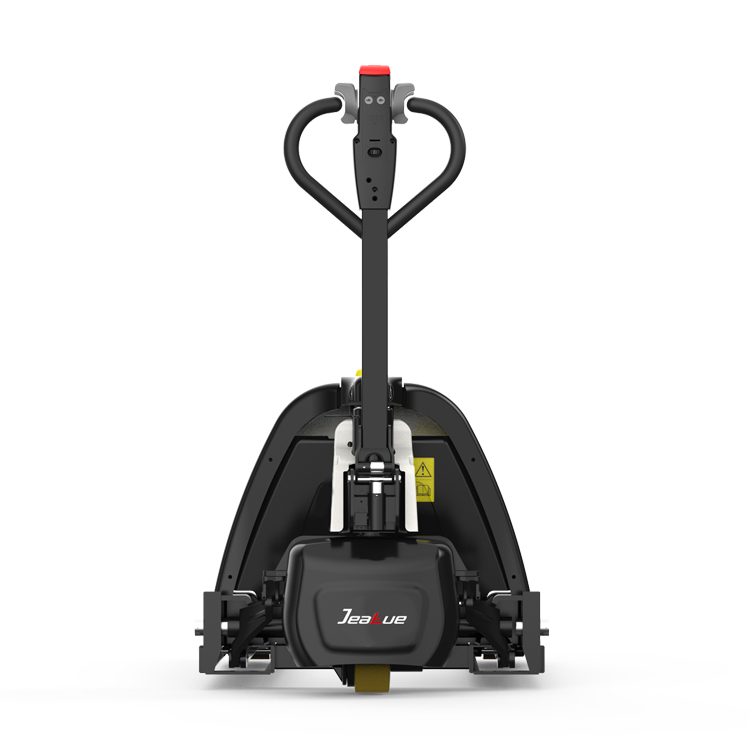

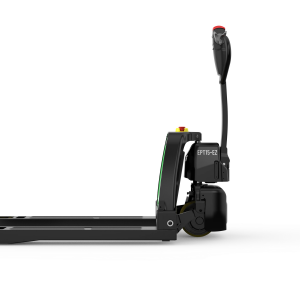

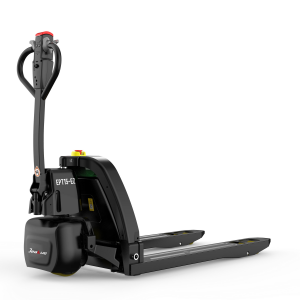

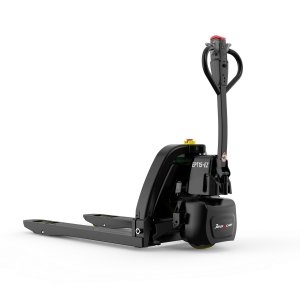

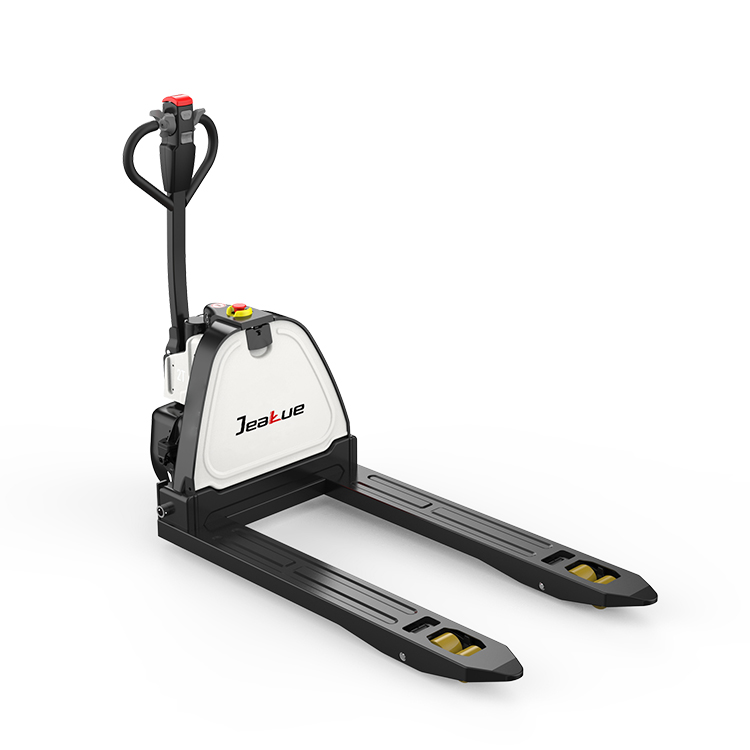

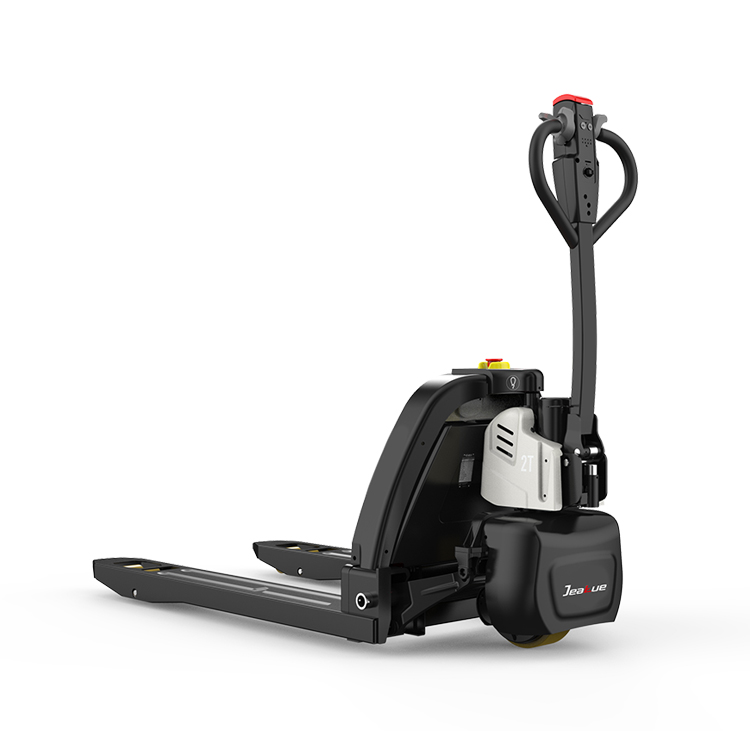

The EZ is a heavy-duty electric pallet truck equipped with a powerful 48V DC traction motor and a 10Ah lithium-ion battery. Compact yet robust, it offers excellent maneuverability with a 1390 mm turning radius and reliable ramp handling. Designed to optimize daily productivity, it combines strength, safety, and convenience in every move.
1.Compact and agile design

Despite its high capacity, the EZ retains a small 1390 mm turning radius, offering outstanding agility in tight spaces.

2.High-performance Li-ion power

Powered by a 48V/10Ah lithium-ion battery, the EZ offers consistent energy efficiency, fast charging, and reduced maintenance costs.

3.Safety and comfort built-in

The linear rebound tiller and mechanical steering reduce operator strain and ensure safe, controlled handling at all speeds.

4.Robust load handling

Designed for 2000 kg capacity, this pallet truck excels in demanding warehouse operations, ensuring stable and smooth transport even at full load.

Application

Engineered for medium to heavy-duty warehouse operations, logistics centers, and production lines, the EZ ensures effortless pallet movement across longer distances or moderate inclines. Its compact footprint allows it to operate seamlessly in narrow aisles and crowded loading areas, making it a versatile tool for diverse material handling environments.

About the EZ

The EZ elevates material handling efficiency through its advanced 48V/10Ah lithium-ion power system, offering exceptional energy output with minimal maintenance. Its wide traction wheel and robust all-metal chassis deliver superior balance and performance even under heavy loads. Featuring a linear rebound tiller for improved comfort and safety, the truck provides smooth, precise control for all operators. Whether in warehouses or logistics hubs, the EZ delivers exceptional productivity and reduced total cost of ownership, making it a perfect upgrade from traditional manual pallet trucks.

FAQs

What is the load capacity of the EZ?

It can handle up to 2000 kg, ideal for heavy-duty material handling.
What type of battery is used?

The EZ runs on a 48V/10Ah lithium-ion battery that is efficient, removable, and maintenance-free.
How well does it perform on ramps?

The truck achieves stable ramp performance with up to 8% gradeability when loaded.
Is it suitable for tight warehouse spaces?

Yes, with its compact design and 1390 mm turning radius, it easily maneuvers in narrow aisles and loading zones.
How does it ensure operator safety?

The tiller’s linear rebound mechanism and mechanical steering offer secure, smooth control for enhanced safety.

PRODUCT FEATURES

Load Capacity	2000Kg(4409.24 lb)
Fork Dimensions	1150/150/50mm(45.28/5.91/1.97in)(lxexs)
Distance between fork-arms	695/590mm(27.36/23.23in）
Battery Voltage/Nominal Capacity	48V10Ah lithium battery
Turning Radius	1390mm（54.72in）
Lift Height	105mm(4.13in)
Steering Design	Mechanical
Service Weight	130Kg(286.60lb)
Product Color	Ivory/Red/Customization

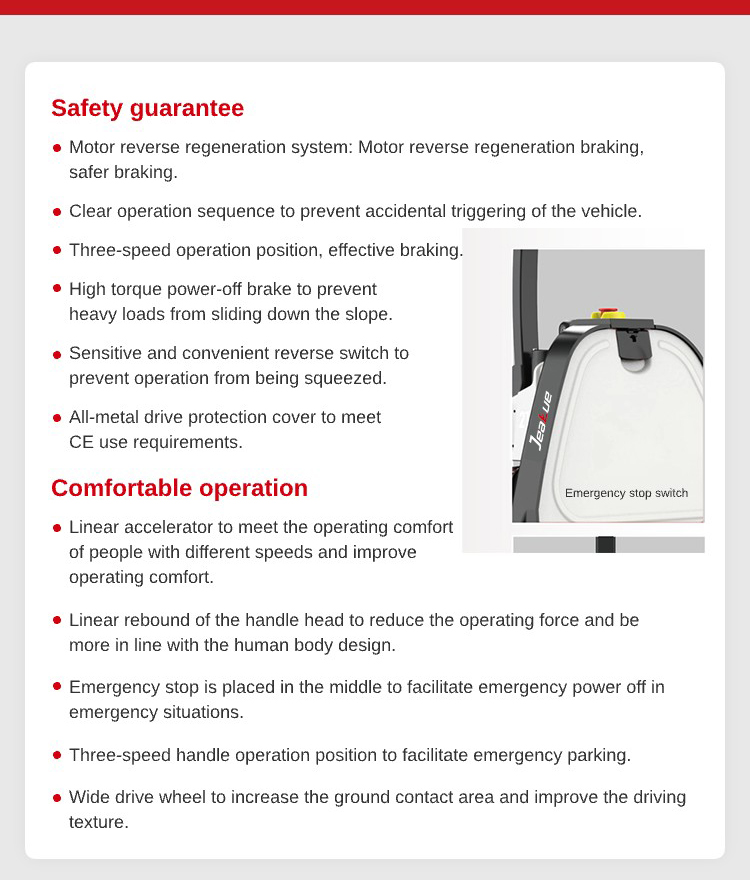

Safety guarantee

JEAKUE 2 Ton Pedestrian Lithium Battery Electric Pallet Truck-EZ
Motor reverse regeneration system: Motor reverse regeneration braking, safer braking.
Clear operation sequence to prevent accidental triggering of the vehicle.
Three-speed operation position, effective braking.

JEAKUE 2 Ton Electric Pallet Truck with Scale 2000kg Steel Pallet Jack Lithium Battery Powered Durable and Efficient
High torque power-off brake to prevent heavy loads from sliding down the slope.
Sensitive and convenient reverse switch to prevent operation from being squeezed.
All-metal drive protection cover to meet CE use requirements.
Comfortable operation Emergency stop switch

JEAKUE 2 Ton Pedestrian Lithium Battery Electric Pallet Truck-EZ
Linear accelerator to meet the operating comfort of people with different speeds and improve operating comfort.
Linear rebound of the handle head to reduce the operating force and be more in line with the human body design.
Emergency stop is placed in the middle to facilitate emergency power off in emergency situations.
Three-speed handle operation position to facilitate emergency parking.
Wide drive wheel to increase the ground contact area and improve the driving texture.

JEAKUE 2 Ton Pedestrian Lithium Battery Electric Pallet Truck-EZ

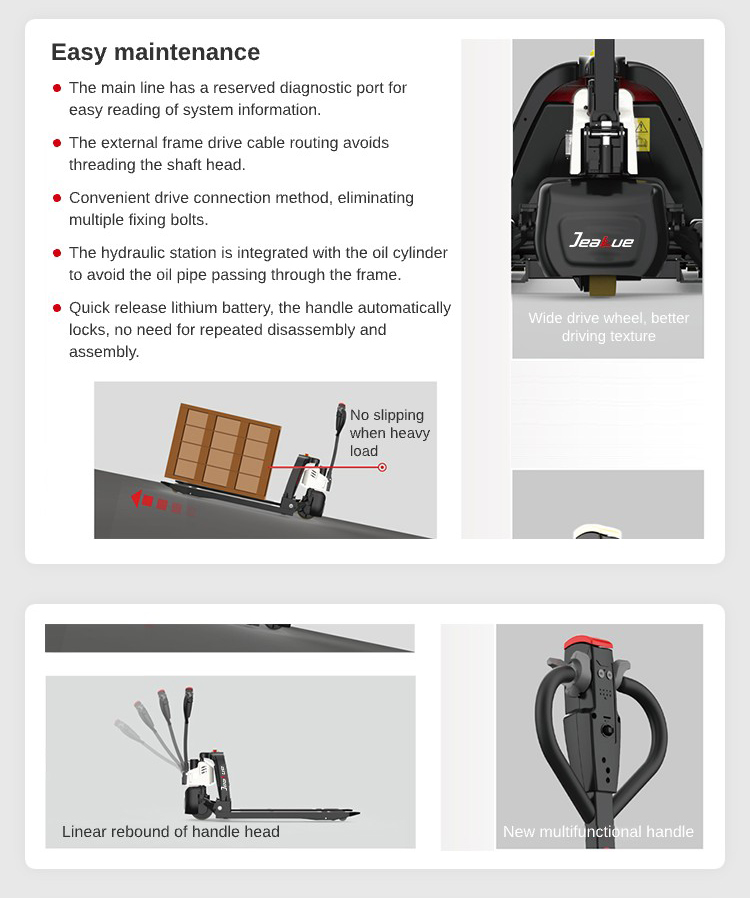

Easy maintenance
The main line has a reserved diagnostic port for easy reading of system information.
The external frame drive cable routing avoids threading the shaft head.
Convenient drive connection method, eliminating multiple fixing bolts.
The hydraulic station is integrated with the oil cylinder to avoid the oil pipe passing through the frame.
Quick release lithium battery, the handle automatically locks, no need for repeated disassembly and assembly.

JEAKUE 2 Ton Pedestrian Lithium Battery Electric Pallet Truck-EZ

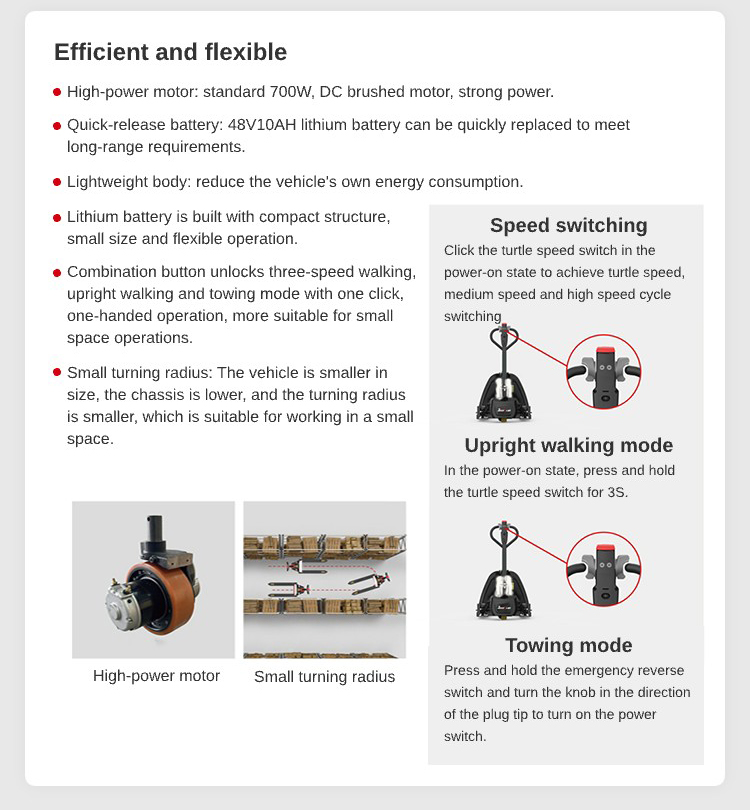

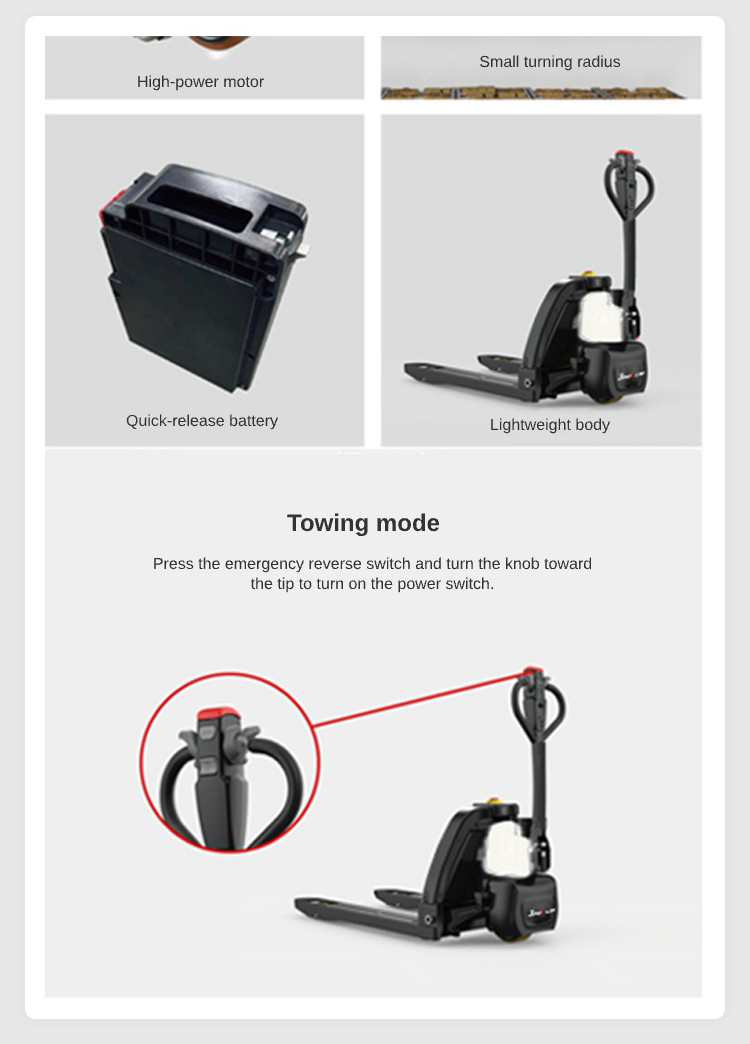

Efficient and flexible
High-power motor: standard 700w, DC brushed motor, strong power.
Quick-release battery: 48V10AH lithium battery can be quickly replaced to meet long-range requirements.
Lightweight body: reduce the vehicle’s own energy consumption.

JEAKUE 2 Ton Pedestrian Lithium Battery Electric Pallet Truck-EZ

Lithium battery is built with compact structure, small size and flexible operation.
Combination button unlocks three-speed walking, upright walking and towing mode with one click, one-handed operation, more suitable for small space operations.
Small turning radius: The vehicle is smaller in size, the chassis is lower, and the turning radius is smaller, which is suitable for working in a small space.

JEAKUE 2 Ton Pedestrian Lithium Battery Electric Pallet Truck-EZ

Speed switching

Click the turtle speed switch in the power-on state to achieve turtle speed, medium speed and high speed cycle switching

Upright walking mode

In the power-on state, press and hold the turtle speed switch for 3S.

JEAKUE 2 Ton Pedestrian Lithium Battery Electric Pallet Truck-EZ

Towing mode
Press and hold the emergency reverse switch and turn the knob in the direction of the plug tip to turn on the power switch.

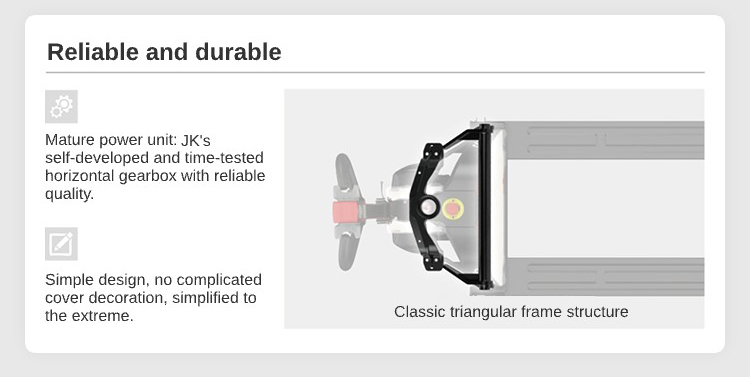

Reliable and durable

Mature power unit: JK’s self-developed and time-tested horizontal gearbox with reliable quality.

Simple design, no complicated cover decoration, simplified to the extreme.

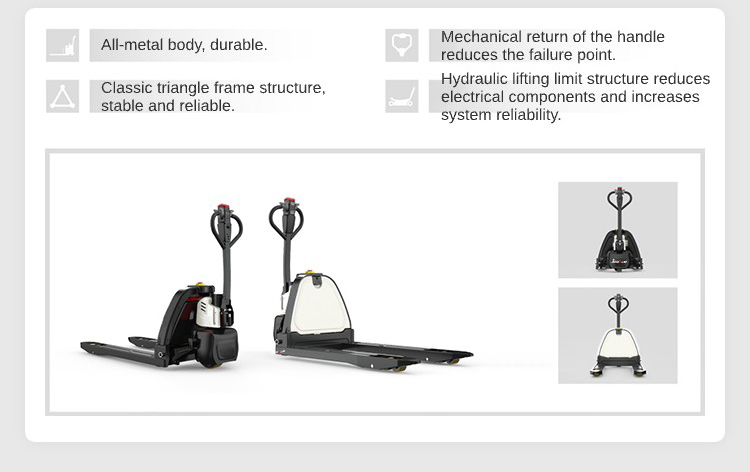

All-metal body, durable.

JEAKUE 2 Ton Pedestrian Lithium Battery Electric Pallet Truck-EZ

Mechanical return of the handle reduces the failure point.
Classic triangle frame structure, stable and reliable.

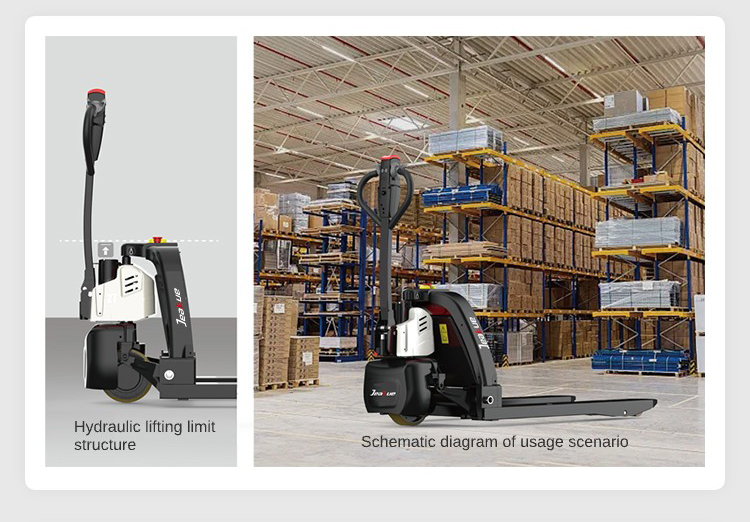

Hydraulic lifting limit structure reduces electrical components and increases system reliability.

JEAKUE 2 Ton Pedestrian Lithium Battery Electric Pallet Truck-EZ
