2 Ton (4409.24 lb) Lithium Battery Pallet Truck-201

Load Capacity:2000kg(4409.24 lb) Electric Pallet Truck

Battery Voltage:24V100Ah lithium battery

Service Weight:280KG(617.29lb)

Categories: -Electric, -Pedestrian, –Material Handling, –Pallet Trucks

Add to quote

Description

Explore the 201

The 201 is a new-generation lithium-powered pedestrian pallet truck with a 2,000 kg load capacity, designed for superior productivity in tight spaces. Featuring EP’s in-house Li-ion technology, advanced castor stabilization, and an integrated charger, it offers smooth operation, maximum uptime, and exceptional handling in demanding warehouse environments.
1.Ultra-Compact Chassis and Tight Turning Radius

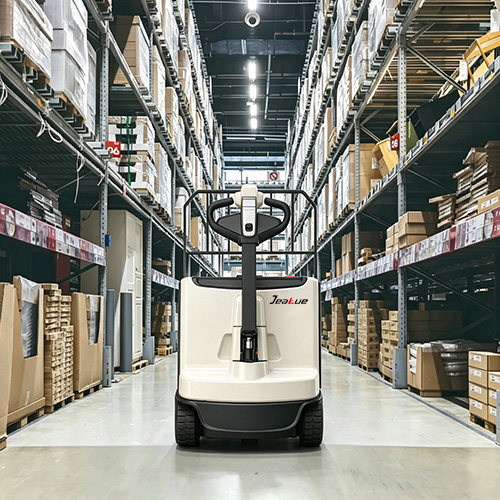

With a class-leading 435 mm chassis length and 1,283 mm turning radius, the 201 operates effortlessly in narrow aisles, trailers, and confined spaces. This compact build enhances maneuverability and reduces storage and transport costs.

2.Maximum traction and stability with low noise emission

Thanks to the innovative synchronized castor system 201 maintains great balance and traction even under heavy loads and on every kind of floor. Operating noise remains below 65 dB, ensuring smooth, quiet, and safe handling in all warehouse conditions.

3.Advanced Lithium Technology with Integrated Charger

Equipped with a 24 V / 100 Ah Li-ion battery and 30 A integrated charger, the 201 offers long runtime and enables opportunity charging during breaks for maximum uptime. The optional 205 Ah battery and 100 A external charger support intensive multi-shift operations.

4.High-Performance AC

A 2.2 kW pump motor and 1.6 kW AC drive motor deliver fast travel, lifting, and lowering speeds. With strong gradeability and responsive control, the truck performs reliably in heavy-duty warehouse and logistics applications.

5.Operator-Focused Digital Features

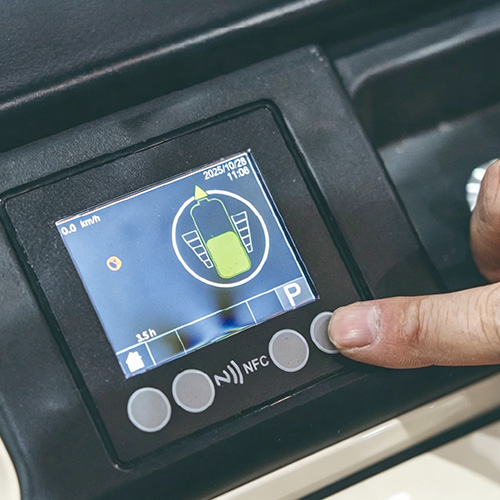

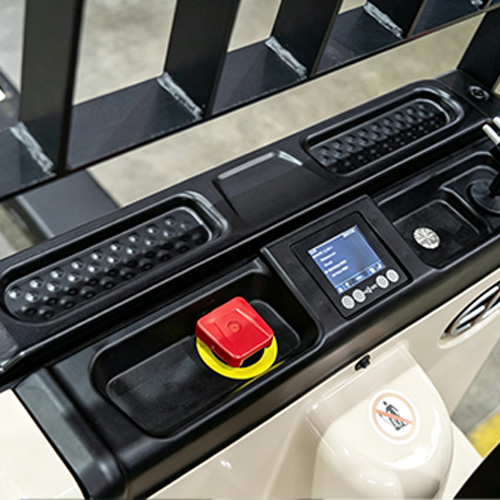

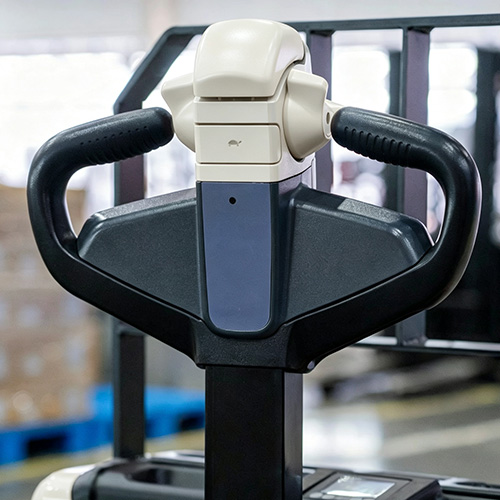

The multi-function color display shows battery level, speed, status, and time; the ESP drive mode selector adapts performance to operator preferences. Optional operator ID (PIN or card) and Bluetooth app connectivity enhance safety and simplify maintenance.

Application

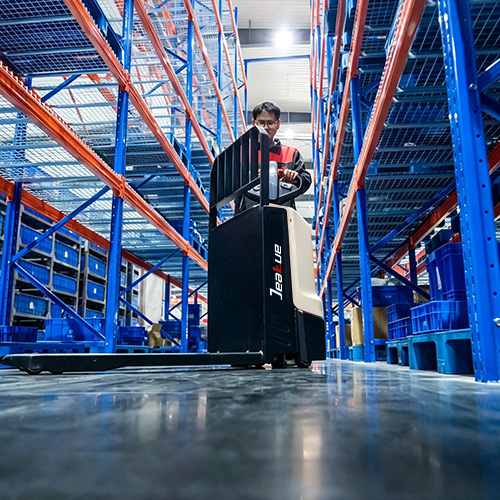

Ideal for warehouses, retail logistics, manufacturing, and last-mile distribution, the 201 thrives in narrow aisles, containers, and high-density storage zones. Its ultra-compact chassis (435 mm length) and tight 1,283 mm turning radius make it the perfect solution for operations with limited maneuvering space. Highly performing in both travel and lifting speeds, the 201 ensures reliable, quiet, and safe material handling across shifts.

About the 201

The JK 201 sets a new benchmark in professional pallet transport. Powered by JK’s 24 V / 100 Ah Li-ion battery and equipped with a 30 A integrated charger (optional 205 Ah and 100 A fast charger available), it delivers consistent energy with zero maintenance and full opportunity-charging capability. Its 2.2 kW lift motor and 1.6 kW AC drive motor provide robust performance and high gradeability, while the synchronized castor system guarantees stability and traction even on uneven floors. Operators benefit from a multi-function color display with ESP drive modes, Bluetooth connectivity, and parameter customization. Built for durability and comfort, the 201 combines ergonomic design, silent operation (≤ 65 dB), and JK’s signature reliability to maximize productivity shift after shift.

FAQs

What is the load capacity of the 201?

The 201 supports a maximum load of 2,000 kg, making it ideal for medium to heavy-duty warehouse and logistics operations.
How compact is the truck for use in narrow aisles?

With a 435 mm chassis length and 1,283 mm turning radius, it’s one of the most compact trucks in its class, perfect for confined spaces, trailers, and dense storage zones.
What battery options are available?

The truck comes standard with a 24 V / 100 Ah Li-ion battery and 30 A integrated charger, while a 205 Ah battery with 100 A external fast charger is available for longer or multi-shift operations.
How does the synchronized castor system improve operation?

It stabilizes traction on uneven surfaces and under heavy loads, reducing vibration and maintaining operator comfort while keeping noise levels under 65 dB.
What operator-friendly features are included?

The truck includes a smart color display, ESP mode selector, and optional operator ID login. Bluetooth connectivity via the JK App allows quick parameter adjustments and remote maintenance checks.

PRODUCT FEATURES

Load Capacity	2000Kg(4409.24 lb)
Fork Dimensions	1150/170/55mm(45.28/6.69/2.17in)(lxexs)
Distance between fork-arms	685/540mm(26.97/21.26in)
Battery Voltage/Nominal Capacity	24V/100Ah lithium battery
Turning Radius	1283mm(50.51in)
Lift Height	125mm(4.92in)
Steering Design	Mechanical
Service Weight	280Kg(617.29lb)
Product Color	Ivory/Red/Customization
