2 Ton High-Speed Transport & Cross Docking for Logistics-XPL201
Description
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
Explore the XQD40T
High-Speed Performance
The XPL201 offers a travel speed of up to 2.5 m/s and a load capacity of 2000 kg, making it ideal for long-distance, high-intensity transport. Its robust chassis and drive system enable it to handle demanding environments such as large-scale distribution centers.
SLAM Navigation
Using SLAM navigation and 3D vision-guided alignment, the XPL201 ensures ±10mm positioning accuracy. Operators can assign and monitor tasks through an intuitive touchscreen, PDA, mobile phone, or call box, ensuring seamless control and visibility across operations.
Multi-Layer Safety System
Safety is built into every layer of the XPL201. With 3D obstacle detection, PLD lidars for 360° coverage, and fork sensors, it provides full-area protection. Overhead 2D cameras and photoelectric sensors ensure safe loading, unloading, and navigation even in dynamic environments.
Auto-Charging
Equipped with a 24V/205Ah lithium-ion battery, the XPL201 supports fast charging and offers an optional auto-charging station for autonomous recharging. Intelligent power management ensures continuous uptime and maintenance-free operation around the clock.
Application
The XPL201 excels in long-distance, high-speed transport and is perfect for large warehouses, manufacturing plants, and cross-docking operations. It can perform repetitive A-to-B material transport, feed production lines, or transport heavy pallets across multiple facility zones. Thanks to its ability to integrate with our DAS, Digital Twin and RCS (EP’s own fleet management system) as well as with cargo lifts, auto doors, conveyors, and various WMS/MES/ERP systems, the XPL201 supports fully integrated workflows in even the most complex operations. Whether working solo or as part of a fleet, it boosts efficiency in long-distance transport of goods.

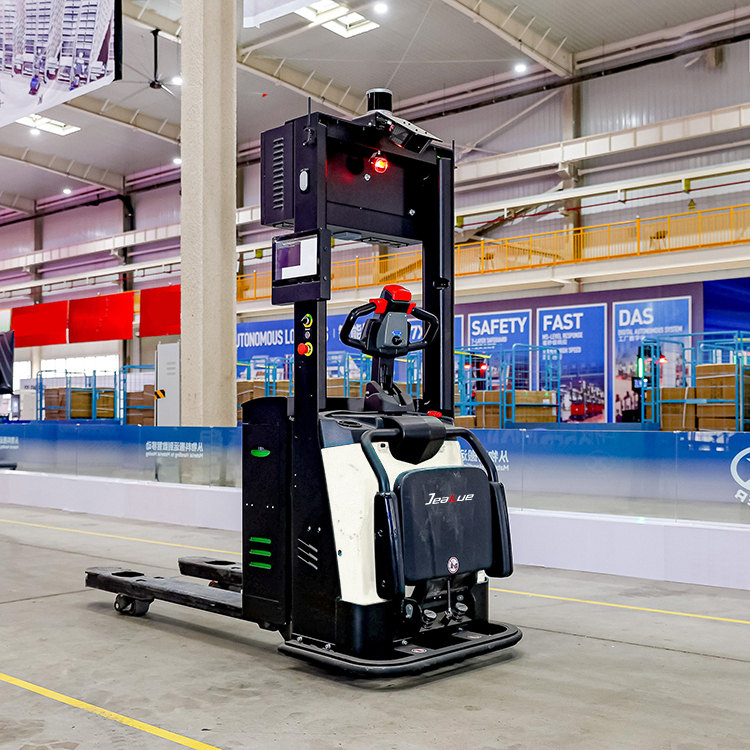

About the XPL201
The XPL201 represents a new generation of high-speed automated material movers that bridge the gap between performance and intelligence. Designed for demanding industrial environments, it combines robust engineering with adaptive automation for maximum throughput. Its smart navigation, flexible zone management, and seamless system integration make it a core component of future-ready logistics strategies. From warehousing to production logistics, the XPL201 allows companies to navigate their material transporting ecosystem smarter and faster.
PRODUCT PARAMETERS
| Section | Item | Symbol | Unit | Value |
|---|---|---|---|---|
| Basic parameters | Manufacturer | – | – | JK |
| Model designation | – | – | XPL201 | |
| Drive | – | – | Electric | |
| Operator type | – | – | Standing | |
| Load capacity | Q | kg | 2000 | |
| Service weight | – | kg | 625 | |
| Navigation | – | – | SLAM/Reflector | |
| Communication | – | – | Wi‑fi + 5G | |
| Positioning accuracy | – | mm | ±10 | |
| Indoor/Outdoor | – | – | Indoor | |
| Battery parameters | Battery voltage/nominal capacity | – | V/Ah | 24/150 |
| Battery type | – | – | Li‑ion battery | |
| Battery weight | – | kg | 50 | |
| Usage time | – | h | 6‑8 | |
| Size | Dimensions | l1/b1/h1 | mm | 2100/981/2175 (LWH) |
| Load center distance | c | mm | 600 | |
| Load distance, center of drive axle to fork | x | mm | 980 | |
| Wheelbase | y | mm | 1430 | |
| Length to face of forks | l2 | mm | 1033 | |
| Fork dimensions | s/e/l | mm | 55/170/1350 | |
| Distance between fork‑arms | b5 | mm | 540/600/685 | |
| Lowered height | h13 | mm | 90 | |
| Lift height | h3 | mm | 110 | |
| Other parameters | Travel speed, laden/unladen | – | m/s | 2/2.5 |
| Max. gradeability, laden/unladen | – | % | 8/10 | |
| Maximum floor level deviation | – | mm | ≤8 | |
| Turning radius | Wa | mm | 1785 | |
| Channel requirements | Aisle width for pallets 1000×1200 lengthways | Ast | mm | 1800 |
| Aisle width for pallets 1000×1200 crossways | Ast | mm | 2500 | |
| Aisle width for one‑sided loading/unloading (pallet: 1200 mm L × 1000 mm W) | Ast | mm | 3600/3000 | |
| Safety | Emergency stop button | – | – | Two sides |
| Voice and light | – | – | Audible and visible | |
| Front protection | – | – | Lidar + 3D camera | |
| Back protection | – | – | Fork‑tip Lidar + Camera | |
| Physical bumper | – | – | Front + two sides | |
| Pallet in‑place detection switch | – | – | Position Switch | |
| Communication | – | – | WIFI | |
| Charging power | – | – | •24V/50A |
FAQs
Where can the XPL201 be used?
It’s ideal for logistics centres, distribution warehouses, manufacturing plants, and finished goods areas. Best suitable for high-performance, long-distance, high-speed transport
What kind of loads can the XPL201 handle?
It’s designed for standard pallets and can handle up to 2 tons, depending on configuration. It supports both Euro and industrial pallets, commonly used in logistics and production.
Is it safe to operate around people and forklifts?
Yes. The XPL201 uses advanced safety LiDARs, cameras, and sensors that detect obstacles and people. It automatically slows down or stops when someone enters its safety zone, ensuring safe coexistence with human workers and other vehicles.
What happens if something blocks the XPL’s path?
It detects obstacles instantly and will either stop, wait, or calculate a new route around the obstacle – depending on the situation. Once the path is clear, it resumes its task automatically.
