Description

Explore the FBR14/16L3

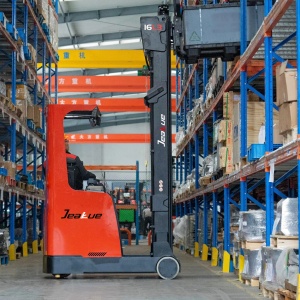

The FBR14/16L3 series combines compact dimensions with powerful 80V Li-ion technology, delivering lifting heights up to 9.65 meters while ensuring high stability and safety. Designed for narrow aisles with a working width of only 2701 mm, it offers proportional lifting, precise steering, and a spacious operator cab with excellent visibility.
1.Compact and agile design

With a working aisle width of just 2701 mm, the CQD14/16L3 is perfectly suited for narrow aisles and high-density racking. Its small turning radius adds agility, making it highly competitive in space-constrained warehouses.

2.Enhanced mast stability

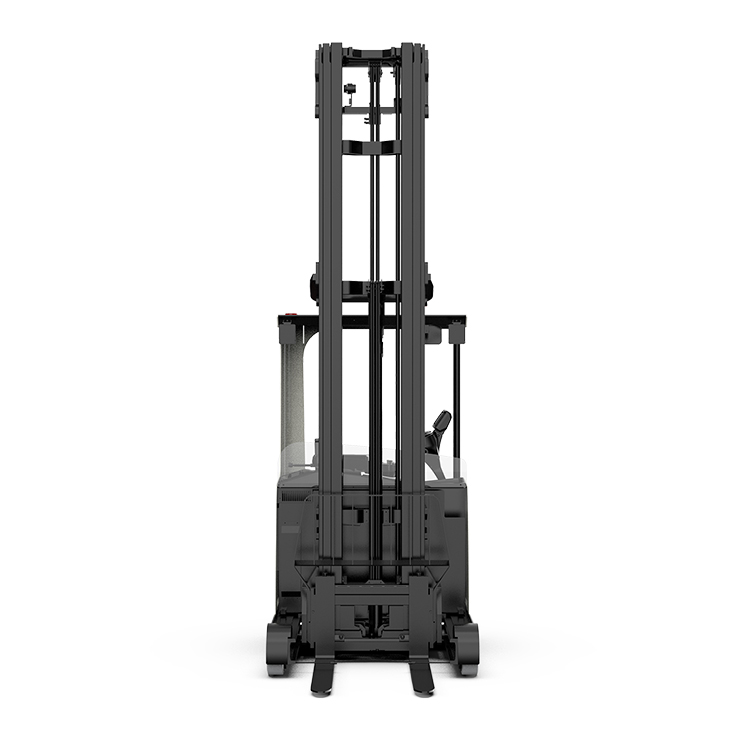

The optimized mast reaches up to 8 m (CQD14L3) and 9.65 m (CQD16L3), ensuring stability even under heavy loads. High residual capacity at full height guarantees consistent performance in demanding operations.

3.Efficient Li-ion power system

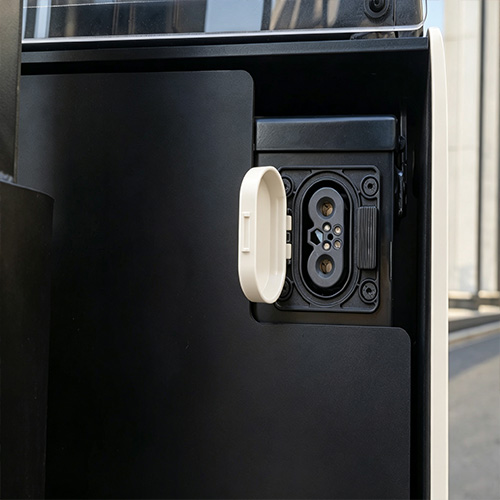

Powered by an 80V Li-ion battery (150–280Ah), the series supports fast lifting and lowering speeds and offers convenient external charging. The Li-ion system enables opportunity charging and eliminates battery maintenance.

4.Operator-focused ergonomics

A spacious cab with unobstructed visibility, electronic steering with damping, and fingertip or joystick controls enhance safety and comfort. Features like proportional lifting and full-color display provide precise handling and ease of use.

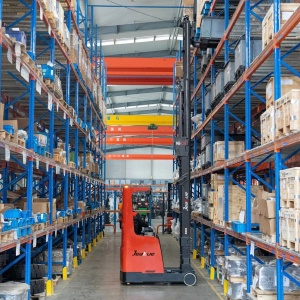

Application

The FBR14/16L3 series is ideal for high-density warehouses, logistics hubs, and distribution centers. Its optimized mast provides stability at full lift height, while proportional lifting ensures gentle and accurate handling of heavy or fragile goods. With a compact chassis and tight turning radius, it is well-suited for narrow aisles and space-restricted environments. Optional features such as cold storage configuration, safety lamps, and telematics make it adaptable to diverse industry needs.

About the FBR14/16L3

The FBR14/16 L3 redefines performance in the reach truck category. Equipped with an 80V Li-ion battery system (up to 280Ah), it delivers fast lifting and lowering speeds of 0.6 m/s and 0.55 m/s for maximum efficiency. The enhanced mast ensures stability even at heights of 8–9.65 m, maintaining high residual capacities. Operators benefit from ergonomic seating, fingertip or joystick controls, electronic steering with damping, and all-round visibility for fatigue-free work. With options like integrated sideshifter, advanced warning systems, and cold storage adaptation, the FBR14/16L3 is a versatile and future-ready solution for modern warehouses.

FAQs

What is the load capacity of the CQD14/16 PRO series?

The series includes models with 1.4-ton (FBR14 L3) and 1.6-ton (FBR16L3) load capacities, suitable for a wide range of warehouse applications.

How high can the FBR14/16 L3 reach?

The mast can lift up to 8 meters (FBR14 L3) or 9.65 meters (FBR16L3), maintaining excellent residual capacity and stability at height.

What type of battery powers the FBR14/16L3?

Both models are powered by an 80V Li-ion battery with capacities ranging from 150Ah to 280Ah, supporting opportunity charging and eliminating the need for maintenance.

Is the FBR14/16L3 suitable for narrow aisles?

Yes. With a working aisle width of just 2701 mm and compact chassis design, the trucks are optimized for high-density warehouses and space-restricted environments.

What features improve operator comfort and safety?

The series offers a spacious cab with wide visibility, ergonomic seating, fingertip or joystick controls, electronic steering with damping, and optional safety add-ons such as warning lamps and cold storage configuration.

PRODUCT FEATURES

Load Capacity	1400Kg(2800lb)
Battery	80V150Ah/205Ah/280Ah Lithium Battery
Controller/Motor	AC
Lift Height	3000-8255mm(118.110-325.00in)
Turning Radius	1629mm(64.13in)
Dimensions	1265*1270*3430mm(49.80*50.00*135.04in)(LxWxH)
Steering Design	Electric Powering Steering
Tyre Type	Polyurethane
Service Weight	3905Kg(8609.05lb)
Product Color	Ivory/Red/Customization

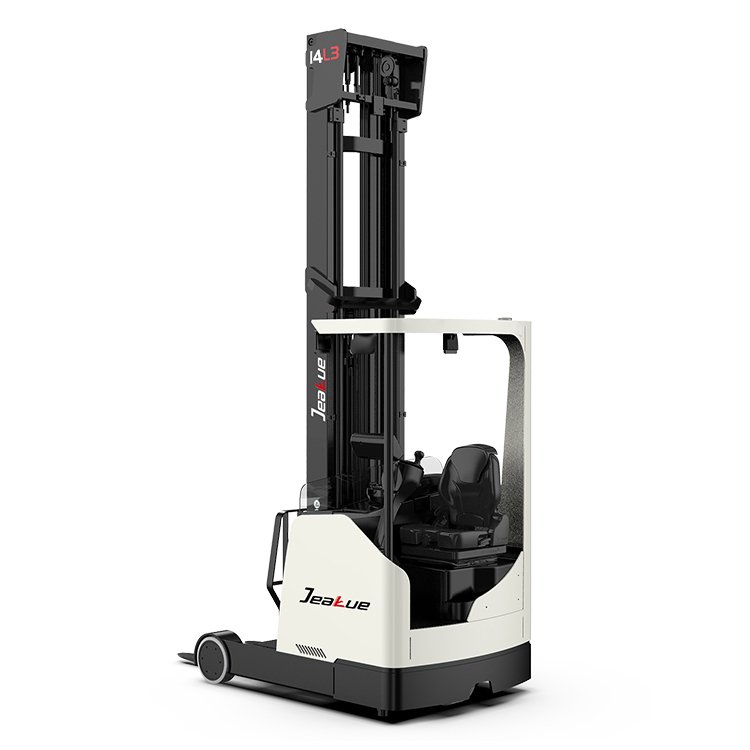

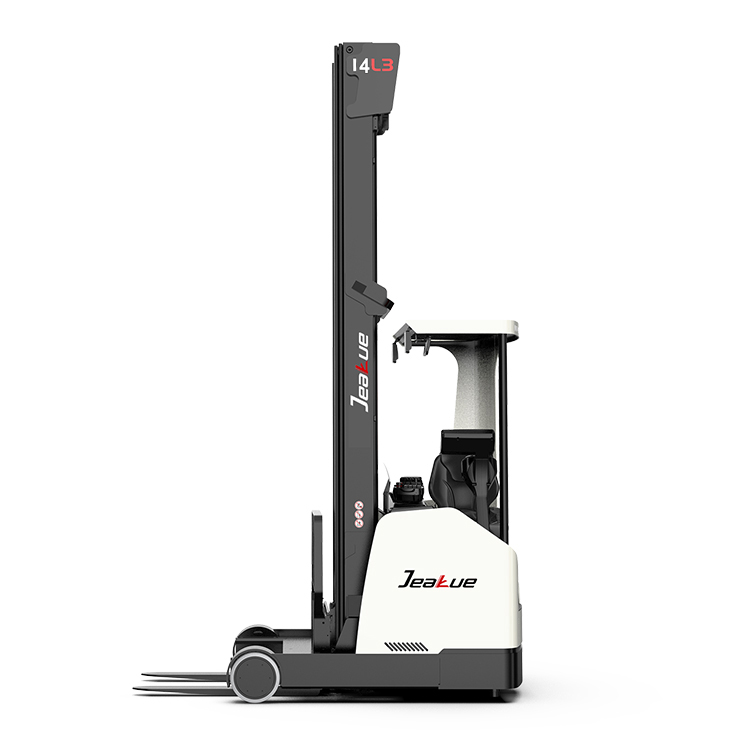

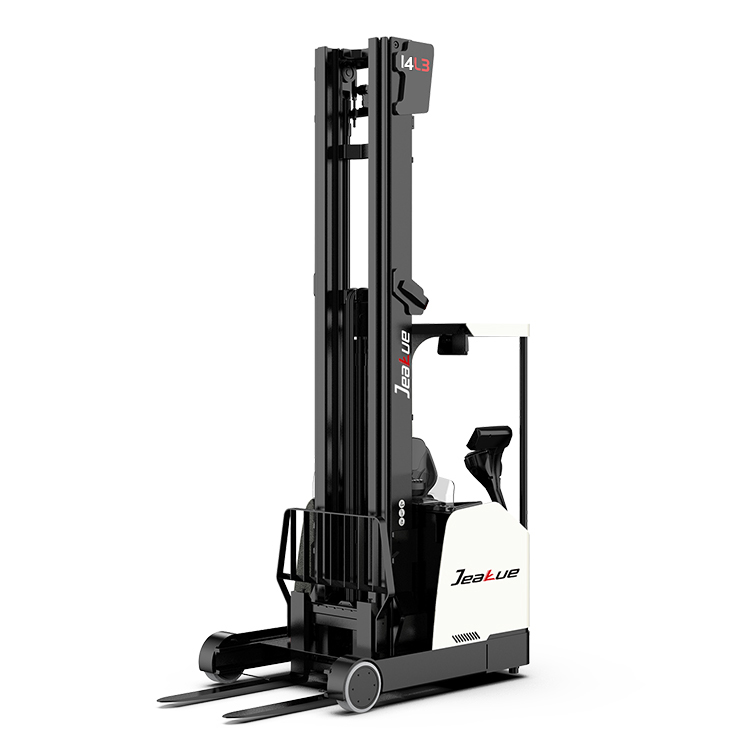

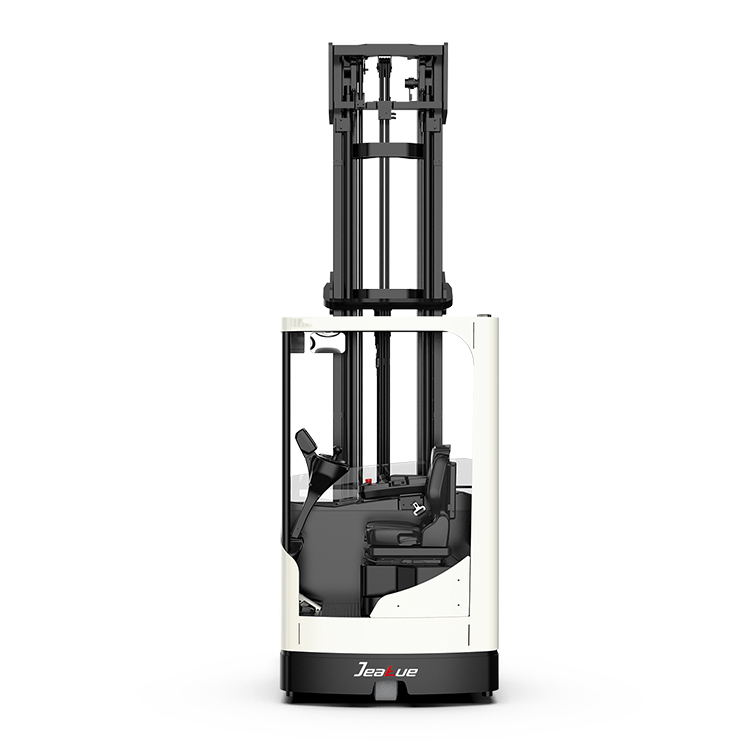

JEAKUE 1.4-1.6 Ton Lithium Battery Ride-on Reach Electric Forklift-L3
Reach Truck
FBR14/16L3
1.4/1.6Ton
Lithium-ion Reach Truck

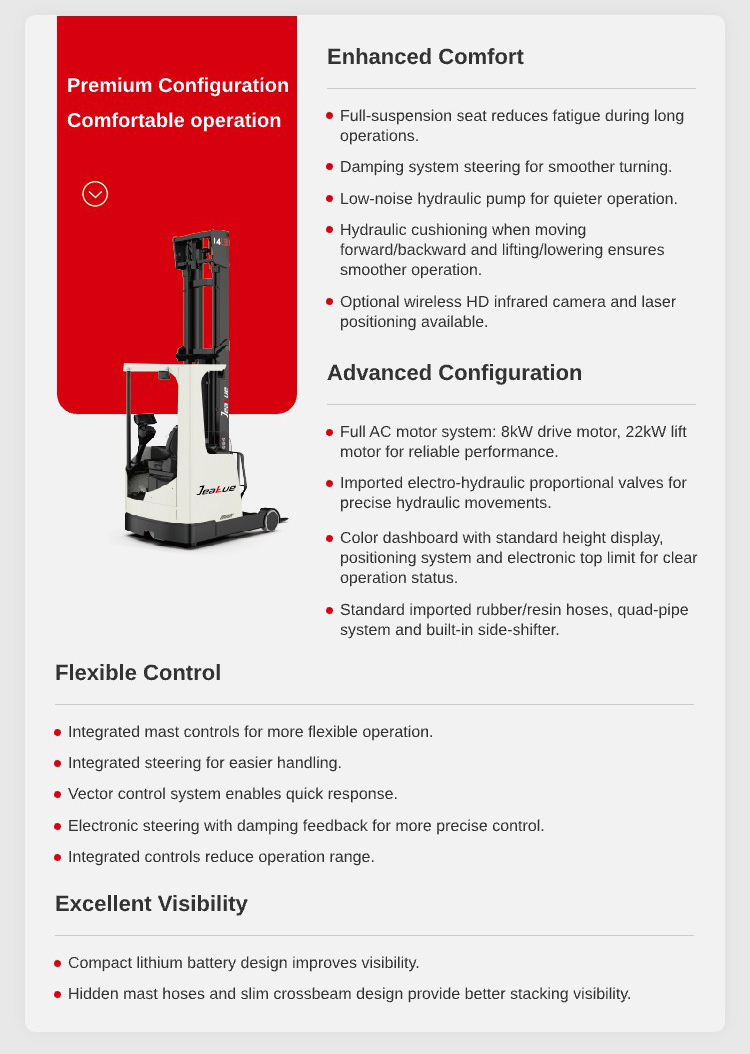

Premium Configuration

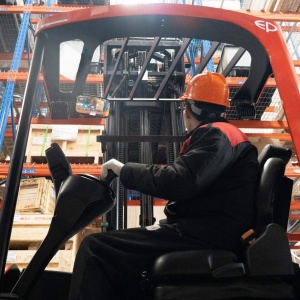

Comfortable operation

Enhanced Comfort
Full-suspension seat reduces fatigue during long operations.
Damping system steering for smoother turning.JEAKUE 1.4-1.6 Ton Lithium Battery Ride-on Reach Forklift Truck-L3
Low-noise hydraulic pump for quieter operation.
Hydraulic cushioning when moving forward/backward and lifting/lowering ensures smoother operation.
Optional wireless HD infrared camera and laser positioning available.JEAKUE 1.4-1.6 Ton Lithium Battery Ride-on Reach Forklift Truck-L3

Advanced Configuration JEAKUE 1.4-1.6 Ton Lithium Battery Ride-on Reach Forklift Truck-L3
Full AC motor system: 8kW drive motor, 22kW lift motor for reliable performance.
Imported electro-hydraulic proportional valves for precise hydraulic movements.
Color dashboard with standard height display,positioning system and electronic top limit for clear operation status.

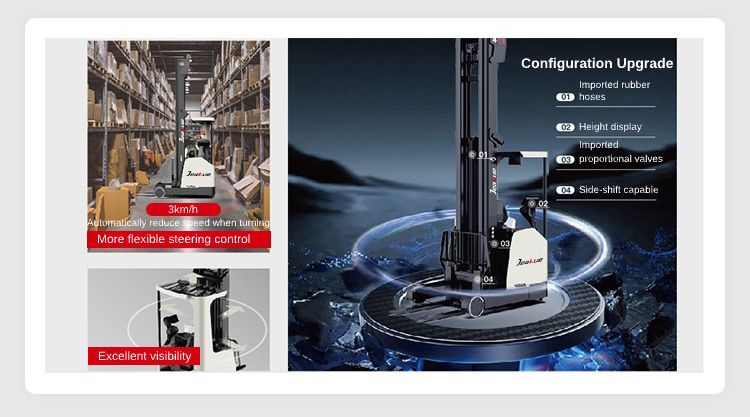

Standard imported rubber/resin hoses, quad-pipe system and built-in side-shifter.JEAKUE 1.4-1.6 Ton Lithium Battery Ride-on Reach Forklift Truck-L3

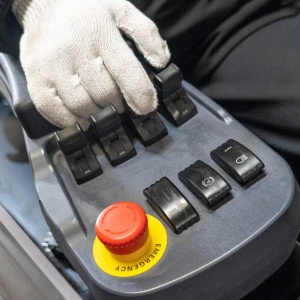

Flexible Control JEAKUE
Integrated mast controls for more flexible operation.
Integrated steering for easier handling.
Vector control system enables quick response.
Electronic steering with damping feedback for more precise control.
Integrated controls reduce operation range.JEAKUE 1.4-1.6 Ton Lithium Battery Ride-on Reach Forklift Truck-L3

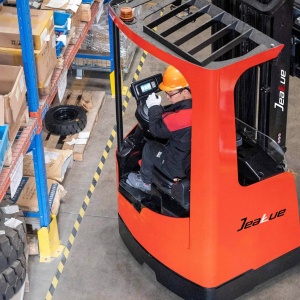

Excellent Visibility
JEAKUE  Compact lithium battery design improves visibility.

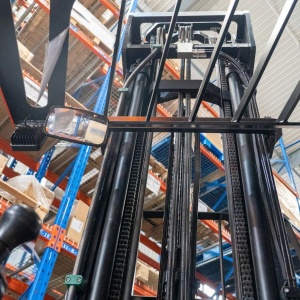

Hidden mast hoses and slim crossbeam design provide better stacking visibility.JEAKUE 1.4-1.6 Ton Lithium Battery Ride-on Reach Forklift Truck-L3

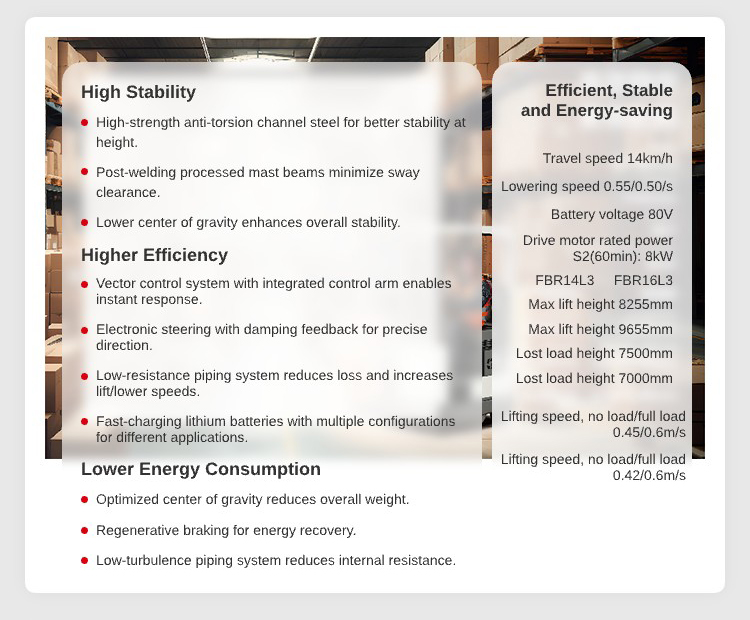

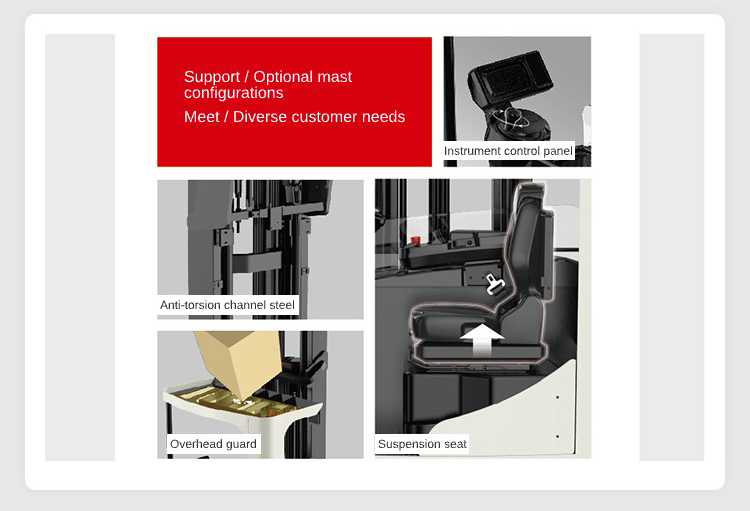

High Stability
High-strength anti-torsion channel steel for better stability at height.
JEAKUE Post-welding processed mast beams minimize sway clearance.
Lower center of gravity enhances overall stability.JEAKUE 1.4-1.6 Ton Lithium Battery Ride-on Reach Forklift Truck-L3

JEAKUE Higher Efficiency
Vector control system with integrated control arm enables instant response.
Electronic steering with damping feedback for precise direction.
Low-resistance piping system reduces loss and increases lift/lower speeds.
Fast-charging lithium batteries with multiple configurations for different applications.JEAKUE

Lower Energy Consumption
JEAKUE Optimized center of gravity reduces overall weight.
Regenerative braking for energy recovery.
Low-turbulence piping system reduces internal resistance.JEAKUE 1.4-1.6 Ton Lithium Battery Ride-on Reach Forklift Truck-L3
