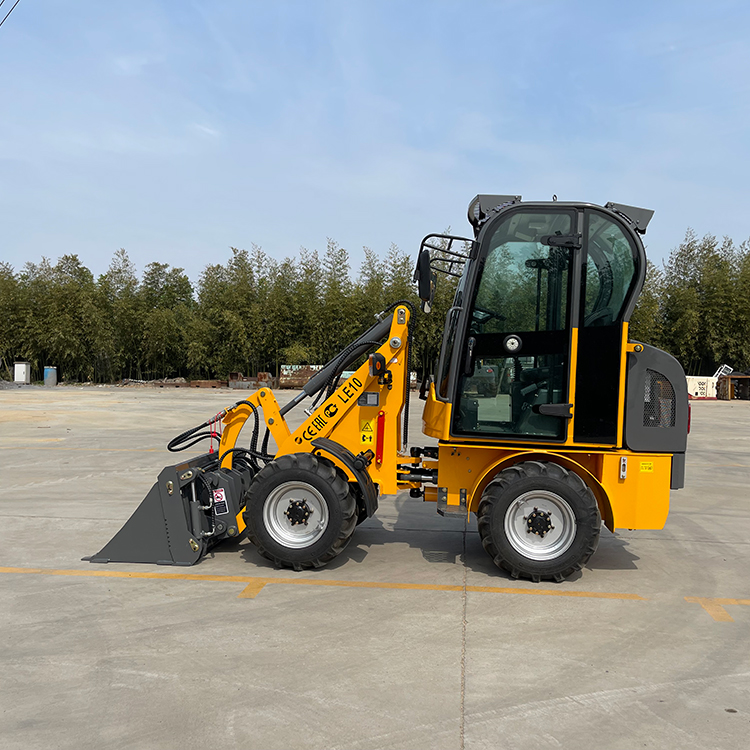

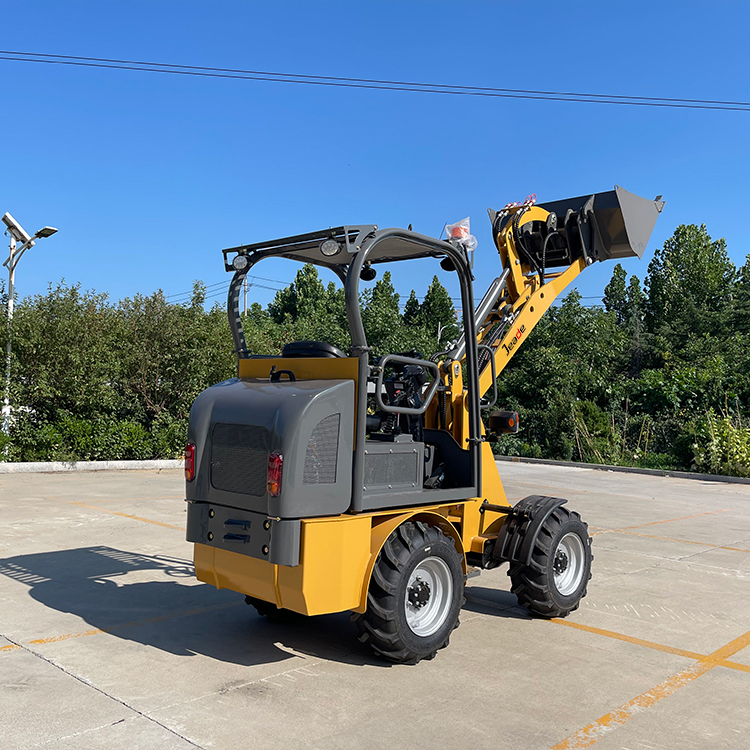

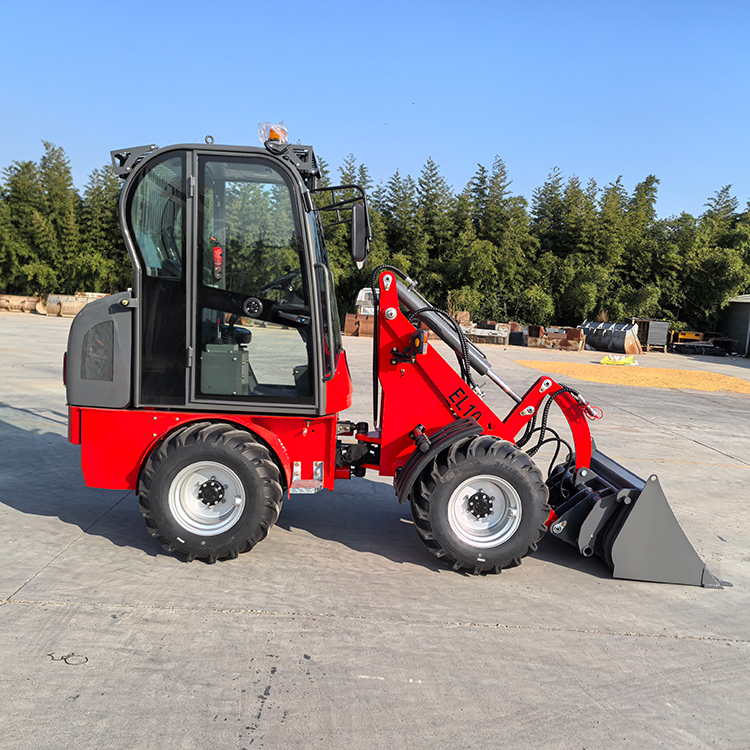

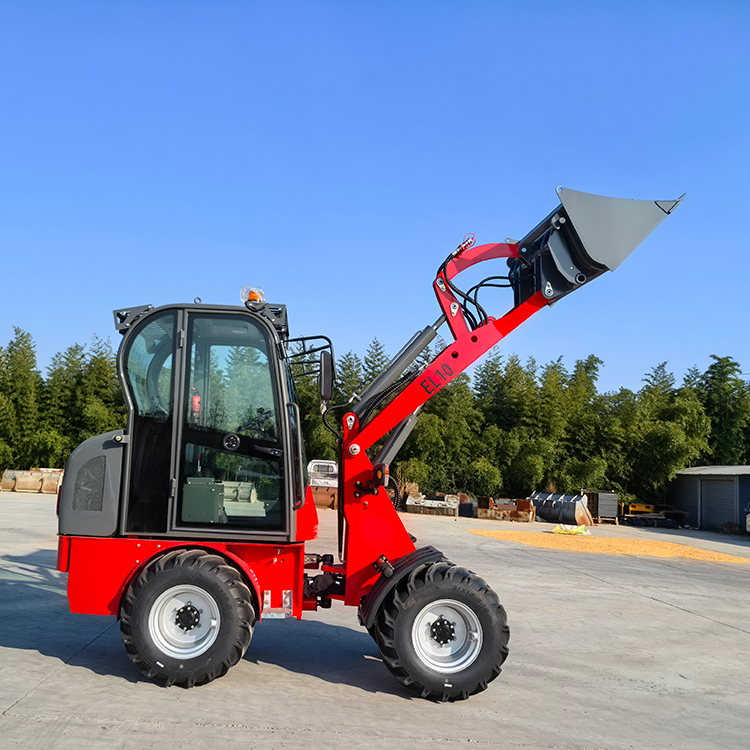

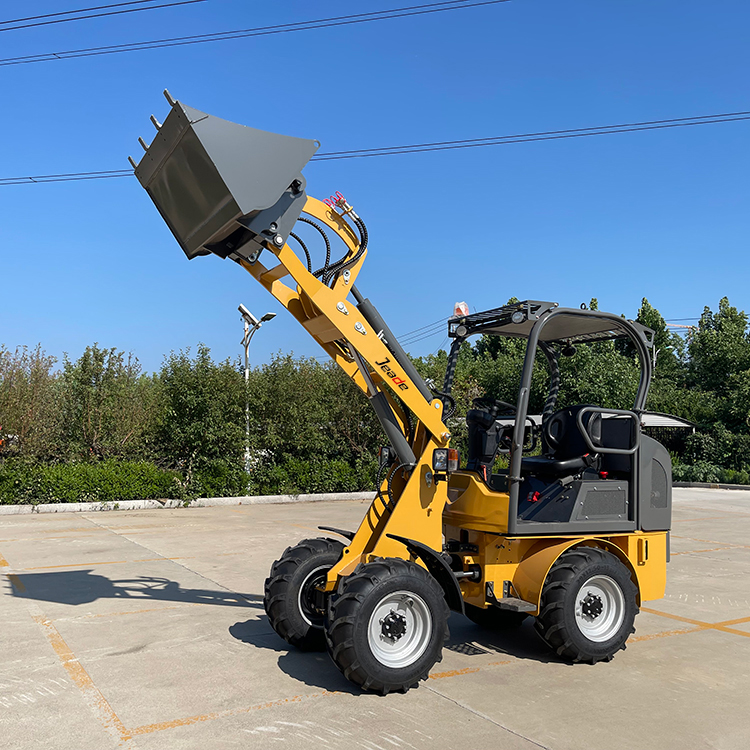

1 Ton(2204.62lb) Electric Wheel Loader-DA10

Rated Load:1000kg(2204.62lb)

Lifting Height:3400mm(133.86in)

Bucket rated capacity:0.4 m³(14.13ft³)

Battery:72V

Description

Performance	Rated Load（t)		1
	Bucket rated capacity（m³)		0.4
	Dumping height（mm)（at 45°）		2200
	Lifting Height（mm)		3400
	Dumping Reach（mm)		650
	Max. Lifting weight（kg）		1000
	Max. Excavation Force（kg)		1100
	Max. Grade ability (°)		18
	Max. Turning Angel (°)		29±1
Dimensions. &.Weight	Overall length（Bucket on Ground position）(mm)		4460
	Bucket width（overall width）(mm)		1600
	Overall Height (mm)		2230
	Wheel base (mm)		1100
	Min Ground Clearance(mm)		210
	Net Weight（kg)		2340
Battery	Battery Model No.		3-EVF-200A
	Rated capacity（3hr)		200Ah
	No.of battery groups		12
	Rated Voltage（v）		72
	Working hours（h）		4
Transmission System	Hydraulic System	Motor No.	YQP5-72AF-48P
		Voltage（v）	72
		Power（W）	5000
		Displacement（ml/r)	14
	Tyres	Type	29*12.50-15
		Working pressure（mpa)	0.3
		Qty	4
Steering System	Type of Steering Hydraulic System	Full Hydraulic Steering System
	System Pressure（mpa)	16
	Type of Steering Pump	Gear Pump
	Steering Cylinder Bore（mm)	Ø75
	Qty（pc）	2
Braking System	Service Brake		Drum Brake
				Brake Drum（mm)	240
	Parking Brake		Drum Brake
	Dumping Cylinder-Bore（mm)		Ø80
	Lifting Cylinder-Bore（mm)		Ø90
	Oil Capacity	Hydraulic Oil Tank（L)		54
Brake Fluid（L)		0.8
