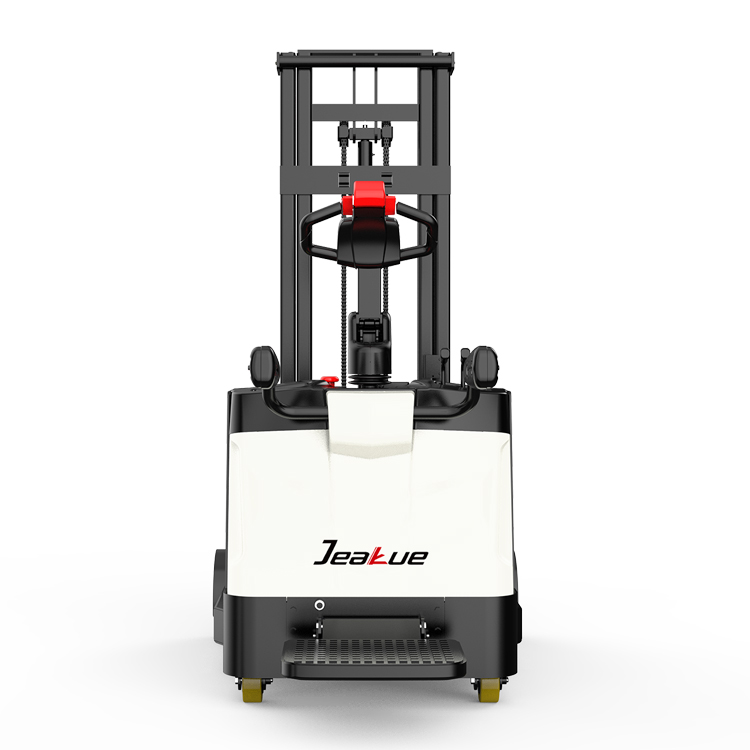

1 Ton(2204.62lb) Ride-on Electric Stacker-RSC101
Rated Capacity: 1000kg(2204.62lb)
Lift Height:2500mm(98.43in)
48V85Ah Lead Acid Battery
Description
Explore the RSC101
The RSC101 is a compact 1-ton electric counterbalance stacker designed for maximum flexibility. Featuring sensitive mast tilting and high ground clearance, it handles closed pallets and uneven terrain with ease. With its foldable pedal and compact size, the RSC101 offers versatile operation, combining the efficiency of a ride-on truck with the precision of a pedestrian stacker.
Sensitive mast tilting
1.Compact size for great flexibility
2.Foldable pedal
3.High ground clearance
4.Flexible pallet compatibility
Application
The RSC101 is engineered for versatile material handling in warehouses, loading docks, and retail backrooms. Its counterbalance design eliminates straddle legs, ensuring full compatibility with all pallet types, including closed-bottom pallets. With high ground clearance, it easily navigates ramps, dock levelers, and uneven surfaces. The compact frame and foldable pedal allow operators to seamlessly switch between efficient ride-on transport and precise pedestrian maneuvering in narrow aisles and tight spaces.
About the RSC101
The RSC101 is a 1.0-ton electric counterbalance stacker that bridges the gap between a forklift and a standard stacker. Unlike traditional stackers, it utilizes a true counterbalance design with sensitive mast tilting, ensuring seamless handling of various load types, including closed pallets. This eliminates the limitations of straddle legs, making it the perfect choice for facilities managing mixed inventory.
Designed for flexibility, the RSC101 features high ground clearance to tackle gradients and uneven floors with ease. Its foldable pedal system offers the best of both worlds: high-speed ride-on transport for longer distances and precise pedestrian control for tight corners. With its incredibly compact footprint, the RSC101 maximizes warehouse storage density while delivering a robust, agile, and cost-effective solution for diverse and dynamic material handling challenges.
PRODUCT PARAMETERS
| Load Capacity | 1000kg(2204.62lb) |
| Fork Dimensions | 1070/100/35mm(42.13/3.94/1.38in)（l x e x s) |
| Distance Between Fork-arms: | 850mm(33.46in) |
| Battery Voltage/Nominal Capacity | 48V85Ah Lead Acid Battery |
| Turning Radius | 1338/1732mm(52.68/68.19in) |
| Lift Height | 2500mm(98.43in) |
| Steering Design | Mechanical |
| Service weight | 1620kg(3571.49lb) |
| Product Color | Ivory/Red/Customization |
| Travel Speed, Laden/Unladen | 4.5/5 km/h |
| Max Gradeability,Laden/Unladen | 5/8 % |
| Motor power | 1.8KW |
Schematic diagram of use scenarios Operation on rough out door roads.JEAUE 1 Ton Standing Counterbalance Full Electric Stacker-RSC101

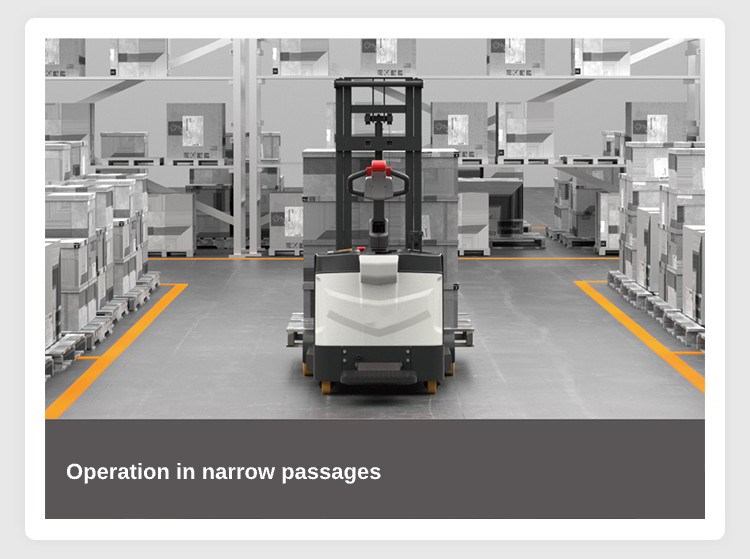

Operation in narrow passages
Transporting goods to shelves
Outdoor loading and unloading
JEAKUE 1 Ton Standing Counterbalance Full Electric Stacker-RSC101 Turning radius is only1338mm
Smallsize,more flexible: Overall length 2552mmTurning radius is only 1338mm
Excellent passability:JEAKUE 1 Ton Standing Counterbalance Full Electric Stacker-RSC101
Using large-diameter PU load-bearing wheels with a diameter of 298mm
100mm high ground clearance,good passability
JEAKUE 1 Ton Standing Counterbalance Full Electric Stacker-RSC101 5% slope Strong climbing ability:Can climb a 5% slope when fully loaded
Standard-equipped with fork forward and backward tiltfunction,more convenient for picking and placing goods
Drive assembly maintenance is more convenient,repair and replacement are simple and fast
JEAKUE 1 Ton Standing Counterbalance Full Electric Stacker-RSC101
